Simplify the recording process and attain the audio performance of a large-format console in a compact and elegant desktop package with the Audient iD14 MKII, a high-performance 10×6 USB type-C audio interface designed by respected experts, for musicians, producers, podcasters, voiceover artists, and more. The MKII edition not only boasts a fresh exterior, but new wonders inside, such as improved sonics, expanded outputs, and audio loopback for content creators.
The iD14 boasts a pair of the same Class-A mic preamps found in Audient’s world-class consoles, ensuring gold-star treatment for your dynamic or phantom-powered condenser microphones. A harmonically rich JFET 1/4″ instrument input is also provided, so you can plug your guitar or bass directly into the interface and get the character of valve amplifiers.
Outfitted with 24-bit / 96 kHz AD/DA converters, the iD14 delivers premium accuracy while remaining natural and musical, devoid of problems caused by distortion and unstable clocking. The inclusion of a TOSLINK optical port enables digital input expansion via an ADAT- or S/PDIF-equipped external mic preamp or A/D converter.
With two pairs of stereo 1/4″ monitor outputs, 1/4″ and 3.5mm headphone outputs, and comprehensive console-style monitor control, the iD14 interface lets you listen to your content in high quality, smoothly adjust your levels, and access dim, cut, mono sum, and more. Plus, there’s the revolutionary ScrollControl, a function that can be used to control anything over which your mouse pointer hovers.
DAW software, virtual instruments, samples, cabinet simulations, and more are included to get you started on your path toward achieving polished productions. The iD14 can be powered via USB from your Mac/Windows computer.
What’s New in the MKII
Redesigned appearance
USB Type-C connectivity
USB 3.0 bus powered
True phantom power over USB
Additional monitor/line outputs (four on the MKII versus two on the original iD14)
Two headphone outputs (1/4″ and 3.5mm), ready to drive headphones up to 600 ohms
Improved audio performance specs
Audio loopback for content creators
Two Class-A Microphone Preamps
The iD14 incorporates a Class-A microphone design developed by legend David Dearden and optimized over 20 years of refinement. It features high-grade opamp design that delivers low noise, low distortion, and high common mode rejection at all gain levels.
Analog I/O
The analog I/O includes two XLR-1/4″ combo mic/line inputs and a harmonically rich discrete JFET DI input, which is designed to replicate the input stage of a classic valve amplifier—plug your guitar, bass, keyboard, or drum machine straight in and start recording instantly.
Connect and listen to your mixes through two sets of speakers with iD14’s four line outputs. Alternatively use the extra line outputs to send audio to an external headphone amp for distribution to your artists.
Equipped with both 1/4″ and 3.5mm headphone jacks and a powerful headphone amp capable of driving headphones up to 600 ohms, the iD14 is ready to take on the most demanding recording sessions.
8-Channel Digital Input Expansion
The iD14’s TOSLINK optical input can accept ADAT or S/PDIF digital signals, allowing up to eight additional inputs over a single digital cable. Expand your recording setup with an ADAT-equipped 8-channel mic pre such as the ASP880 (available separately).
Audio Loopback
Audio loopback enables you to capture playback from applications on your computer at the same time as your microphones, an ideal function for content creators, podcasters, and streamers.
ScrollControl
With a touch of a button, the iD14’s volume encoder becomes a virtual scroll wheel that allows you to adjust DAW hosts, plug-in parameters, iD14’s mixer app, and even scroll through your iTunes library. Wherever your mouse pointer hovers, the iD knob can scroll to control.
When not using the virtual scroll wheel, the iD button can be assigned to control the unit’s monitoring features such as dim, polarity reverse, mono sum, talkback, and more.
Console-Style Monitor Controller
Take advantage of the onboard console-style monitor control functions including mono sum, polarity, dim, cut, talkback, and cue-mix monitoring; all the pro-level features you’d normally only find in far more expensive interfaces.
Software Mixer
Whether you’re creating low-latency cue mixes or utilizing the flexible monitor control, the iD14 tightly integrates the hardware and software to make the recording process easy.
Built-In Talkback
New dedicated talkback technology enables you to utilize any audio source connected to your computer (e.g. your computer’s built-in mic or a USB microphone) as your talkback mic, freeing up valuable mic pres while offering an effective talkback solution no matter where you are.
Rugged Durability
Thanks to all-metal construction, aluminum knobs, and high-grade component selection, the iD14 can stand up to countless late nights in the studio and days on the road.
Bundled Software
Compatible with all major audio software and plug-ins, the iD14 comes bundled with a collection of professional software, giving you everything you need to start recording.
Steinberg Cubase LE and Cubasis LE 3: Turn your Mac/Windows computer or iPad into an easy-to-use music studio with all the basic tools for recording, editing, and mixing, for everything from the initial musical idea to the final track.
Steinberg Retrologue 2: This virtual instrument emulates the warmth and fatness of classic analog synthesizers, producing a wealth of sounds that will inspire you time and again.
Waldorf Edition 2 LE: Software emulations of three classic Waldorf products, including the legendary synth PPG Wave 2, drum module Attack, and filter D-pole.
Two Notes Torpedo Wall of Sound: A speaker and miking simulation plug-in with eight carefully selected cab emulations, including emulations of MesaBoogie, Fender, and Ampeg.
GForce M-Tron Pro LE: An industry-standard emulation of the classic Mellotron tape playback keyboard.
The Sample Boutique from Loopmasters: Over 2GB of drum loops, synth loops, vocal loops, and more.
Produce Like a Pro: Three free online courses full of valuable insight and techniques.
Subitopiano: Get 20 minutes of time (at no extra cost) recording your MIDI tracks on a real grand piano through a specifically designed and fully automated studio, all over the web.
Audient ID14 MKII Specs
Form Factor Desktop
Display 2 x Multi-Segment LED Meter
Channels of I/O Analog:
2 Inputs / 6 Outputs at 96 kHz
Digital:
8 Input / 0 Output at 48 kHz
Maximum Sampling Rate 96 kHz / 24-Bit
Number of Microphone Preamps 2 Preamps
Input Level Adjustment 2 x Knob
Expansion Slots None
Signal Processing
Pad None
Gain/Trim Range Mic/Hi-Z Inputs:
58 dB
Hi-Z Inputs:
40 dB
High-Pass Filter None
Solo/Mute None
Connectivity

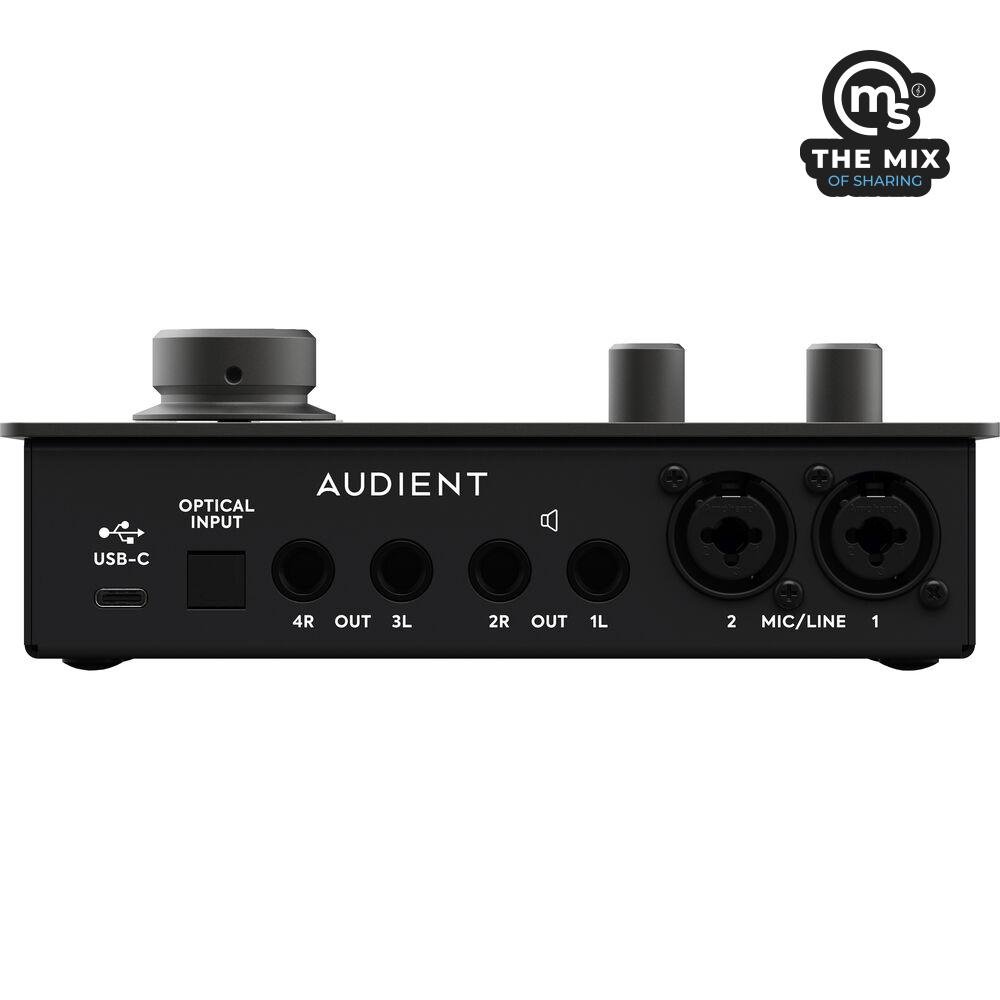

Analog Audio I/O 2 x Combo XLR-1/4″ TRS Balanced Mic/Line Input
1 x 1/4″ TRS Unbalanced Hi-Z Input (Front Panel)
4 x 1/4″ TRS Balanced Line/Monitor Output
1 x 1/4″ TRS Unbalanced Headphone Output (Front Panel)
1 x 1/8″ / 3.5 mm TRS Unbalanced Headphone Output (Front Panel)
Phantom Power 48 V ± 4 V, Selectable On/Off (Selectable on Individual Inputs)
Phantom Power Current 10 mA per Channel
Digital Audio I/O 1 x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)
Host Connection / USB 1 x USB-C
Host Connection Protocol USB 3.0 / 3.1/3.2 Gen 1
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity None
Performance
Frequency Response A/D Converters:
10 Hz to 40 kHz ±0.5 dB
D/A Converters:
10 Hz to 40 kHz ±0.1 dB
Headphone Outputs:
10 Hz to 40 kHz ±0.25 dB
Mic, Line Inputs:
10 Hz to 40 kHz ±0.5 dB (Min Gain)
20 Hz to 22 kHz ±1 dB (Max Gain)
Hi-Z Inputs:
10 Hz to 20 kHz ±0.5 dB
Maximum Input Level Mic Inputs:
+12 dBu
Line Inputs:
+21 dBu
Hi-Z Inputs:
+10 dBu
Maximum Output Level Headphone Outputs:
+5.46 Vrms (600-Ohm Load)
Headphone Output Power 223 mW into 30 Ohms (Max)
280 mW into 62 Ohms (Max)
100 mW into 600 Ohms (Max)
Impedance Mic Inputs:
2.8 Kilohms (Balanced)
Line Inputs:
> 8 Kilohms (Balanced)
Dynamic Range A/D Converters:
120 dB (A-Weighted)
D/A Converters:
125.5 dB (A-Weighted)
Headphone Outputs:
125.5 dB (A-Weighted)
SNR Mic/Line Inputs:
101 dBu (A-Weighted)
Hi-Z Inputs:
100 dBu (A-Weighted)
THD+N Mic/Line Inputs:
0.0017% (at 0 dBu)
Hi-Z Inputs:
0.1% (at 0 dBu)
A/D Converters:
< 0.001% (at -1 dBFS)
D/A Converters:
< 0.0006% (at -1 dBFS)
Headphone Outputs:
< 0.0009% (at -1 dBFS)
Crosstalk Mic Inputs:
> -100 dB
Line Outputs:
> 120 dB
Headphone Outputs:
> 116 dB
EIN Mic/Line Inputs:
-129 dBu A-Weighted
CMRR Mic/Line Inputs:
> -75 dB (1 kHz)
Digital Audio
dBFS Reference Level +12 dBu = 0 dBFS
Sample Rates 44.1 / 48 / 88.2 / 96 kHz
Sample Rate Conversion None
Bit Depths 24-Bit
Latency 0.65 ms at 44.1 kHz (Dependent on Buffer Size, Input to Output)
0.31 ms at 96 kHz (Dependent on Buffer Size, Input to Output)
Sync Sources ADAT, Internal, S/PDIF
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility macOS 10.11.6 or Later
macOS 11.1 or Later
Windows 7 or Later
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Included Software Cubase LE
Compatible Software (Not Included) Any Core Audio (Mac) Compliant Software
Included Plug-Ins Virtual Instruments:
Steinberg Retrologue 2
G-Force M-Tron Pro LE
Waldorf Edition 2 LE
Guitar & Bass:
Two Notes Torpedo Wall of Sound
Supported Drivers/API & Plug-Ins Proprietary
Processor Requirement Mac:
Intel
Apple M1
PC:
1.6 GHz Intel Core 2
RAM Requirements 1 GB
Mobile Device Compatibility None
Required Hardware Available USB-C Port
USB Cable (Included)
Internet Connection Required for Registration, Software/Driver Download
Power
Power Requirements USB Bus Power
Physical
Anti-Theft Features Kensington Security Slot
Dimensions 6.8 x 4.7 x 2.4″ / 17.3 x 12 x 6.2 cm (Including Controls and Protrusions)
Packaging Info
Package Weight 2.33 lb
Box Dimensions (LxWxH) 9 x 6 x 3.6″
