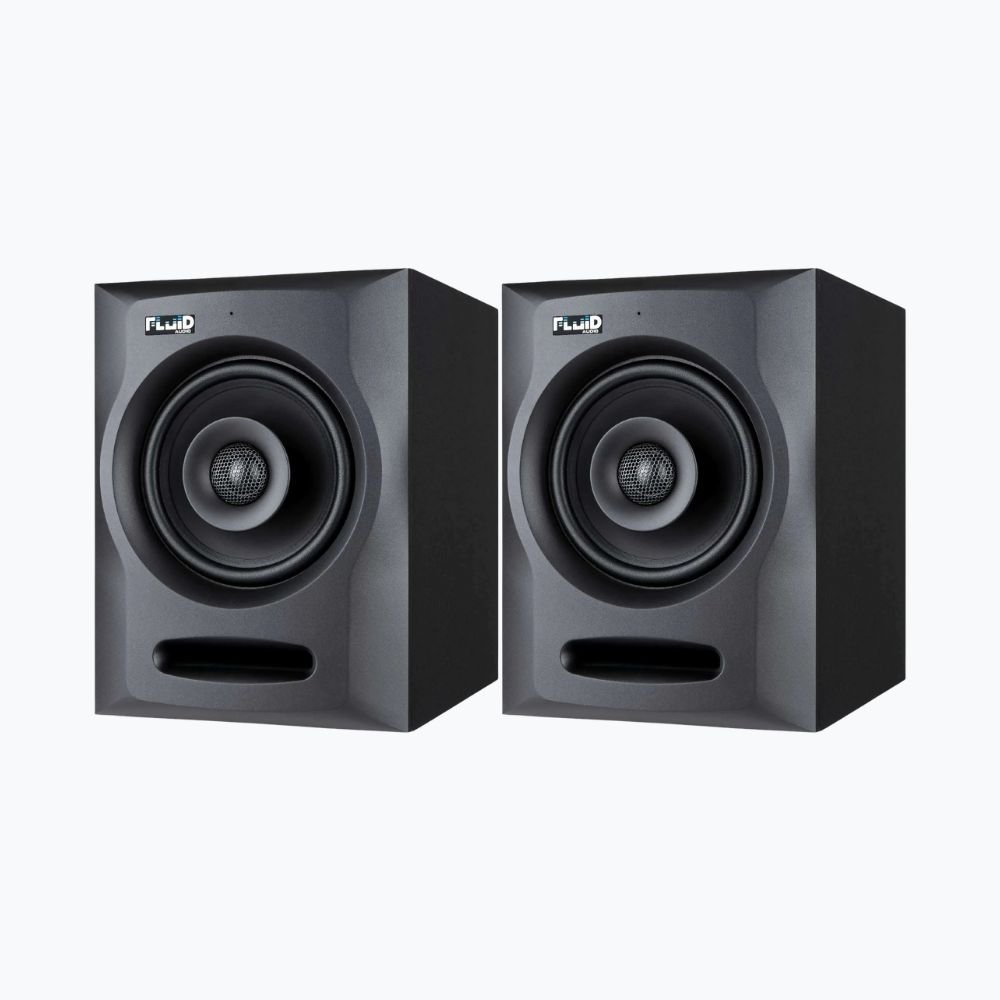

Introducing the FX50v2

Keeping true to the original F-Series “keyhole” design, the FX enclosure has been updated with a complex radius front baffle, which not only looks pretty cool, it improves cabinet diffraction.
(CEILING AND WALL MOUNTABLE FOR DOLBY ATMOS SETUP)

Coaxial driver
Mounted in the center of the woofer is a 25mm silk dome tweeter in a coaxial configuration. Using this technology (unique in its price range) makes it a “point source” device, meaning that all the sound emanates from a single point – not points that are 10″ apart. This is crucial for improving off-axis response, but also allows for a more compact footprint cabinet. Another benefit of coaxial studio monitors is phase coherence, which greatly improves sound clartiy and imaging.

Boundary compensation DIP switches
Sometimes the spaces where we mix aren’t the most forgiving acoustically (especially if you’re in a home studio).

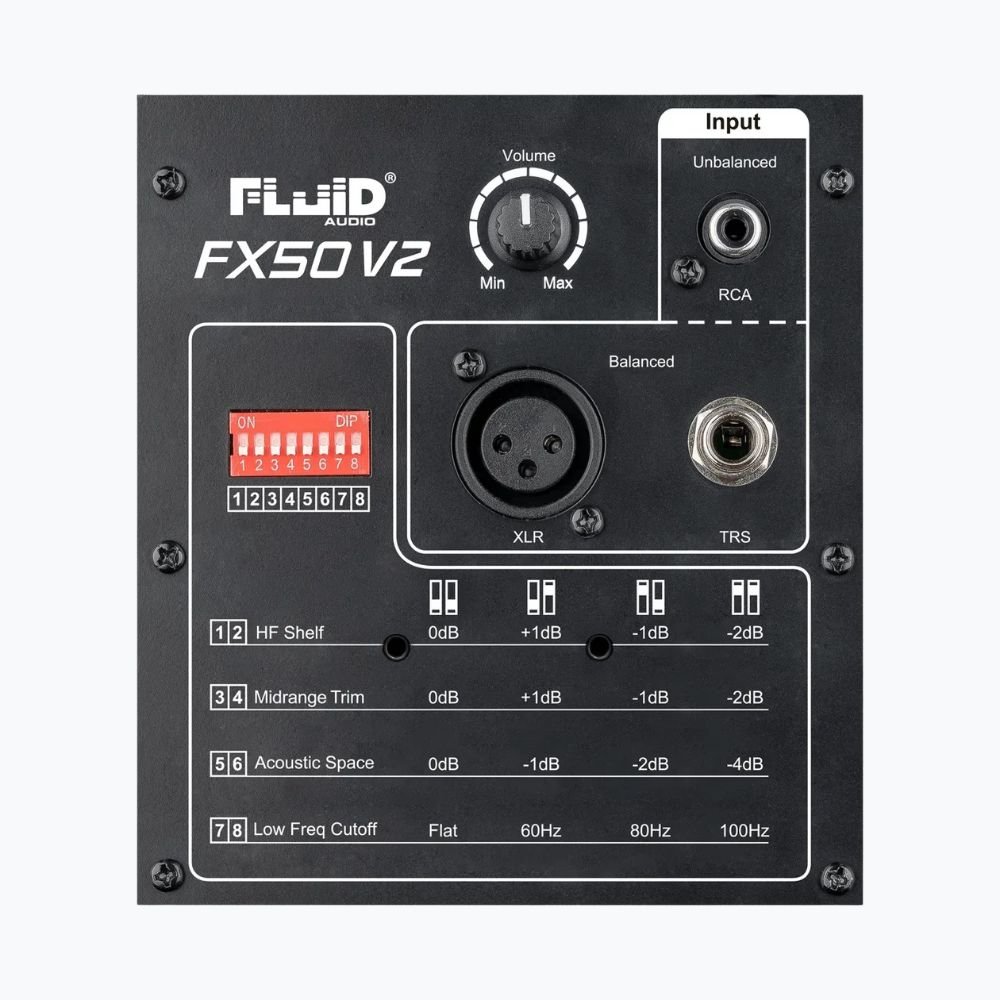

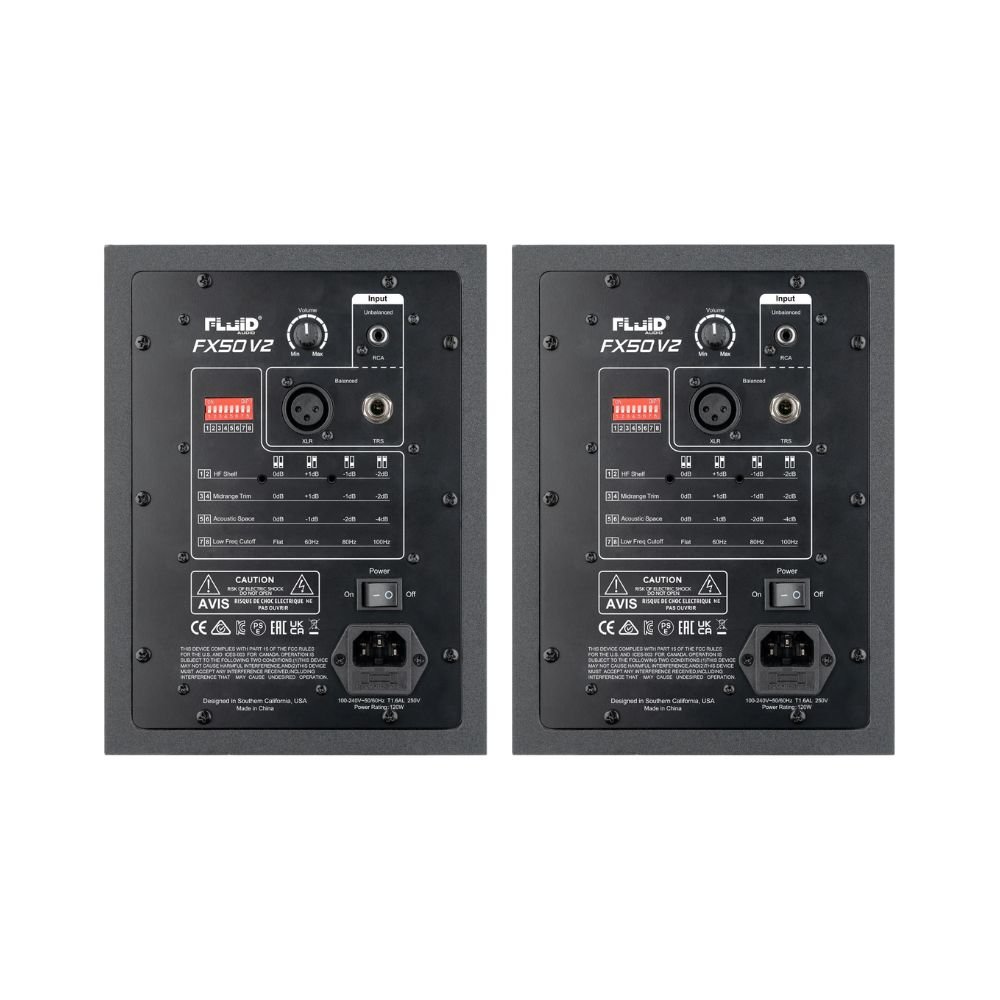

The FX series monitors come equipped with DSP controlled boundary control EQ switches, that allow you to compensate for spaces that may not have been “tuned” or just need to be adjusted due to their proximity to the wall behind them. There is also a guide conveniently printed on the rear panel to show how the DIP switches work, and a more detailed explanation in the user guide.

Class D and DSP powered
The FX50v2 is a Class-D bi-amplified studio monitor.Class-D benefits are clean, reliable power, more headroom, less power consumption and heat.
It also employs a powerful DSP standalone integration. The digitally controlled crossover makes each monitor more even and consistent.
The new FX series is truly a 21st Century reference monitor at home in any recording studio.

LED indicator on front baffle
The illuminated LED on the front panel is not only a status indicator, displaying whether the FX monitor is on, off or in standby, but also acts as an alignment beacon which allows you to properly align your speakers to your ear level.

V2 Improvements
We have listened to the constructive feedback from our customers and implemented a few improvements to the FX series. The biggest being a general flatting of the frequency response. We uncovered a few more EQ biquads and applied them to areas that could use flattening. The result is a more even response, optimum for mixing. The other improvement is updating the panel artwork to be a little bigger and clearer to read.
