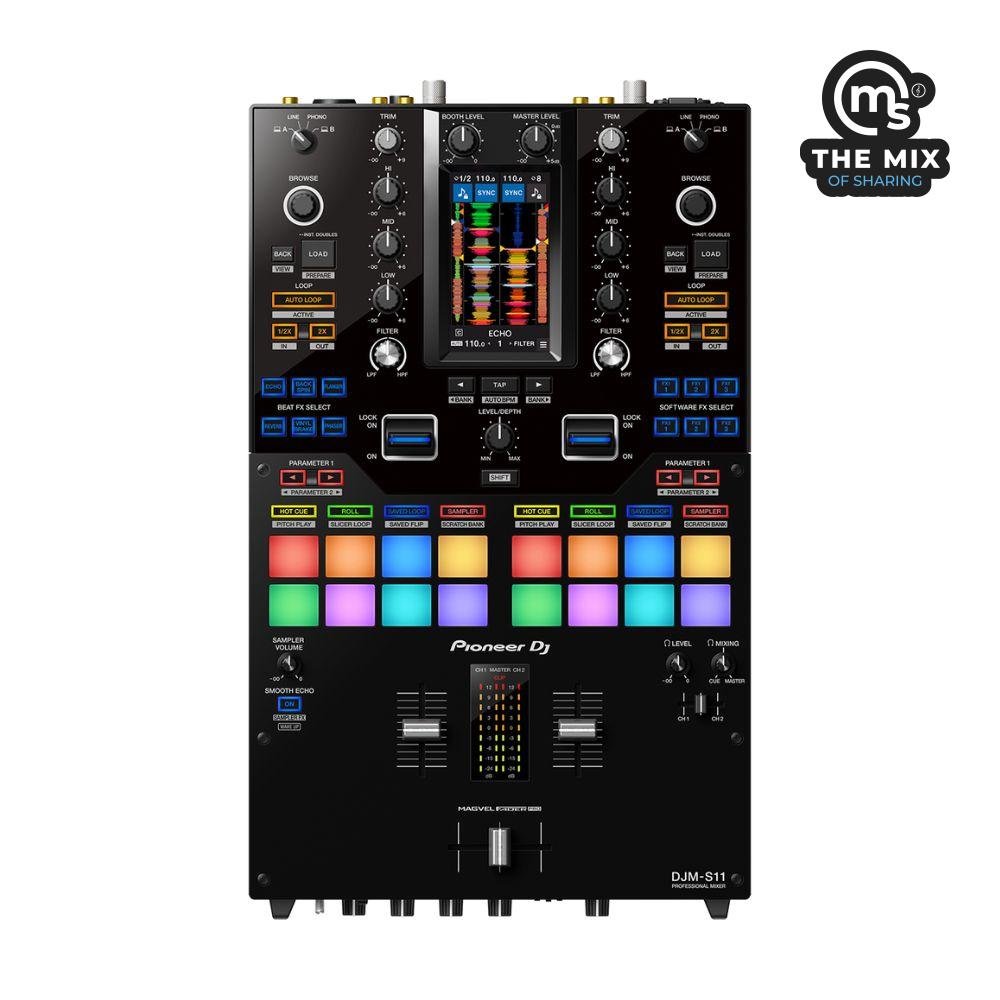

Pioneer DJ DJM-S11 Professional Scratch Style 2-Channel DJ Mixer

TURN IT UP TO 11
Raise your game with the DJM-S11. This new professional 2-channel, 4-deck control battle mixer enhances various elements from its predecessor, the DJM-S9, and offers a host of brand-new features to help you perform more freely with Serato DJ Pro or rekordbox.

KEY FEATURES

Customizable touch screen
A 4.3-inch customizable touch screen gives all the information you need. Browse tracks, check waveforms, and dynamically change the texture of the music with TOUCH FX. With Touch MIDI you can directly control functions in your DJ software without touching your laptop.

Discover more
Customizable touch screen

Waveform screen
Spend more time focusing on your mix thanks to the high-frame-rate color touch screen, which shows everything from waveforms to BPM so you can stay in the zone. You can even customize it with your preferred style of layout.

Browse screen
Rapidly select tracks by checking the information on the screen – there’s no need to look at your laptop – and instantly see their playback status.

DECK 3/4 Control screen
Want to pack more sounds into your sets? Play up to 4 tracks or samples simultaneously with Deck 3/4 Control, an innovative feature that adds two extra decks – accessible via the touch screen. These additional decks let you control EQs, Hot Cues, pitch bend, and more.

Deck Move
Access two extra Deck 3/4 features with Serato DJ Pro. With Deck Move, you can seamlessly move tracks from deck 1 to 4 and deck 2 to 3. Use it to free up your main decks when mixing and scratching. Use Dual Deck control to adjust volume and effects for two decks at once.

Touch FX screen
Express yourself in new ways. Switch to the Touch FX screen and you can control 2 effects at the same time by tracing a finger across the surface while the other hand is scratching with the crossfader or finger drumming on the Performance Pads.

FX Setting screen
In the FX Setting screen, you can save 4 banks of effect types and parameters, then instantly call them up in different scenarios, e.g. when you’re battling, mashing up tracks, or playing a club set.

Touch MIDI screen
Touch MIDI offers four pages of presets that enable you to control functions in your DJ software without touching your laptop. The controls can also be custom MIDI mapped, enabling you to set things up to suit your style.

Expanded effects section
Spice up your sets with 22 Beat FX, including the new Fader Pitch and Helix. Smooth Echo is a new effect that you can automatically engage when you move the faders or hit the pads you’ve assigned as triggers.
Discover more
Expanded effects section

Smooth Echo
Assign the Smooth Echo effect to your choice from a selection of controls, e.g. a fader or pad. Turn on Smooth Echo with its dedicated button, and the echo will be triggered as soon as you move the relevant control. Its changeable parameters let you create new sounds.

22 Beat FX
Spice up your sets with all 15 Beat FX from the DJM-S9, plus 7 new ones including Fader Pitch and Helix. Trigger up to 6 more effects from your DJ software to create sounds your crowd has never heard before.

Improved Performance Pads
The 8 Performance Pads are bigger, making them easier to hit in energetic battles. In Serato DJ Pro, use Combo Pad mode to combine up to 4 different pad modes at once, and use Scratch Bank to call up assigned scratch samples by just tapping a pad.

Discover more
Improved Performance Pads

Combo Pad mode
Activate Combo Pad mode in Serato DJ Pro to use up to 4 different pad modes simultaneously (2 modes per channel, 4 pads per mode) and combine even more features.

Scratch Bank
With the new pad mode Scratch Bank, you can instantly call up scratch samples that you’ve assigned in Serato DJ Pro by simply tapping a pad. There’s no need to browse via the touch screen or your laptop.

Enhanced MAGVEL FADER PRO
We’ve enhanced the feeling of the MAGVEL FADER PRO and boosted its vertical rigidity by 30 percent. This means you can scratch with more confidence, while the tougher coating around the crossfader area reduces wear and tear.

Inside story – MAGVEL FADER evolution
Inside story – MAGVEL FADER evolution

Crystal-clear sound quality
The DJM-S11 inherits the raw and high-density sound from the DJM-900NXS2 thanks to studio-quality 64-bit mixing and dithering processing inside the DSP, and a low-jitter clock circuit and 32bit high-quality D/A converter in the master output section.

Main Features
MIDI Control Full assignable MIDI controls
Auto Standby Yes
Compatible DJ Software “Unlocks Serato DJ Pro
rekordbox”
DVS Control “Unlocks Serato DVS
rekordbox”
Software System Requirements “Visit serato.com for its specifications.
Visit rekordbox.com for its specifications.”
Accessories “DJM-S11
Power cord
USB cable
Fader bumper A x 4
Fader bumper B x 2
Warranty (for some regions)
Quick Start Guide
Precautions for Use
Serato DJ Pro Expansion Pack voucher (Pitch ‘n Time DJ)”
Specifications
Frequency Range 20 – 20000 Hz
Width 10.51 in
Height 4.25 in
Depth 17.8 in
Weight 11.46 lb
Power Consumption 34W
Power Supply AC 100-240 V, 50 Hz / 60Hz
S/N Ratio USB “115 dB (USB)
105 dB (LINE)
90 dB (PHONO)
80 dB (MIC)
90 dB (AUX)”
Distortion “0.003% (USB)
0.005% (LINE)”
Master
Level Meter Size 9 segment
Channels
EQ/ISO 3 band
EQ/ISO Range “–∞ dB to +6 dB (ISO)
–26 dB to +6 dB (EQ)”
Reverse Channels Yes
Peak Limiter Yes
Performance Control
Channels $2
Sound Color FX “Filter
Dub Echo
Noise
Pitch
Wide Filter”
Beat FX “Echo
Ducking Echo
Echo Out
Spiral
Helix
Delay
Reverb
Back Spin
One-shot Spin
Vinyl Brake
One-shot Brake
Flanger
Phaser
HP Filter
LP Filter
Trans
Kill
Roll
Fader Pitch
Fader Synth”
Deck 3/4 control Yes
Effect Sampler
3-Band Isolator Yes
Auto BPM Counter Yes
Crossfader
Crossfader Type MAGVEL FADER PRO
CURVE Assignable Yes
Reverse Crossfader Yes
Feeling Adjustment Yes
Mic
Mic Connection XLR / 1/4-inch Combo Jack
Talkover Attenuator Yes
Sound card
Connection USB (Type-B)
Sample Rate 24 bit
Frequency 48 kHz
Terminals
Inputs “2 LINE (RCA)
2 PHONO (RCA)
1 MIC (XLR & 1/4 inch TRS Jack)
1 AUX (RCA)”
Outputs “2 MASTER (XLR, RCA)
1 BOOTH (1/4 inch TRS Jack)
2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)”
USB “2 USB A ports
2 USB B ports”

[embedyt] https://www.youtube.com/watch?v=05QRp7spBXU[/embedyt]

Brand

Pioneer DJ
