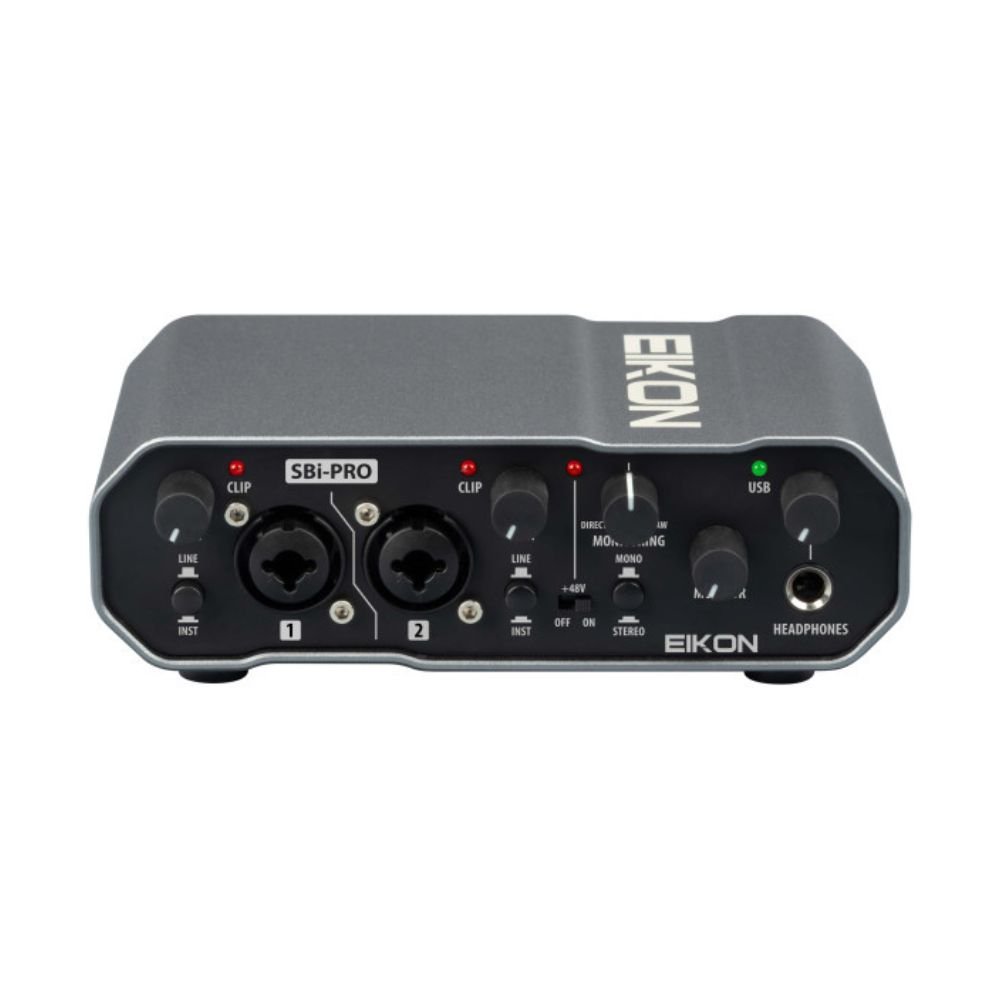

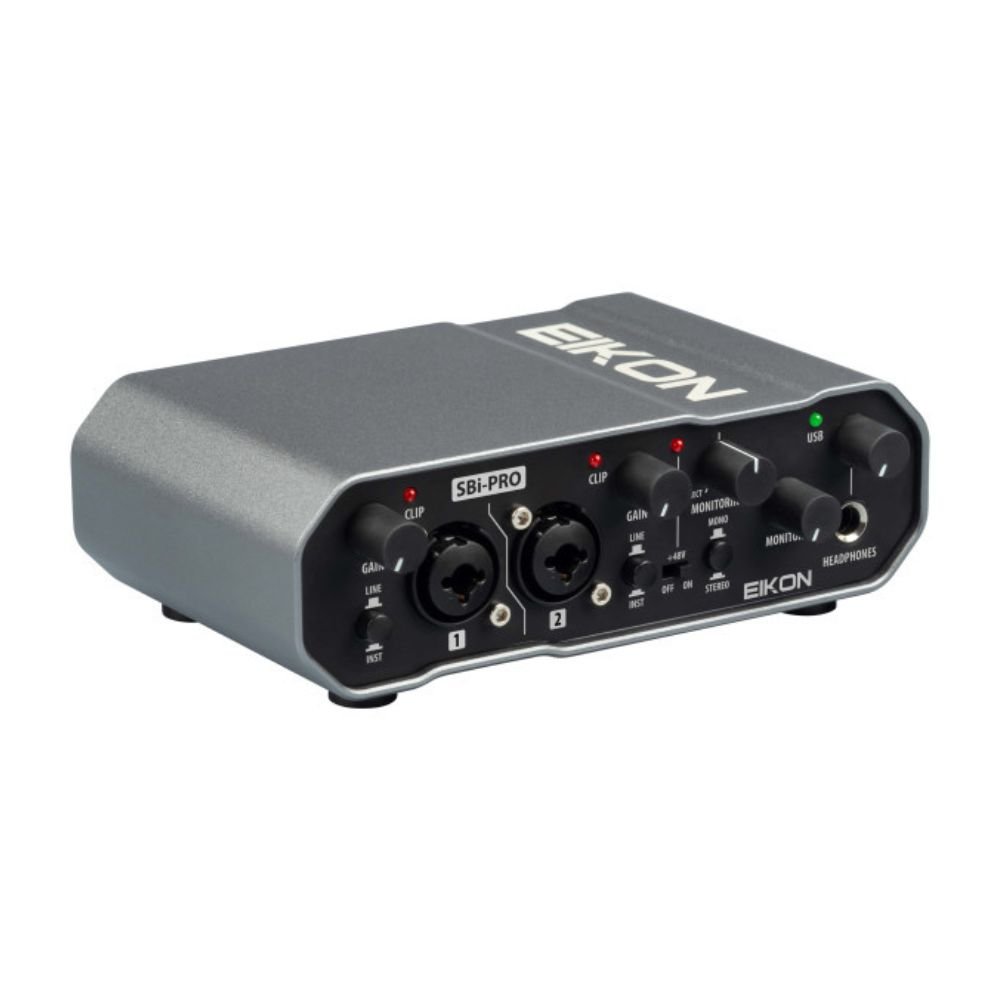

Eikon Audio EKSBIPRO USB Audio Interface for home or mobile recording

2-in + 2-out 24-bit/192 kHz USB Portable Audio Interface for home or mobile like ipad

Description

192khz usb audio interface

SBi-PRO is an USB audio interface designed to offer studio quality for home or mobile recording, live stream or podcasting. Utilizing high-grade components, premium circuitry and a compact and rugged design, it provides a full set of features and top performances for musicians, songwriters content creators and podcasters.

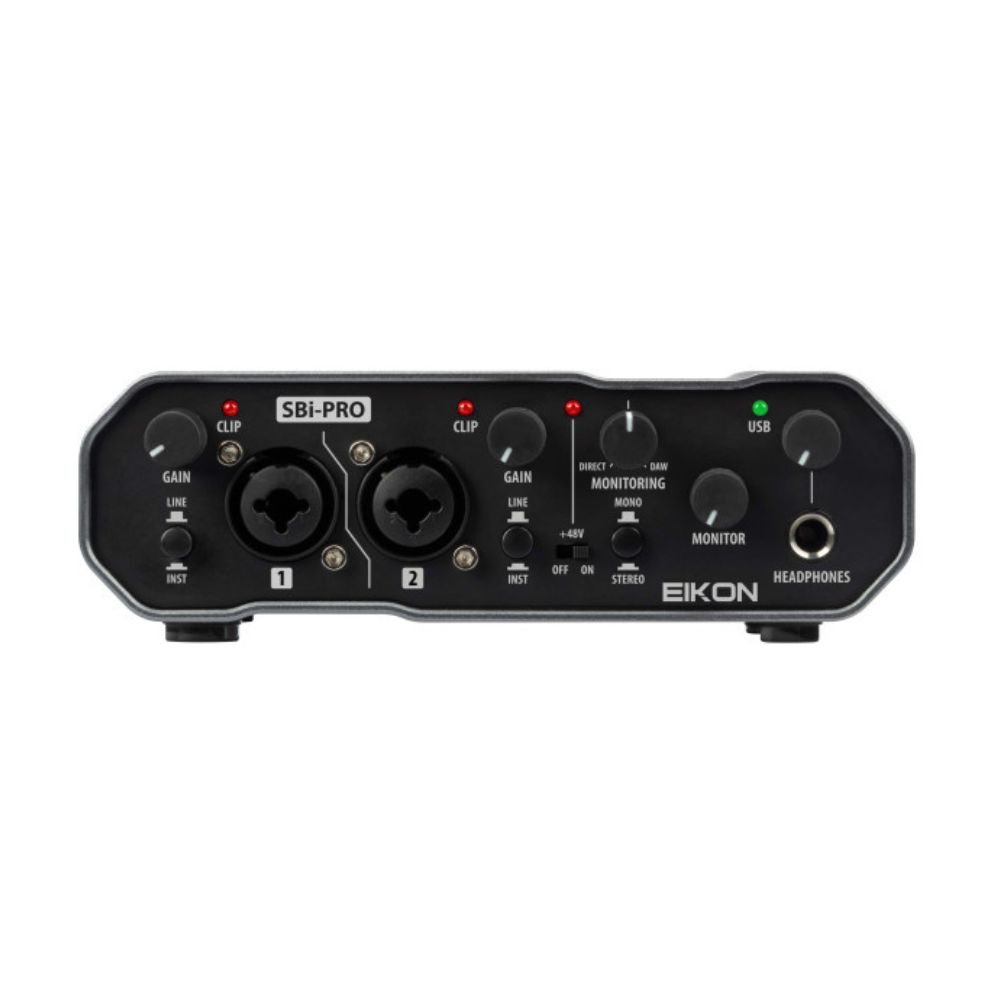

Two XLR/TRS inputs with HI-Z switch for recording vocals and instrument together or stereo sources
High-definition MIC preamps with extended dynamic range and 48V phantom power
2-in + 2-out high-resolution 24-bit/192KHz USB2.0 interface for a flawless audio quality
Zero-latency DIRECT MONITORING with STEREO/MONO selector and mixing control between input signals and DAW playback

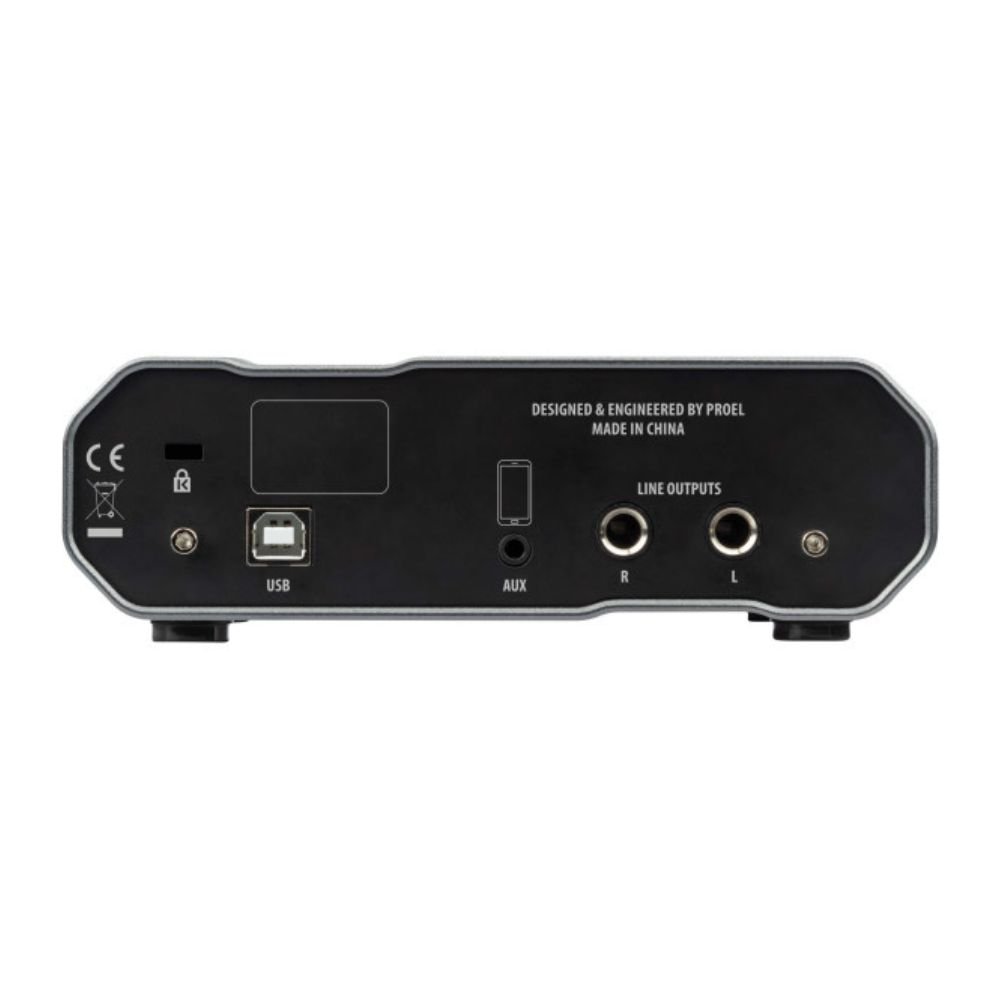

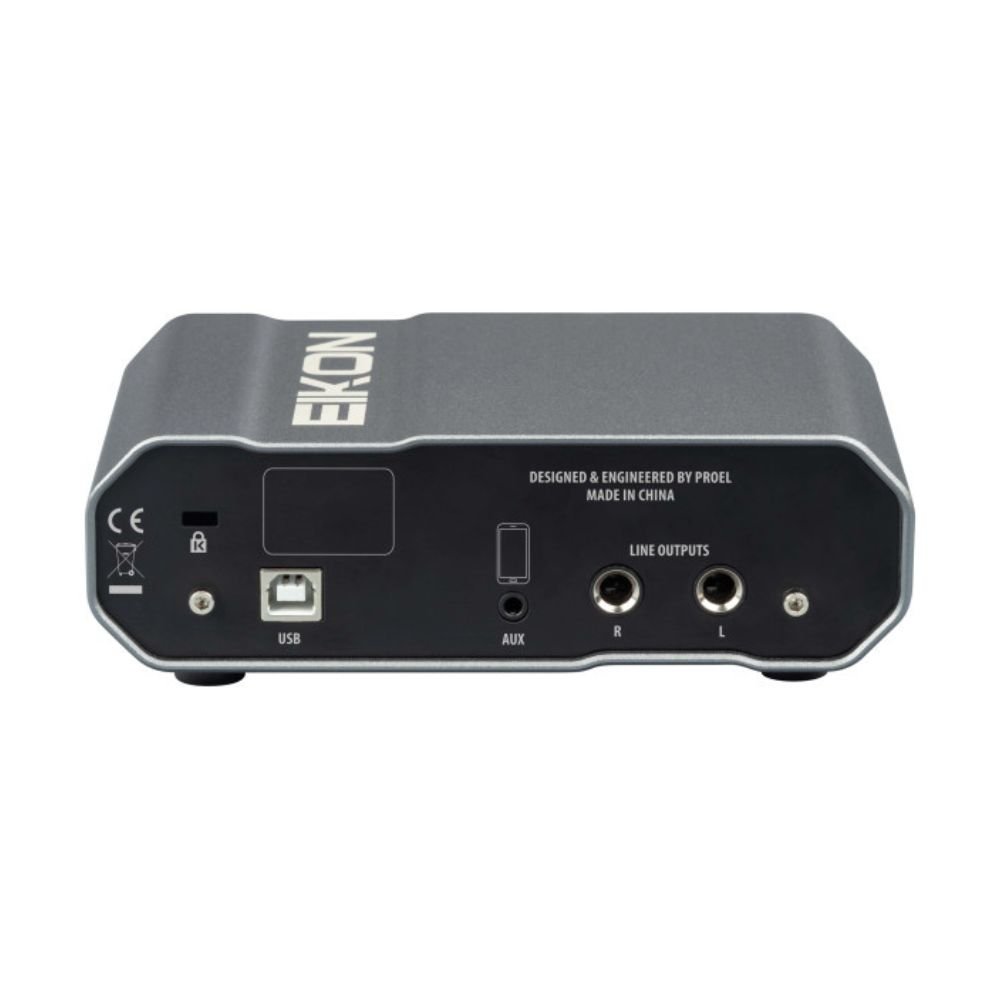

Analog outputs for connecting studio monitors
Headphones output with separate level control
Minijack AUX input/output for recording or podcasting applications directly on tablet or smartphone
USB bus powered for easy mobile recording
Rugged, road-proof aluminum chassis for maximum protection

Specification

Microphone Preamp
Type	XLR female, balanced
Frequency Response (±3.0 dB)	10 Hz to 22 kHz
Input Impedance (Balanced)	1,32 kΩ
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain)	< 0.005%
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz)	> 99 dB
Common Mode Rejection Ratio (1 kHz, 40 dB Gain)	> 65 dB
Gain Control Range (± 1 dB)	0 dB to 45 dB
Max Input Level (Unity Gain, 1 kHz @ 0.1% THD+N)	-2 dBu
Phantom Power (±2 VDC)	+48 VDC
Line Input
Max Input Level (Unity Gain, 1 kHz @ 0.1% THD+N)	+22 dBu
Type	JACK ¼” TRS female, balanced
Input Impedance	15 kΩ
Instrument Input
Max Input Level (Unity Gain, 1 kHz @ 0.1% THD+N)	+22 dBu
Type	JACK ¼” TS female, unbalanced
Input Impedance	1 MΩ
Line Outputs
Type	JACK ¼” TRS female, balanced
Output Impedance	600Ω
Headphone Output
Type	JACK ¼” TRS active stereo
Maximum Output	50 mW/ch. @ 32Ω Load
Frequency Response (±1.0 dB)	10 Hz – 25 kHz
Digital Audio
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate)	108 dB
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate)	109 dB
Bit Depth	16 / 24 /32
Reference Level for 0 dBFS	+10 dBu
Internal Sample Frequency Selections (kHz)	44.1, 48, 88.2, 96, 176.4, 192
Power	USB bus-powered
Physical
Height	52 mm (2.05″)
Depth	106 mm (4.17″)
Width	160 mm (6.30″)
Weight	0.55 kg (1.21 lbs)
