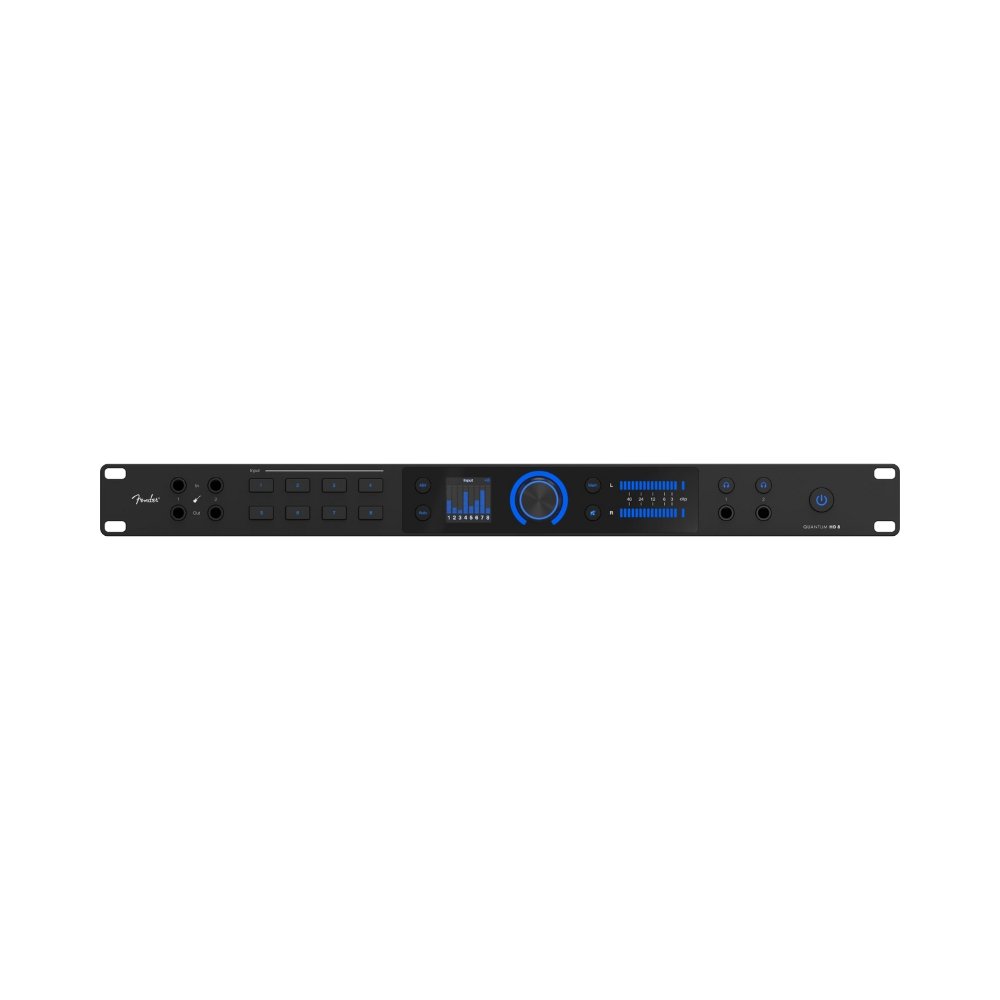

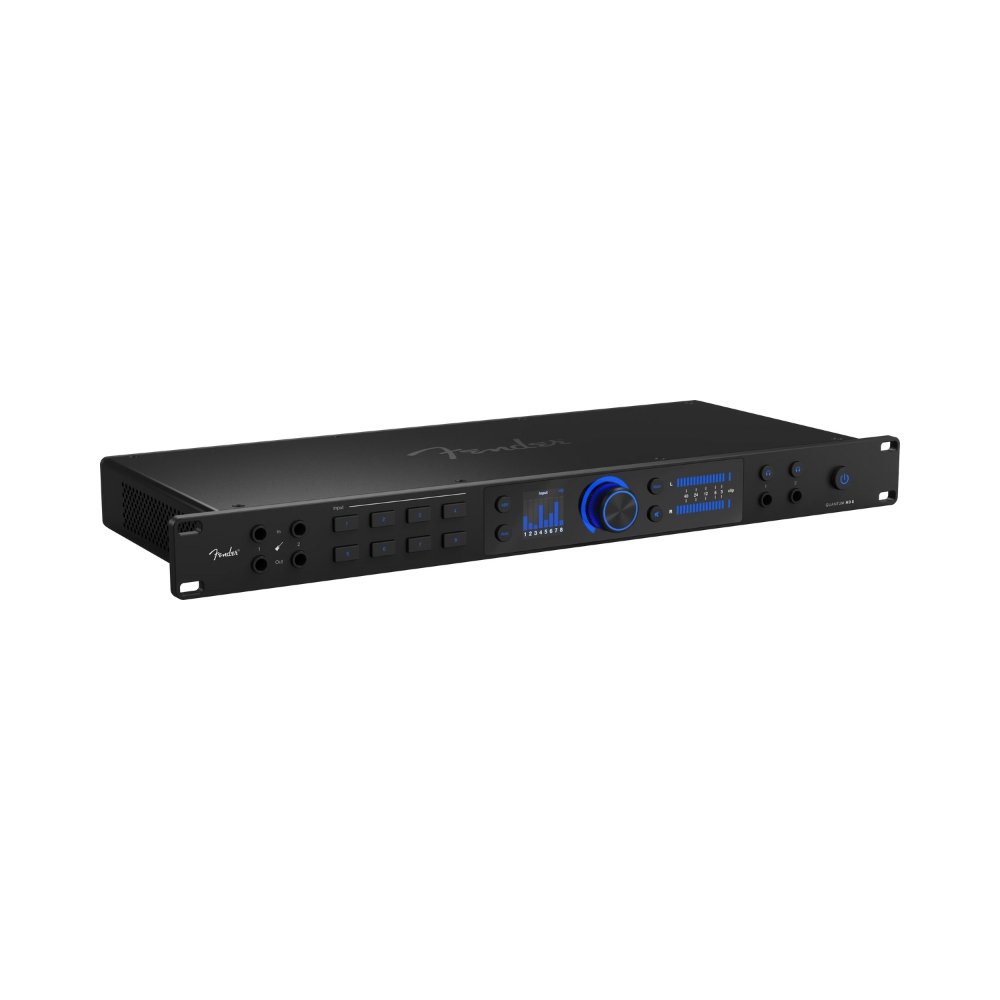

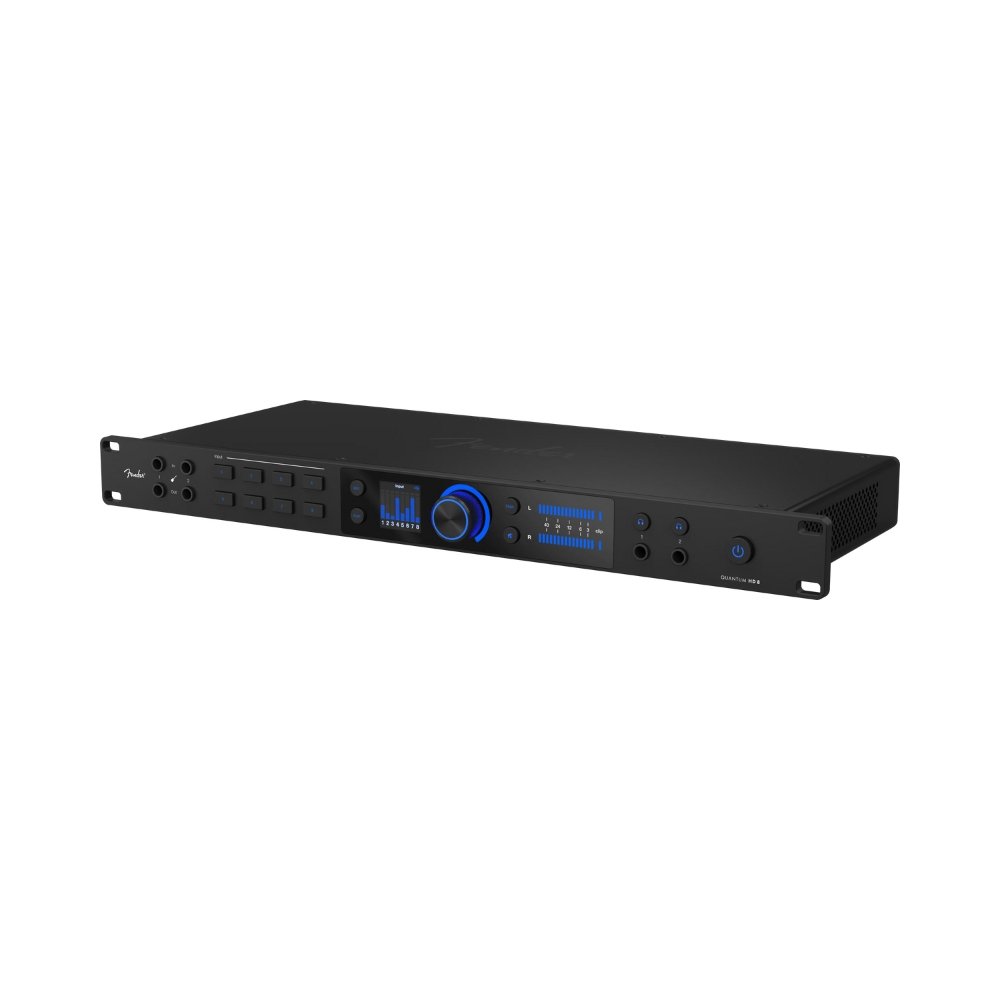

Fender Quantum HD 8 USB-C Audio Interface
26 x 30 USB-C recording interface with MAX-HD mic preamps and 32-bit / 192 kHz converters, Expanded Digital I/O: 16 ADAT channels, S/PDIF I/O, and ADAT preamp standalone mode, Front-facing Fender instrument inputs optimized for guitar and bass
The Fender Quantum HD 8 expands on the HD 2’s precision and workflow, offering 26 x 30 channels, ADAT expansion, and versatile monitoring for full-band recordings and complex production setups. Featuring MAX-HD mic preamps, ultra-low-latency drivers, and 32-bit / 192 kHz converters, the HD 8 captures every detail of instruments, vocals, and line-level sources with studio-grade fidelity.
Front-facing Fender instrument inputs, Auto Gain, and re-amp outputs provide fast setup and creative flexibility. Expanded I/O includes ADAT inputs and outputs, additional TRS line outputs, MIDI I/O, and ADAT preamp standalone mode — making it easy to scale your studio and accommodate larger sessions.
Control preamp gain, phantom power, and outputs through Fender Studio Pro or the Universal Control app, while built-in DSP monitor mixing and loopback routing ensure a streamlined workflow. The HD 8 also comes with a perpetual Fender Studio Pro license.
Features
- 26 x 30 USB-C recording interface with MAX-HD mic preamps and 32-bit / 192 kHz converters
- Expanded Digital I/O: 16 ADAT channels, S/PDIF I/O, and ADAT preamp standalone mode
- Front-facing Fender instrument inputs optimized for guitar and bass
- Auto Gain button for fast and accurate recording levels
- Re-amp outputs for creative tone experimentation
- DSP monitor mixer and loopback routing for streaming and recording
- Control preamps, phantom power, and outputs via Fender Studio Pro or Universal Control app
- Professional software included: Fender Studio Pro perpetual license
- Full-color high-resolution display with illuminated push encoder for intuitive operation
- MIDI I/O and DC-coupled line outputs for modular synth control
Microphone Inputs/ រុន្ធដោតមេក្រូ
- Connection Type: XLR Female (Combo), Balanced
- Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
- Input Impedance: 1600 Ohms
- Dynamic Range: 116 dB (A-Weighted, Minimum Gain)
- EIN: -130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)
- THD+N: 0.002% (1 kHz, Minimum Gain)
- Gain Range: 75 dB
- Maximum Input Level: +18 dBu (Balanced, Minimum Gain)
- Phantom Power: +48 VDC
Line Inputs
- Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
- Input Impedance: 10K Ohms
- Dynamic Range: 118 dB (A-Weighted, Minimum Gain)
- THD+N: 0.001% (1 kHz, Minimum Gain)
- Gain Range: ± 10 dB
- Maximum Input Level: +18 dBu (Balanced, Minimum Gain)
Instrument Inputs
- Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
- Dynamic Range: 111 dB (A-Weighted, Minimum Gain)
- THD+N: 0.003% (1 kHz, Minimum Gain)
- Gain Range: 75 dB
- Maximum Input Level: +21 dBu (Unbalanced, Minimum Gain)
Line Outputs
- Connection Type: 1/4″ TRS Female
Main Outputs
- Connection Type: 1/4″ TRS Female
Headphone Outputs
- Connection Type: One – 1/4″ TRS Female Stereo
- Frequency Response: 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
- Impedence Working Range: 33 Ohms
- Dynamic Range: 118 dB (A-Weighted)
- THD+N: 0.001% (1 kHz)
- Maximum Output Level: 11 dBu (50 Ohms)
MIDI I/O
- Connection Type: 5-Pin Female DIN
Power
- Voltage: 120V
- Voltage Requirements: 100-240 VAC, 50-60 Hz
Digital Audio
- Connectivity: USB-C®
- Bit Depth: 32-bit
- Dynamic Range: 124 dB
- Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Measurements
- ទម្ងន់: 2.9 kg
