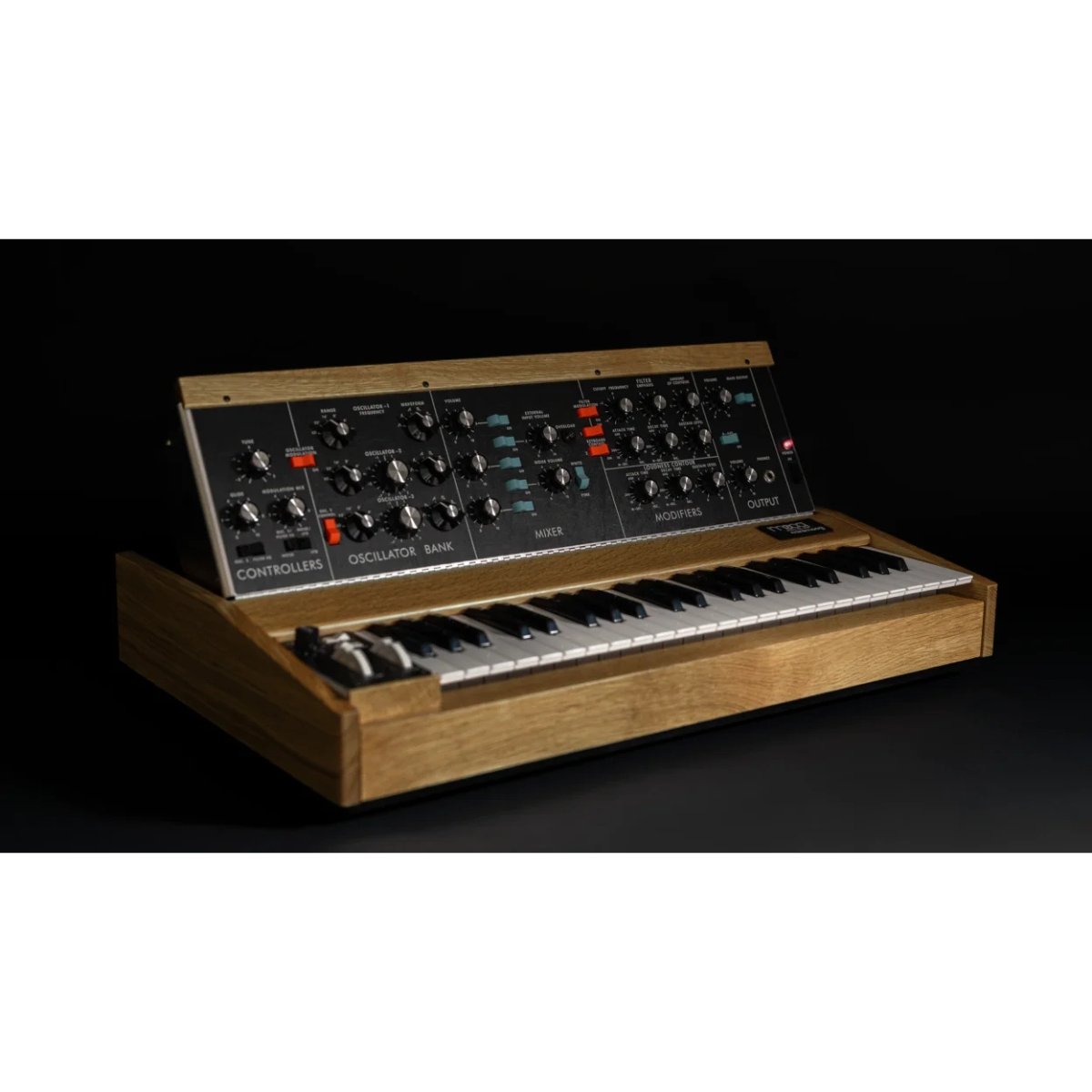

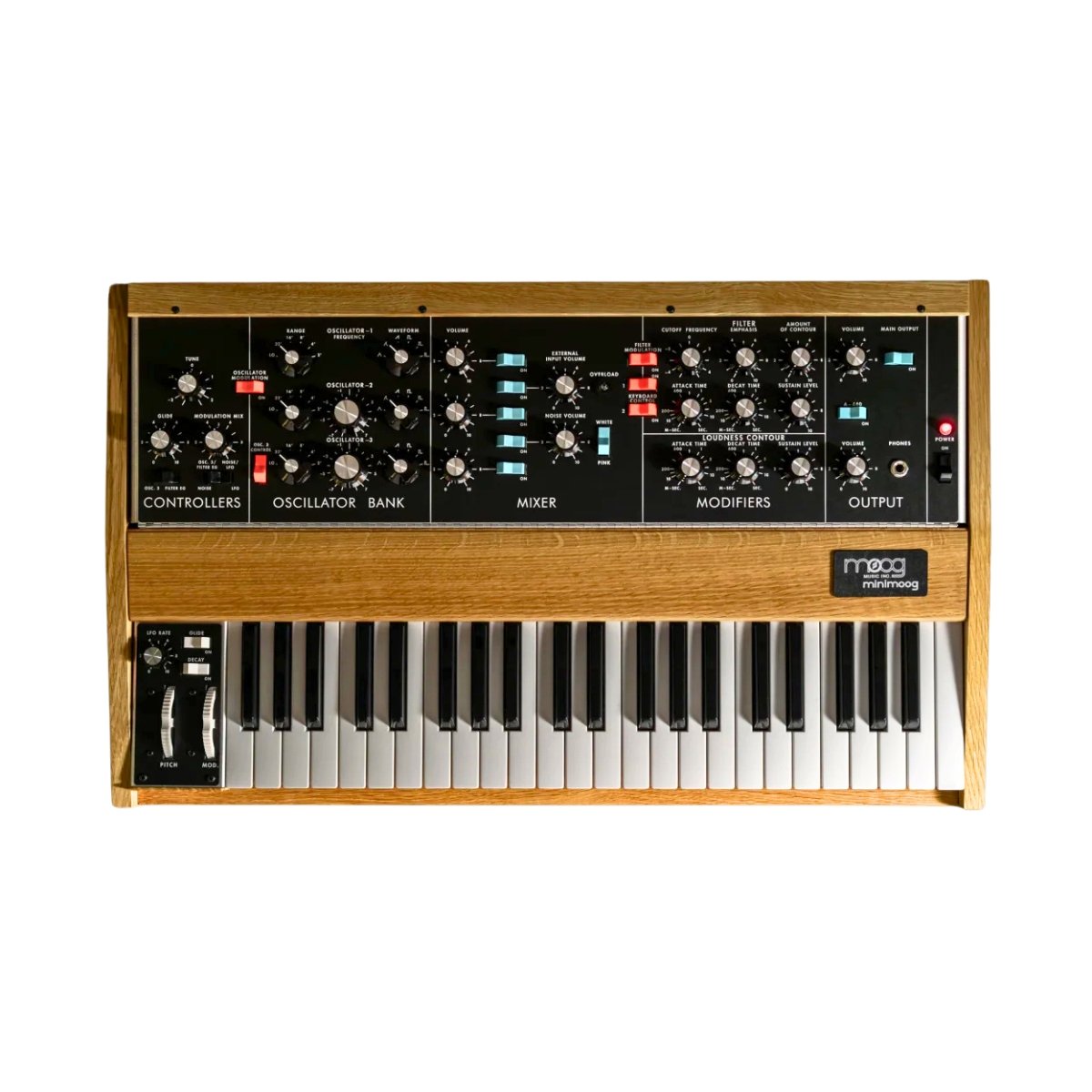

Moog Bob Moog Tribute Edition Minimoog Model D Synthesizer
37-key Analog Synthesizer with Mono and Duo Modes, Aftertouch, 256 Presets, 2 Modulation Buses, and Enhanced Analog Signal Path
A studio statement piece. A powerful, hands-on inspiration machine. A trusted songwriting companion that adds depth to studio recordings and emotion to live performances. This is the legacy of the Minimoog Model D.
Loved for its warm, analog tone and intuitive, straightforward design, this timeless synthesizer’s influence transcends genres and generations. Its distinctive basses, soaring leads, and classic filter character established the Model D as the archetype of what artists and listeners still imagine when they think of the synthesizer.
The Bob Moog Tribute Edition Minimoog Model D celebrates the essence of this instrument and Bob Moog’s innovative technology, preserving its iconic sound and soul.
Tech Specs: Bob Moog Tribute Edition Minimoog Model D
DIMENSIONS (WITH PANEL FULLY LOWERED)
Width: 28.625″ / 727 mm
Depth: 17.125″ / 435 mm
Height: 5.75″ / 146 mm
Net Weight: 32 lbs. / 14.5 kg.
TEMPERATURE
Storage Temperature: 5F to 140F (2C to 60C)
Nominal Operating Temperature: 50F to 95F (10C
to 35C)
Operational Temperature: 50F to 122F (10C to 50C)
SOUND SOURCES
Oscillators x 3
Noise Generator
External Input
OSCILLATORS
Frequency Range: 0.1 to 20kHz (In Six Overlapping Ranges)
Oscillator Stability (short term) > 0.25 %
Waveforms:
Triangle
Triangle-Sawtooth (Oscillator-1, Oscillator-2)
Reverse Sawtooth (Oscillator-3)
Sawtooth
Rectangle
Wide Pulse
Narrow Pulse
NOISE GENERATOR
White and Pink
LFO
Rate: 0.05Hz to 200Hz
Waveform: Triangle (knob down); Square (knob up)
EXTERNAL INPUT
Input Range: +10 millivolts to +2 volts
Input Impedance: 1MEGOhms
FILTER
Filter Type: Voltage-Controlled Low Pass
(Moog Ladder Filter)
Cutoff Frequency Range:
10Hz to 20kHz
Filter Slope: 24dB per Octave
Filter Resonance: At Cutoff Frequency
CONTOUR GENERATORS
Attack Time: 1 millisecond to 10 seconds
Decay Time: 4 milliseconds to > 35 seconds
Sustain Level: 0 to 100% of Contour peak
Filter Contour Width: 0 to 4 Octaves
VOLTAGE-CONTROLLED AMPLIFIERS (VCA)
Loudness Contour Dynamic Range: 80dB
AUDIO INPUT LEVELS
1/4″ External Signal Input Voltage: +10 millivolts (min); +10 volt (max)
Nominal Input Impedance: 100KOhms
AUDIO OUTPUT LEVELS
High Level Output Typical Voltage: 0.5 volts
Maximum Voltage: 4.2 volts (peak-to-peak)
Nominal Output Impedance: 3KOhms
Low Level Output (30dB below High level)
Typical Voltage: 15 millivolts
Nominal Output Impedance: 1KOhms
Headphone Output (stereo)
Maximum Voltage: 0.3 volts
Output Impedance: 8Ohms
KEYBOARD
Key Action: Synthesizer (Spring)
Number of Keys: 44
Key Range: FO to C4
Priority (Low, High, Last): User Selectable
Hardwired Connections: Oscillator-1 (Pitch)
Oscillator-2 (Pitch)
Filter Contour (Trigger) Loudness Contour (Trigger)
Switchable Connections: Oscillator-3 (Pitch)
Filter (Keyboard Tracking 1/3) Filter (Keyboard
Tracking 2/3)
Typical Voltage: 0.5 volts
Maximum Voltage: 4.0 volts (peak-to-peak)
Nominal Output Impedance: 3KOhms
Glide Rate (octave): 1 millisecond to 10 seconds
Pitch Bend Range: (+/-) 7 semitones
