PreSonus Monitor Station V2 Monitoring Controller
$399.00
3 pairs speaker switch, 2 pair Line Out, 3 input Source, 4 headphones Monitor Station V2 Monitoring Controller
Description
Overview

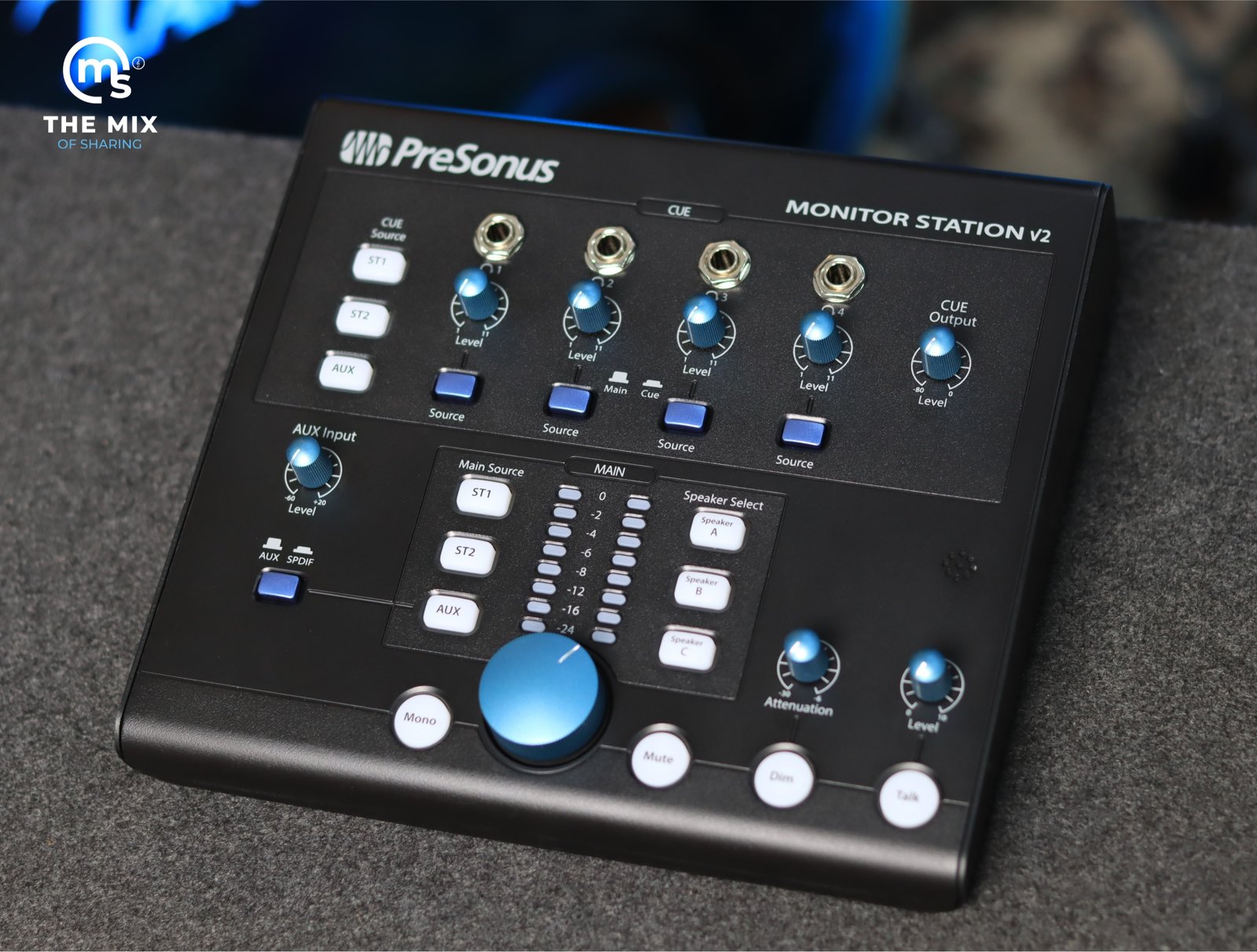

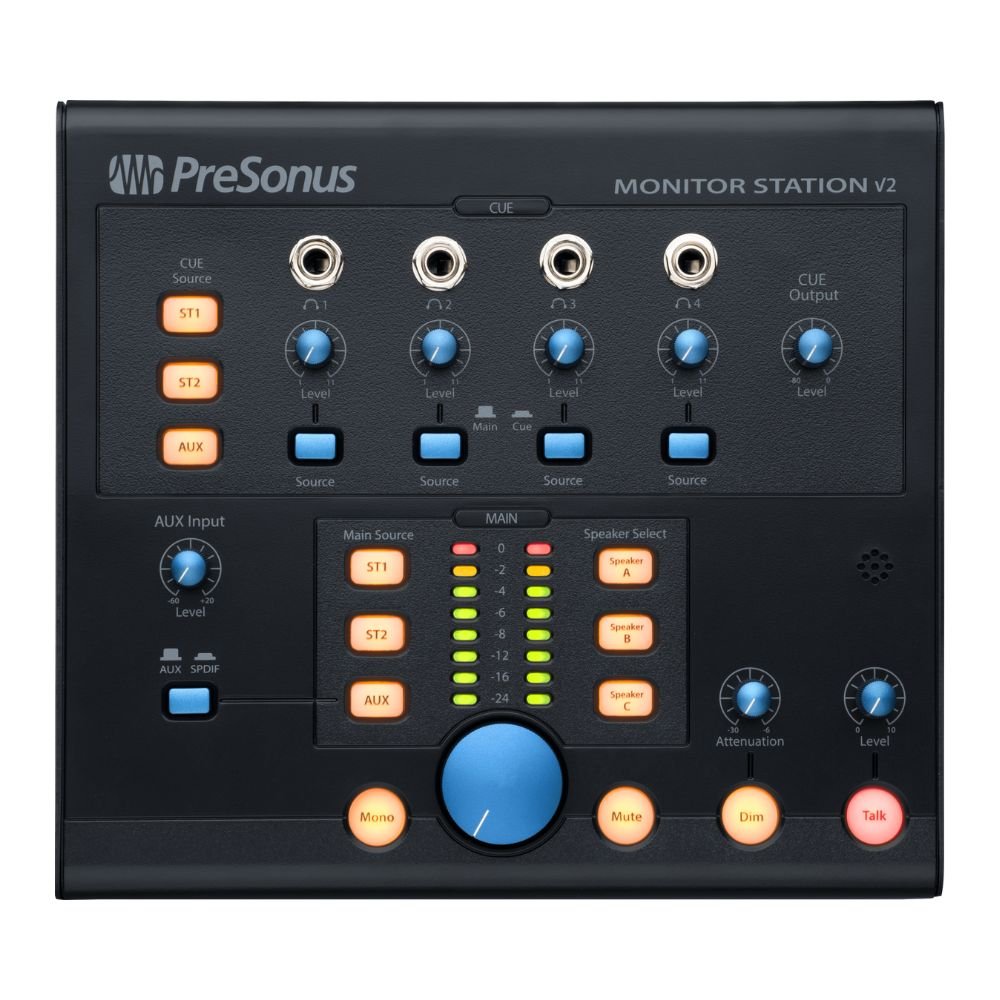

With its intuitive layout, extensive features and I/O and PreSonus®’ famed sound quality, the Monitor Station V2 provides a versatile, convenient and affordable solution for managing your studio monitoring system from your desktop. Switch quickly and easily between up to four audio sources, including two pairs of balanced ¼-inch inputs and a third input channel that can be fed from an S/PDIF digital input (up to 96 kHz), unbalanced RCA Aux inputs with gain control and a ⅛-inch TRS unbalanced input. A button switches between the analog Aux and digital S/PDIF inputs.
Audition on up to three stereo pairs of speakers, each with separate level control. All speakers can be available, or one pair at a time, or choose between speakers A and B, with output C active to feed a subwoofer. You can set each set of speakers’ level individually so when you switch between speakers, your monitoring level stays the same.

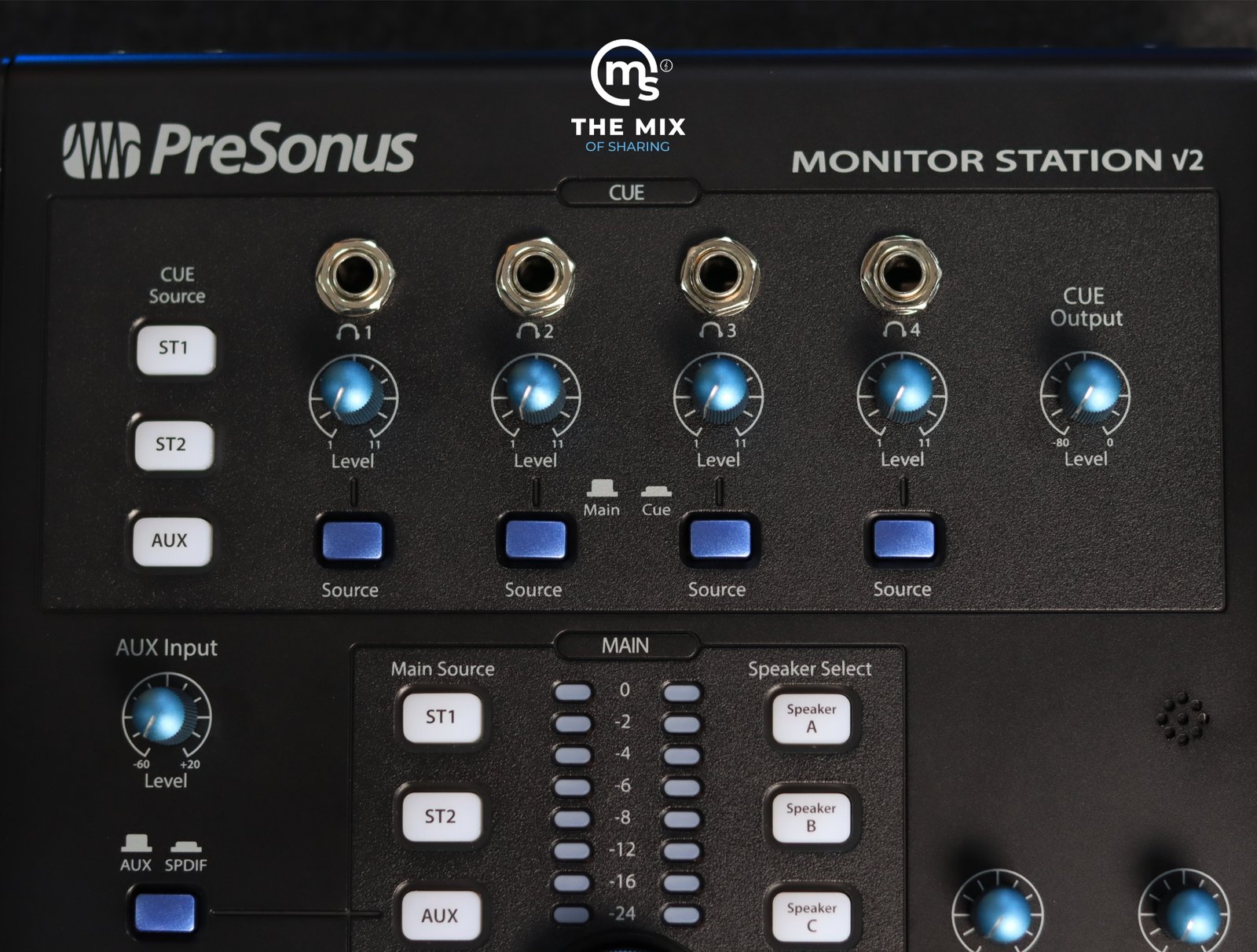

Four loud, clear ¼-inch TRS headphone outs ensure everyone hears every note. Each headphone out has a Main/Cue source selector and individual output-level control. A built-in, electret-condenser Talkback mic let you communicate with the musicians. A flaming red Talk button activates the mic and attenuates the cue signal. Eight-segment, three-color LED meters indicate left and right signal levels and can be set in for +4 dB, +10 dB, or +18 dB levels.
So take control of your monitoring system the way the pros do with the PreSonus Monitor Station V2!
Features

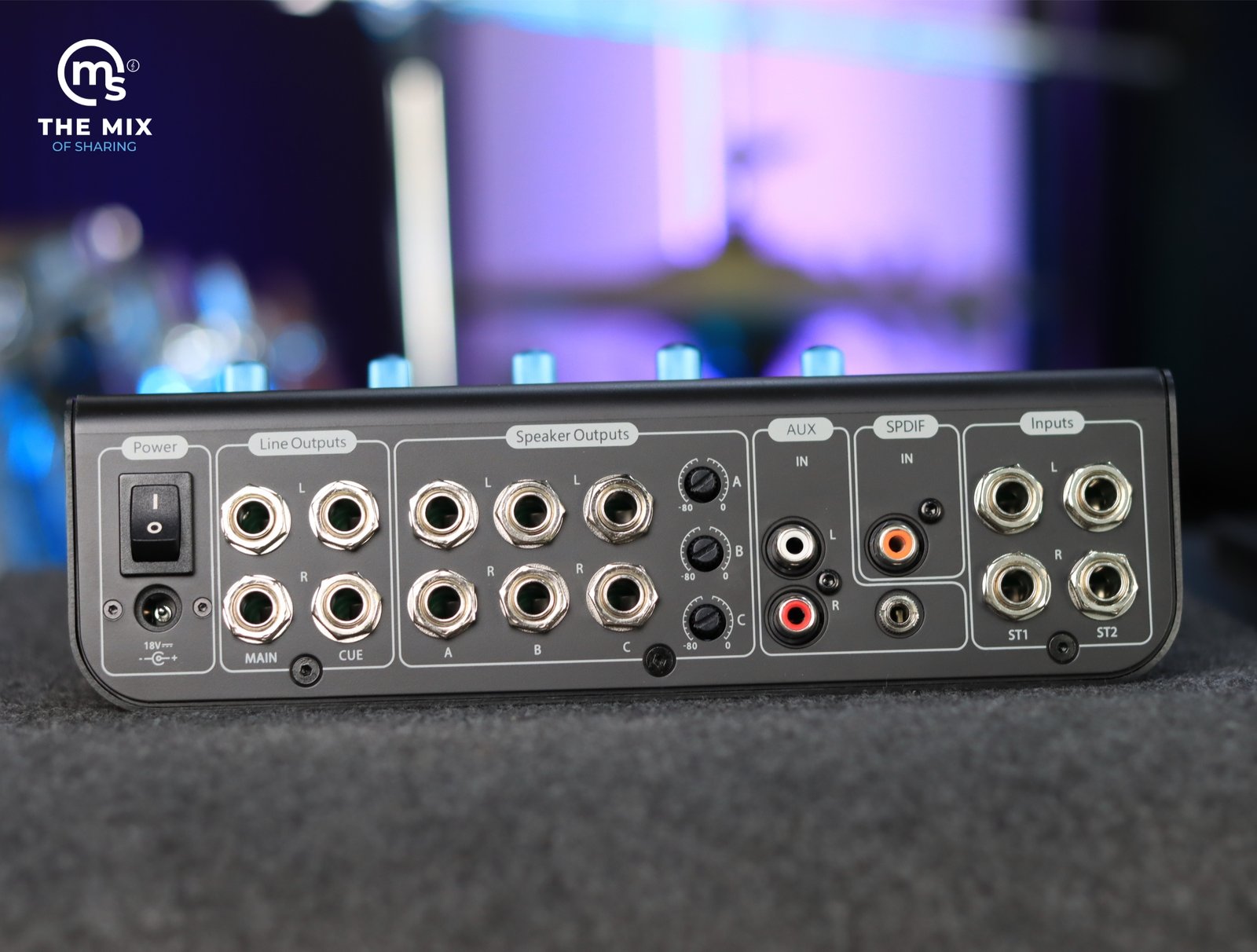

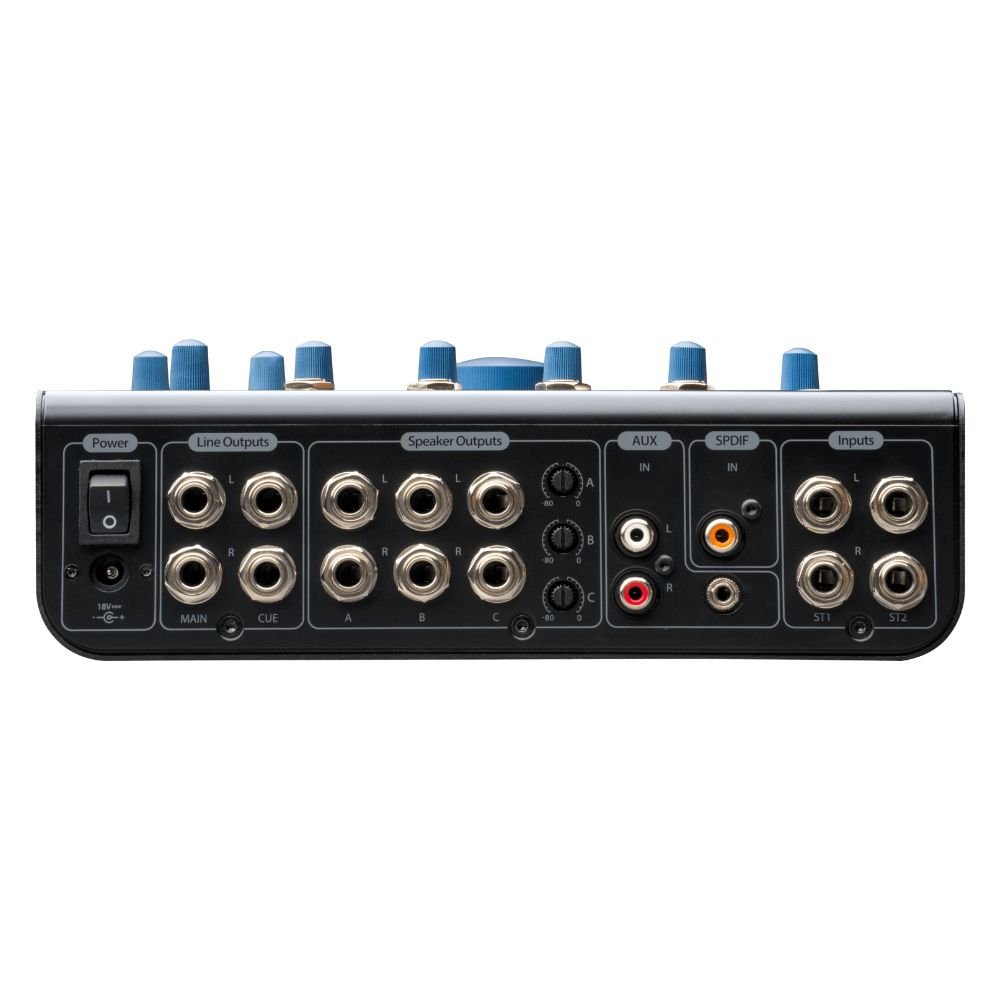

- 2 Stereo pairs of ¼-inch TRS inputs, 1 Stereo pair of RCA Aux inputs with level control and 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
- 3 Stereo pairs of ¼-inch TRS speaker outputs with level controls, 1 Stereo pair of ¼-inch TRS Main outputs and 1 Stereo pair of ¼-inch TRS Cue outputs
- 4 ¼-inch TRS screaming-loud stereo headphone outputs
- Large Main level control
- 3 Individual Main Source (ST1, ST2, Aux) select switches
- 3 Individual Speaker Select switches
- Cue section with Source select (ST1, ST2, Aux) and output-level control

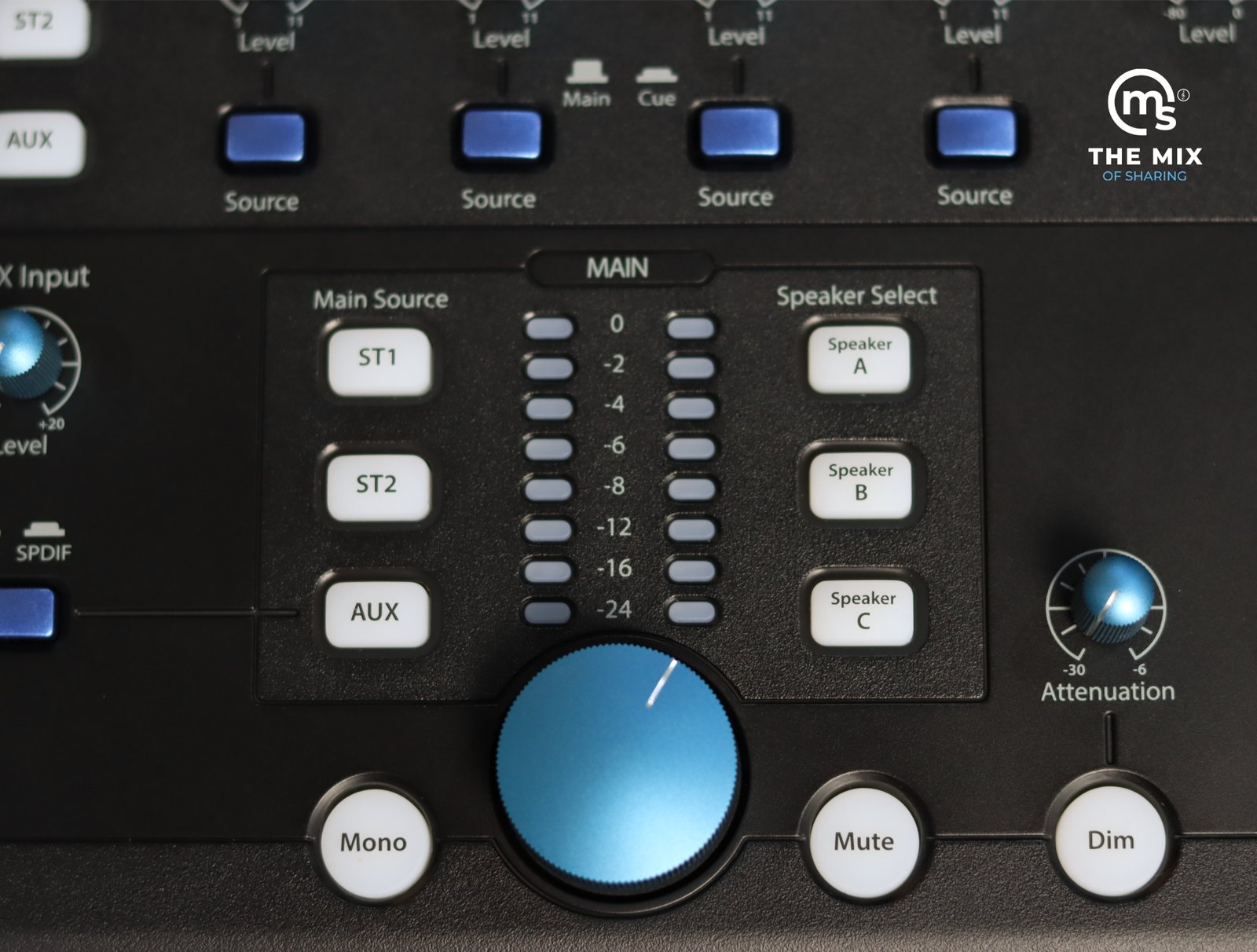

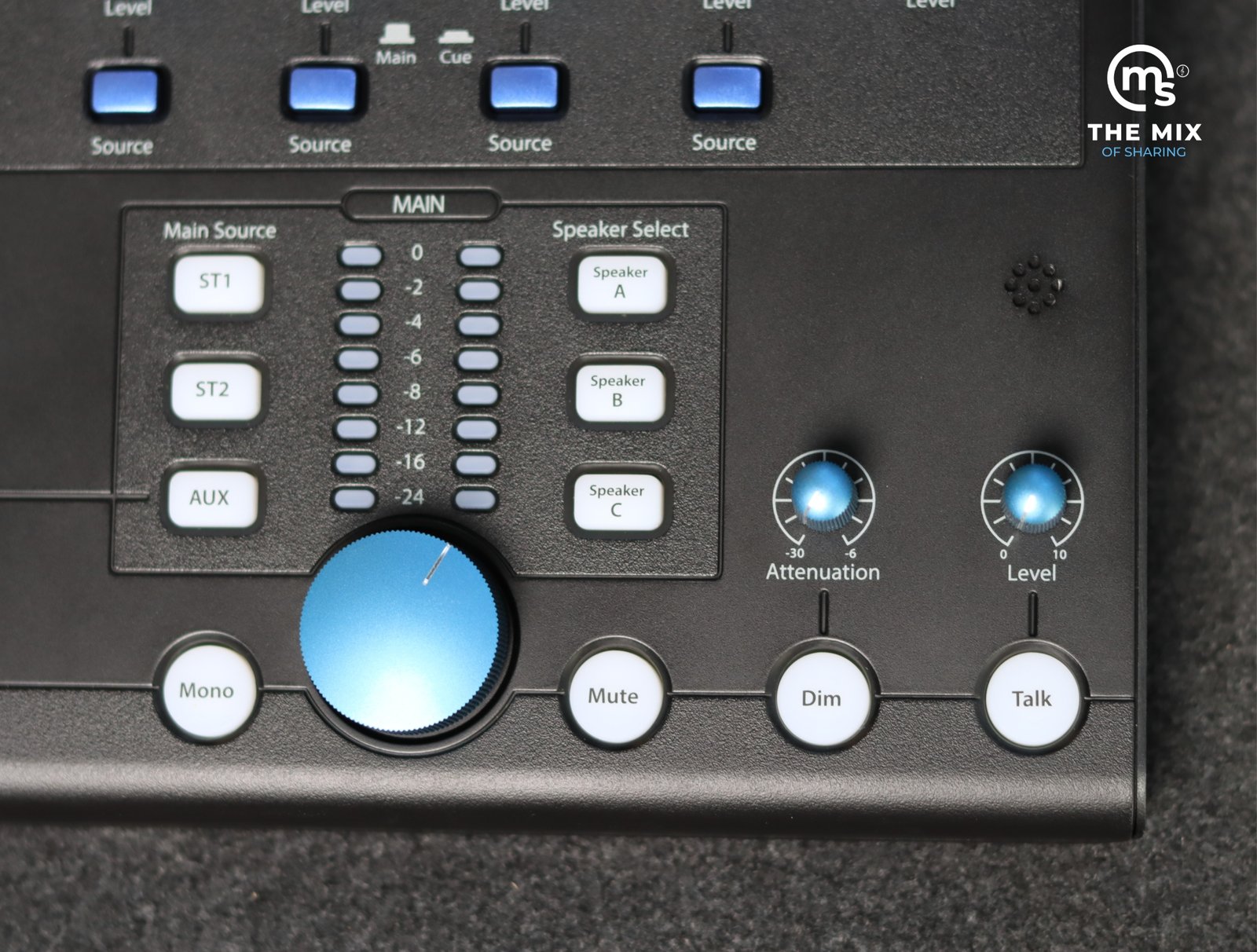

- Main Mute, Mono, and Dim switches with variable Dim attenuation
- 8-segment color LED input meters with selectable reference level
- Built-in electret-condenser talkback microphone with input-gain control and Talkback button
Specification
- Auxiliary Input Connection Type : RCA Active, Unbalanced
- Auxiliary Input Frequency Response : 10 Hz to 50 kHz
- Auxiliary Input Gain Range : 80 dB to +10 dB
- Auxiliary Input Impedance : 47.5 kΩ
- Auxiliary Input Signal To Noise Ratio : >115 dB
- Auxiliary Input Total Harmonic Distortion : <0.01%
- Line Input Connection Type : 1/4″ TRS, Balanced
- Line Inputs Frequency Response : 10 Hz to 65 kHz
- Line Inputs Impedance : 10 kΩ
- Line Inputs Maximum Level : +22 dBu
- Line Inputs Signal To Noise Ratio : >105 dB
- Line Inputs Total Harmonic Distortion : <0.0075%
- Cue Output Connection Type : 1/4″
- Cue Output Dim Attenuation : -20 dB (Talkback Activated)
- Cue Output Connection Type : 1/4″
- Cue Output Dim Attenuation : -20 dB (Talkback Activated)
- Cue Output Gain Range : -80 dB to 0 dB
- Headphone Outputs Frequency Response : 10 Hz to 50 kHz
- Headphone Outputs Maximum Output : 150 mW / channel
- Main And Line Outputs Frequency Response : 10 Hz to 50 kHz
- Main And Line Outputs Output Impedance : 51Ω
- Main And Line Outputs Total Harmonic Distortion : <0.01%
- Main Outputs Connection Type : 1/4″ TRS, Balanced
- SPDIF Maximum Output : +18 dBu
- SPDIF Total Harmonic Distortion : 0.0025% (1 kHz @ -1 dBFS)
