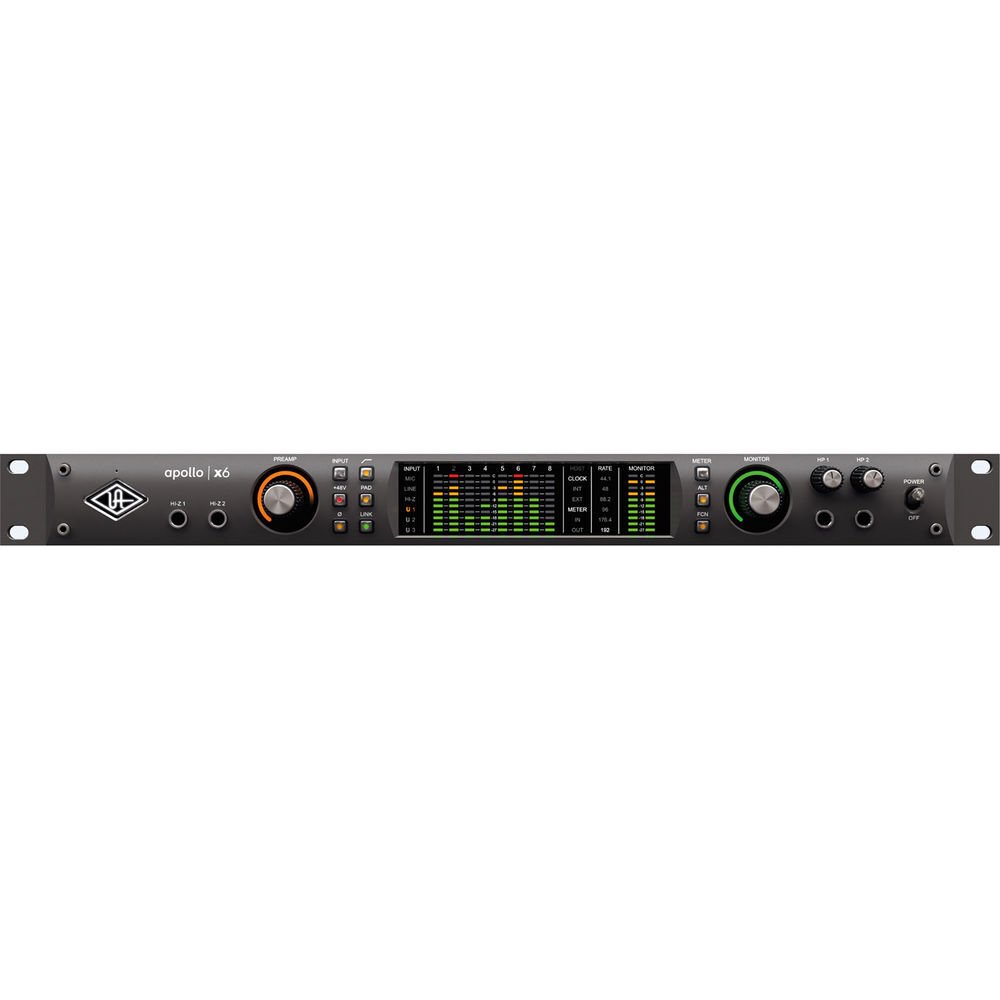

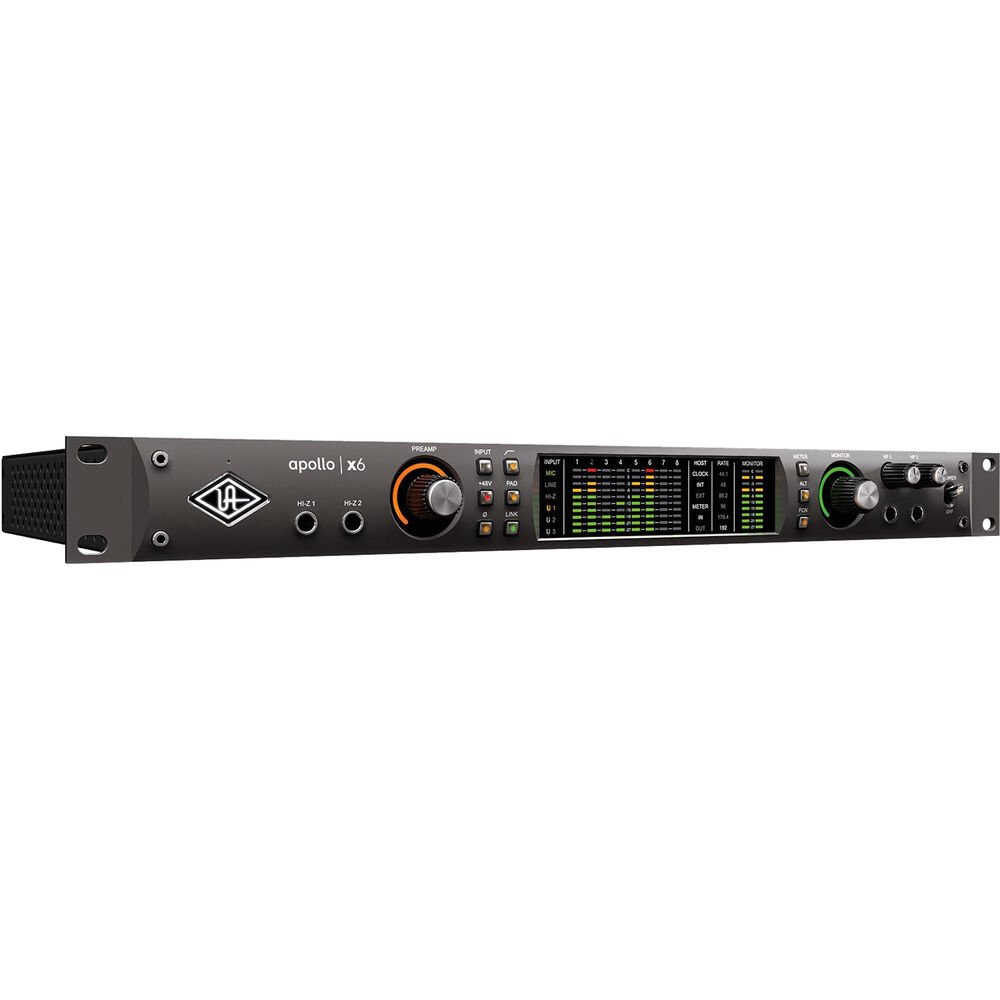

Universal Audio Apollo x6 Heritage Edition 16 x 22 Thunderbolt 3 Audio Interface with UAD DSP

Tech Specs

• Computer Connectivity:Thunderbolt 3
• Form Factor:Rackmount
• Simultaneous I/O:16 x 22
• A/D Resolution:24-bit/192kHz
• Built In DSP/FX:6 x UAD DSP Cores
• Number of Preamps:2 x mic, 2 x instrument
• Phantom Power:Yes

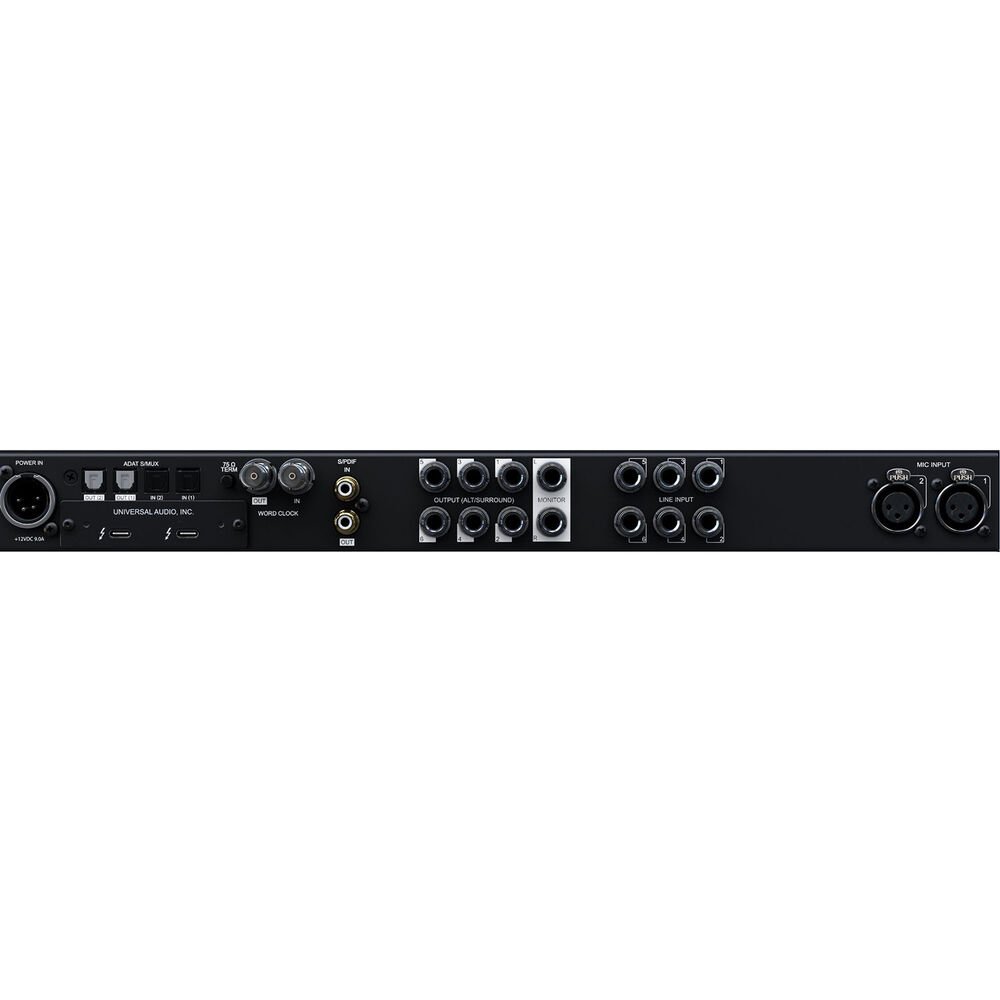

• Analog Inputs:2 x XLR (mic), 2 x 1/4″ (Hi-Z), 6 x 1/4″ (line)
• Analog Outputs:2 x 1/4″ (monitor), 6 x 1/4″ (alt/5.1 surround)
• Digital Inputs:1 x Coax (S/PDIF), 2 x Optical Toslink (ADAT/SMUX)
• Digital Outputs:1 x Coax (S/PDIF), 2 x Optical Toslink (ADAT/SMUX)
• Headphones:2 x 1/4″
• Thunderbolt:2 x USB-C (Thunderbolt 3)
• Clock I/O:In/Out (75 ohm termination switch)
• Software:HEXA Core UAD Plug-in processing, Unison Preamp Emulations, Realtime Analog Classics Plus plug-ins, 10 Heritage Edition plug-ins
• OS Requirements – Mac:macOS 10.12 or later, Quad Core i7 Processor or higher
• OS Requirements – PC:Windows 10 64-bit Anniversary update or later, Quad Core i7 Processor or higher, Thunderbolt 3 port required
• Rack Spaces:1U
• Power Supply:12V DC power supply (included)
• Height:1.75″
• Width:19″
• Depth:12.12″ (chassis only), 13.5″ (including knobs)
• Weight:9 lbs.
• Manufacturer Part Number:APX6-HE

Product Description

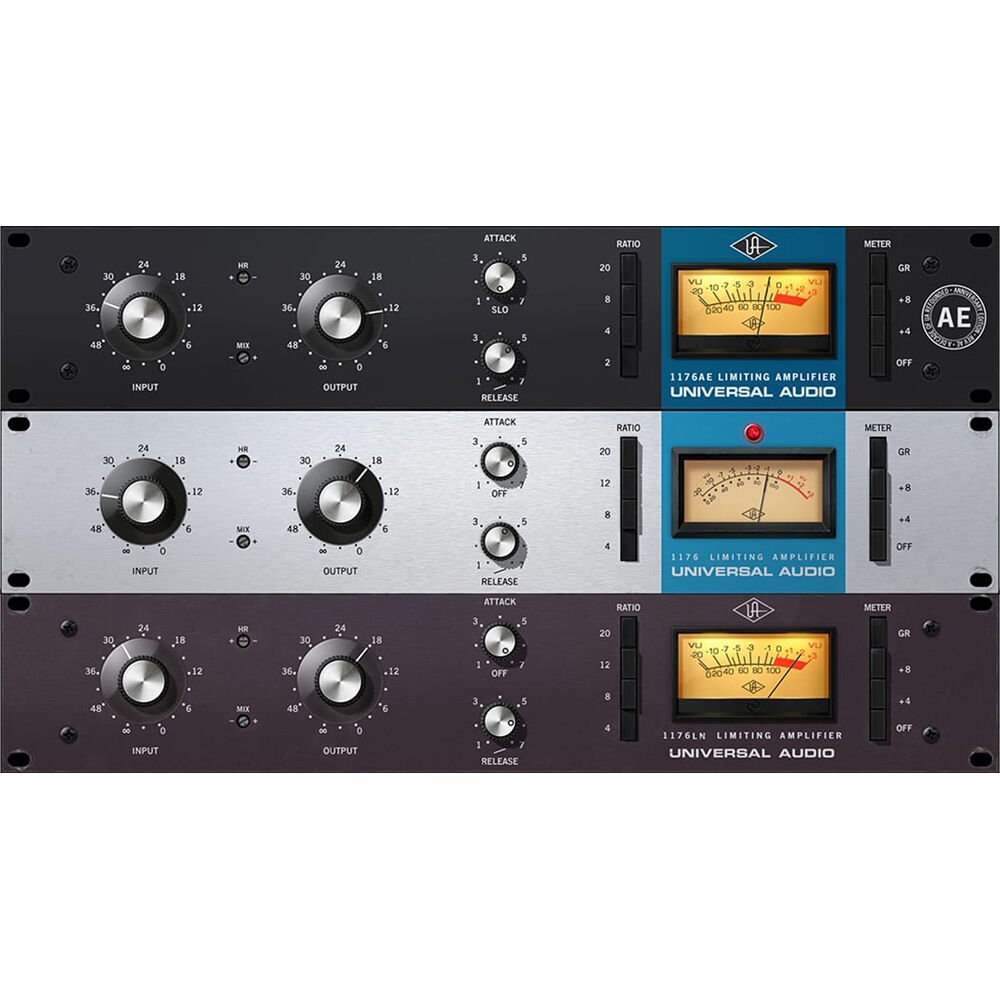

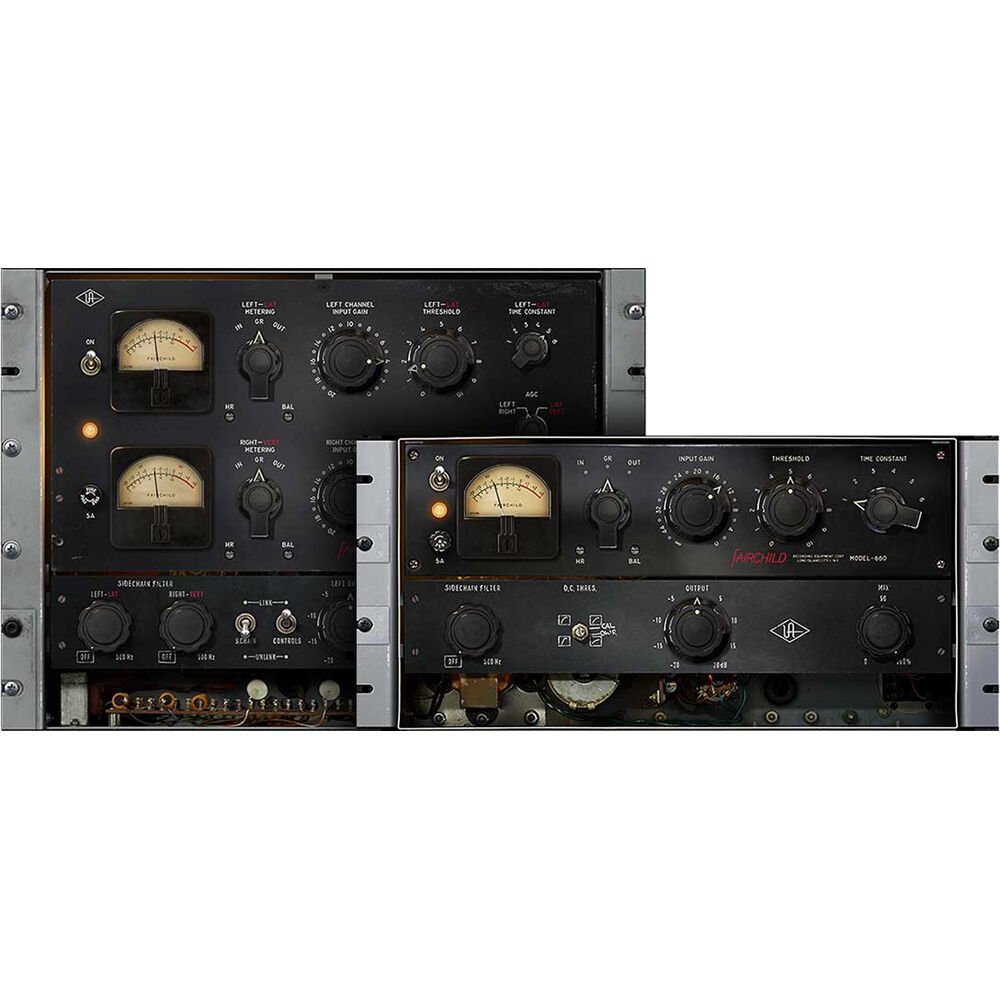

Place the Universal Audio Apollo x6 at the center of your studio, and it’s guaranteed to turbocharge your productivity. Track and mix with 50% more processing power than previous Apollos, thanks to UA’s powerful 6-core HEXA Core processor. Experience top-shelf sound quality, by way of the Apollo x6’s upgraded elite-class AD/DA conversion and Dual Crystal clocking. Pro users will appreciate native 5.1 surround monitoring support, selectable +24dBu operation, built-in talkback, and more. Dual Unison preamps allow you to track through models of the industry’s most legendary hardware. Beyond that, you get sub-2ms latency and ample expandability, thanks to the Apollo x6’s ultra-fast Thunderbolt 3 connectivity. The Apollo x6 Heritage Edition comes with a premium suite of 10 award-winning plug-in titles, along with the Realtime Analog Classics Plus bundle, arming you with accurate emulations of vintage analog hardware. Finally, the Apollo x6 boasts compatibility with UA’s LUNA software, giving you a tightly integrated recording, editing, and mixing environment, with full software-based control over your interface’s parameters, global console and tape emulations, and advanced real-time tracking. If there was ever a time to upgrade to the newest Apollo, now’s the time!
