ADAM AUDIO T8V
The T8V is an affordable, professional 2-way powered studio monitor with an 8˝ woofer and ADAM Audio’s latest addition to the T Series. Designed around the same technology, features and build quality as its smaller siblings, the T8V provides best-in-class characteristics and sound performance.
The T8V impresses with a multitude of features that bring real benefits to the user: The U-ART tweeter’s 4:1 velocity transfer ratio, in combination with the new Class D amplifiers’ high dynamic range, yield respective max. peak SPL of 118 dB per pair. The tweeter, which extends up to 25 kHz, works as a team with the HPS Waveguide. This allows an optimal radiation of the high frequencies, which means the advantage of a more controlled, larger usable sweet spot during monitoring. With a bass extension down to 33 Hz, the T8V is especially suitable for users who produce bass-heavy music.
The T8V is the perfect studio speaker for those who have always wanted to work with an 8“ monitor from ADAM Audio, but where budgets have been insufficient. The 5-year warranty gives users additional security and the certainty of having purchased a quality product.
-
General Data

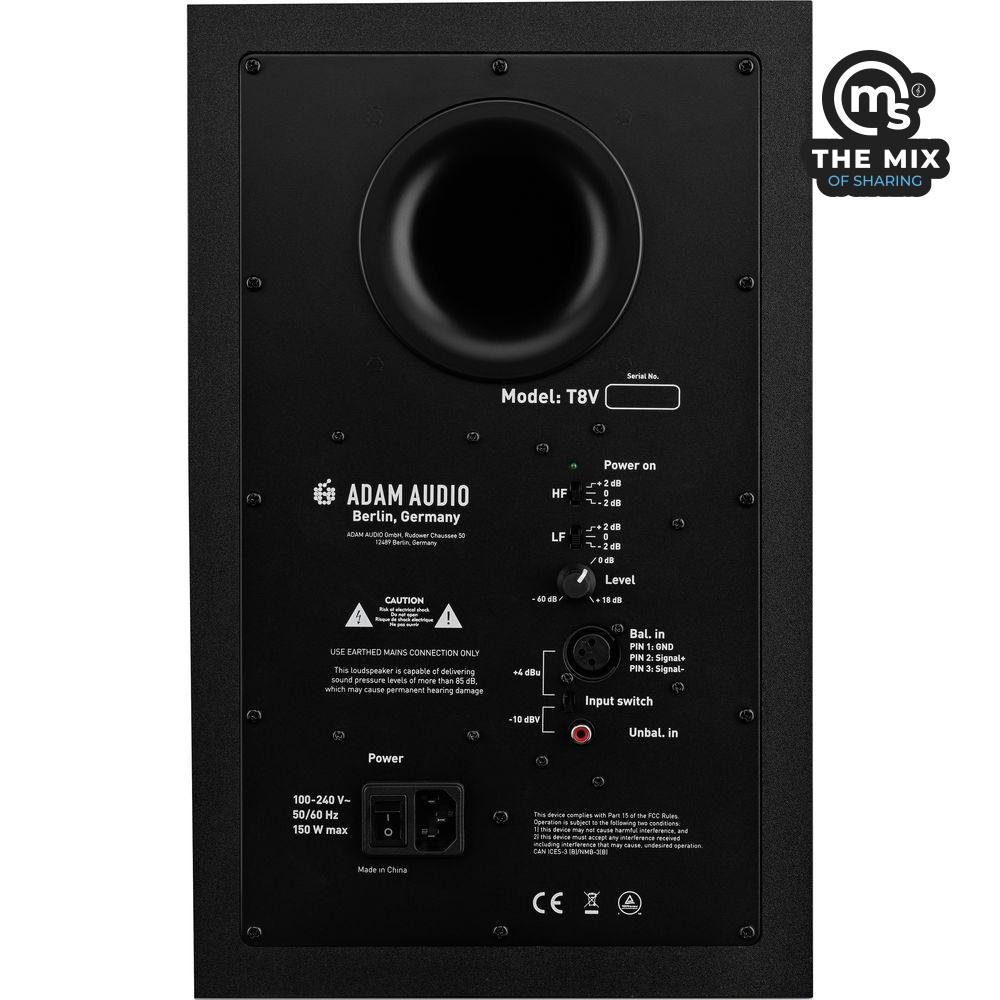

- Panel: Rear
- Max. Power Consumption: 150 W
- Weight: 21.6 lb (9.8 kg)
- Height x Width x Depth: 15.8″ x 9.8″ x 13.2″ (400 mm x 250 mm x 335 mm)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: Power cord, Quick Start Guide
-
Audio Input Connectors
- Analog: XLR / RCA
- Input Impedance: 10 kOhm / 20 kOhm
-
Amplification
- Woofer
- Amplifier Type: PWM
- Amp. Power RMS: 70 W
- Tweeter
- Amplifier Type: PWM
- Amp. Power RMS: 20 W
-
Acoustics
- Frequency Response: 33 Hz – 25 kHz (-6 dB)
- THD > 80 Hz: 0.5 %
- Max. SPL per pair at 1 m: ≥118 dB
- Crossover Frequency: 2.6 kHz
-
Drivers
- Woofer
- Basket Diameter: 8″
- Voice Coil Diameter: 1″
- Cone Material: Polypropylene
- Tweeter
- Type: U-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equiv. Diaphragm Diameter: 1.9″ (48 mm)
- Velocity Transform Ratio: 4 to 1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS
- Woofer
-
Control Options
- Input Sensitivity: -10 to +4 dB
- Gain: Yes
- High Shelf EQ > 5 kHz: -2 dB, 0 dB, +2 dB
- Low Shelf EQ < 300 Hz: -2 dB, 0 dB, +2 dB
- Woofer
Brand
ADAM Audio
ABOUT ADAM AUDIO
ADAM Audio was founded in March 1999 in Berlin. Since then the company has been developing, manufacturing and distributing loudspeakers in the field of Professional Audio. The development of the X-ART (eXtended Accelerating Ribbon Technology) tweeter based on the 1960’s invention of the Air Motion Transformer by Oskar Heil was largely responsible for the company’s founding. Producing sound not with a piston-like diaphragm as is done in most of the loudspeakers that are on the market, but using a pleated diaphragm that is capable of moving the air 4 times faster than the folds themselves are moving was the appealing idea behind it all. The achieved results were intriguing and gave ample reason for moving forward.
