Name: Eikon Audio RM3000EK PLL UHF in-ear wireless monitor system
SKU: RM3000EK
Availability: BackOrder

$539.00

PLL UHF in-ear wireless monitor system for all the needs of live musicians, actors or speakers

Available on backorder

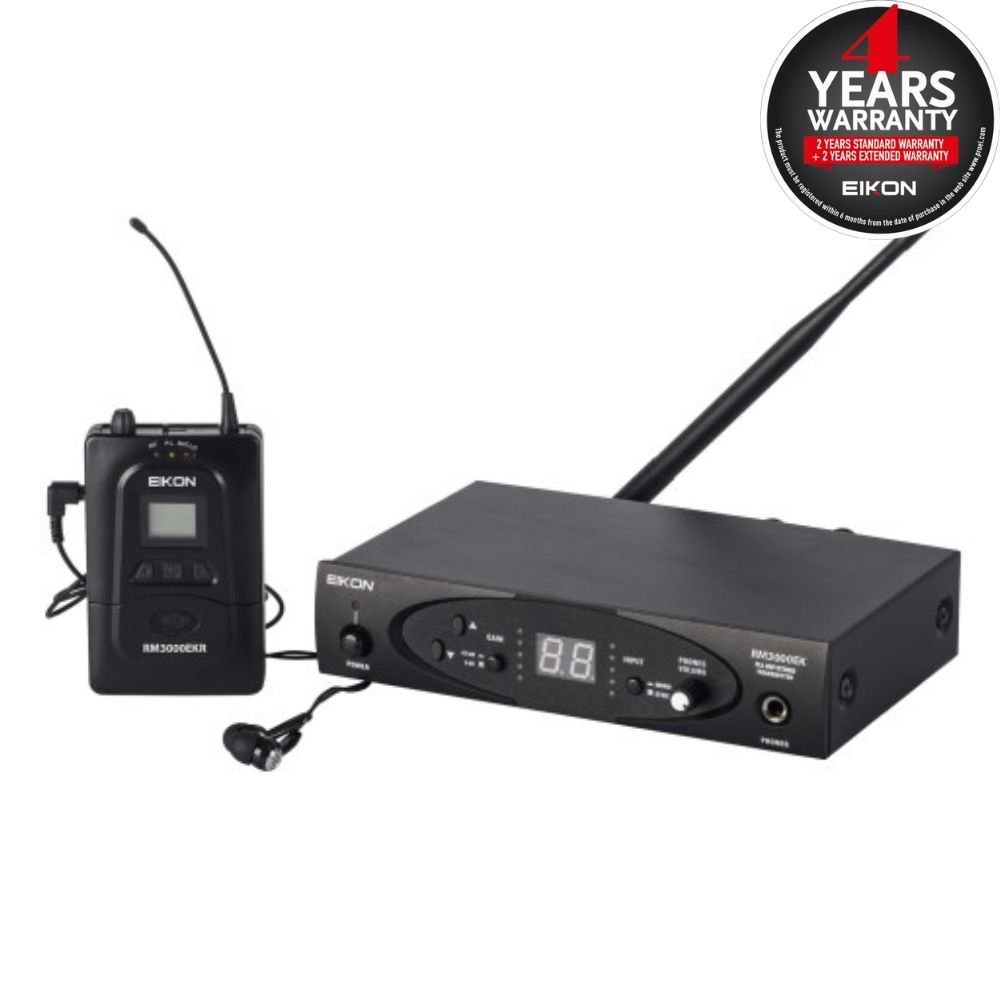

The new EIKON RM3000EK in-ear monitoring system offers outstanding sound quality and high dynamic range.

The system allows switching between mono or stereo mode for all the needs of live musicians, actors or speakers. The integrated limiter guarantees an optimal level of protection and a uniform sound reproduction, without distortion, with a frequency response between 50Hz and 15kHz.

Using alkaline batteries, usage times can even exceed 8 hours.

A sturdy ABS carrying case is included.

RM3000EK Transmitter

½ rack unit with metal chassis
Multi selectable frequencies in 863 – 865 MHz or 673 – 697.800 MHz (RM3000EKA version) – PLL synthesized
Audio level indicators (L&R)
Channel selector and display
Headphone output
Audio input level control
Combo inputs (XLR + JACK)
Selectable mono or stereo mode

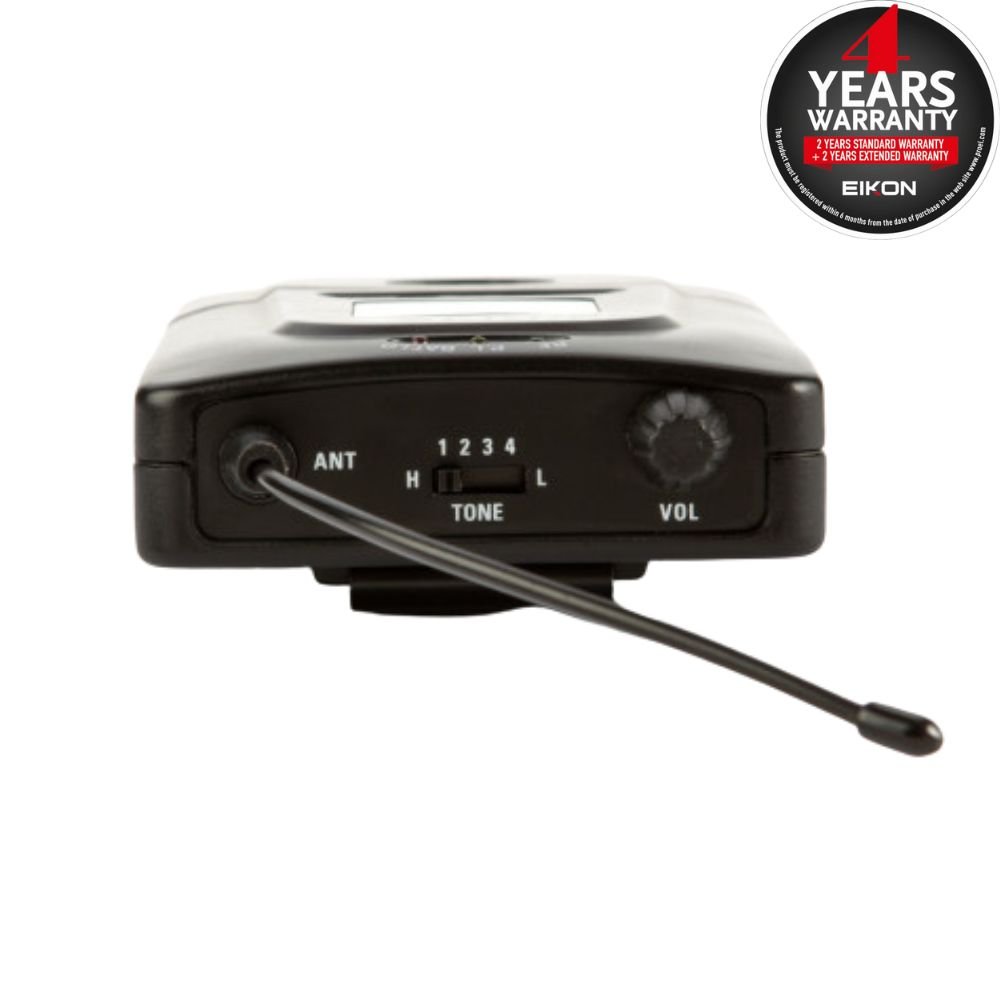

RM3000EKR Bodypack Receiver

Multi selectable frequencies in 863 – 865 MHz or 673 – 697.800 MHz (RM3000EKA version) – PLL synthesized
LCD display plus RF and AF indicators
Battery level indicator
Headphone output 2×100 mW @ 16 ohm
Selectable limiter and equalizer
Selectable mono or stereo mode
Up to 8 hours of use from 2 x 1.5 V AA battery

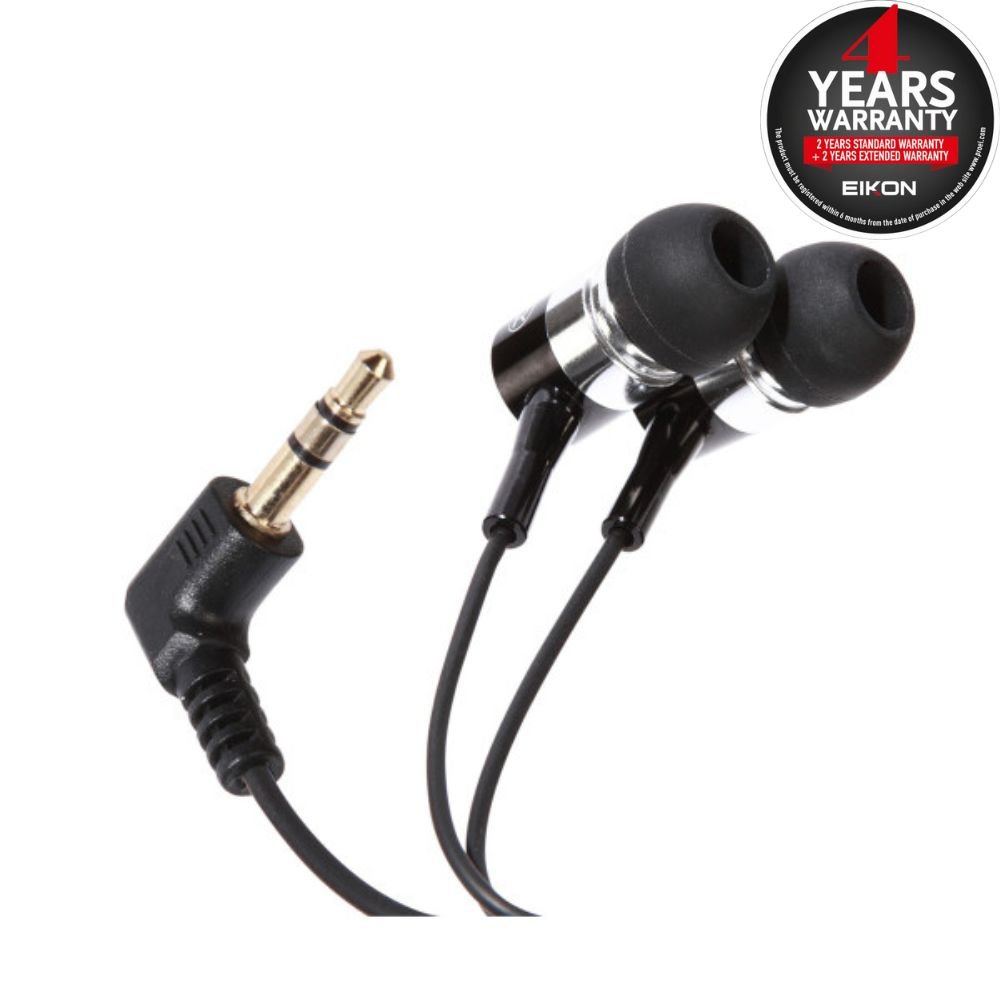

EB10 earphones included

TECHNICAL SPECIFICATIONS

TRANSMITTER
RF Frequency Band	863 ~ 865 Mhz or 673 – 697.800 MHz(A version)
Channel	depending on Frequency version
Oscillation Mode	PLL Sinthesized
Frequency Stability	0,005%
Modulation Method	FM ( F3E )
RF Max deviation	max 70 Khz
Audio Frequency Response	50 Hz – 15 Khz
THD	<1% at 1 Khz
Spurious Emission	< 4nw
RF Power	low < 10 mw; middle < 50 mw;high < 100 mw
	( depending on national rules )
Audio Input	line level x 2 , Combo socket
Audio Output	xlr phone jack x 2
Earphone Output	6,3 mm stereo jack with adjustabel volume
Earphone Impedance	16 Ω
Output Power ( 32 Ω )	2 x 100 mw
Amplifier Gain	low/high : – 10dB
Antenna Connector	TNC ( 50 Ω impedance )
Power Supply	DC 12 / 18 V
Dimension (WxDxH)mm	215 x 160 x 44

RECEIVER
RF Frequency Band	863 ~ 865 Mhz or 673 – 697.800 MHz (A version)
Bandwidth	2 MHz or 25 MHz
Channel	depending on Frequency version
Oscillation Mode	PLL Sinthesized
Frequency Stability	0,005%
Modulation Method	FM ( F3E ) stereo
RF Max deviation	max 70 Khz
Receiving Mode	single receiving
Rf Receiving Sensitivity	-110 dBm
Squelch Level	fix
Audio Frequency Response	50 Hz – 15 Khz
THD	<0,5% at 1 Khz
S/N Ratio	90 dba
Stereo Separation	>45dB
Earphone Output	3,5 mm stereo jack
Earphone Impedance	16 Ω
Output Power ( 32 Ω )	2 x 100 mw
Eq	4 selectable eq mode
Limiter	On/ Off
Power Supply	2 x AA 1,5 volt battery
operating Time	up to 8 hours ( depending on volume )
Dimension (WxDxH)mm	64 x 20 x 100
