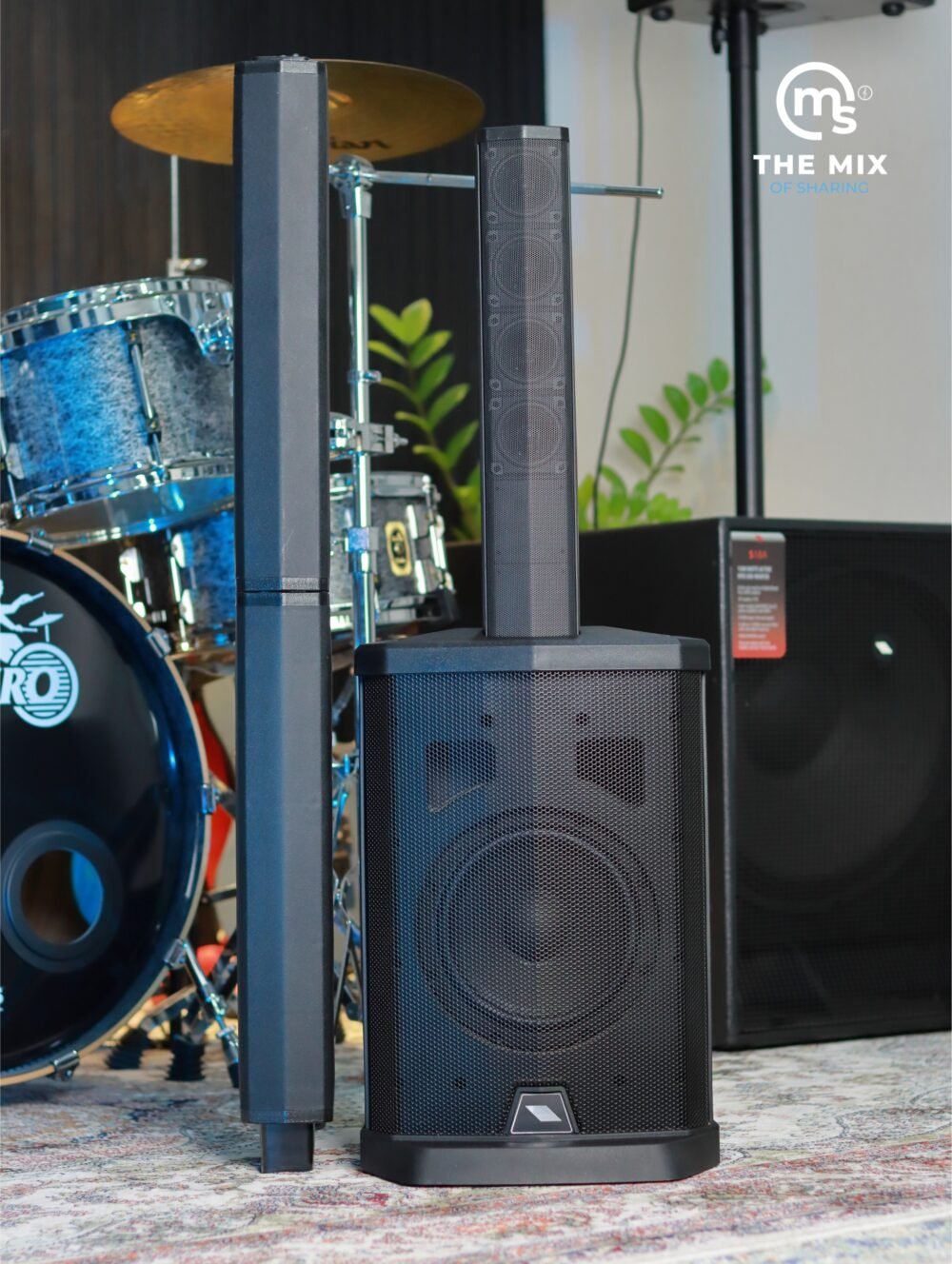

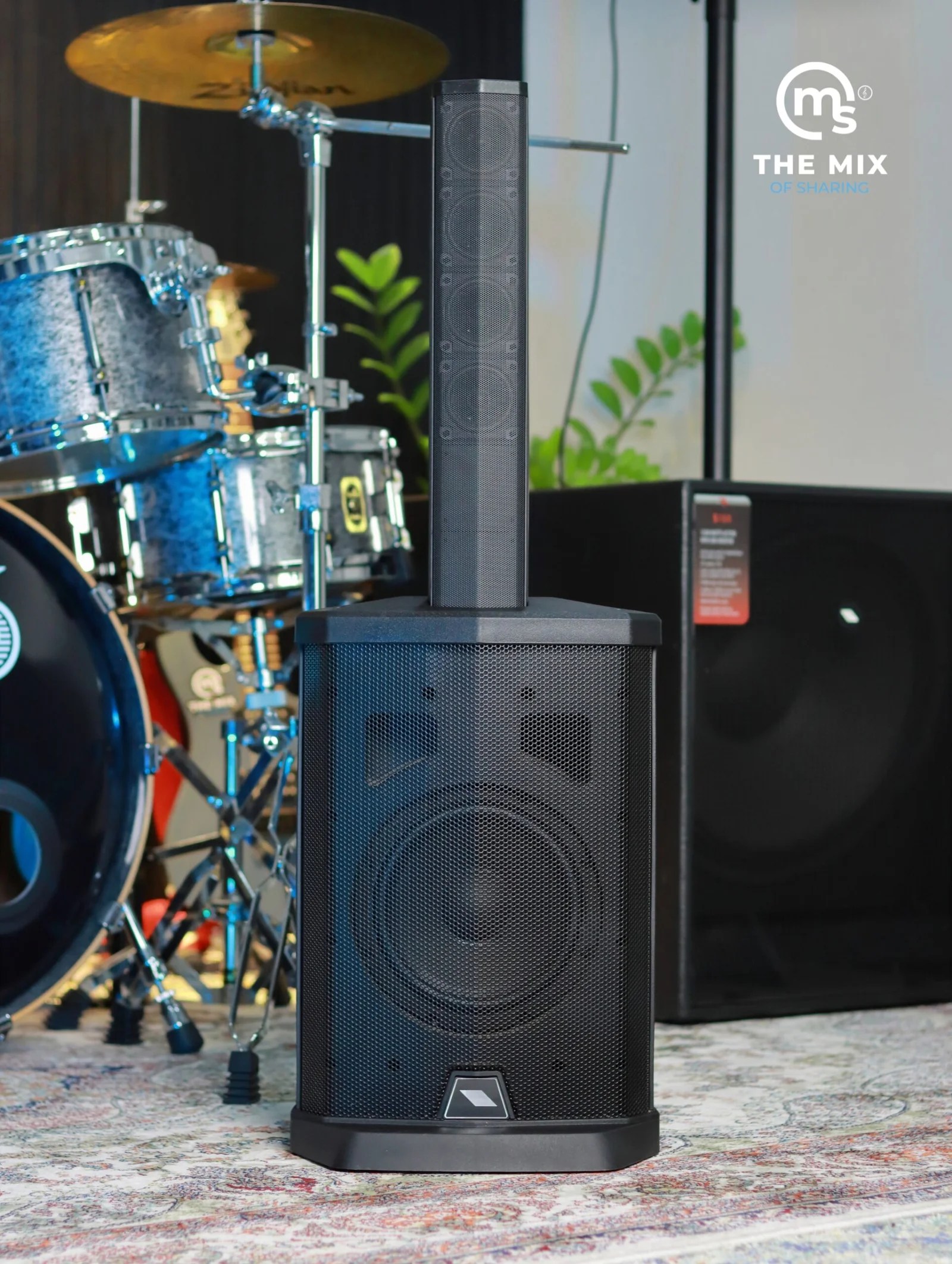

SESSION1 is a portable column system featuring multiple inputs and a versatile MP3 player with BLUETOOTH connectivity. Hosted in lightweight yet ultra-durable polypropylene cabinets, it is composed by a column with four high-definition 2.5” full-range speakers and a powerful 8” sub-woofer. The state-of-the-art electronics includes a sophisticated pre-amp section with active filtering and dual CLIP LIMITERS, and a powerful 2-channel 400W Class D power amplifier.

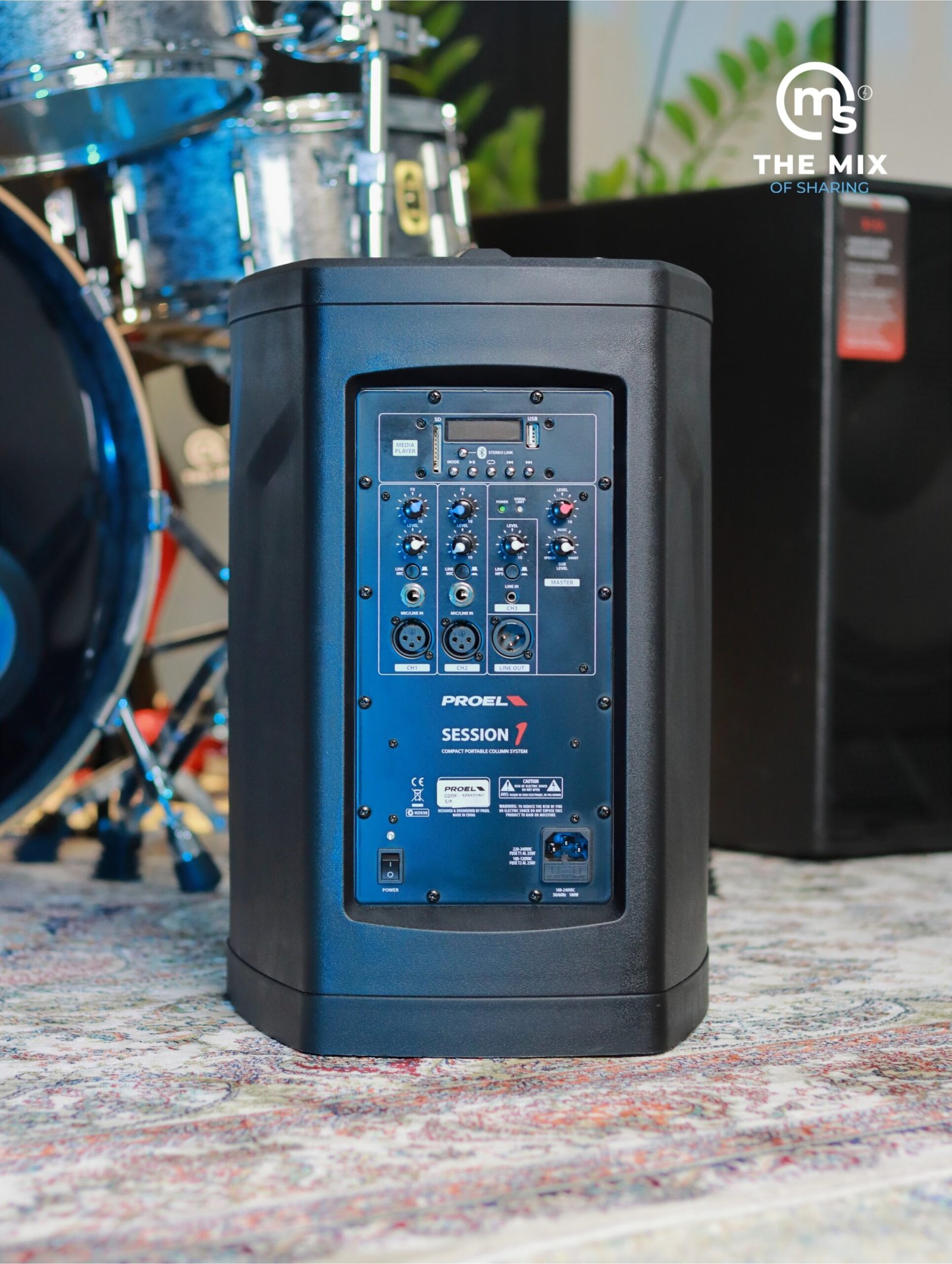

The built-in MEDIA PLAYER is able to play songs from an SD card or a USB MEMORY STICK, but also from your smartphone or your tablet thru a BLUETOOTH connection, without the need of any cable. The built-in 3-channel mixer allows to connect two microphone or line sources and a stereo player, each one with independent level controls. A digital EFFECT is also available for microphone inputs. With a simple knob is possible to optimize the sound for speech, music or low boost applications, adapting the system to any situation.
SESSION1 can be used in a variety of applications, ranging from speech diffusion and music playback to live music and DJ sets.
| MIXER Section | |
| MONO inputs | 2 x MIC/LINE IN (XLR-F + 1.4″ JACK) |
| STEREO input | 1 x LINE IN (MINI-JACK) |
| Outputs | LINE OUT (XLR-M) |
| Main EQ | SUB LEVEL (SPEECH-MUSIC-BOOST) |
| Internal Effect | ECHO-DELAY |
| MULTIMEDIA Section | |
| Player Type | USB / SD / WIRELESS AUDIO player with TWS |
| Compatible File Formats | MP3 |
| Control Interface | LCD display, CONTROL buttons |
| AMPLIFIER Section | |
| Total Peak Power | 400 W |
| Continuous Power | 200 W |
| Amplifier Type | Class D |
| Power Supply | SMPS |
| Processing | Analog |
| LOUDSPEAKER Section | |
| System Type | Compact powered column system with subwoofer |
| High Frequency Device | 4 x 2.5″ (66mm) drivers |
| Low Frequency Device | 8” (200mm) woofer with 1.5” VC |
| Angular Coverage | 90° H x 60° V |
| Frequency Response | 50Hz – 18kHz |
| Maximum SPL Output | 108 dB |
| GENERAL Specifications | |
| Construction | Polypropylene |
| Cabinet Colour | Black |
| Column system | 3-pcs with fast-linking system and integral power connections |
| Handles | 1 x subwoofer top |
| Accessories | Padded bag for 3-pcs column |
| Dimensions (WxHxD) | SUB: 318x 400 x484.5 mm COLUMN (each piece): 520 X 84 X 97.5 mm |
| Weight | 14 Kg (complete system) |
| Power Supply | 100 V-240 V~ 50/60 Hz |
| Rated Power Consumption | 100 W |
Brand
PROEL SOUND
PROEL SOUND SYSTEMS
Proel has over 25 years of experience in the world of amplification. Such know-how as to generate a product philosophy inspired by innovation in design and functionality.
Since 1996, Proel has been dedicated to designing and manufacturing high-quality Sound Systems products that could meet the ever-increasing demand of professional installers and the music market.
Widely recognized for product value, Proel has focused its energies on ensuring that every single Sound Systems product is reliable and of high quality, with solutions for any target audience and application: from artists and professionals to amateur musicians; from fixed installations to live performances.
The beginning of the new millennium saw the introduction – in 2002 – of NEXT, Proel’s first plastic loudspeaker, while in 2003 Proel Sound Reinforcement’s experience was enriched by what is still considered a milestone in the sound reinforcement of large outdoor spaces: the EDGE series. Based on state-of-the-art transducers designed and manufactured with unique components and solutions in order to achieve high performance in terms of distortion reduction, precision in angular coverage, and high sound pressure levels, EDGE-with its high modularity-allowed the sound system to be configured for any type of space, effectively anticipating some of the concepts later taken up by modern loudspeaker arrays.
Proel Sound Systems’ experience is rooted in the professional touring world of the late 1990s, when, after a series of operational tests, Proel Sound Reinforcement introduced the SMART, TPR and TFL lines in 1997, the latter designed asymmetrically to also be used as floor monitors. Since then, Proel loudspeakers showed a focus on flexibility and portability by offering, for example, the external Full range/Bi-Amp selector switch for handling multiple systems and ergonomic handles inserted on multiple sides.
