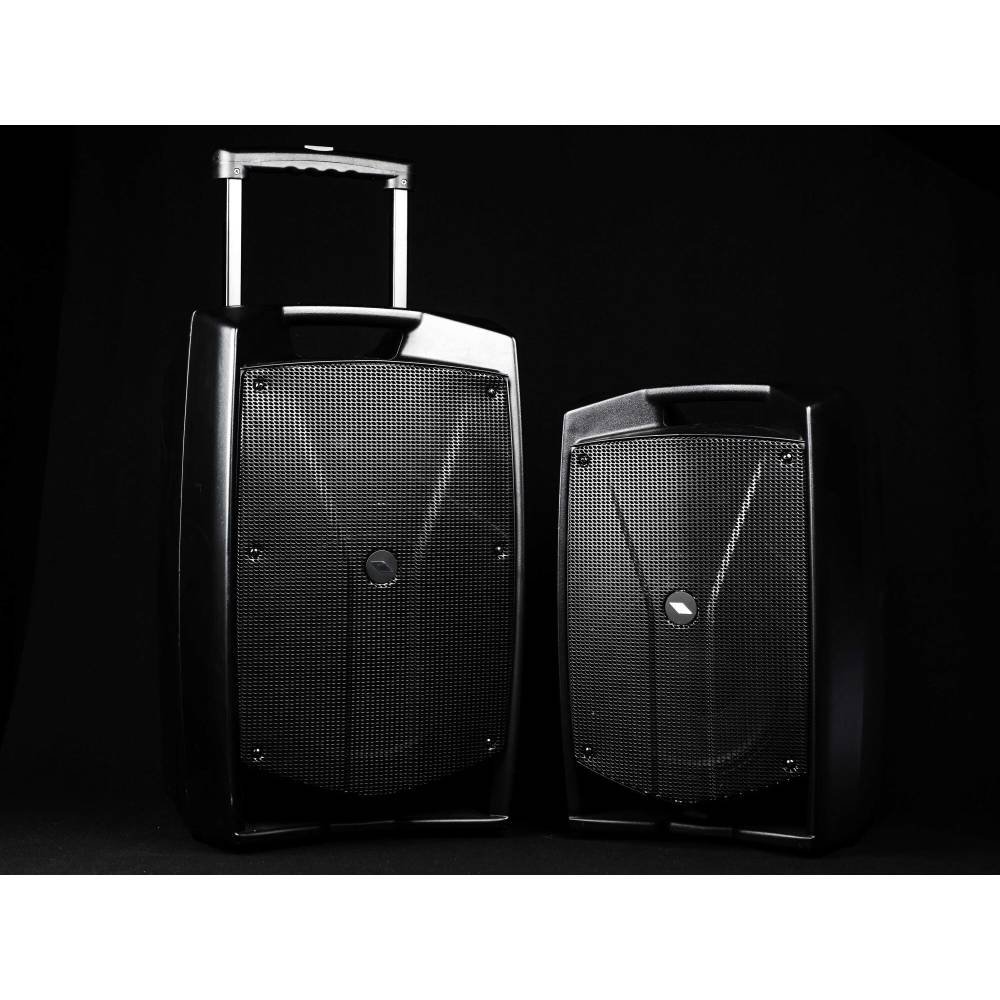

PROEL V FREE systems gives you the freedom to perform your music or play your sound anywhere, with a superb sound quality and without the hassle of laying down cables or finding a power outlet.V10FREE and V12FREE are battery-powered portable sound systems featuring a powerful 400W amplifier, a built-in 3-channel mixer with effect and tone controls and an advanced MP3 player with BLUETOOTH connectivity, featuring a large back-lit LCD display and able to play songs from SD card, USB MEMORY STICK or directly from your smartphone or tablet.

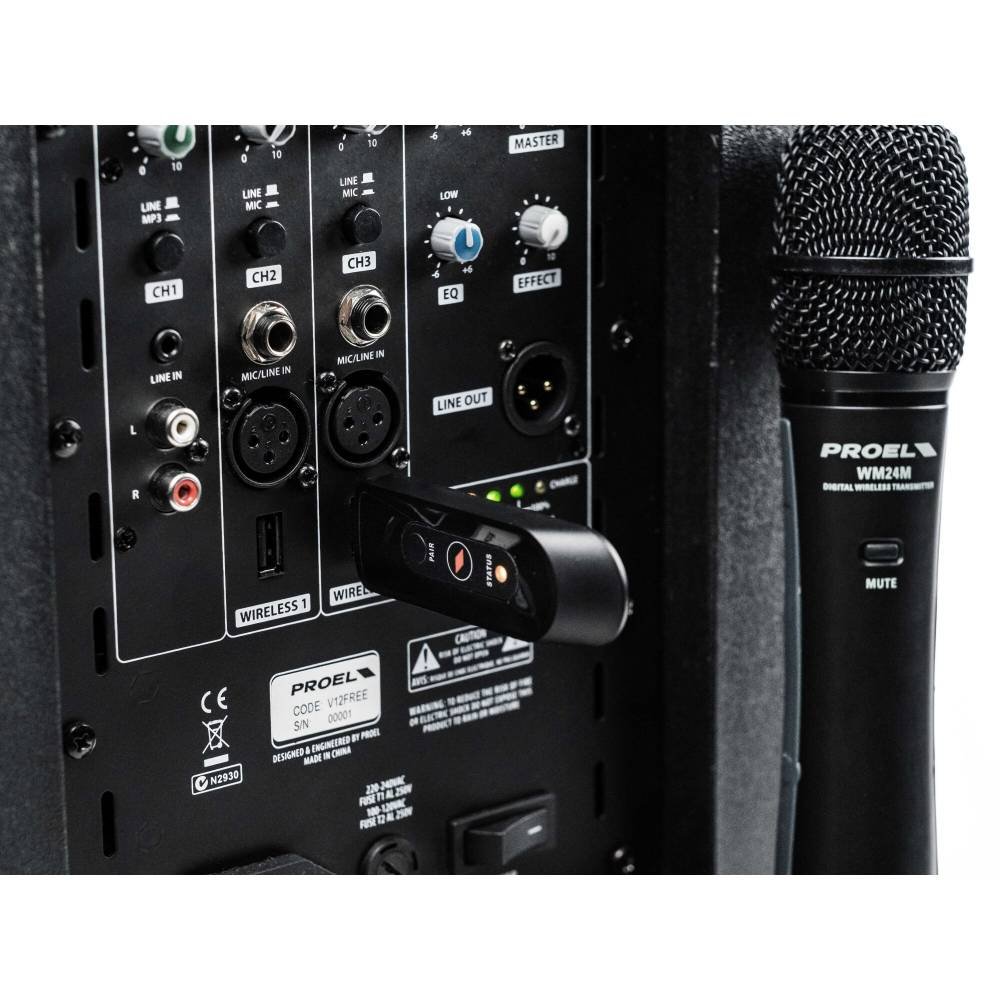

They includes also two USB inputs for connecting PROEL U24H or U24B 2.4GHz Wireless Microphones with USB receiver, available both with handheld and bodypack transmitter. Just plug in the ultra-compact USB receiver and you can instantly use a professional wireless system, offering a high-definition, interference-free transmission thanks to the 2.4GHz technology.
The the premium loudspeakers, the Class D power amplifier and the sophisticated processing provide a superb sound quality, while the built-in Li-ion battery allows for up to 10 hours of mains-free continuous operation, for the maximum freedom of use.
Both these ultra-portable and light-weight systems (10kg and 11kg respectively) can be installed on standard speaker poles and the V12FREE is fitted with a luggage-style extra handle and two wheels.Incredibly simple to set-up and use , V FREE loudspeakers are perfect for a wide range of applications, including parties, schools, corporate and educational presentations, seminars, gym, weddings, live music and even DJ sets.

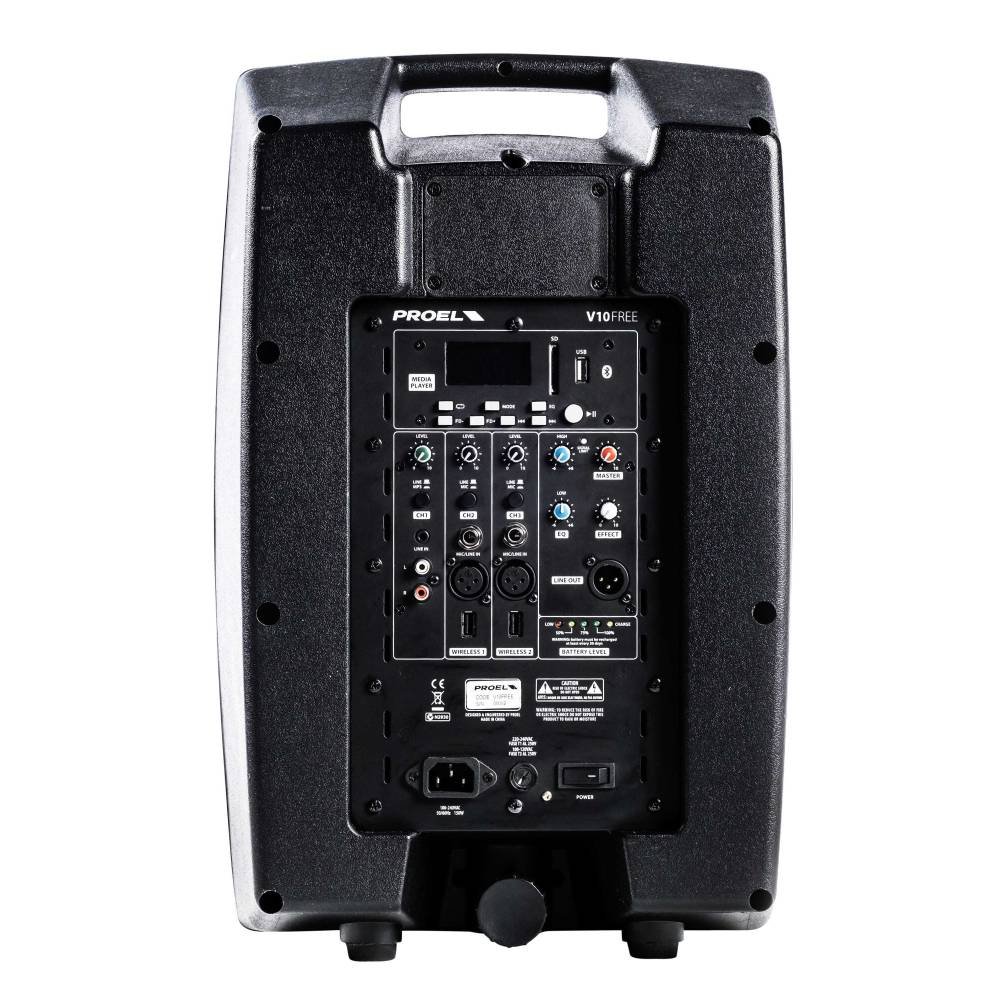

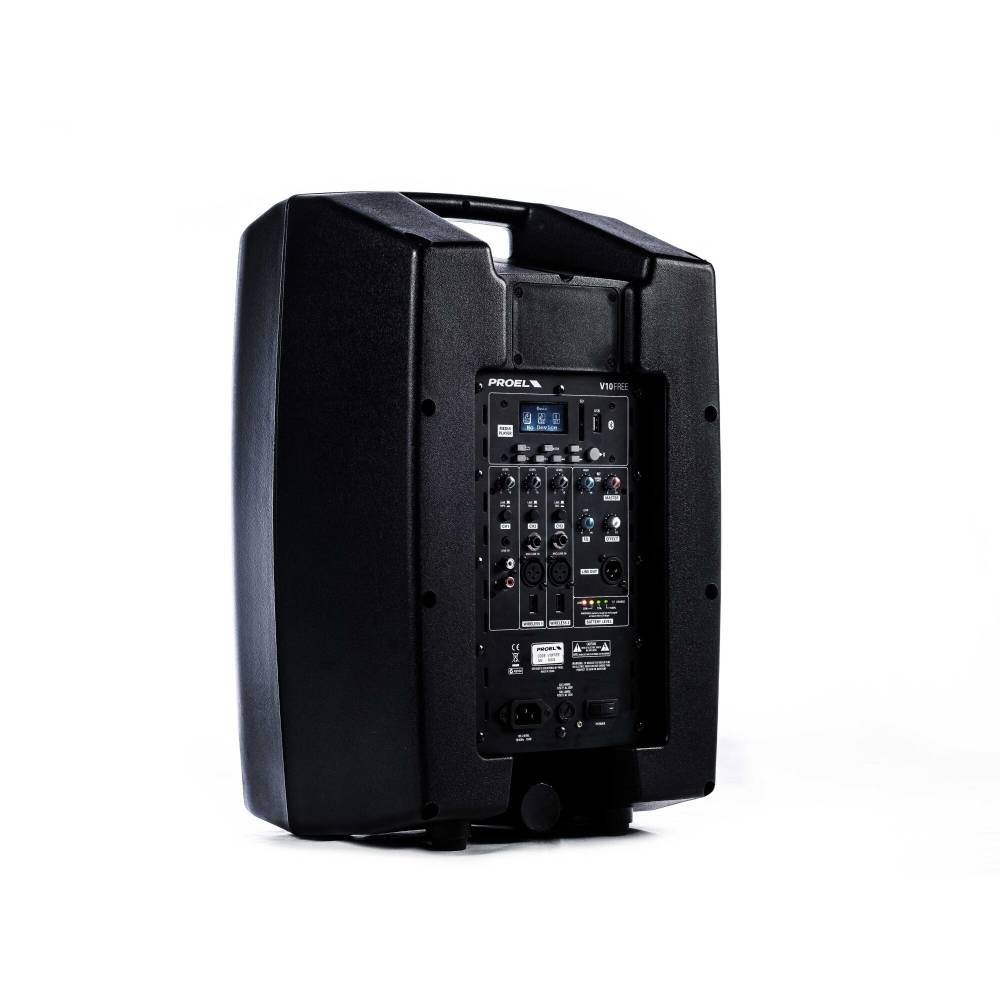

- All-in-one battery powered sound system
- MP3 PLAYER with USB port, SD slot, BLUETOOTH connection and LCD
- 2 MIC/LINE + 1 STEREO LINE inputs
- 2 USB inputs for the use of 2.4GHZ U24H and U24B wireless microphones
- 1 LINE output
- HIGH + LOW EQ controls
- Built-in EFFECT
- 400W Class D amplifier
- 1” horn loaded neodymium compression driver and 10” woofer
- Li-ion battery with 10-12 hours working time
- Compact and light-weight PP cabinet with top handle
TECHNICAL SPECIFICATIONS
| MIXER Section | |
| MONO inputs | 2 x MIC/LINE IN (XLR-F + 1.4″ JACK) |
| STEREO input | 1 x LINE IN (2xRCA + MINI-JACK) |
| WIRELESS inputs | 2 x USB TYPE-A |
| Internal EFFECT | ECHO |
| Outputs | MONO LINE OUT (1.4″ JACK) |
| Main EQ | 2-band EQ (HIGH + LOW) |
| MULTIMEDIA Section | |
| Player Type | USB / SD / BLUETOOTH player with BT LINK |
| Compatible File Formats | MP3 |
| Control Interface | LCD display, CONTROL buttons |
| AMPLIFIER Section | |
| Total Peak Power | 400 W |
| Continuous Power | 200 W |
| Amplifier Type | Class D |
| Power Supply | SMPS |
| Processing | Analog |
| LOUDSPEAKER Section | |
| System Type | 2-way vented enclosure |
| High Frequency Device | 1″ horn loaded neodymium compression driver |
| Low Frequency Device | 10” woofer with 1.5” VC |
| Angular Coverage | 90° H x 60° V |
| Frequency Response | 60 Hz – 20 kHz |
| Max SPL | 122 |
| GENERAL Specifications | |
| Construction | Polypropylene |
| Cabinet Colour | Black |
| Handles | 1 x top |
| Wheels | – |
| Mounting Pole | 1 x bottom |
| Dimensions (WxHxD) | 330 x 514 x 286 mm |
| Weight | 10 kg (22.1 lb.) |
| Recharge Battery | 11.1 V / 8000 mAh Li-ion |
| Battery Recharging Time | 4-5 hours |
| Battery Working Time | 10-12 hours |
| Power Supply | 100 V-240 V~ 50/60 Hz |
| Rated Consumption | 300 W |
Brand
PROEL SOUND
PROEL SOUND SYSTEMS
Proel has over 25 years of experience in the world of amplification. Such know-how as to generate a product philosophy inspired by innovation in design and functionality.
Since 1996, Proel has been dedicated to designing and manufacturing high-quality Sound Systems products that could meet the ever-increasing demand of professional installers and the music market.
Widely recognized for product value, Proel has focused its energies on ensuring that every single Sound Systems product is reliable and of high quality, with solutions for any target audience and application: from artists and professionals to amateur musicians; from fixed installations to live performances.
The beginning of the new millennium saw the introduction – in 2002 – of NEXT, Proel’s first plastic loudspeaker, while in 2003 Proel Sound Reinforcement’s experience was enriched by what is still considered a milestone in the sound reinforcement of large outdoor spaces: the EDGE series. Based on state-of-the-art transducers designed and manufactured with unique components and solutions in order to achieve high performance in terms of distortion reduction, precision in angular coverage, and high sound pressure levels, EDGE-with its high modularity-allowed the sound system to be configured for any type of space, effectively anticipating some of the concepts later taken up by modern loudspeaker arrays.
Proel Sound Systems’ experience is rooted in the professional touring world of the late 1990s, when, after a series of operational tests, Proel Sound Reinforcement introduced the SMART, TPR and TFL lines in 1997, the latter designed asymmetrically to also be used as floor monitors. Since then, Proel loudspeakers showed a focus on flexibility and portability by offering, for example, the external Full range/Bi-Amp selector switch for handling multiple systems and ergonomic handles inserted on multiple sides.
