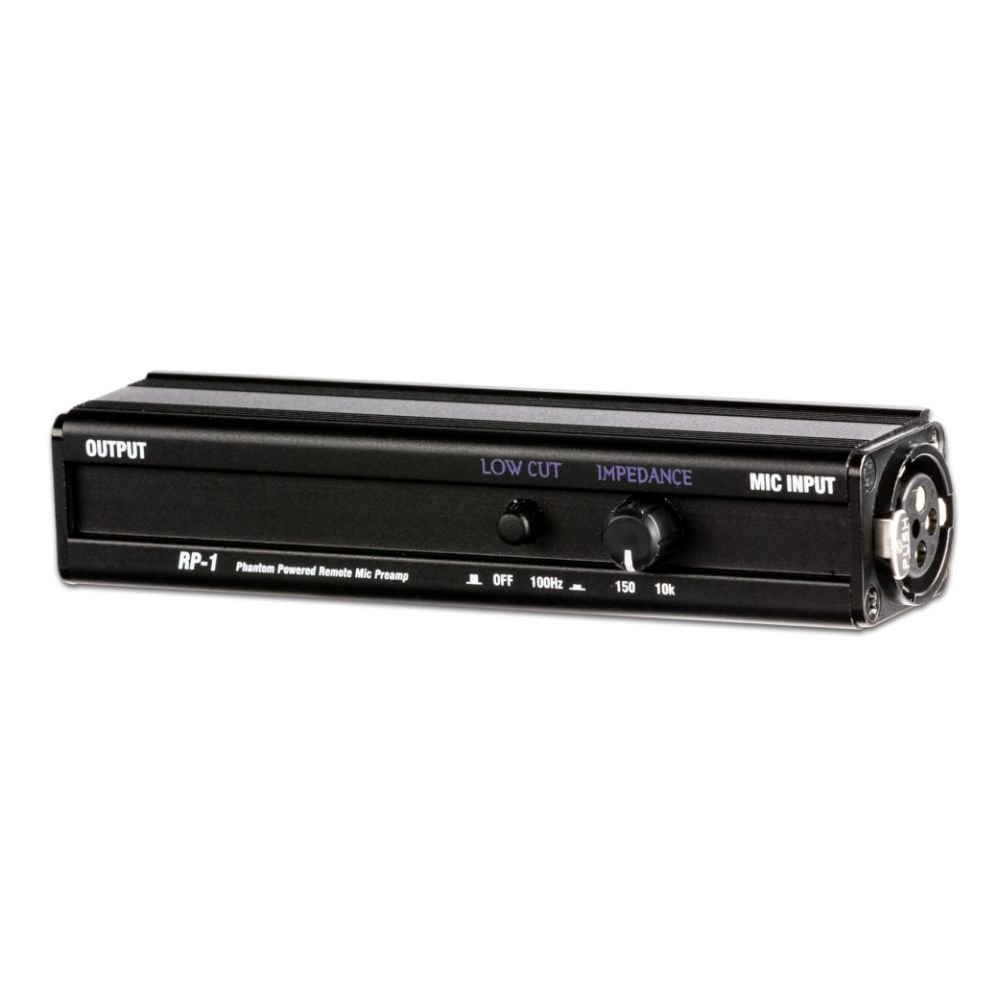

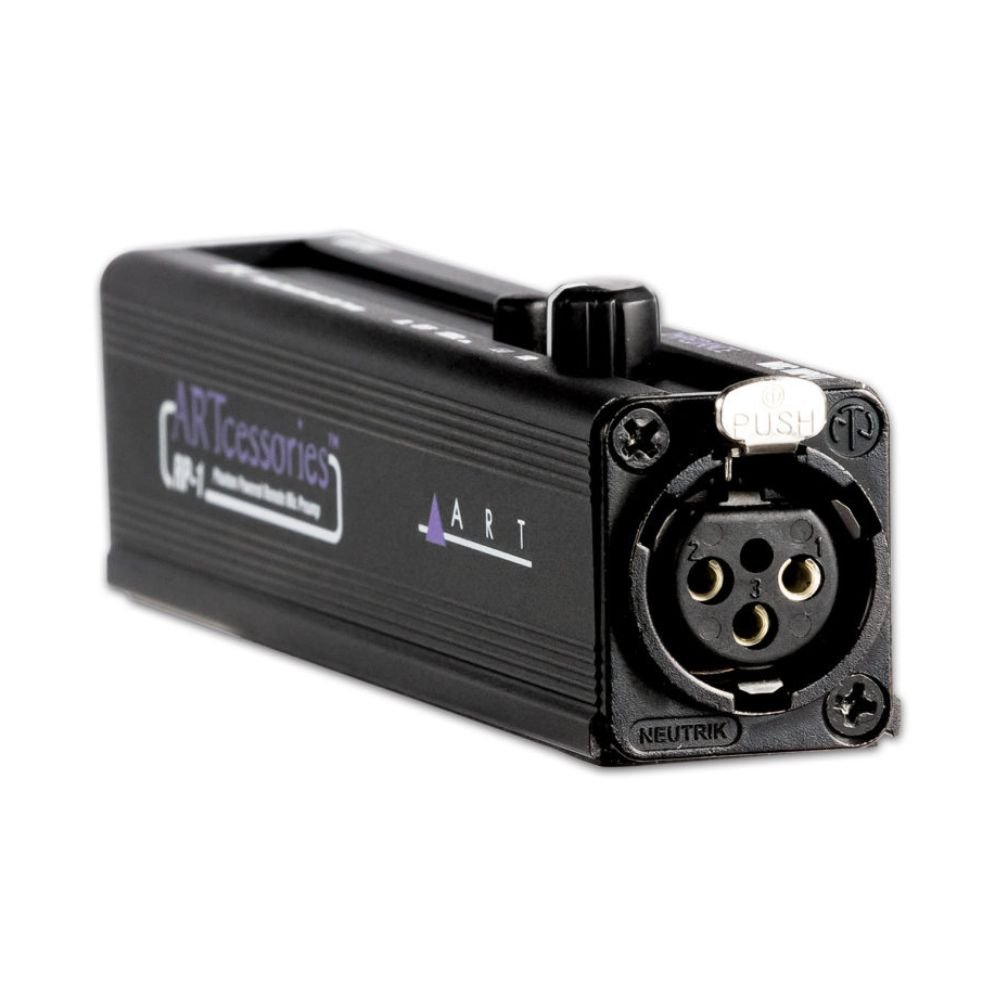

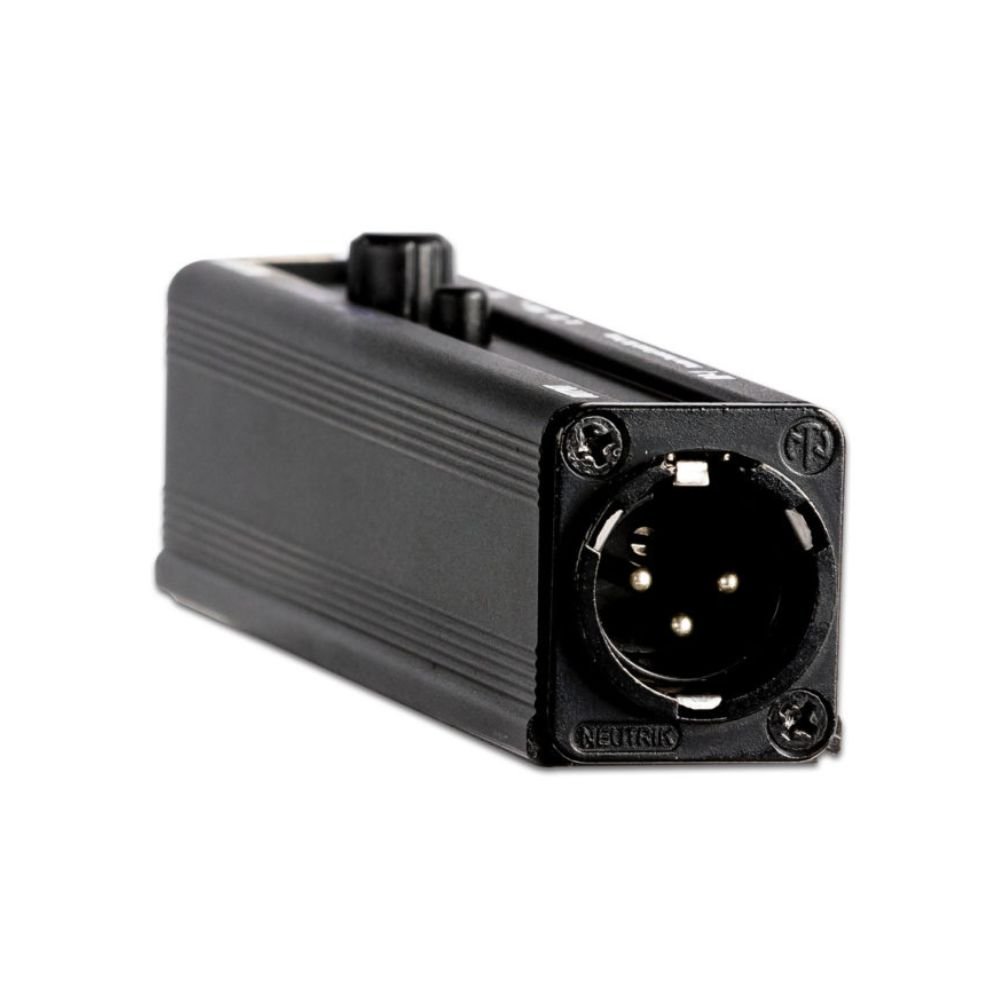

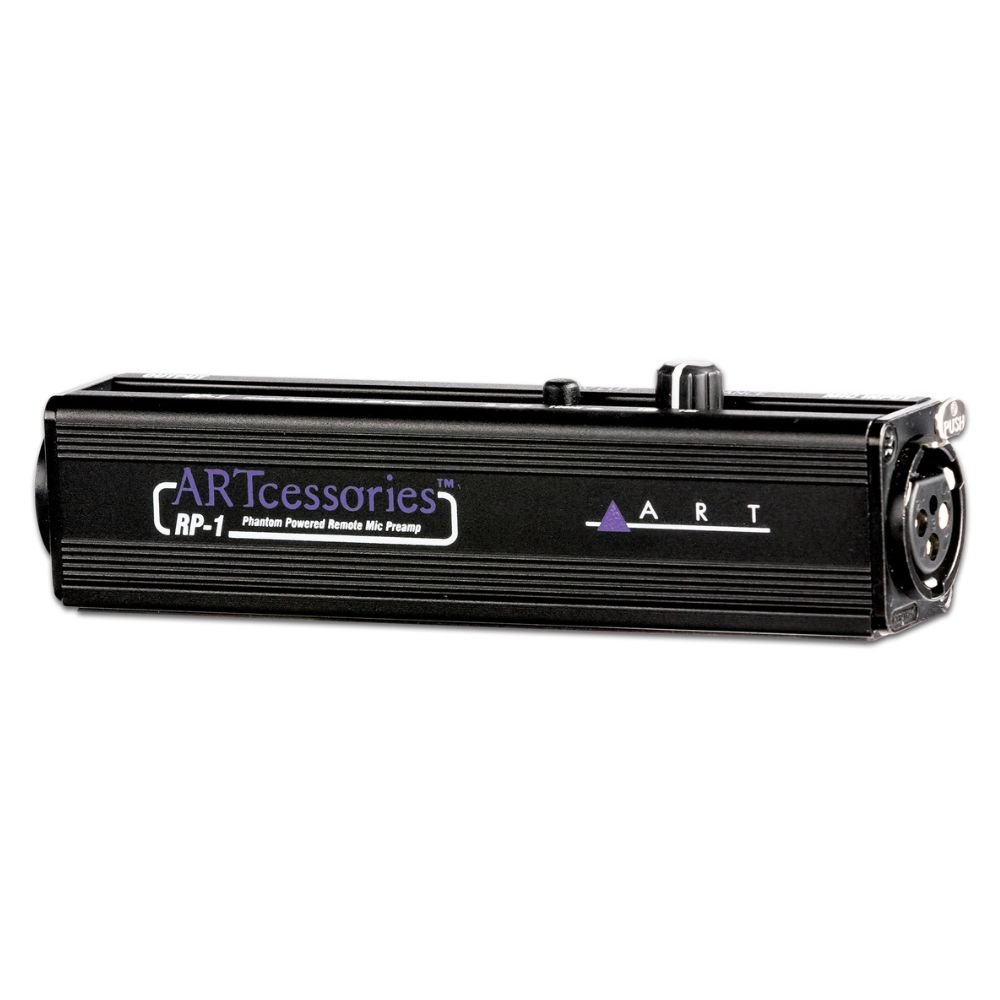

ART Pro-Audio RP-1 Mic Preamp
$75.00
Microphone Preamp for Ribbon or Dynamic Microphone with Phantom Power Required
Description
Overview
Introducing the RP-1 Mic Preamp, a single channel preamp to improve the performance of ribbon and dynamic microphones. This preamp brings out all of the nuances of a microphone before running into your recording interface or mixer through long cable runs.
With the RP1 the user can tailor the loading on the mic through the variable impedance control. The low cut filter allows the removal of wind noise and plosives before adding additional gain. The discrete preamp circuitry inside is designed for low noise and transparent operation. Balanced output drives long cable runs with ease allowing the preamp to be placed as close as possible to the mic before picking up any noise or interference.
Key Features
- Switchable low cut filter 100 Hz low cut filter
- Variable impedance control (150 ohms – 10k ohms)
- Adds low-noise, clean gain (28dB @ 10k ohms, 20dB @ 600 ohms)
- Runs off +48V Phantom power supply
- Low THD discrete circuitry (<0.002% @ 1kHz typ.)
- Balanced outputs
Specification
Input Connections XLR
Input Impedance 150 Ohms to 10k Ohms, variable
Max Input level -18dBu
Output Connections XLR
Max. Output Level +9dBu
Gain +27dB
Low Cut Filter Single pole 100hz
THD < .002% @1kHz typ.
E.I.N. -131dBu “A” wtd.
C.M.R.R. >60dB 20-20kHz
Power Requirements External Power requirements
Standard 48V Phantom power
supply, 8ma.
Dimensions (HxWxD) 1.26-inch x 1.12-inch x 5.18-inch
(32 x 28.4 x 132 mm)
Weight 0.31 lbs / 0.14 kg
