ALL-IN-ONE BATTERY POWERED PERSONAL PA

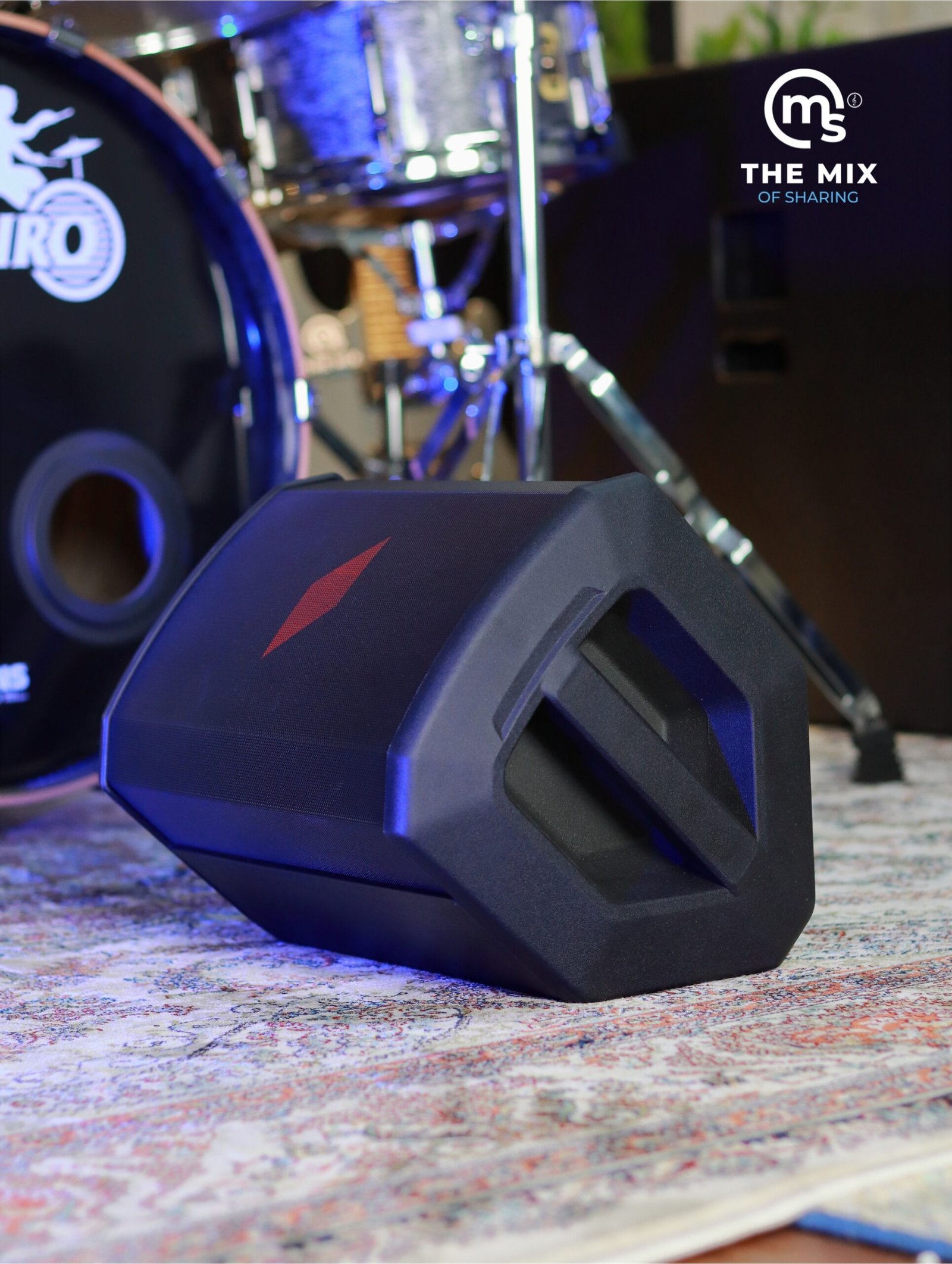

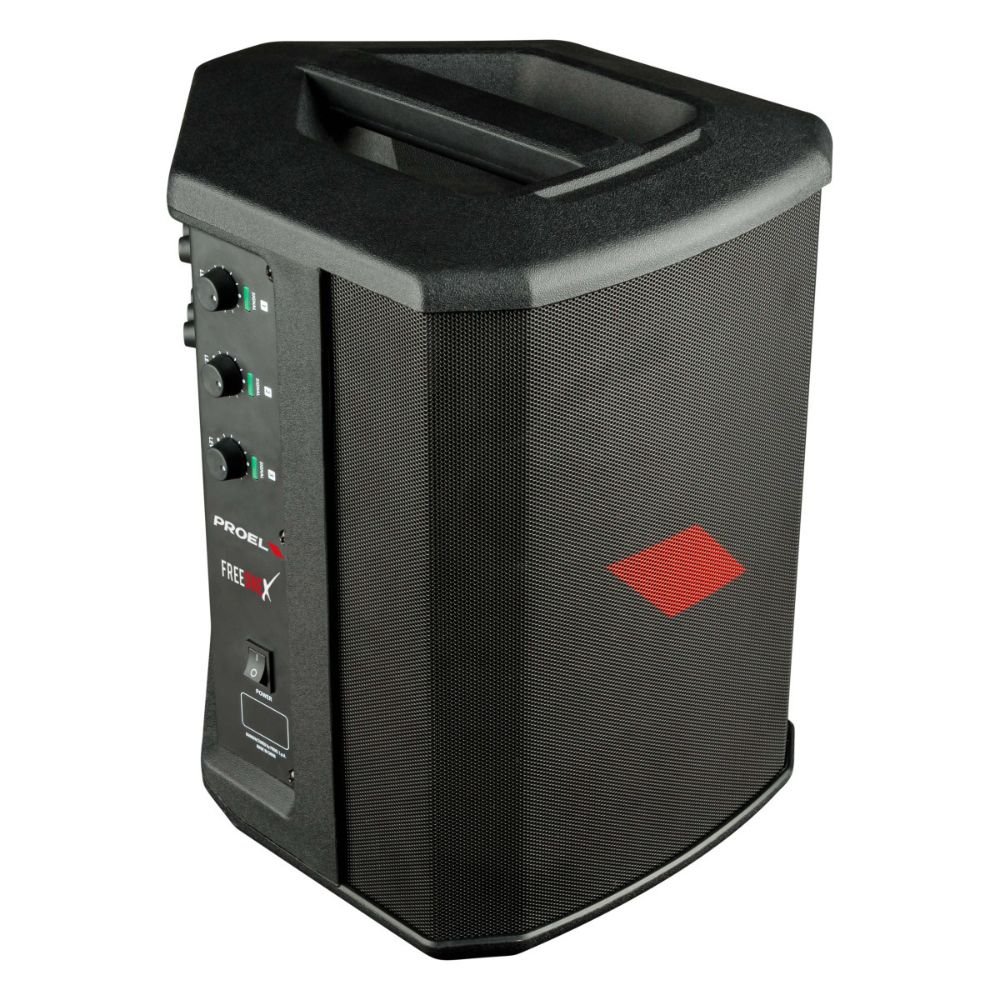

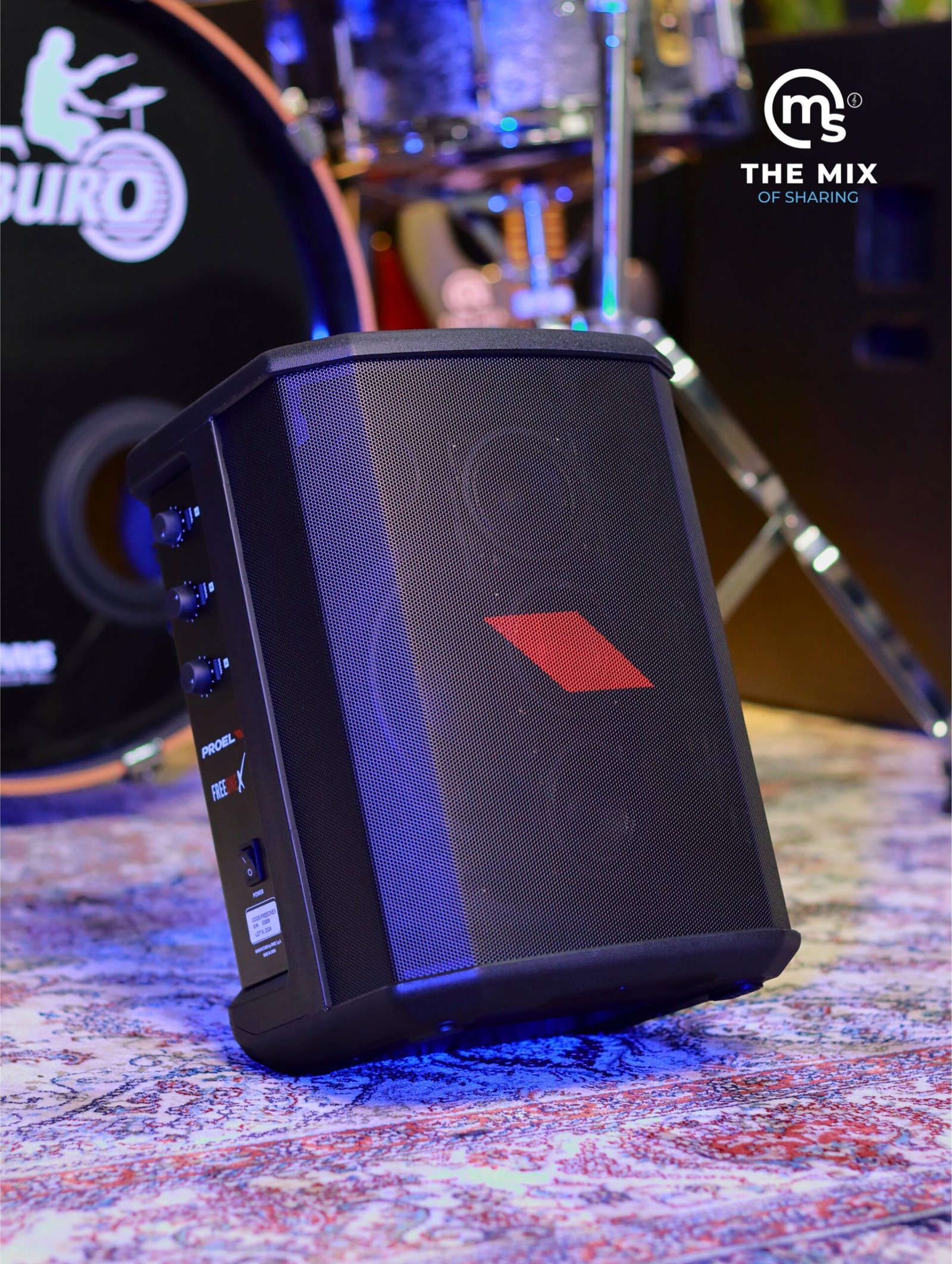

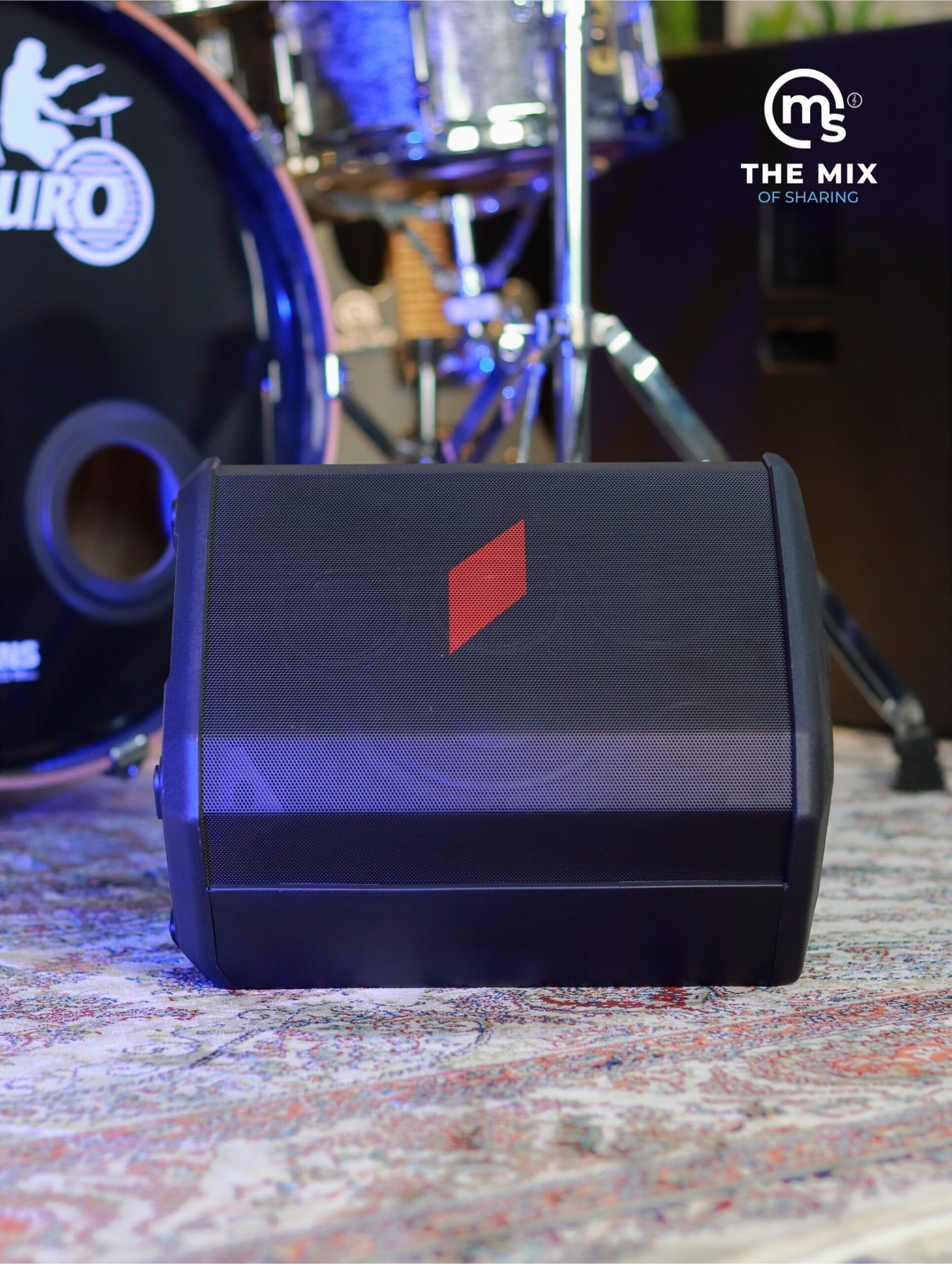

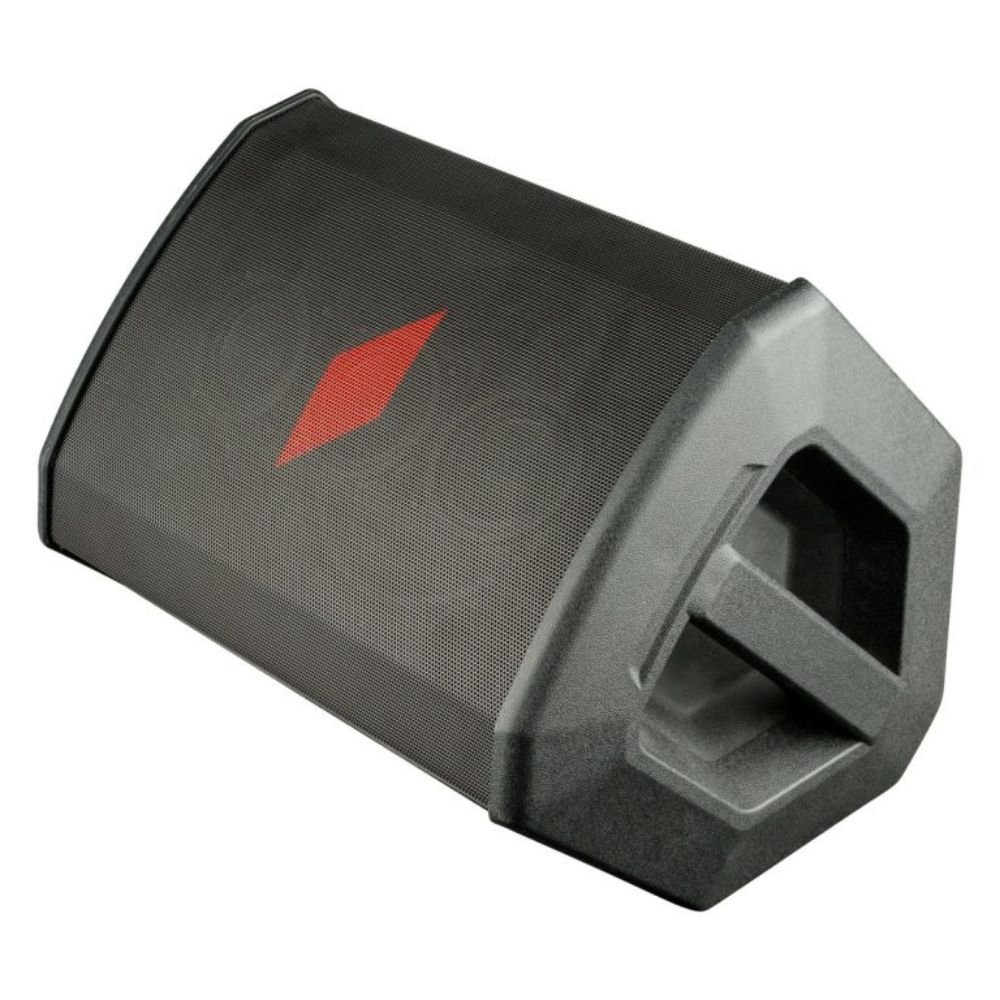

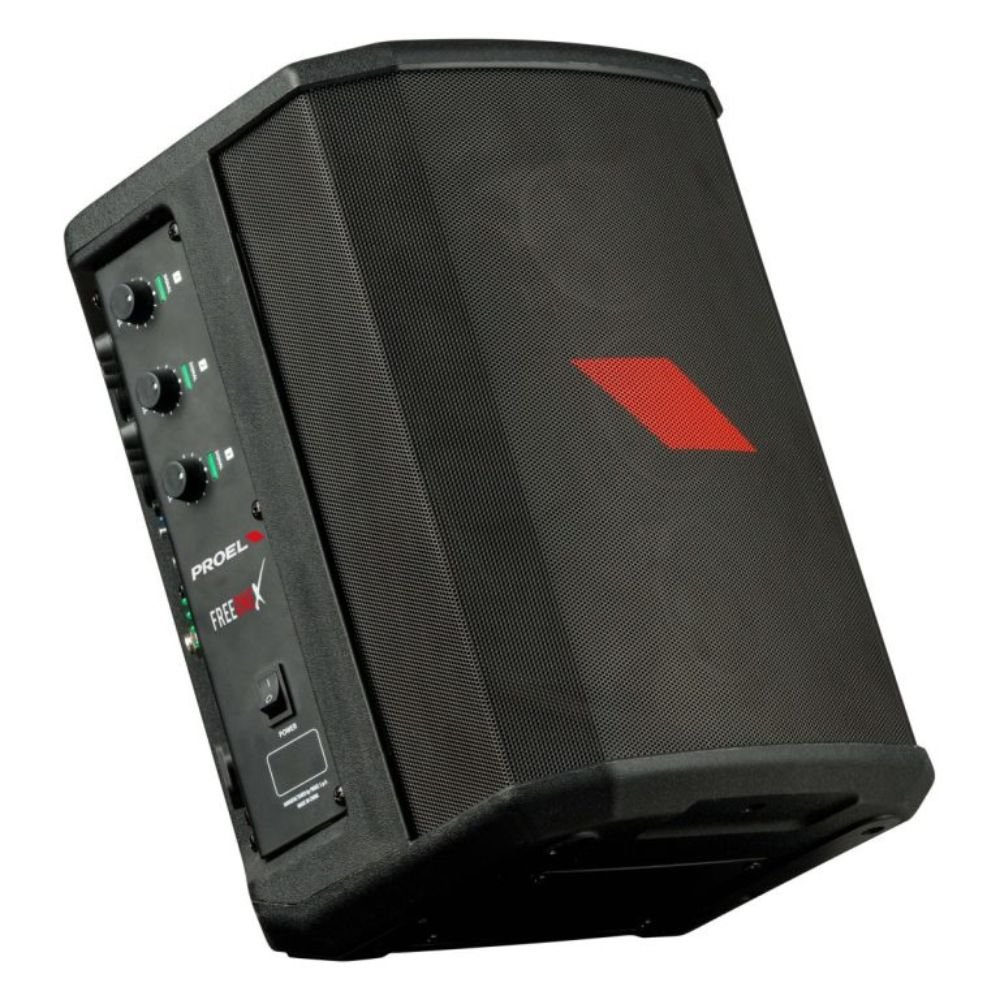

FREEONEX is an all-in-one battery-powered personal PA system featuring multiple inputs and BLUETOOTH connectivity. Hosted in a compact, lightweight yet ultra-durable polypropylene cabinet with multiple aiming positions, it represents the perfect solution for musicians, DJs and general PA users.

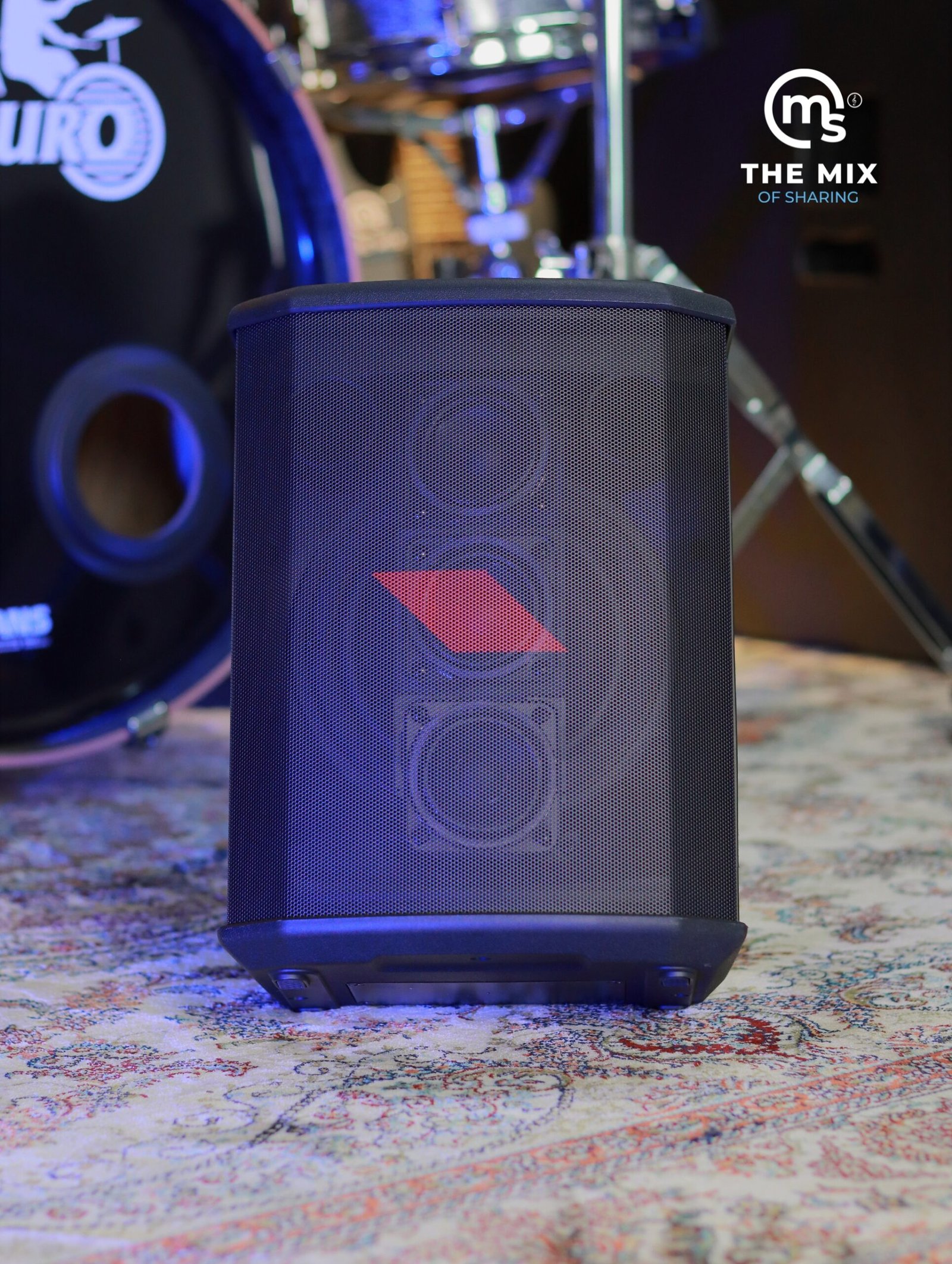

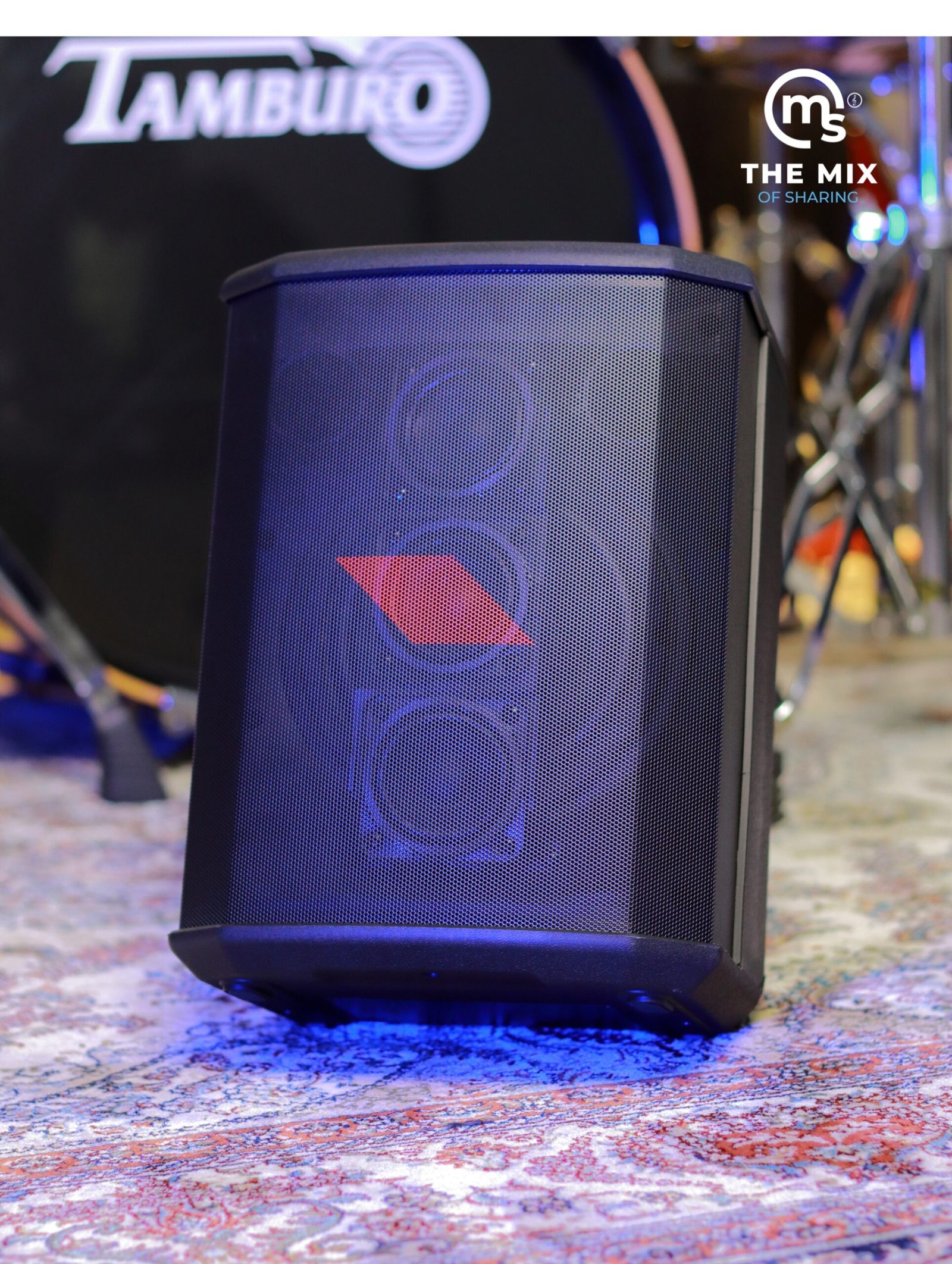

An array of three high-definition 2” HF speakers coupled with a powerful 6” LF woofer provides a consistent tonal balance, a strong output level over distance and a wide coverage of large audiences.

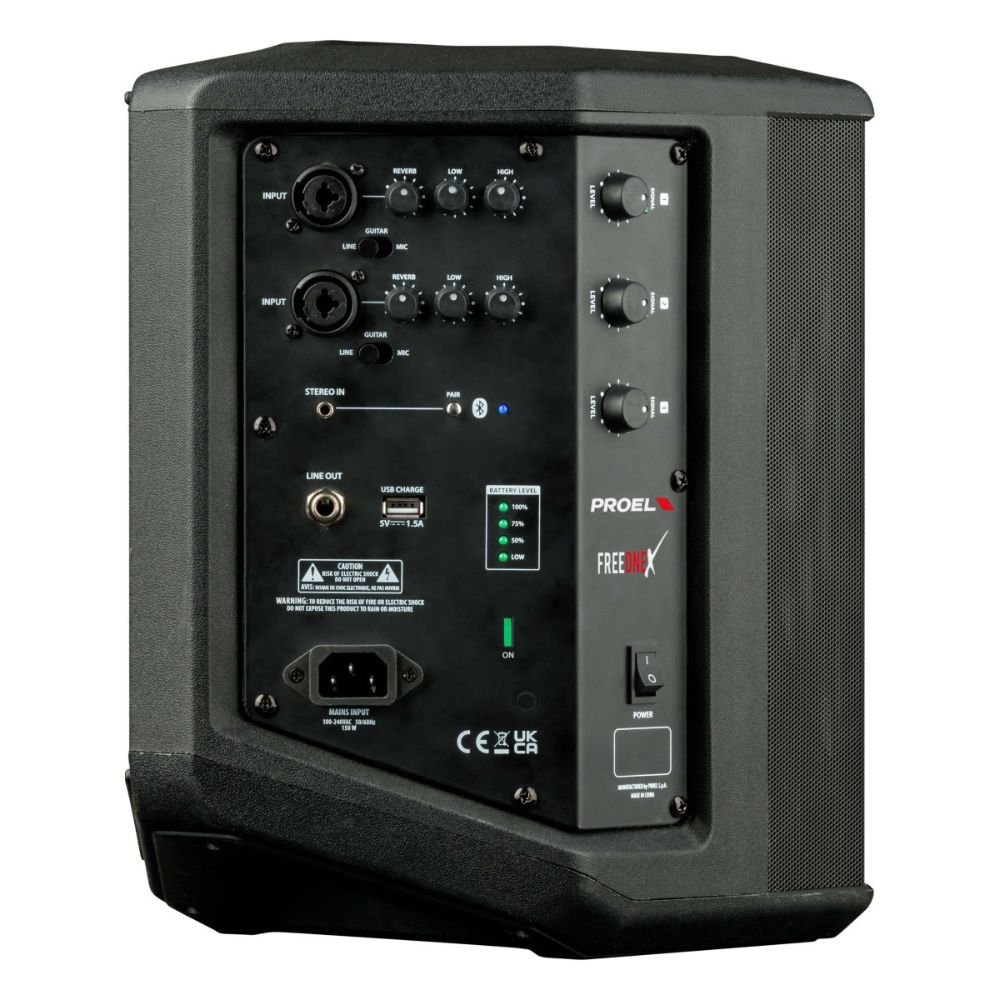

The state-of-the-art electronics includes a sophisticated pre-amp section with DSP processor and a powerful 150W + 50W Class D power amplifier. The built-in 2 mono + 1 stereo channel digital mixer allows to connect two microphones or instruments and a stereo player, each one with independent level controls. A 2-band EQ and a studio-grade digital REVERB is also available for microphone/instrument inputs.
The built-in BLUETOOTH connection allows to stream high quality audio from portable devices without the need of any cable.
The built-in Li-ion battery provides up to 10 hours of mains-free continuous operation, for the maximum freedom of use.
TECHNICAL SPECIFICATIONS
| System type | 2-way vented enclosure with HF array |
| High Frequency Device | 3 x 2 in |
| Low Frequency Device | 1 x 6 in |
| Frequency response (-3 dB) | 60 Hz – 18 kHz |
| Max. SPL | 115 dB |
| Coverage angle (H x V) | 120° x 50° |
| Total peak power | 400 W |
| HF continuous power | 50 W class D |
| LF continuous power | 150 W class D |

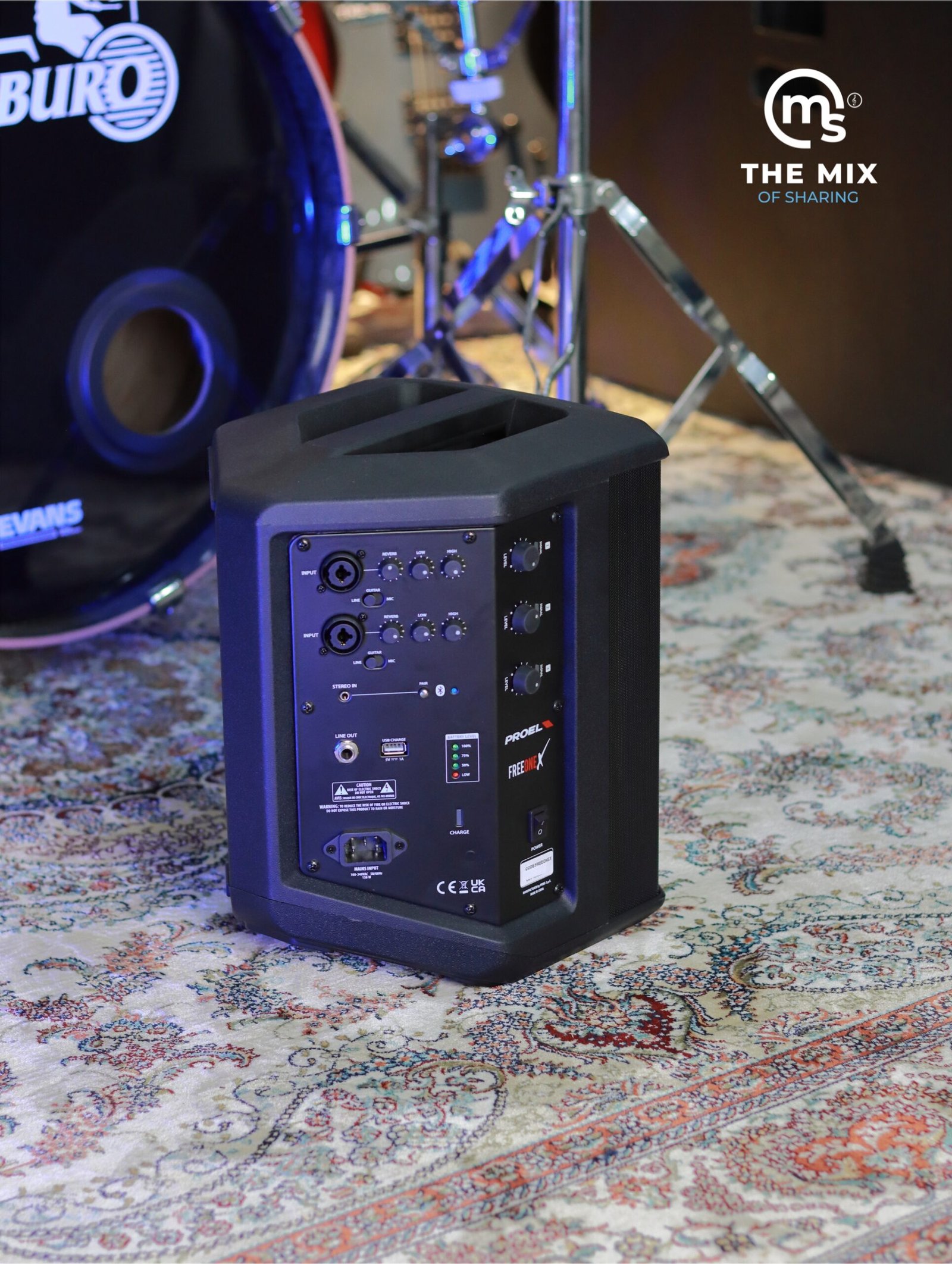

| Input Connectors | 2 x XLR/TRS Combo (balanced) 1 x 3.5mm Jack Stereo |
| Output Connectors | 1 x 6.35mm Jack (unbalanced) 1 x USB type A Charge port |
| Input Channels | 2x MIC/LINE 1x LINE/BT |
| Mic/Line Controls | Reverb, Low, High, Level |
| Stereo in/Bluetooth Controls | Pair, Level |
| Processing | 32bit DSP, 24bit AD/DA |
| Bluetooth | Protocol 5.0, Audio Streaming |
| Enclosure material | Polypropylene |
| Finish | Black Textured |
| Grille material | Powder coated steel |
| Handles | 1 x top |

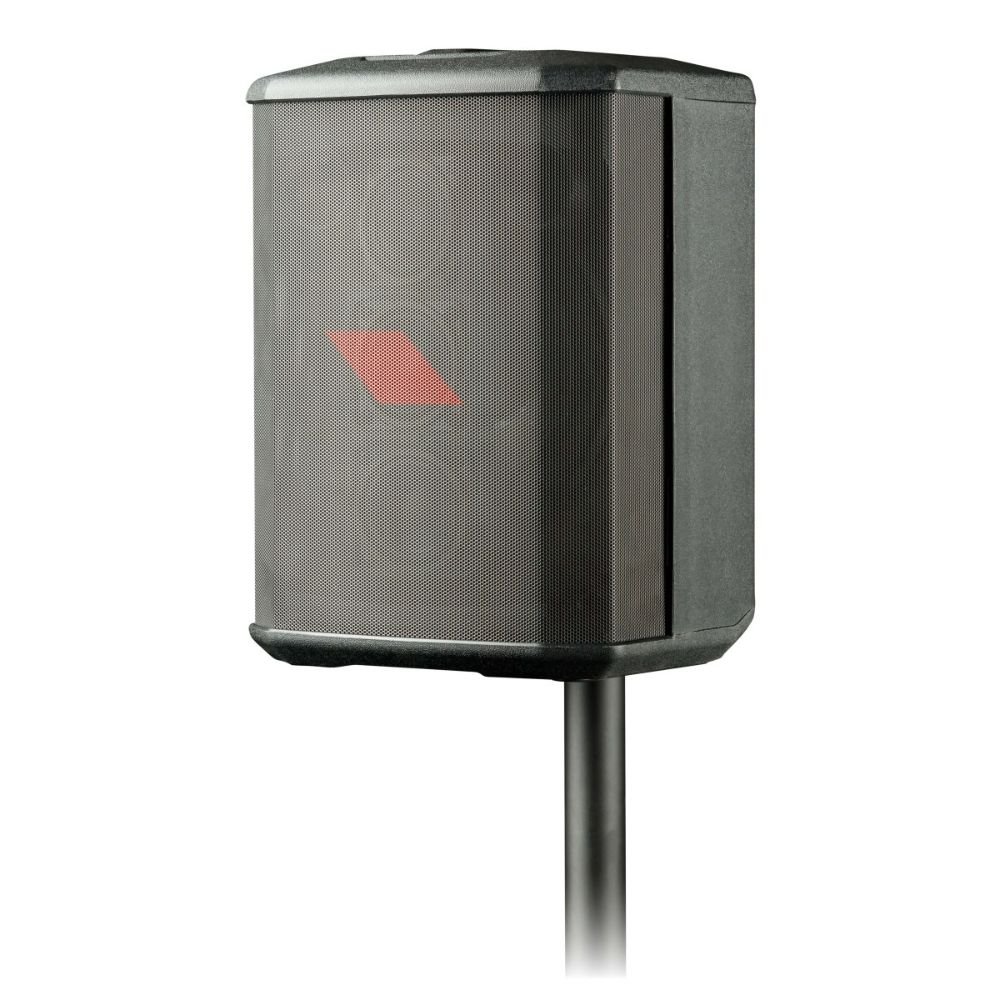

| Mounting Pole | 1 x bottom |
| Dimensions (H x W x D): | 320 mm x 240 mm x 290 mm 12.59 in x 9.45 in x 11.42 in |
| Weight | 7.5 kg 16.53 lb |
| USB charging | 2 A max |
| Power Supply | 100 – 240 V~, 50 / 60 Hz |
| Consumption | 150 W |
| Battery type | Rechargeable Lithium-ion 6000mAh |
| Battery play time (at medium level) | up to 10 hours |
| Recharging time | less than 4 hours |
