ADAM Audio D3V Desktop Studio Monitor
Original price was: $390.00.$359.00Current price is: $359.00.
240W 45 Hz – 23.2 kHz Compact USB-C/ 1/4″ Stereo TRS D3V Studio Desktop monitor speaker for songwriter, producers, music lover – Pair
Description
D3V
Designed for songwriters, producers, and music lovers, the D3V monitors can be directly connected to computers and mobile devices via USB-C and offer a wealth of features, plus incredible audio performance in a remarkably compact form.
THE D3V

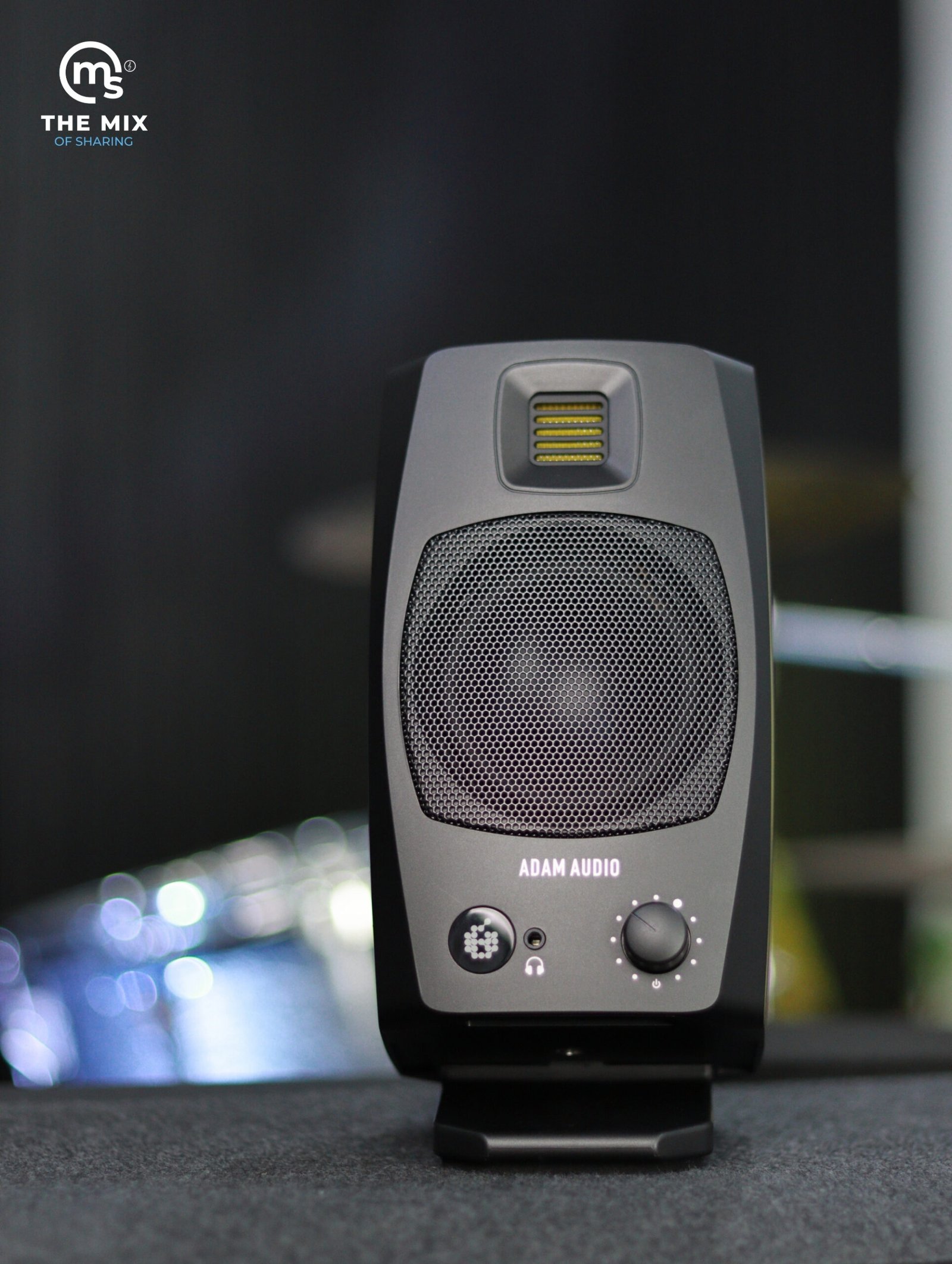

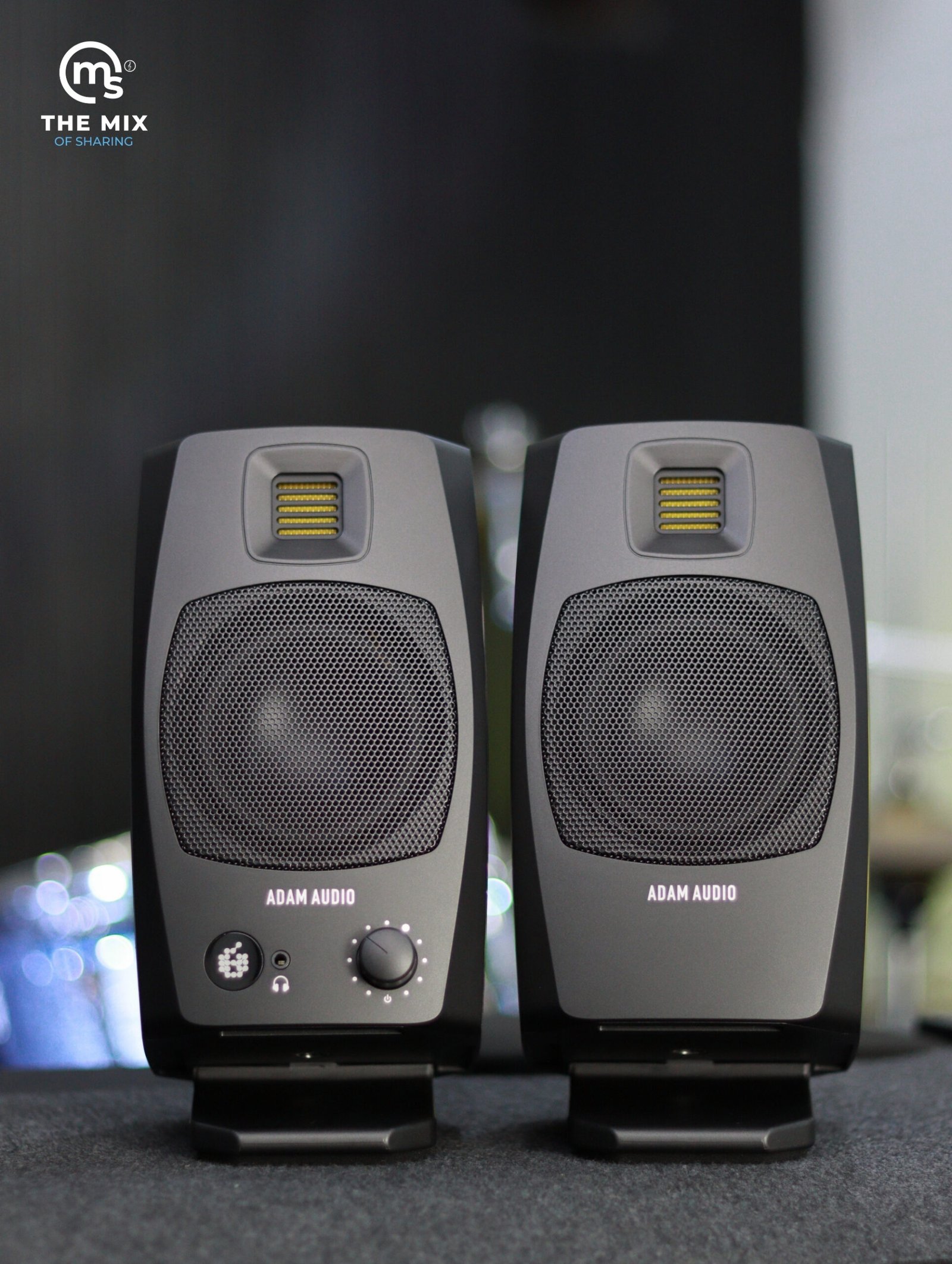

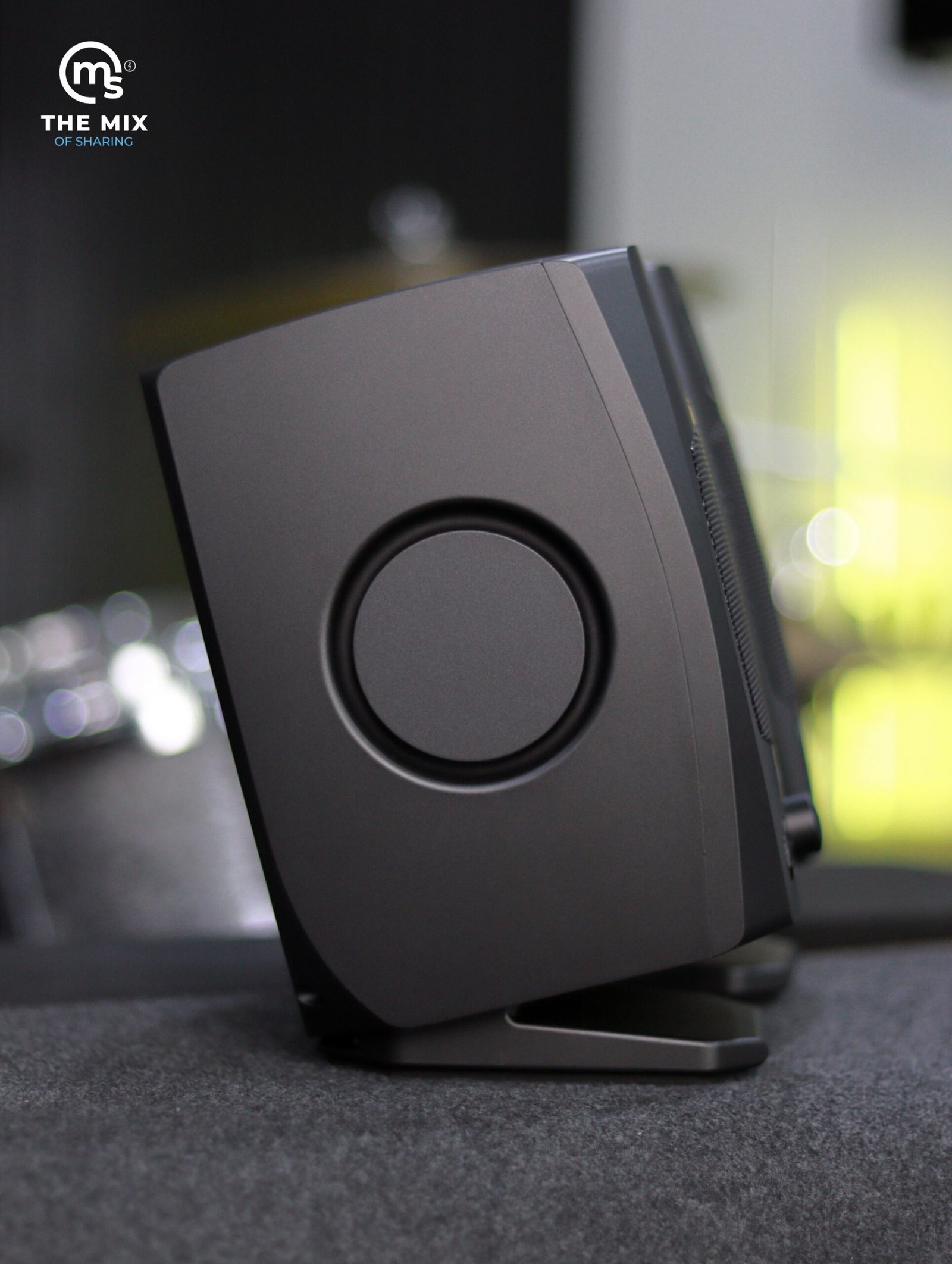

The D3V is a fully active desktop monitoring system that stays true to ADAM Audio’s industrial design heritage and features the iconic AMT tweeters. Each pair features 3.5” aluminum woofers and a ferrite magnet system, driven by an astonishing 240 W total system amplification. Dual-sided 3.5” passive radiators bolster bass frequencies and allow the D3V to extend down to 45 Hz.

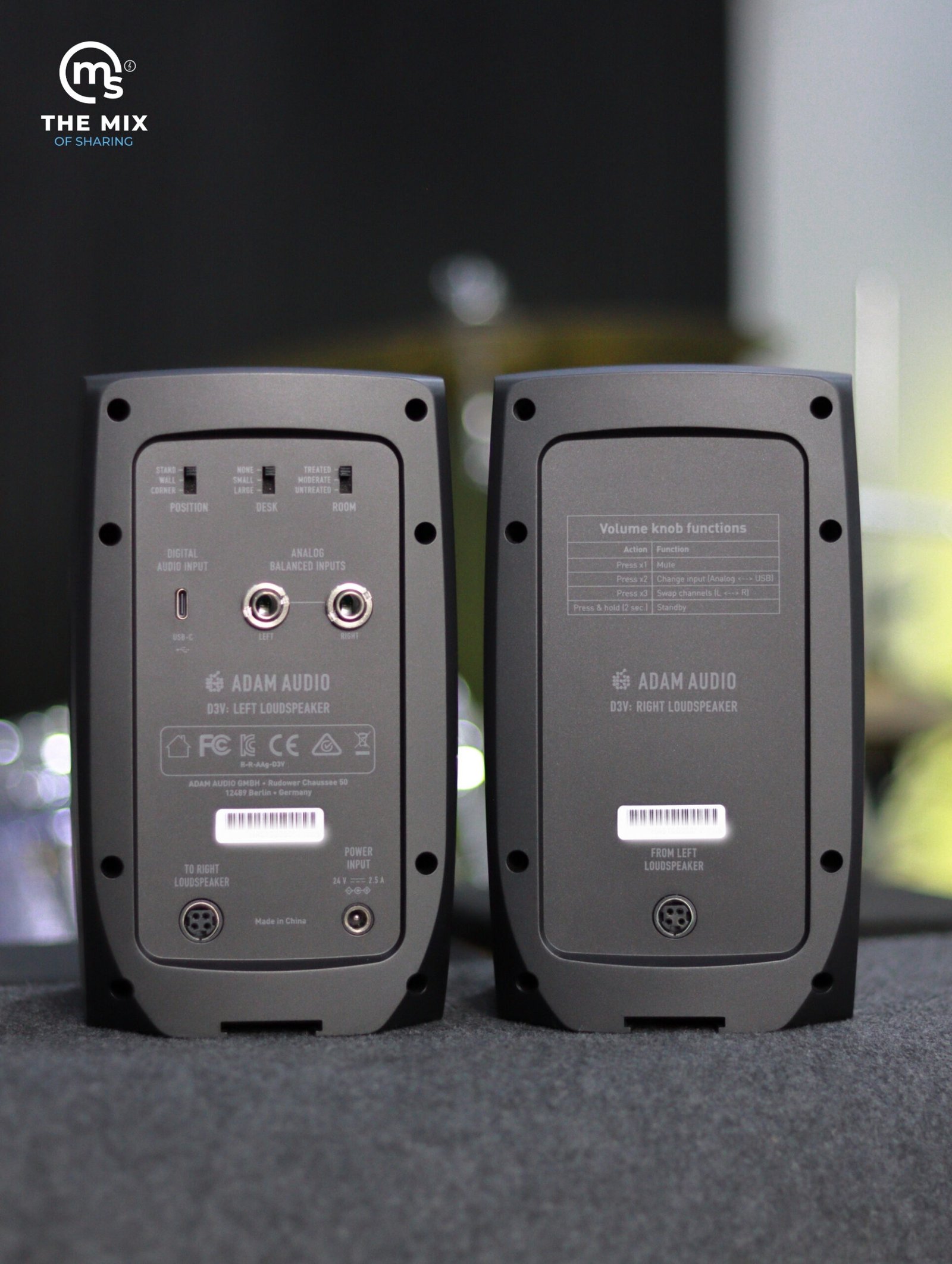

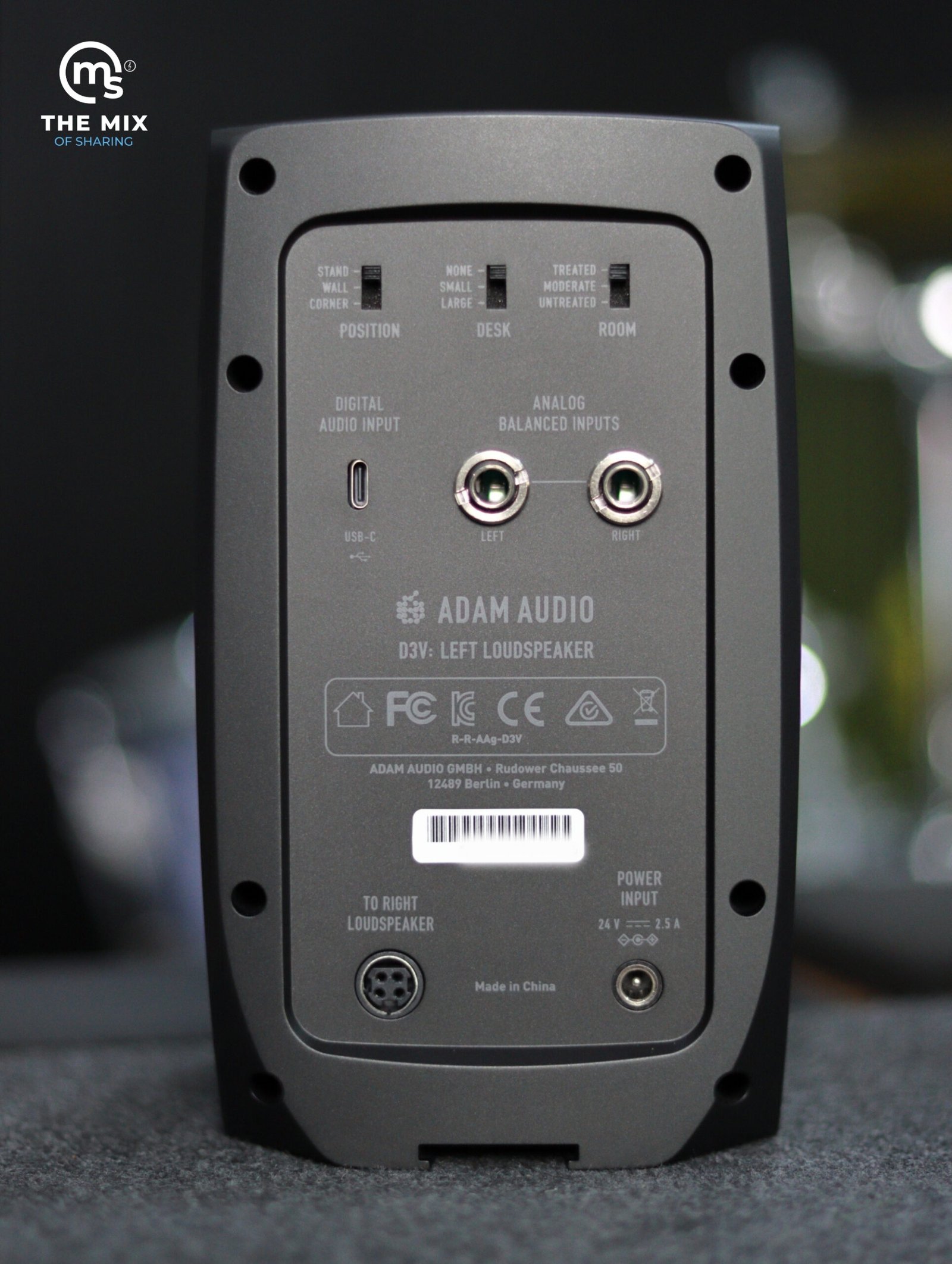

Equipped with a USB-C input and two balanced TRS sockets, D3V offers high-quality digital and analogue connections. Streamlined controls include a multi-function volume knob, intuitive room compensation switches and a multi-color status indicator. The D3V comes complete with detachable monitor stands as well as in-built threaded mic stand mounting points for perfect positioning in any environment.
Available in black or white editions, the D3V’s finish can be chosen to match your taste and compliment your environment.
- Handmade Precision D-ART Tweeters
- 3.5” Aluminum Woofers plus dual-sided 3.5″ passive radiators
- Total Peak Amp. Power: 240 W
- Frequency Response @ -6 dB: 45 Hz – 23.2 kHz
- Maximum SPL per speaker at 1 m: 92 dB SPL
FUTURE PROOF INNOVATIONS
Explore the technology
Specification
- Display: Front panel multi-color LED
- Cabinet Design: Dual passive radiator
- Cabinet Material: PC-ABS
- Mounting options: Flat on desk or loudspeaker stand (angled 15 degrees upwards on desk using supplied foot), threaded insert (3/8″) on the bottom of the cabinet for microphone stand
- Power consumption (max, idle, sleep): 60 W, 5 W, 0.3 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 60 W max.
- Operating Conditions: -10° C to +45° C (+14° F to +113° F); <70% RH, non-condensing
- Weight: 3.58 kg total (7 lbs 14 oz total)
- Dimensions (Height x Width x Depth): 200 mm (Height with stand: 240 mm) x 115 mm x 150
(7 7/8″” (Height with stand: 9 1/2″”) x 4 1/2″” x 5 7/8″”, 9 1/2″”)” - Warranty: 5 years (2 years warranty plus 3 years optional with product registration)

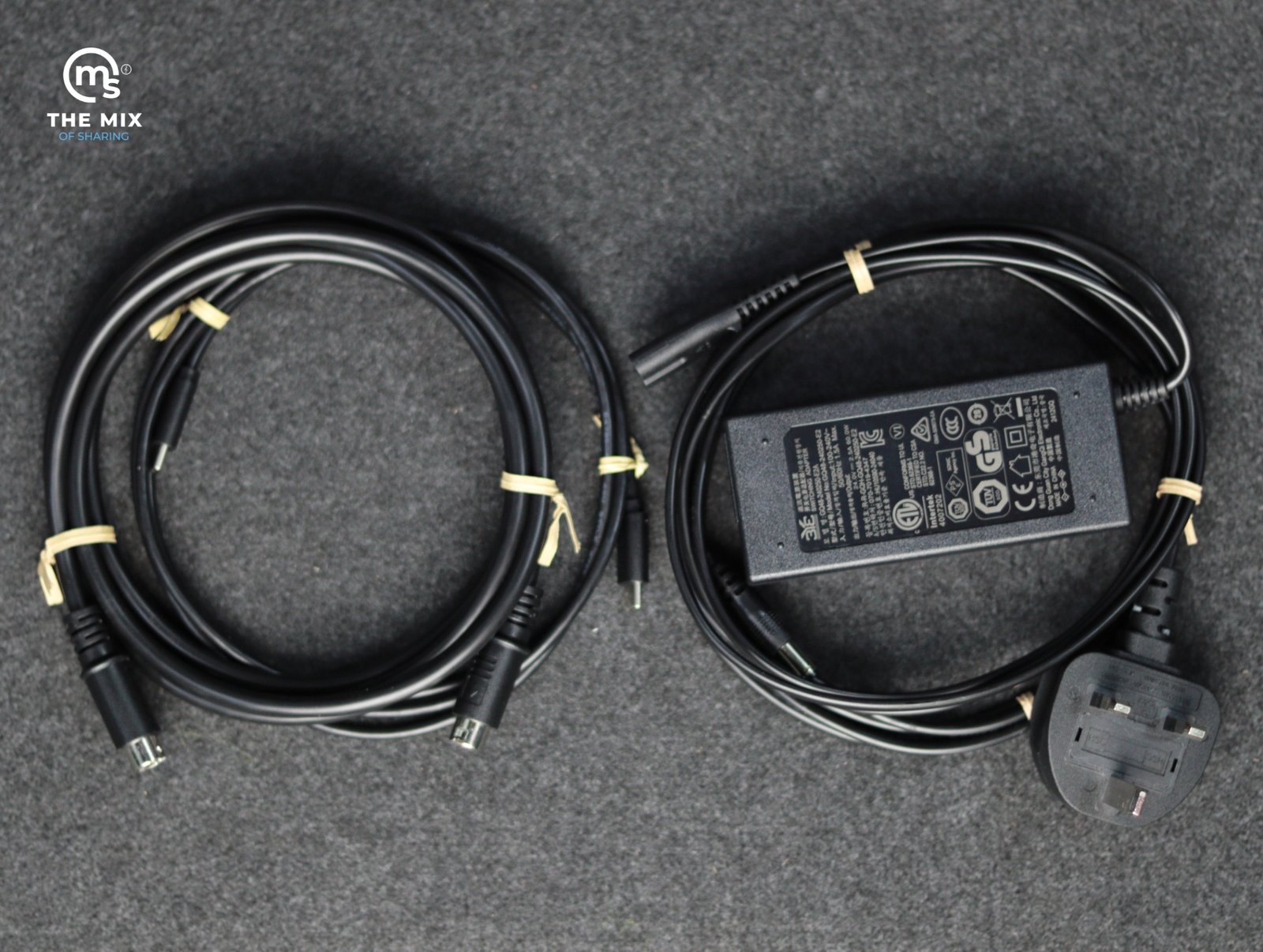

- Delivery Contents: D3V primary loudspeaker, D3V secondary loudspeaker, USB-C cable with USB-A adpater, Power cable, Power block, Quick Start Guide
- Frequency Response @ -3 dB: 48 – 22.6 kHz
- Frequency Response @ -6 dB: 45 – 23.2 kHz
- Crossover Frequencies: 4.0 kHz
- Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS): 94 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak): 97 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 80 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 84 dB SPL
- Max peak SPL in full space at 1 m with IEC-weighted noise (full range / 80 Hz bass managed): 98 dB SPL
- Dolby DARDT max SPL in full space: 103 dB SPL
- Dolby DARDT max SPL in full space (bass managed): 106 dB SPL
- Analog: TRS
- Input Impedance: 47 kOhm
- Max. Input Level: +9 dBu
- Digital: USB Type C
- Digital Audio Signal: Class-compliant USB 1.1
- Headphones output connector: 3.5 mm TRS mini-jack
- Headphones output impedance: 32 Ohm
- Woofer
- Basket Diameter: 3.5″
- Voice Coil Diameter: 1″ (25 mm)
- Cone Material: Single-piece aluminium
- Passive Radiator Basket Diameter: 2 x 3.5″
- Tweeter
- Type: D-ART
- Diaphragm Area: 2.8 inch² (1800 mm²)
- Equivalent Diaphragm Diameter: 1.9″ (48 mm)
- Velocity Transform Ratio: 5 to 1
- Diaphragm Weight: 0.085 g
- Tweeter Dispersion: 120° horizontal, 120° vertical
- Woofer
- Amplifier Type: PWM
- Peak (10% THD, limiter deactivated): 2 x 80 W
- RMS (1% THD, limiter deactivated): 2 x 70 W
- Tweeter
- Amplifier Type: PWM
- Peak (10% THD, limiter deactivated): 2 x 40 W
- RMS (1% THD, limiter deactivated): 2 x 30 W
- AD converter: 24-bit
- Internal sample rate: 48 kHz
- Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
- Input sensitivity: 0 dBu = 88 dB SPL at 1 m @ 0 dB level setting
- Level: Front panel knob controls loudspeaker and headphone outputs over the range -∞ dB to +6 dB

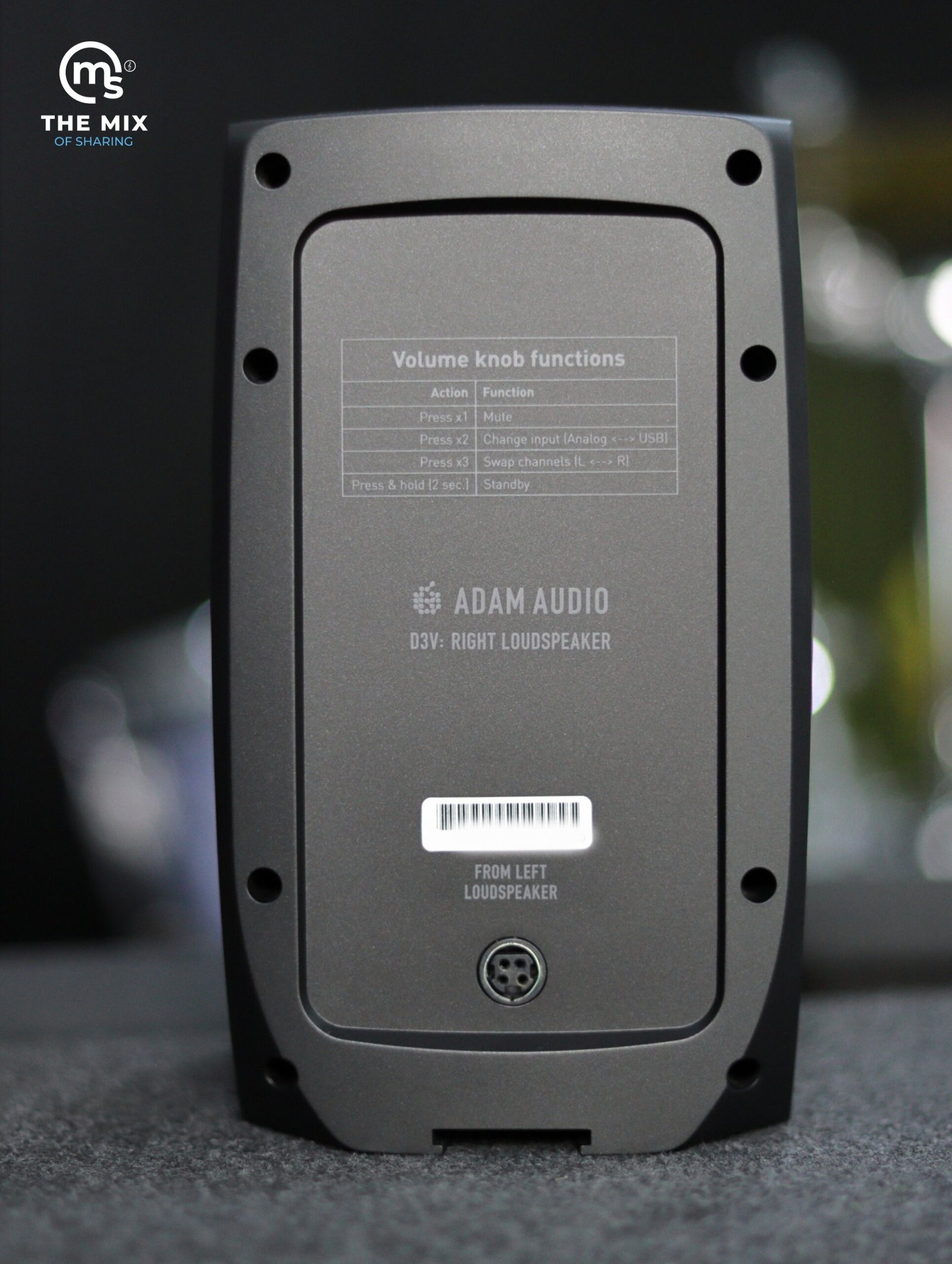

- Front panel knob press functions: Mute, standby, input select, channel swap, firmware update mode
- Input selection: Analog, USB-C
- Channel order: Normal, L/R swapped
- Backplate Room Adaption: Yes
- Position (Bass): 0, -3, -6 dB
- Desk (Low-mid and Mid): 0, -3, -6 dB and 0, -2, -4 dB
- Room Acoustics (Treble): 0, -1.5, -3 dB
Videos
Downloads
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
