Name: ADAM Audio D3V Desktop Studio Monitor White
SKU: D3VWH
Availability: InStock

Original price was: $399.00.Current price is: $369.00.

240W 45 Hz – 23.2 kHz Compact USB-C/ 1/4″ Stereo TRS D3V Studio Desktop monitor speaker for songwriter, producers, music lover – Pair White

Description

D3V

Designed for songwriters, producers, and music lovers, the D3V monitors can be directly connected to computers and mobile devices via USB-C and offer a wealth of features, plus incredible audio performance in a remarkably compact form.

THE D3V

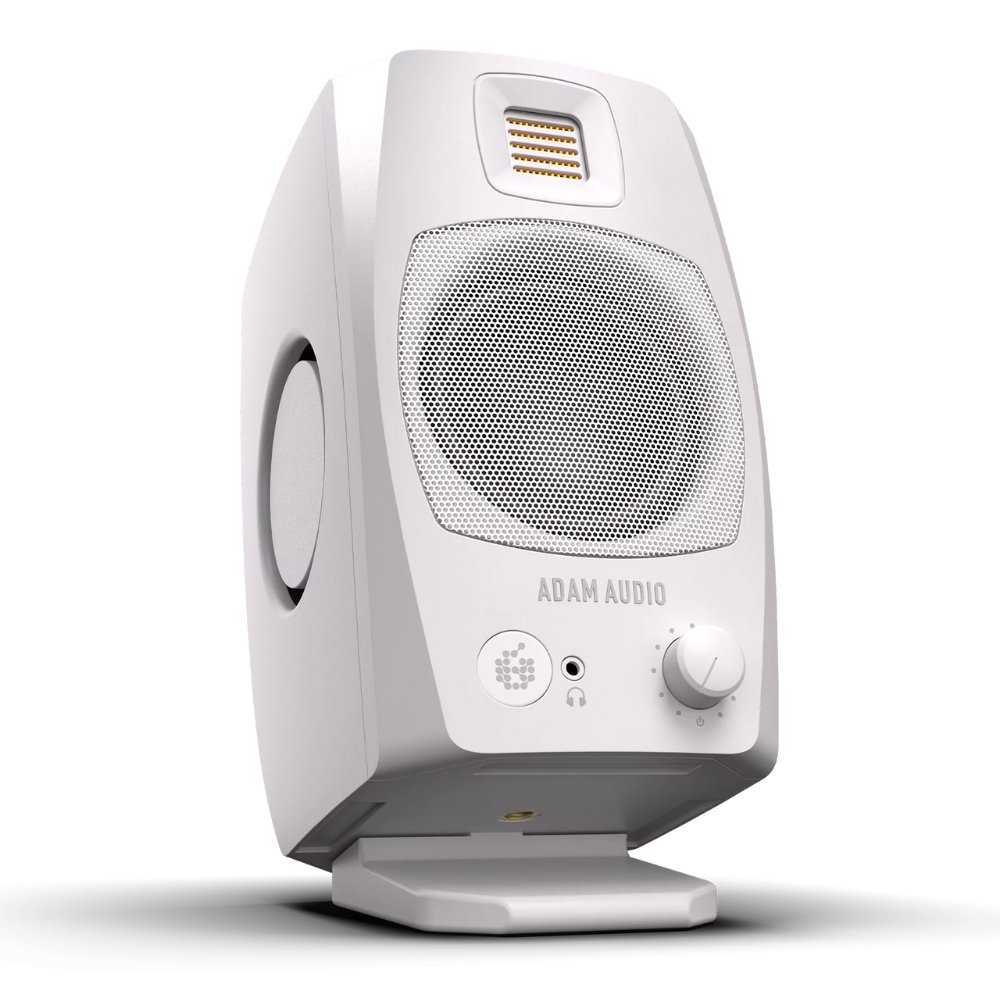

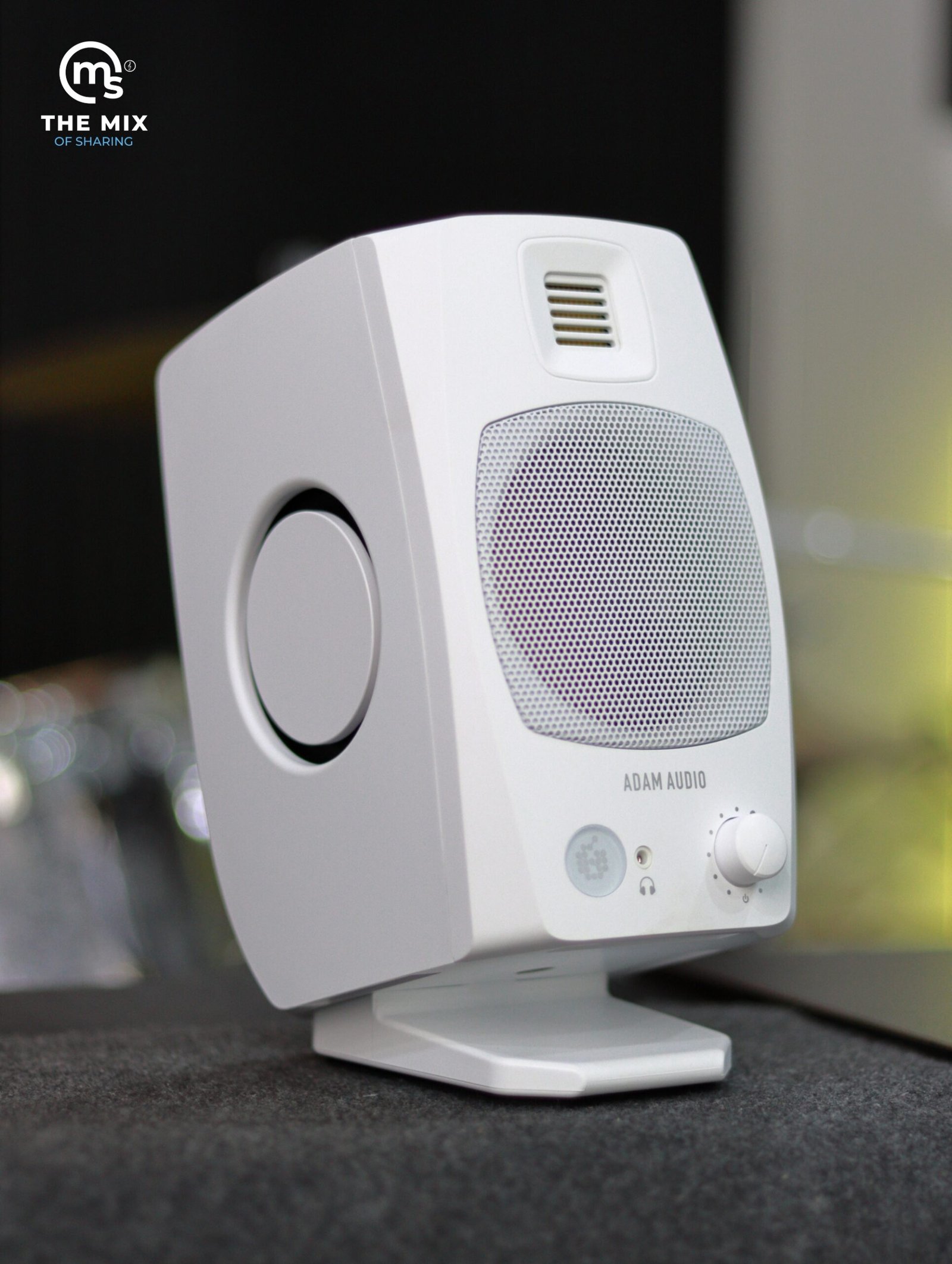

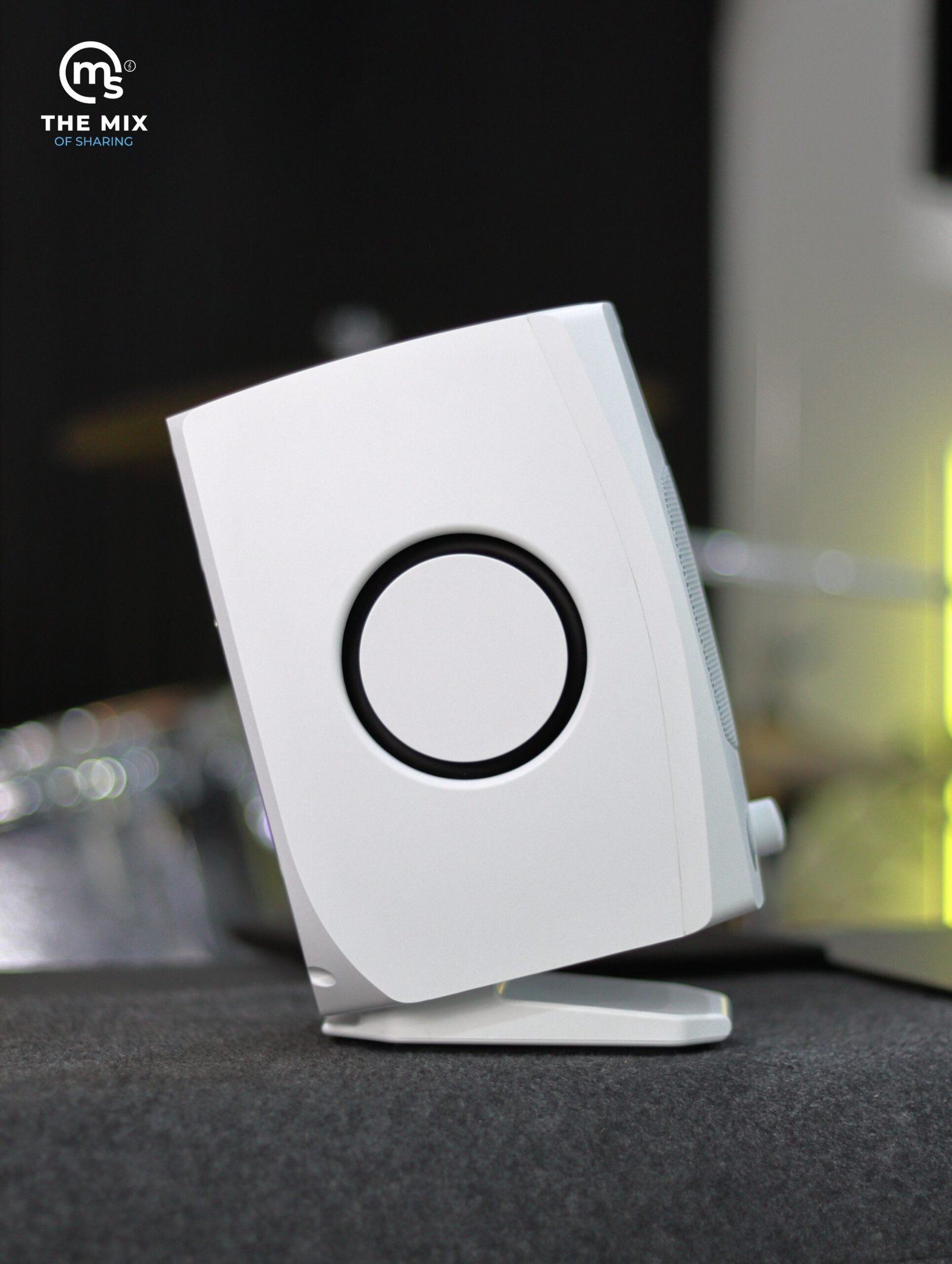

The D3V is a fully active desktop monitoring system that stays true to ADAM Audio’s industrial design heritage and features the iconic AMT tweeters. Each pair features 3.5” aluminum woofers and a ferrite magnet system, driven by an astonishing 240 W total system amplification. Dual-sided 3.5” passive radiators bolster bass frequencies and allow the D3V to extend down to 45 Hz.

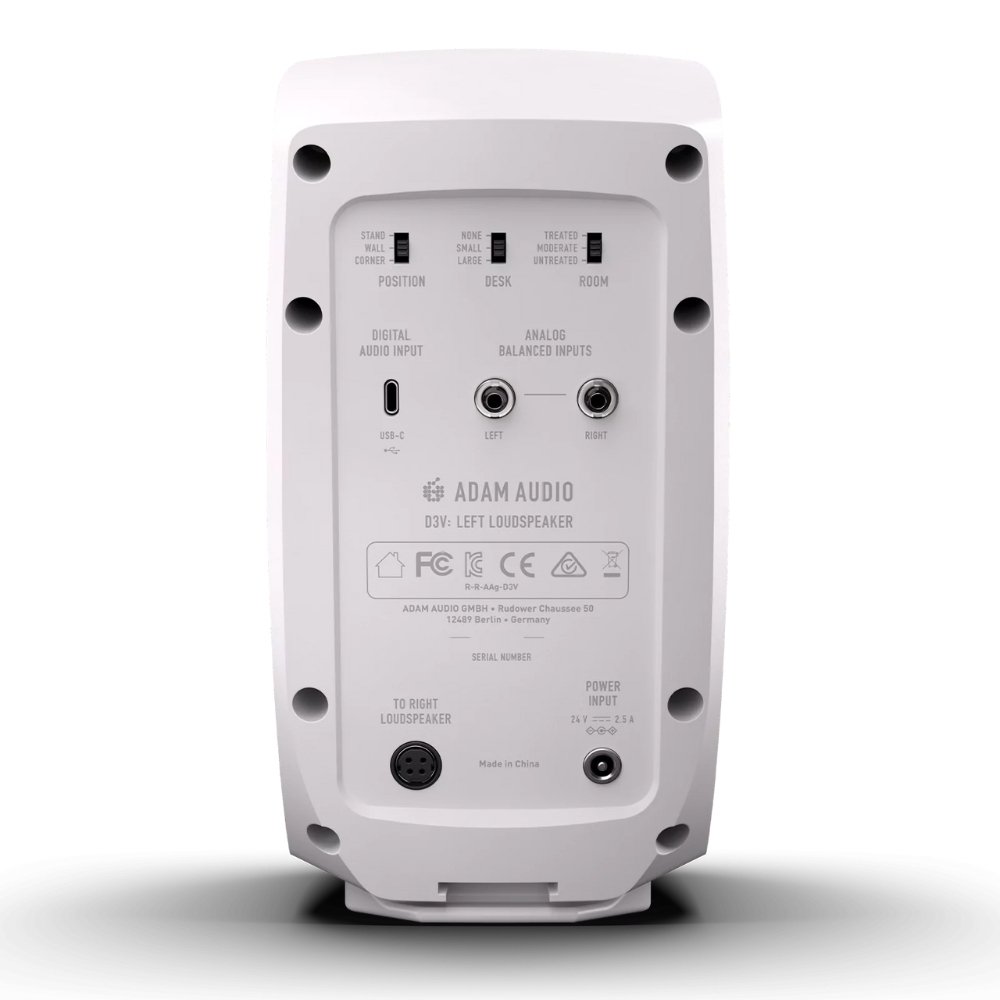

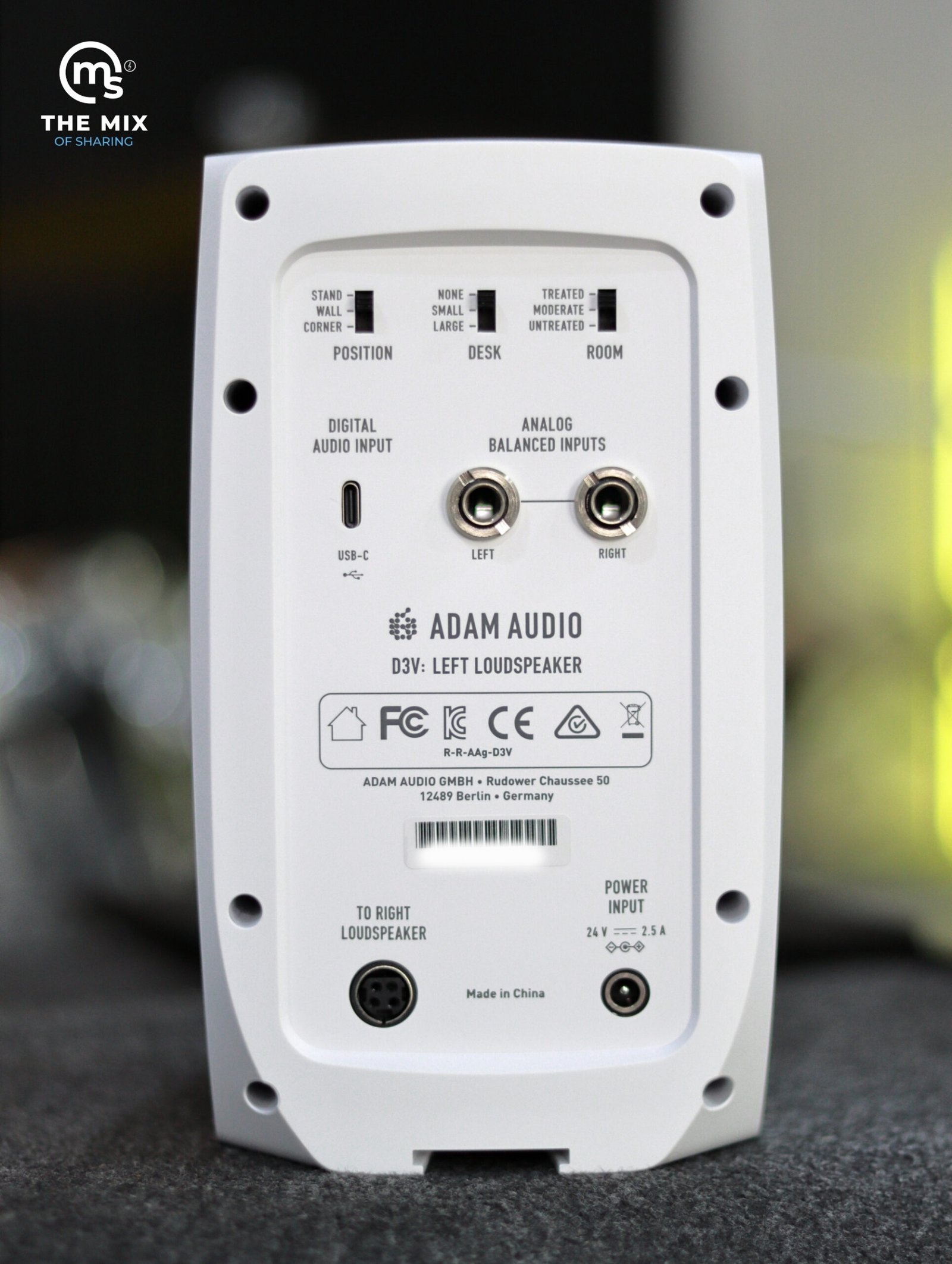

Equipped with a USB-C input and two balanced TRS sockets, D3V offers high-quality digital and analogue connections. Streamlined controls include a multi-function volume knob, intuitive room compensation switches and a multi-color status indicator. The D3V comes complete with detachable monitor stands as well as in-built threaded mic stand mounting points for perfect positioning in any environment.

Available in black or white editions, the D3V’s finish can be chosen to match your taste and compliment your environment.

Handmade Precision D-ART Tweeters
3.5” Aluminum Woofers plus dual-sided 3.5″ passive radiators
Total Peak Amp. Power: 240 W
Frequency Response @ -6 dB: 45 Hz – 23.2 kHz
Maximum SPL per speaker at 1 m: 92 dB SPL

FUTURE PROOF INNOVATIONS

Explore the technology

ADAM Audio monitors have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology. Here you can explore the technology of the D3V.

Specification

General Data

Display: Front panel multi-color LED

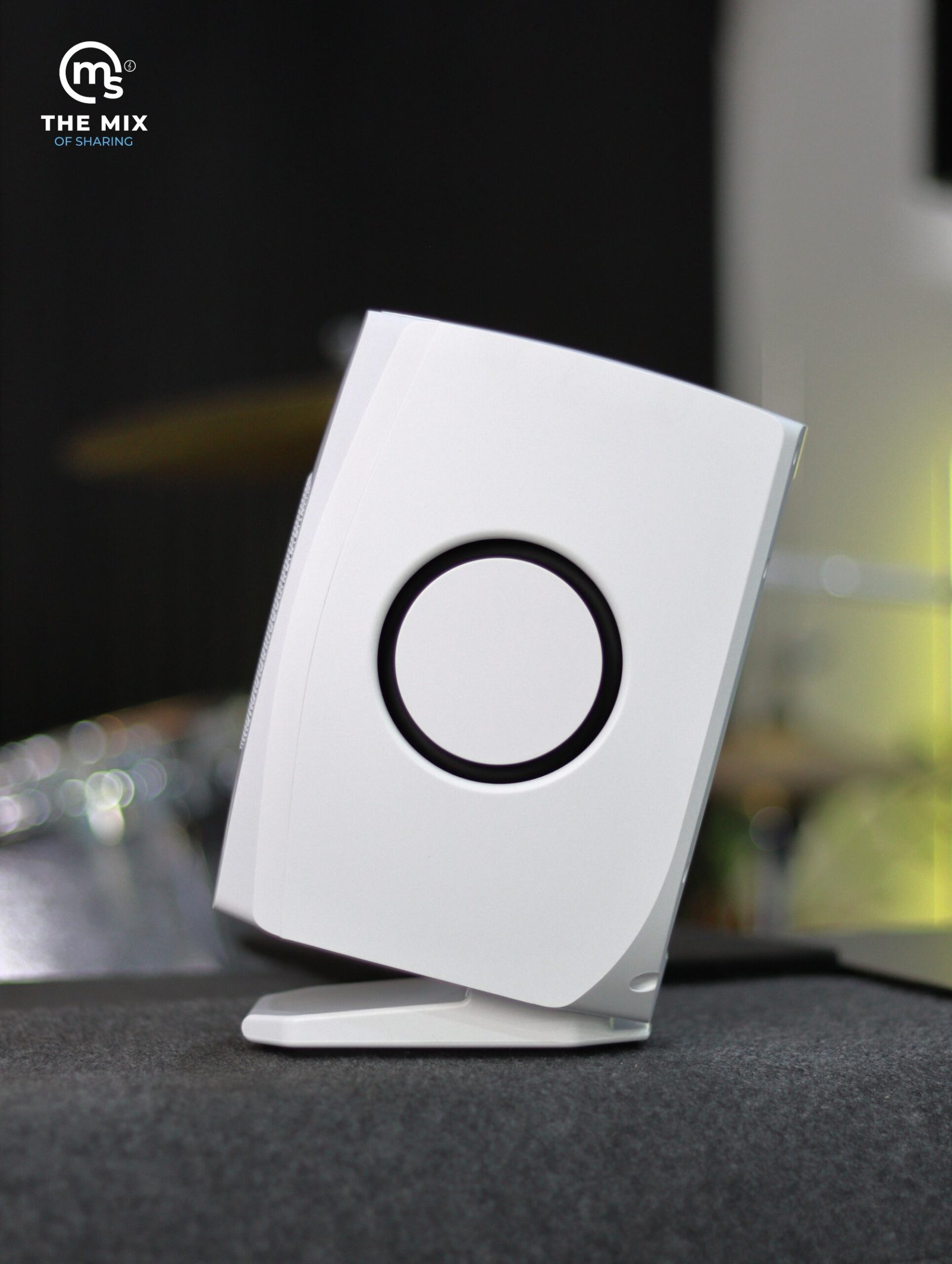

Cabinet Design: Dual passive radiator
Cabinet Material: PC-ABS

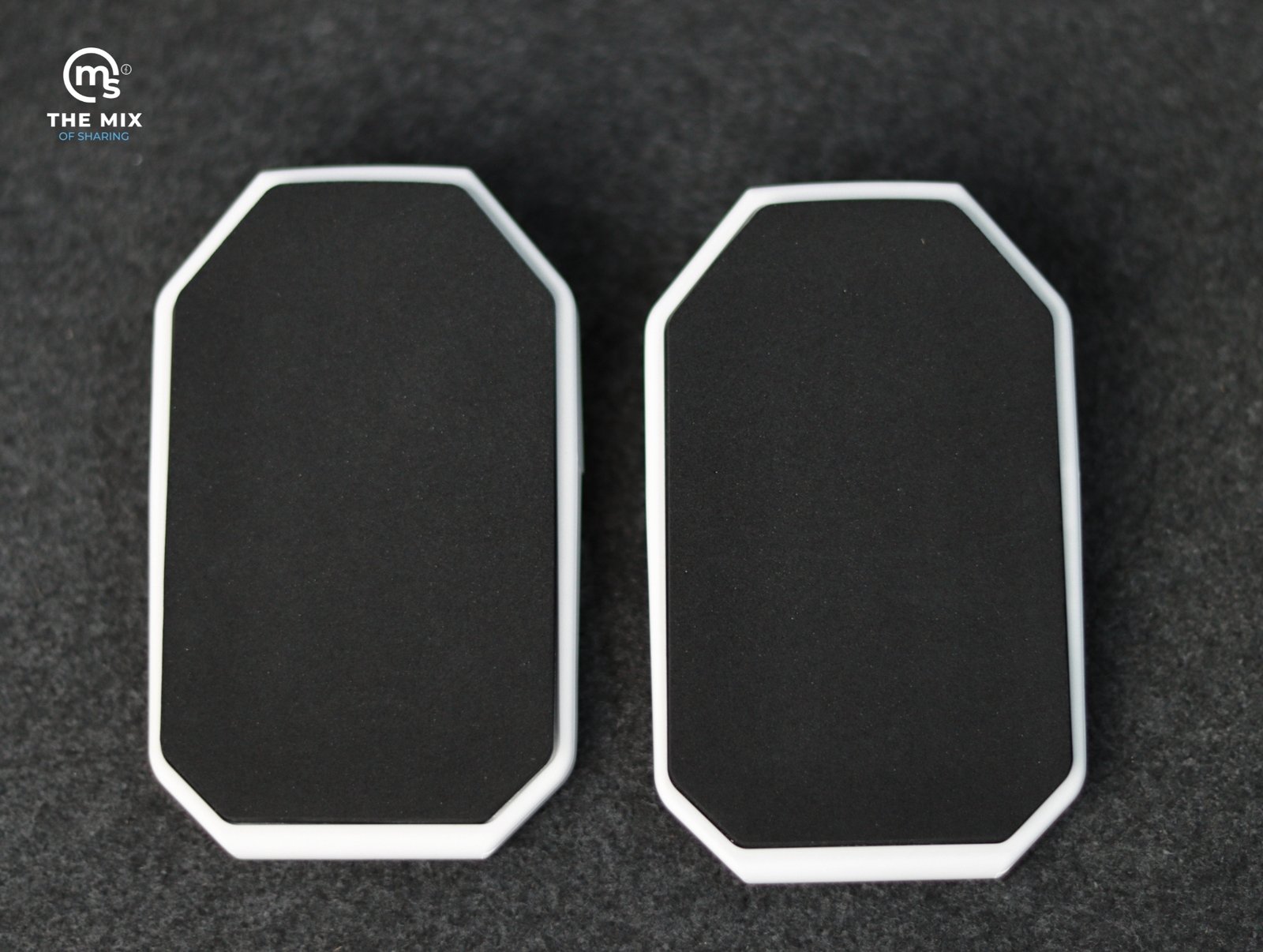

Mounting options: Flat on desk or loudspeaker stand (angled 15 degrees upwards on desk using supplied foot), threaded insert (3/8″) on the bottom of the cabinet for microphone stand
Power consumption (max, idle, sleep): 60 W, 5 W, 0.3 W
AC Input Voltage: 100 – 240 V, 50/60 Hz
Power Rating: 60 W max.
Operating Conditions: -10° C to +45° C (+14° F to +113° F); <70% RH, non-condensing
Weight: 3.58 kg total (7 lbs 14 oz total)
Dimensions (Height x Width x Depth): 200 mm (Height with stand: 240 mm) x 115 mm x 150
(7 7/8″” (Height with stand: 9 1/2″”) x 4 1/2″” x 5 7/8″”, 9 1/2″”)”
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)

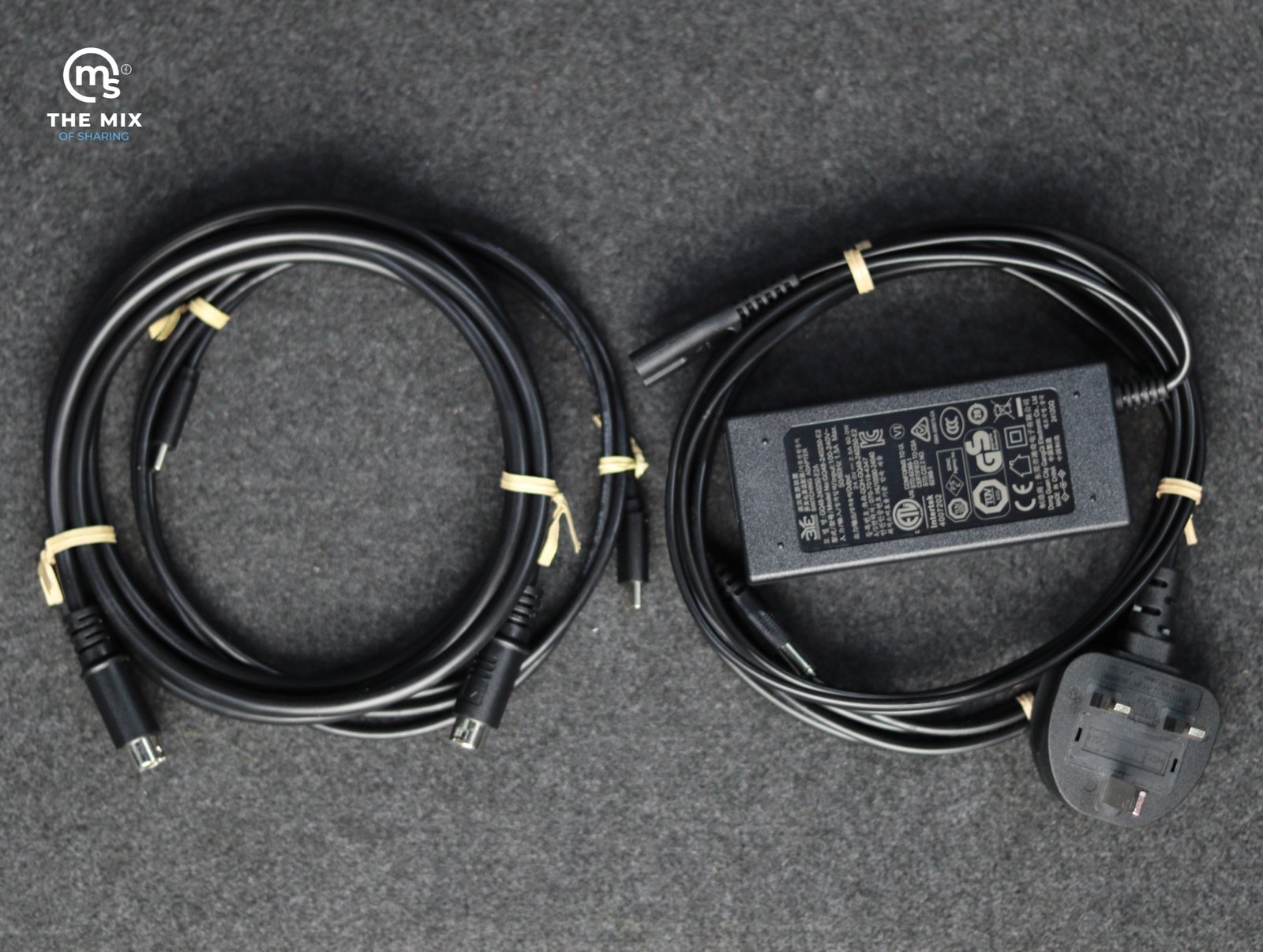

Delivery Contents: D3V primary loudspeaker, D3V secondary loudspeaker, USB-C cable with USB-A adpater, Power cable, Power block, Quick Start Guide

Acoustics

Frequency Response @ -3 dB: 48 – 22.6 kHz
Frequency Response @ -6 dB: 45 – 23.2 kHz
Crossover Frequencies: 4.0 kHz
Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS): 94 dB SPL
Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak): 97 dB SPL
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 80 dB SPL
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 84 dB SPL
Max peak SPL in full space at 1 m with IEC-weighted noise (full range / 80 Hz bass managed): 98 dB SPL
Dolby DARDT max SPL in full space: 103 dB SPL
Dolby DARDT max SPL in full space (bass managed): 106 dB SPL

Audio Connectors

Analog: TRS
Input Impedance: 47 kOhm
Max. Input Level: +9 dBu
Digital: USB Type C
Digital Audio Signal: Class-compliant USB 1.1
Headphones output connector: 3.5 mm TRS mini-jack
Headphones output impedance: 32 Ohm

Drivers

Woofer
- Basket Diameter: 3.5″
- Voice Coil Diameter: 1″ (25 mm)
- Cone Material: Single-piece aluminium
Passive Radiator Basket Diameter: 2 x 3.5″
Tweeter
- Type: D-ART
- Diaphragm Area: 2.8 inch² (1800 mm²)
- Equivalent Diaphragm Diameter: 1.9″ (48 mm)
- Velocity Transform Ratio: 5 to 1
- Diaphragm Weight: 0.085 g
- Tweeter Dispersion: 120° horizontal, 120° vertical

Amplification

Woofer
- Amplifier Type: PWM
- Peak (10% THD, limiter deactivated): 2 x 80 W
- RMS (1% THD, limiter deactivated): 2 x 70 W
Tweeter
- Amplifier Type: PWM
- Peak (10% THD, limiter deactivated): 2 x 40 W
- RMS (1% THD, limiter deactivated): 2 x 30 W

Signal Processing

AD converter: 24-bit
Internal sample rate: 48 kHz
Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters

Control Options

Input sensitivity: 0 dBu = 88 dB SPL at 1 m @ 0 dB level setting
Level: Front panel knob controls loudspeaker and headphone outputs over the range -∞ dB to +6 dB

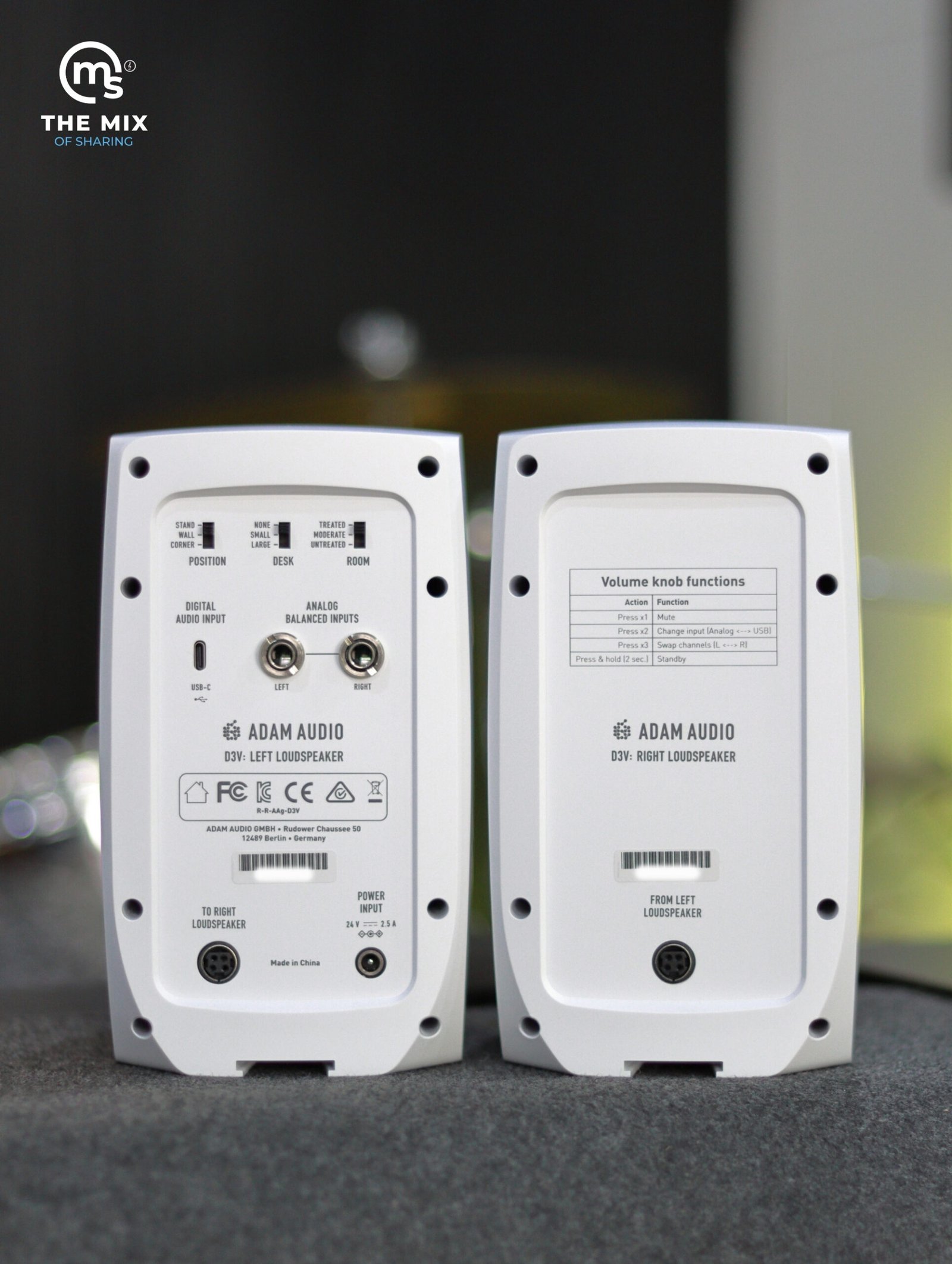

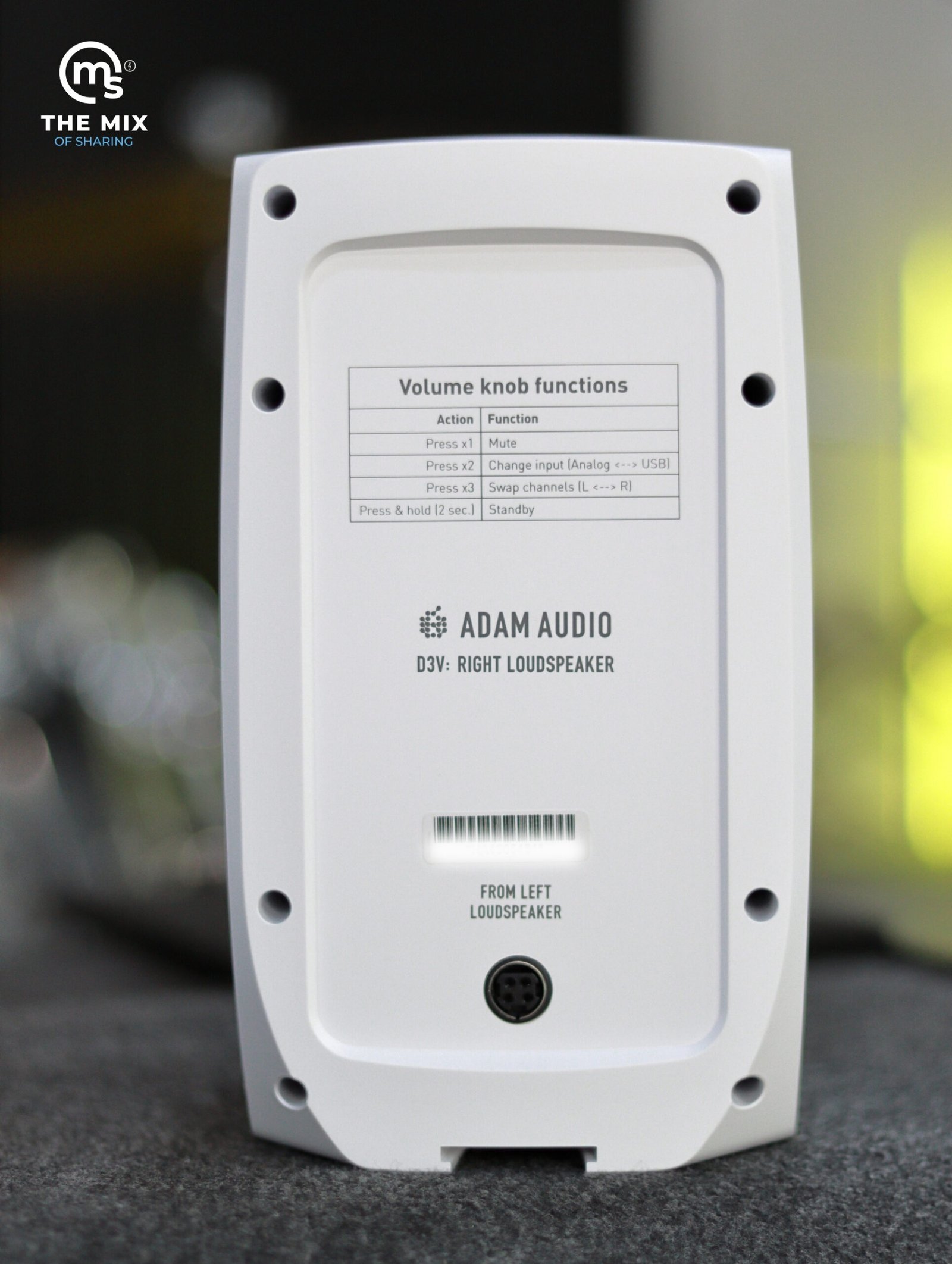

Front panel knob press functions: Mute, standby, input select, channel swap, firmware update mode
Input selection: Analog, USB-C
Channel order: Normal, L/R swapped
Backplate Room Adaption: Yes
- Position (Bass): 0, -3, -6 dB
- Desk (Low-mid and Mid): 0, -3, -6 dB and 0, -2, -4 dB
- Room Acoustics (Treble): 0, -1.5, -3 dB

Videos

Downloads

Support

Warranty – ការធានា

Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
