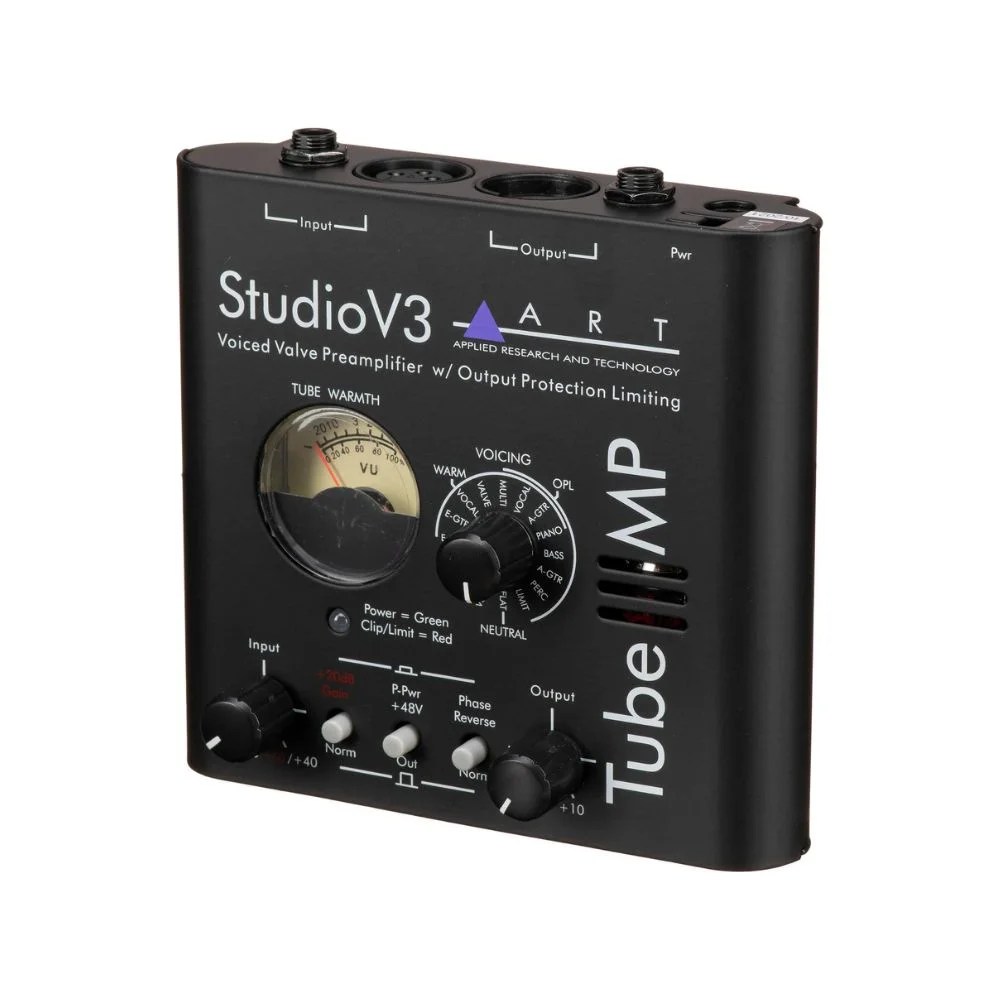

ART Tube MP Studio V3 Tube Microphone Preamp
$189.00
Single-Channel Tube Microphone / Instrument Preamplifier with Variable Valve Voicing
Description
The Tube MP Studio V3 features ART’s new V3 (Variable Valve Voicing) Technology. V3 provides optimized reference points to begin the recording process. The V3 presets were created and fine-tuned by some of the industry’s top studio and live-sound engineers, along with ART’s accomplished engineering department. V3 allows you to select between a multitude of preamp settings designed for guitars (electric and acoustic), keyboards, bass guitars, drums, vocals and more. V3 gives you incredible presets for every instrument you record, so all your recordings will sound professional. Need to tweak the presets? Go right ahead — hone your perfect tone! That’s the power of V3.
Key Features
- Provides Superior Preamplification for: Microphones, Instruments and Line Level Sources
- V3™ – Variable Valve Voicing
- OPL™ – Output Protection Limiting
- Hand Selected 12AX7A Provides 70dB of Gain Smooth, Warm and Fat Sound Quality
- Variable Input and Output Gain Controls
- Excellent as a Tube DI
- XLR and 1/4″ Inputs and Outputs
- +48 Volts of Phantom Power
- Phase Reversal Switch
- Portable, All Steel Construction
Specification
| Frequency Response | 5Hz to 50kHz (+0 to -1dB) |
| Total Harmonic Distortion | <.01% (clean); 0.1% (warm) |
| CMMR | > 75dB (typ. @ 1kHz) |
| Dynamic Range | <100dB |
| Equivalent Input Noise | -129dBu (A weighted, xlr to xlr) |
| Maximum Gain | 80dB (xlr to xlr); 74dB (1/4″ to xlr) |
| Maximum Input Level | +19dBu (xlr); +22dBu (1/4″) |
| Maximum Output Level | +28dBu (xlr); +22dBu (1/4″) |
| Phantom Power | +48 volts |
| Power Requirements | 110-125 VAC, 16W |
| Tube Type | 12AX7A – Dual Triode (Hand Selected) |
| Dimensions | 5.0″D x 5.5″W x 2.0″ H |
| Weight | 1.5 lbs |
