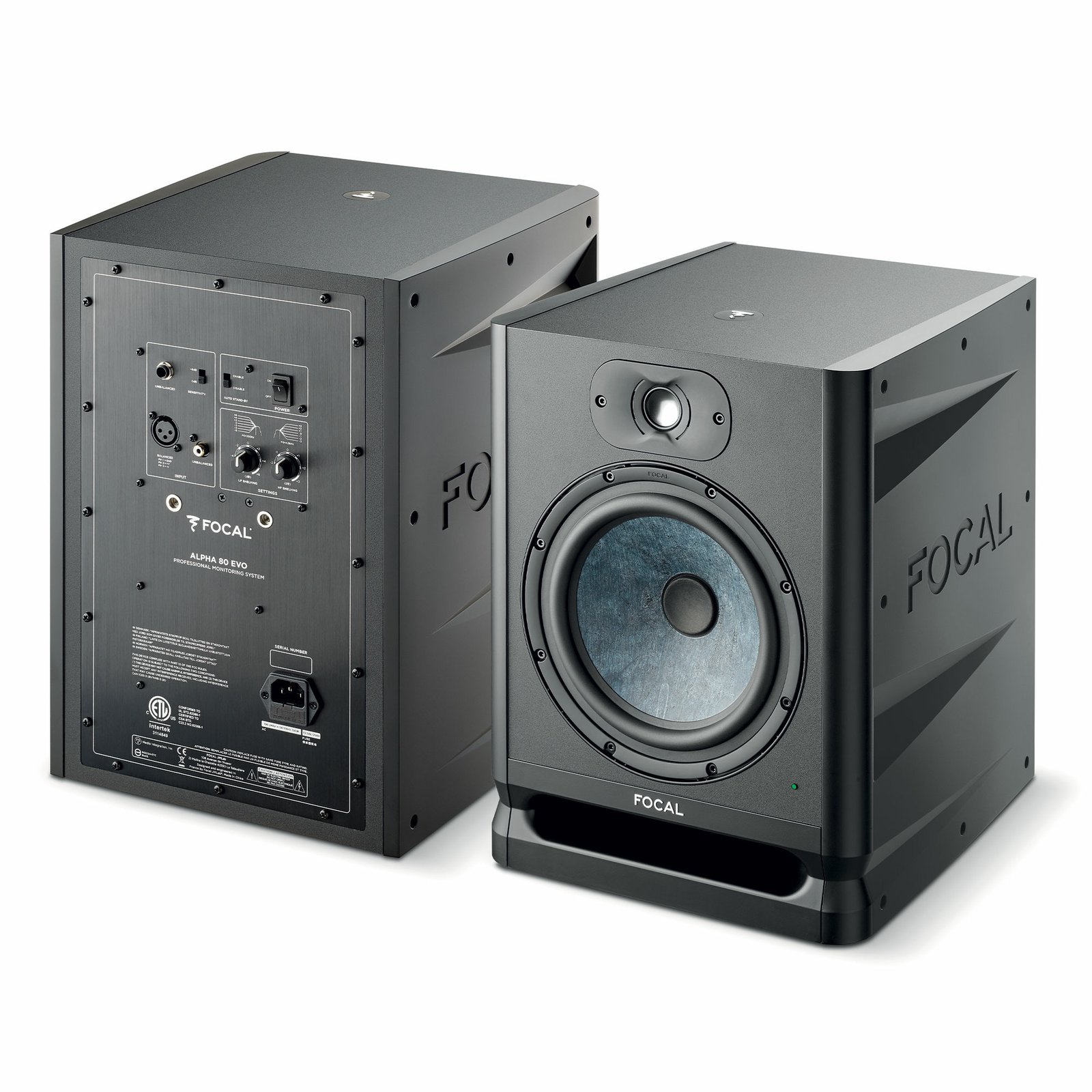

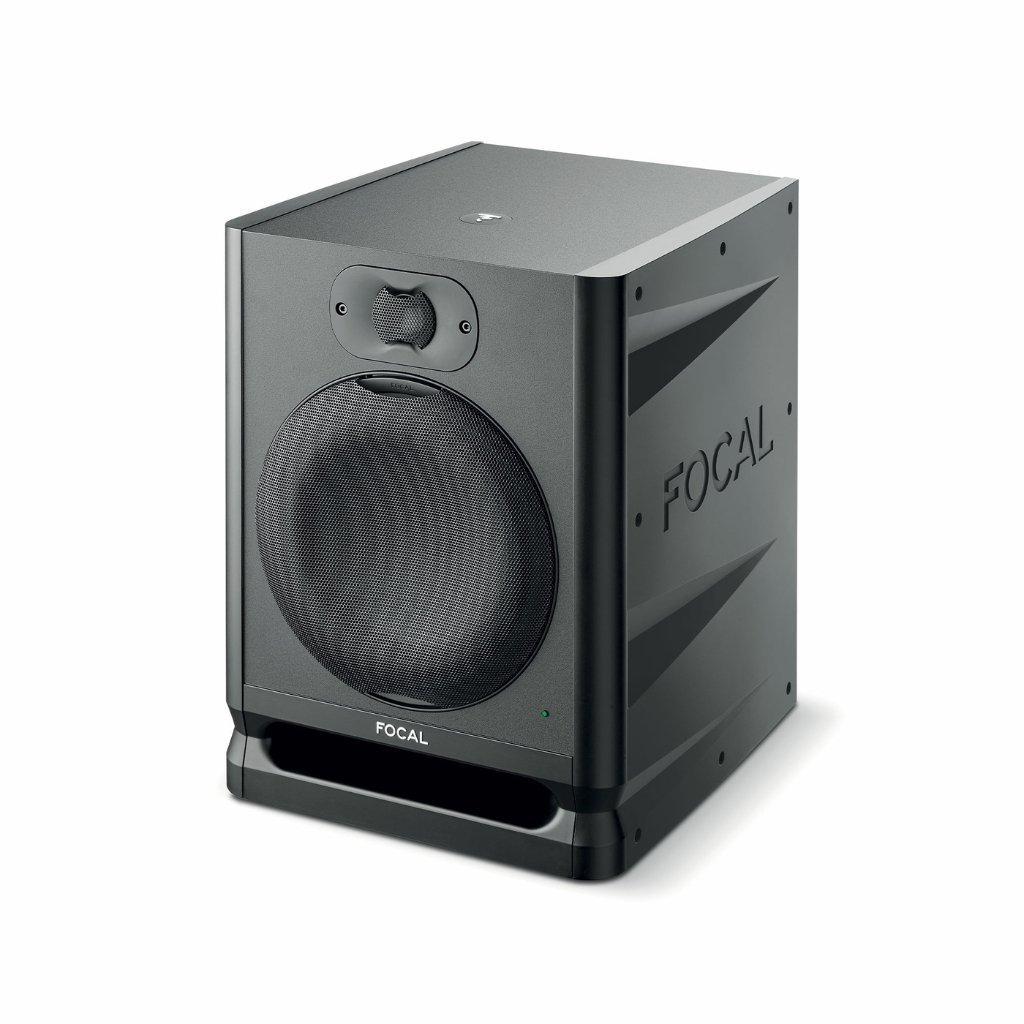

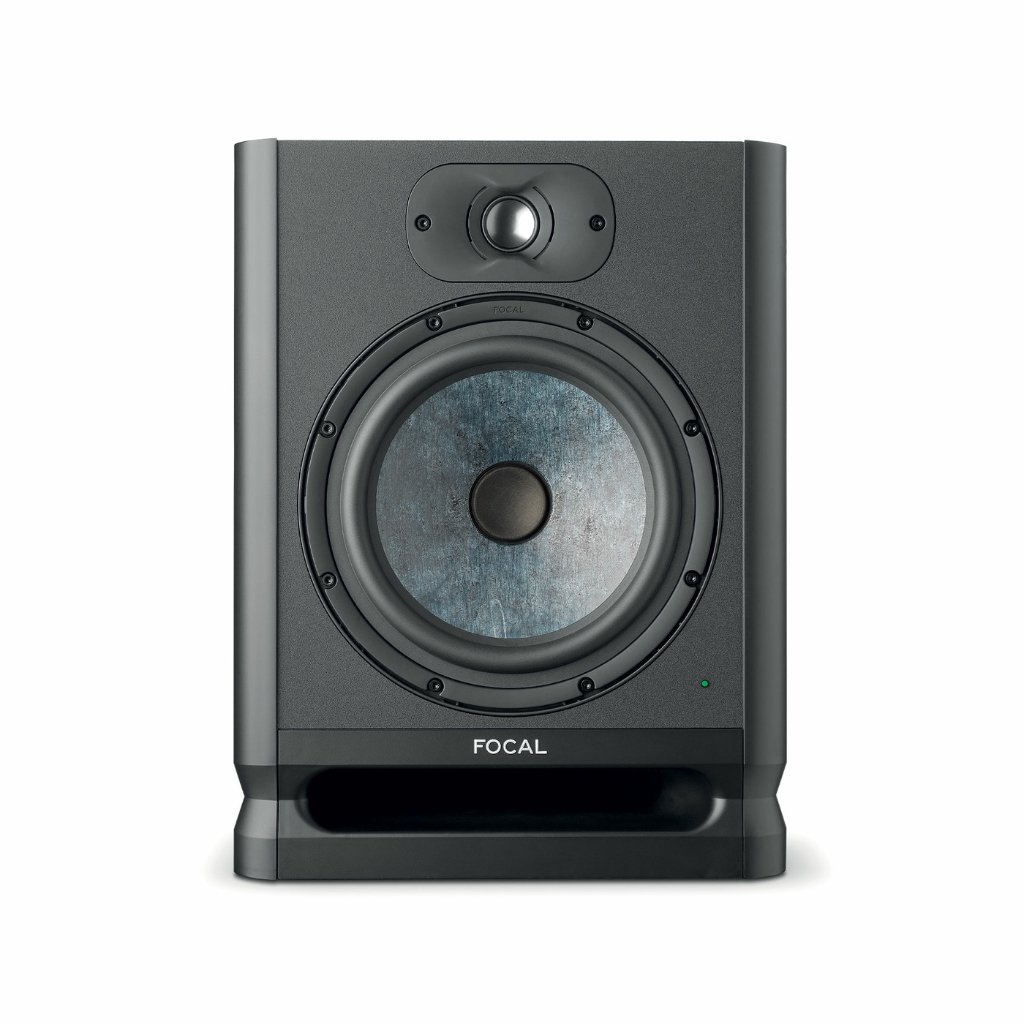

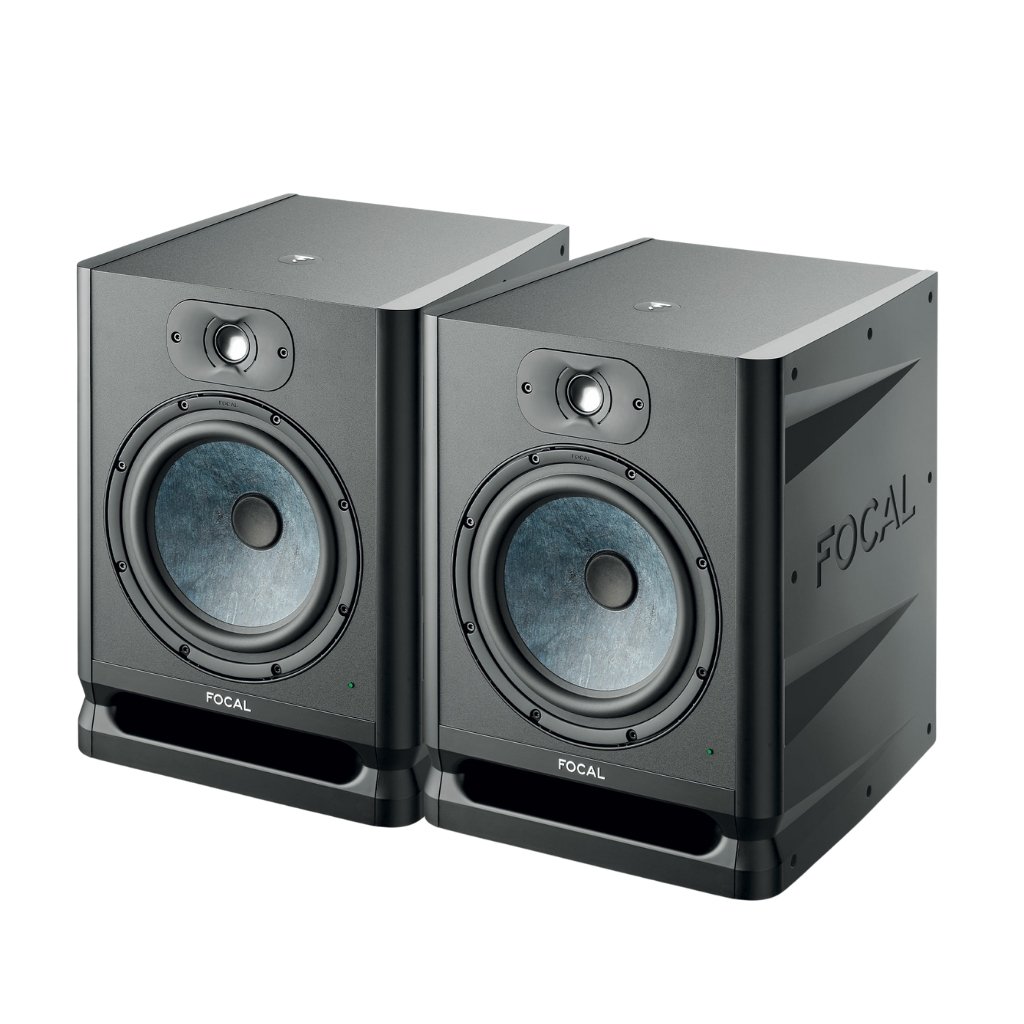

Focal Alpha 80 Evo 8-inch Powered Studio Monitor – Pair

Name: Focal Alpha 80 Evo 8-inch Powered Studio Monitor - Pair
SKU: Alpha80EvoPair
Availability: InStock

$1,150.00

115W Powered 2-way Studio Reference Monitor with 8″ Woofer, 1″ Tweeter, and Class D Bi-amplification (pair)

Description

hether you monitor at low or high volume, the Focal Alpha 80 Evo active 8″ studio monitor delivers the same sound profile, making it a valuable reference tool for tracking, mixing, DJing, and broadcast applications. Compared to the original Alpha 80, the Evo version offers Slatefiber in place of polyglass material for the woofer, a new cabinet design, a third input jack, a defeatable automatic standby mode, and inserts for wall mounting.

The combination of the updated cabinet, 8″ Slatefiber woofer, 1″ aluminum inverted dome tweeter, and two Class-D amplifiers allows the Alpha 80 Evo to produce neutral, distortion-free tone across its 38 Hz to 22 kHz frequency response. Use the onboard 2-band EQ to alter the sonic performance according to room eccentricities as well as personal preference.

8″ Cone Woofer

The Alpha 80 Evo’s 8″ Slatefiber cone woofer is manufactured in France using recycled nonwoven carbon fibers and thermoplastic polymer to deliver sonically neutral sound with no distortion.

1″ Tweeter

An aluminum inverted dome tweeter contributes to wide dispersion, enabling the same sound to be maintained throughout the entire room.

Consistent Sound Profile

Producing identical tonal balance at both low and high volume, the Alpha 80 Evo is a reliable reference monitor.

Three Inputs

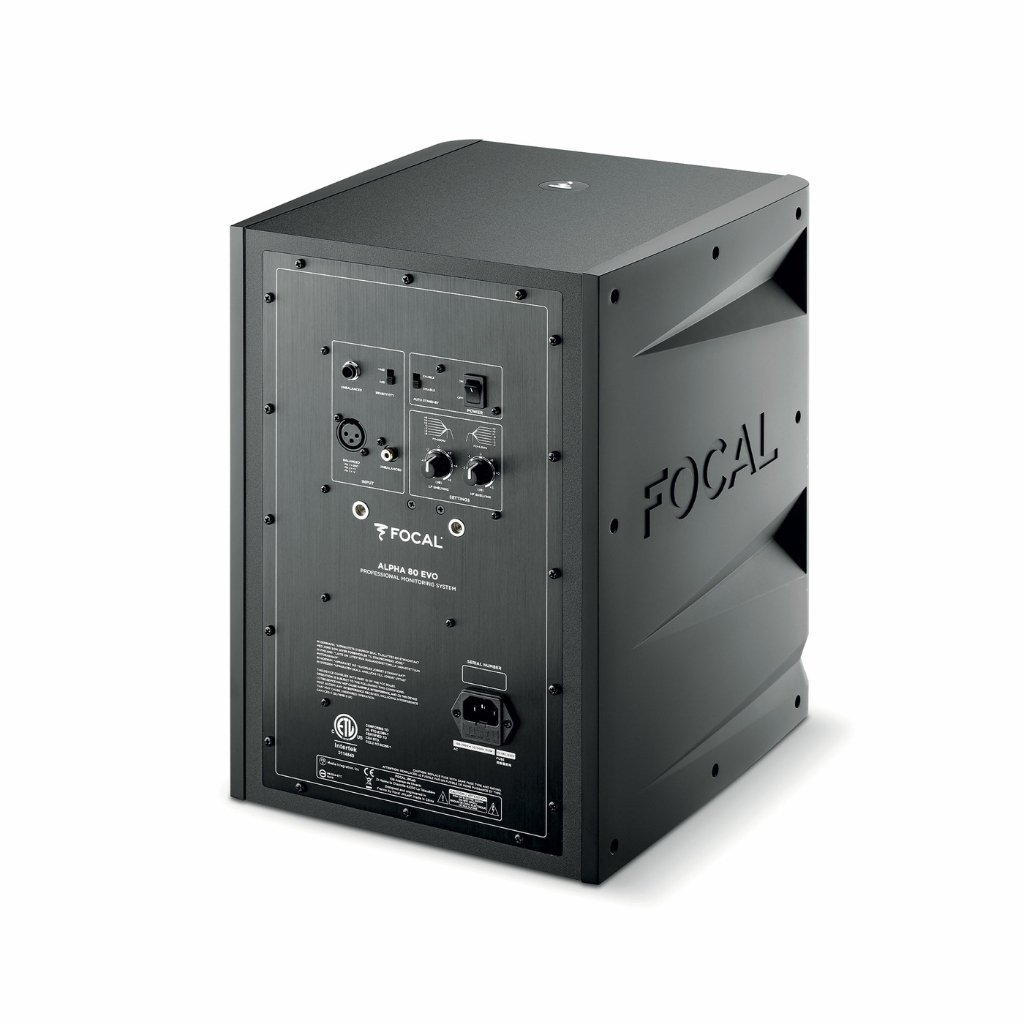

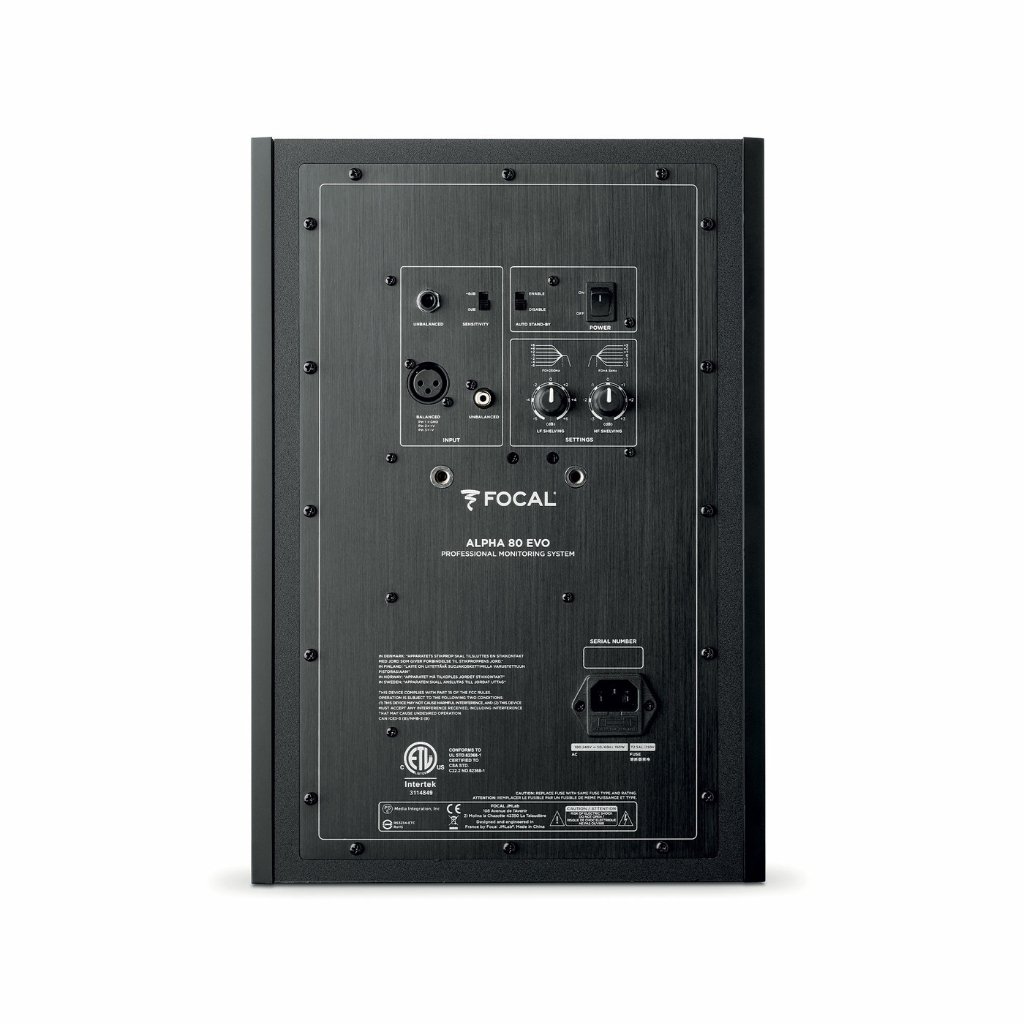

Balanced XLR, 1/4″ TRS, and unbalanced RCA input jacks on the rear panel allow the Alpha 80 Evo to properly interconnect with all types of output sources such as monitor controllers, audio interfaces, and mixers.

Class-D Amplifiers

In terms of amplification, this full analog monitor is equipped with two Class-D amplifiers whose high-current capacity allows full control of the signal dynamics.

Sturdy Cabinet

The Alpha 80 Evo features a 5/8″ thick MDF cabinet and internal braces to ensure it is highly robust even at the highest levels of acoustic pressure.

Large Laminar Port

A bass-reflex design is used to ensure easy acoustic integration in even the most cramped spaces. Rounded contours and interesting side panels create an appearance which contributes to a harmonious signature across the Focal collections.

Additional Features

38 Hz to 22 kHz frequency response
Adjustable bass (±6 dB from 0 to 250 Hz) and treble (±3 dB from 4.5 to 35 kHz)
0 or +6 dB sensitivity selection
Defeatable automatic standby mode
Inserts for wall fastening
Includes protective grilles for the tweeter and woofer

Specification

Focal ALPHA 80 EVO Specs

Studio Monitor

Monitor Type	Active 2-Way
Enclosure	Bass-Reflex
Power Rating	115 W
Drivers	LF Driver: 1 x 8″ / 20.3 cm Composite Woofer HF Driver: 1 x 1″ / 2.5 cm Aluminum Inverted Dome Tweeter
Amplification	1 x LF Amplifier: Class-D Rated at 80 W 1 x HF Amplifier: Class-D Rated at 35 W

Performance

Frequency Response	38 Hz to 22 kHz ± 3 dB
Maximum Sound Pressure Level (SPL)	106 dB (Peak)
Analog Input Sensitivity/Gain	+6 to 0 dB
Phase Adjustment	None

Signal Processing

EQ	1 x LF Shelf: ±6 dB at 250 Hz 1 x HF Shelf: ±3 dB at 4.5 kHz
Filters	None
Parametric EQ	None

Connectivity

Audio I/O

1 x XLR Balanced Female Analog Input (10 Kilohms)
1 x 1/4″ TRS Balanced Female Analog Input (10 Kilohms)
1 x RCA Unbalanced Female Analog Input (10 Kilohms)

Power

AC Input Power	100 to 240 VAC, 50/60 Hz
Power Consumption	0.5 W (Standby)

General

Enclosure Material	MDF
Cooling	Passive Cooling
Mounting Points	2 x M6 (Rear Panel)
Dimensions (W x H x D)	11.7 x 15.4 x 13″ / 29.7 x 39.1 x 33 cm
Weight	21.6 lb / 9.8 kg
