Craft your sound

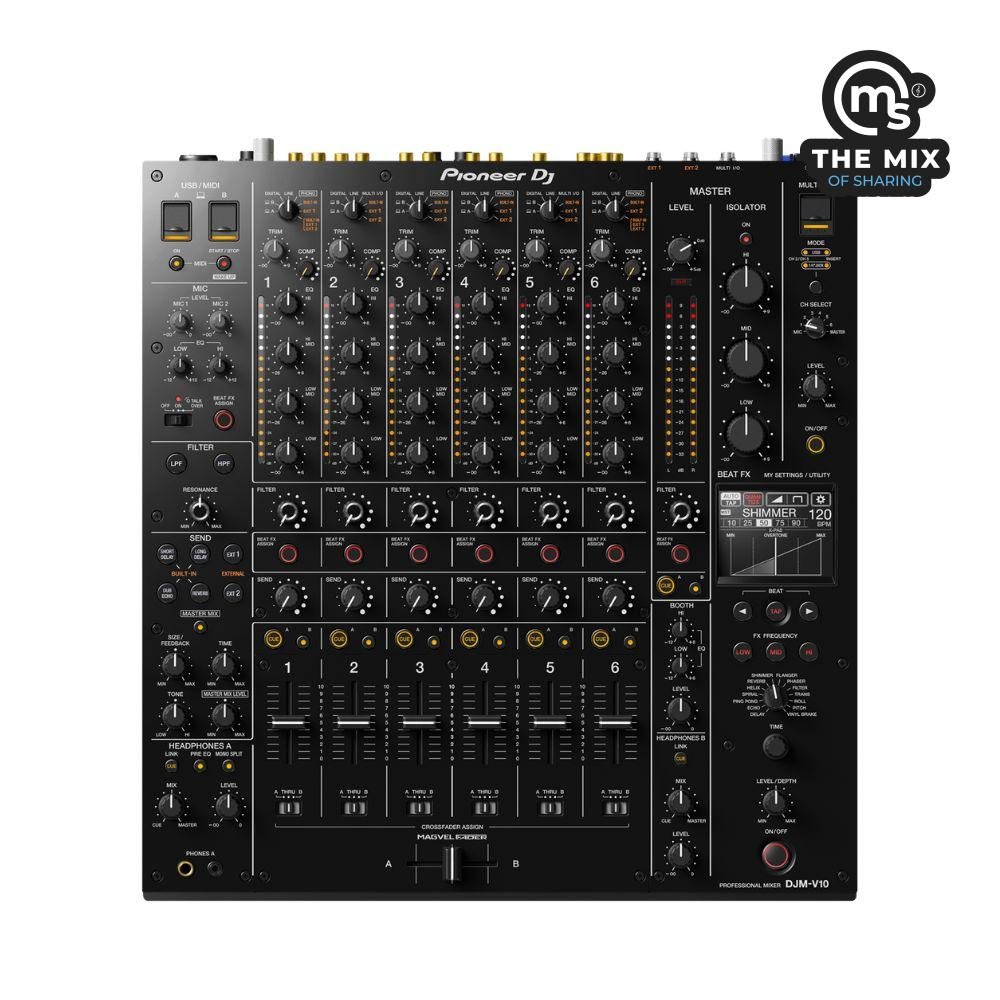

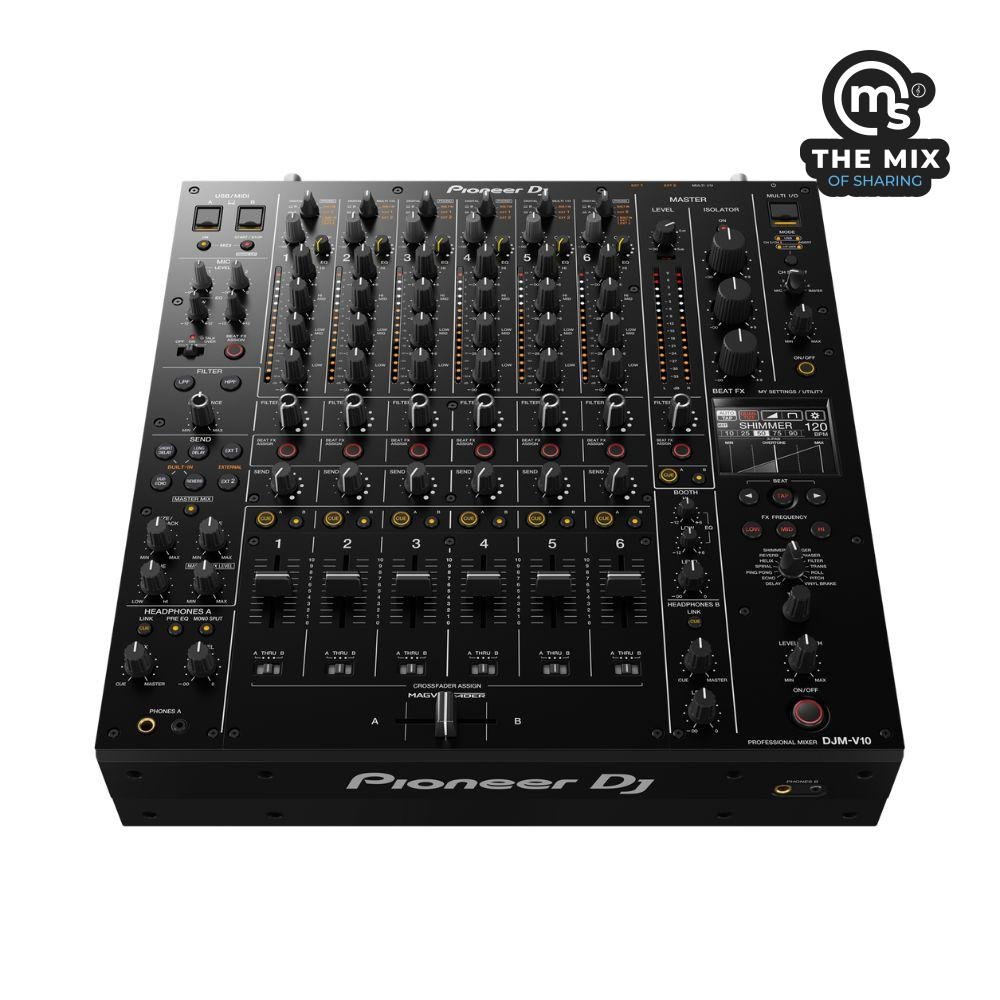

Forge a new sound with the DJM-V10; a new breed of mixer, born of fresh thinking. It’s built to allow the most creative DJs to craft original soundscapes. This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. Take full control of your mix and get ready to create something the crowd has never heard before.
KEY FEATURES
djm-v10-sound-quality
Elite sound quality
Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to produce a full low-end, vibrant mids, and precise highs.
Discover more
djm-v10-wide-range-of-inputs
6 channels with a wide range of inputs
You’re free to create your perfect setup with 6 channels and a host of different input types.
Discover more
djm-v10-4-band-eq-and-compressor
4-BAND EQ and compressor
Take full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.
Discover more
djm-v10-effects
Effects for more creative expression
The expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless
Discover more
djm-v10-3-band-master-isolator
3-band master isolator
Effortlessly control the tone of your entire mix with the 3-band master isolator, featuring new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and drive the crowd wild by drastically changing the sound.
djm-v10-dual-headphones-output
Dual headphones output and booth EQ
The DJM-V10 makes back-to-back monitoring simple and comfortable. You can tweak the sound in the DJ booth just the way you like.
Discover more
Main Features
MIDI Control Full assignable MIDI controls
DVS Control “rekordbox
Serato DJ Pro
TRAKTOR PRO 3”
Accessories “DJM-V10
Power Cord
Warranty (for some regions)
Quick Start Guide
Precautions for Use”
Specifications
Sampling Rate 96 kHz
Width 17.23 in
Height 4.25 in
Depth 18.39 in
Weight 26.24 lb
A/D Converter 32 bit
D/A Converter 32 bit
S/N Ratio Line 105 dB
S/N Ratio Phono 88 dB
S/N Ratio Mic 79 dB
Channels
EQ 4 band
Performance Control
Channels $6
Filter “HPF
LPF”
SEND “Short Delay
Long Delay
Dub Echo
Reverb
2 Externals (1/4-inch TS jack)”
MULTI I/O “1/4-inch jack
USB (Type A)”
Beat FX “Delay
Echo
Ping Pong
Spiral
Helix
Reverb
Shimmer
Flanger
Phaser
Filter
Trans
Roll
Pitch
Vinyl Brake”
Crossfader
Fader Curve $3
Mic
Mic Connection “XLR / 1/4-inch Combo Jack
1/4-inch TRS Jack”
Terminals
Inputs “6 DIGITAL (Coaxial)
6 LINE (RCA)
4 PHONO (RCA)”
Send/Return “3 SEND (1/4-inch TS jack)
3 RETURN (1/4-inch TS jack)”
LAN $1
Outputs “2 MASTER (XLR, RCA)
1 BOOTH (1/4 inch TRS Jack)
4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
1 REC OUT (RCA)
1 DIGITAL (AES/EBU)
1 MIDI (DIN)”
USB “2 USB B ports
1 USB A port”
[embedyt] https://www.youtube.com/watch?v=xNYTE1n4OvU[/embedyt]
Brand
Pioneer DJ
