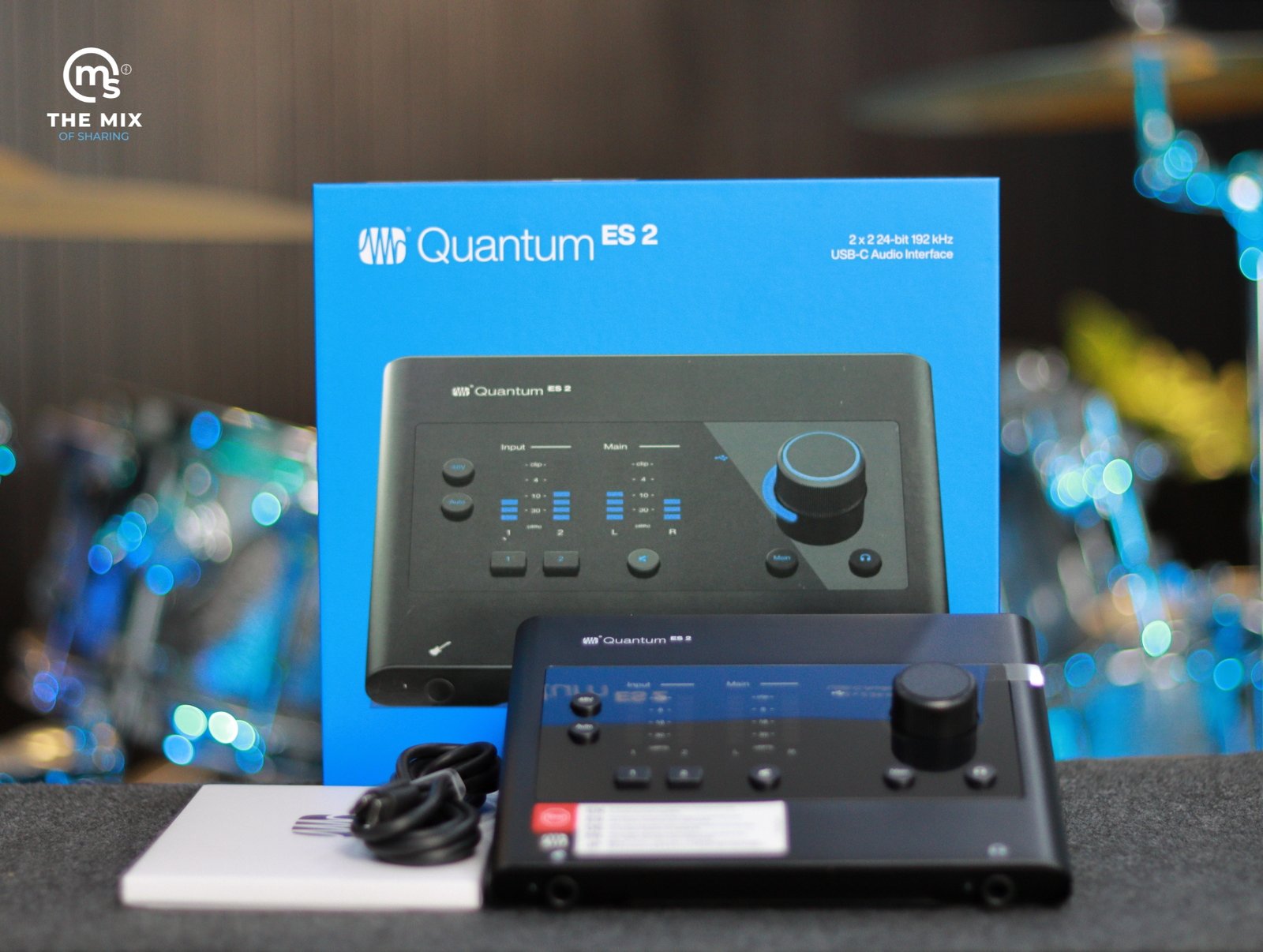

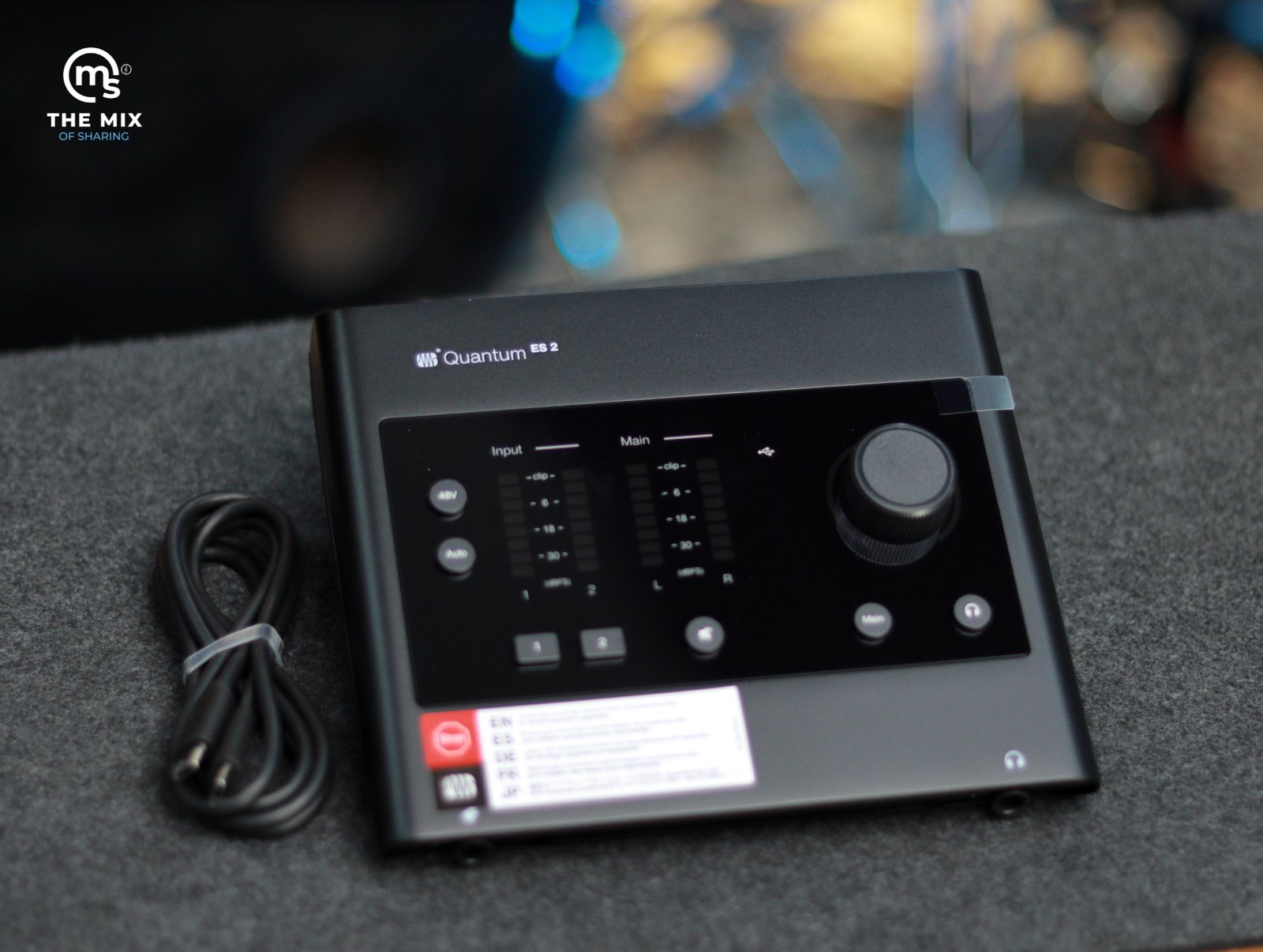

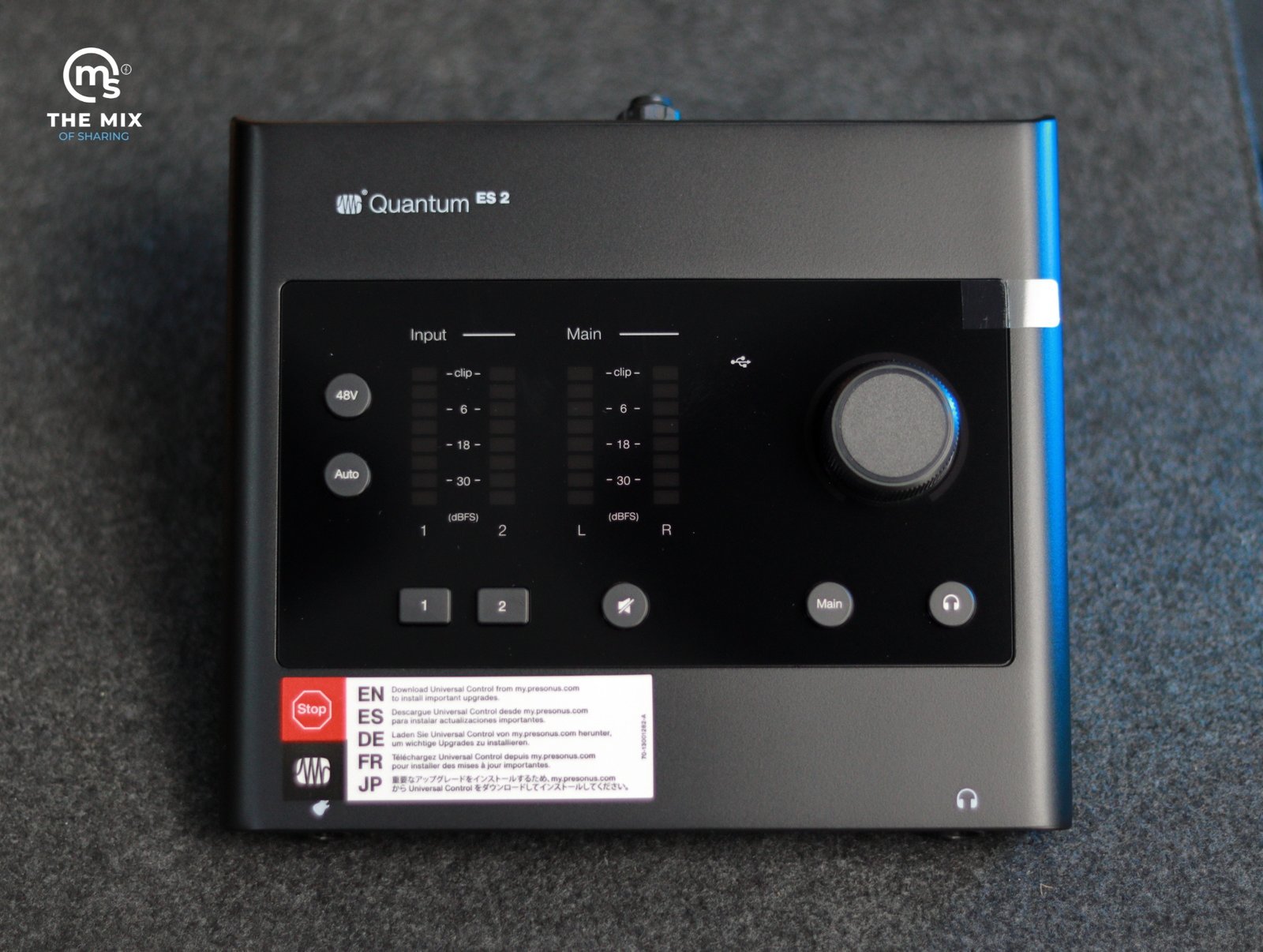

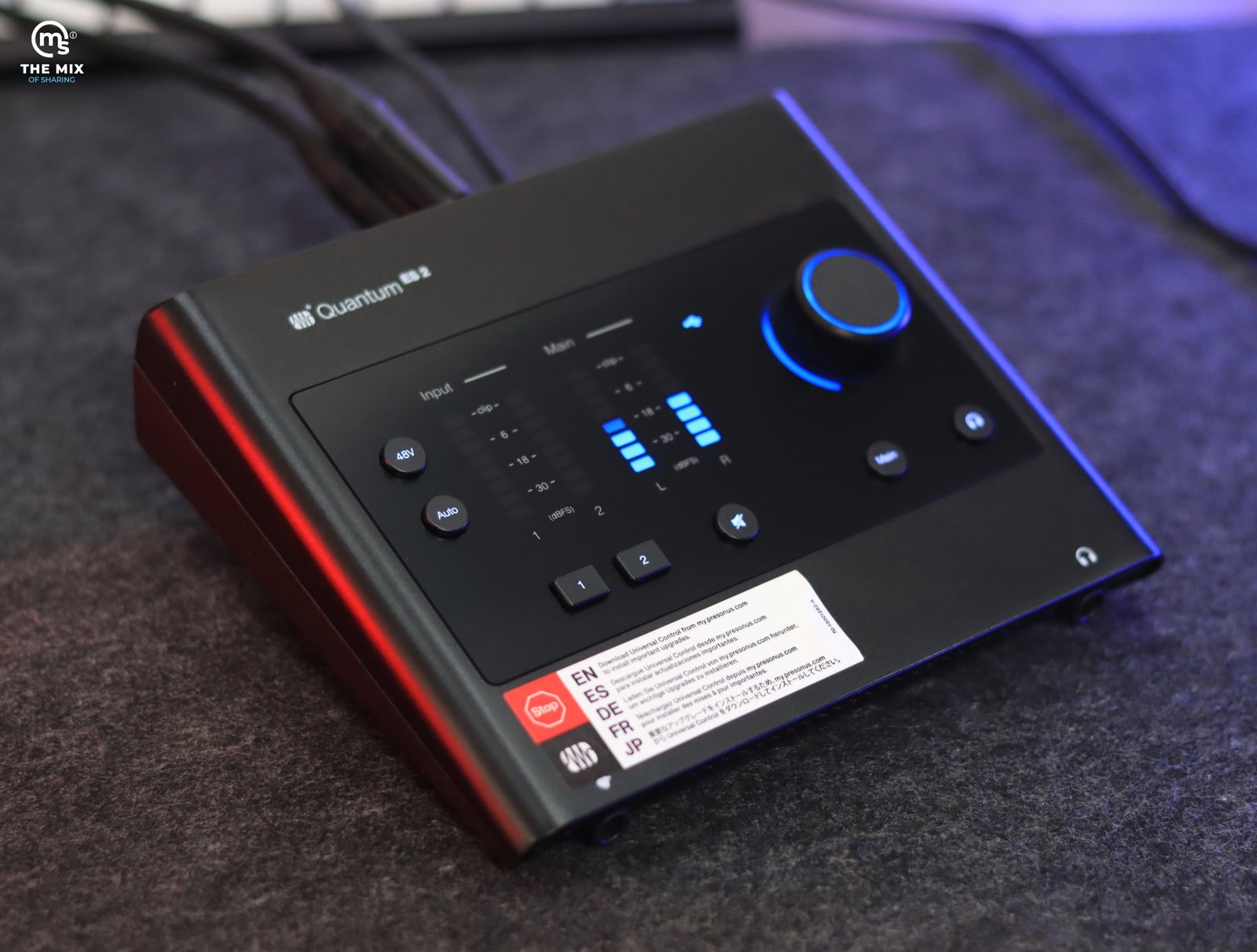

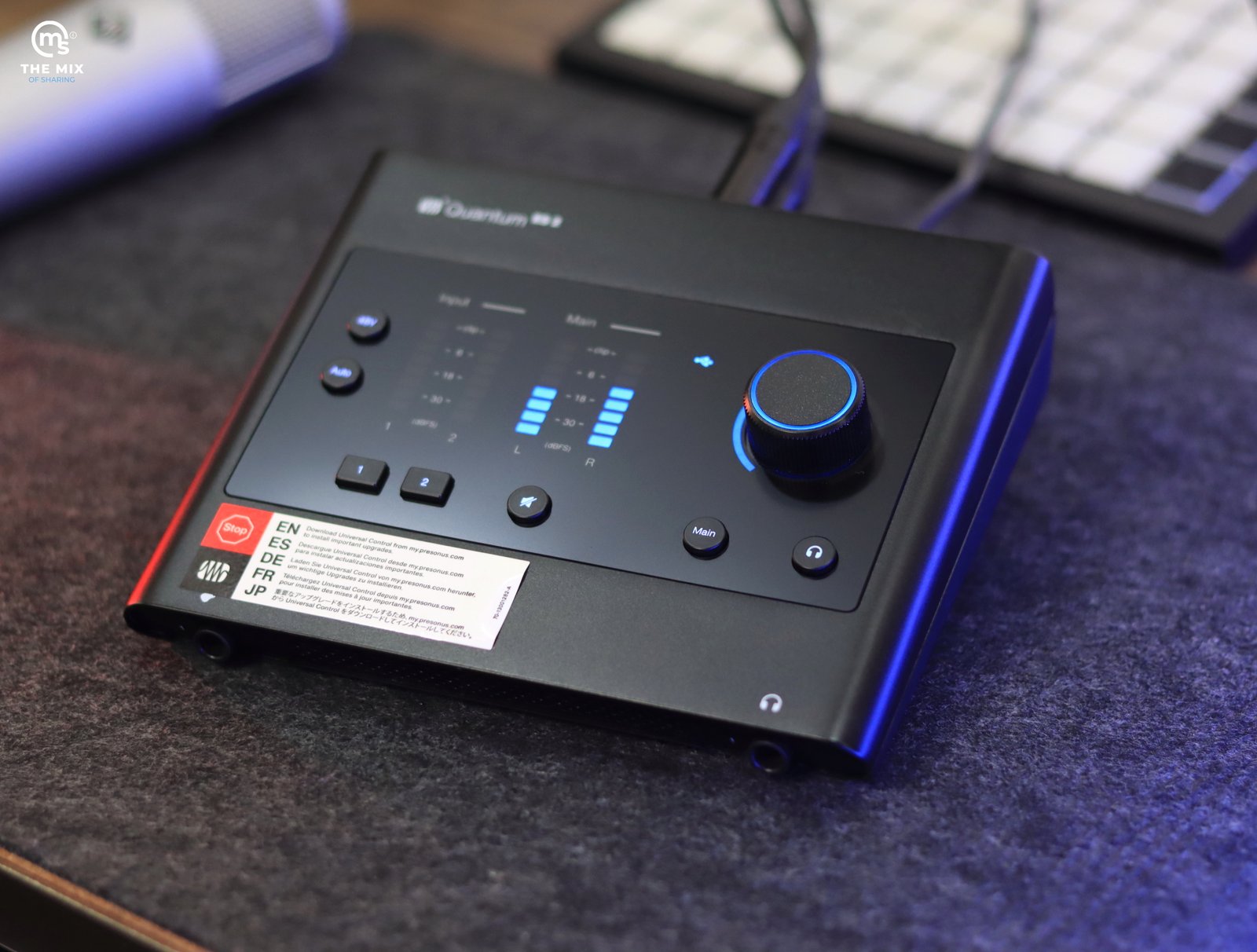

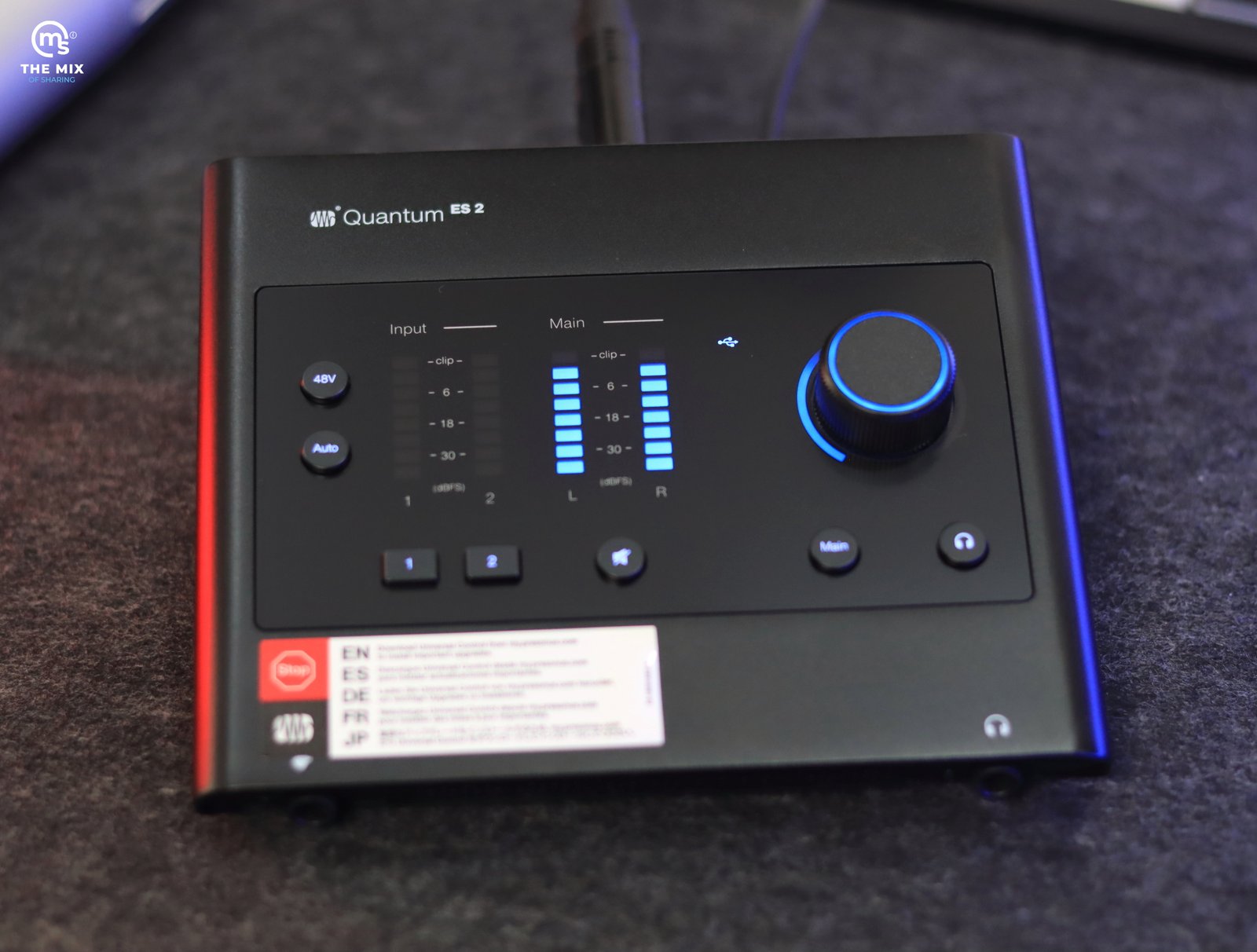

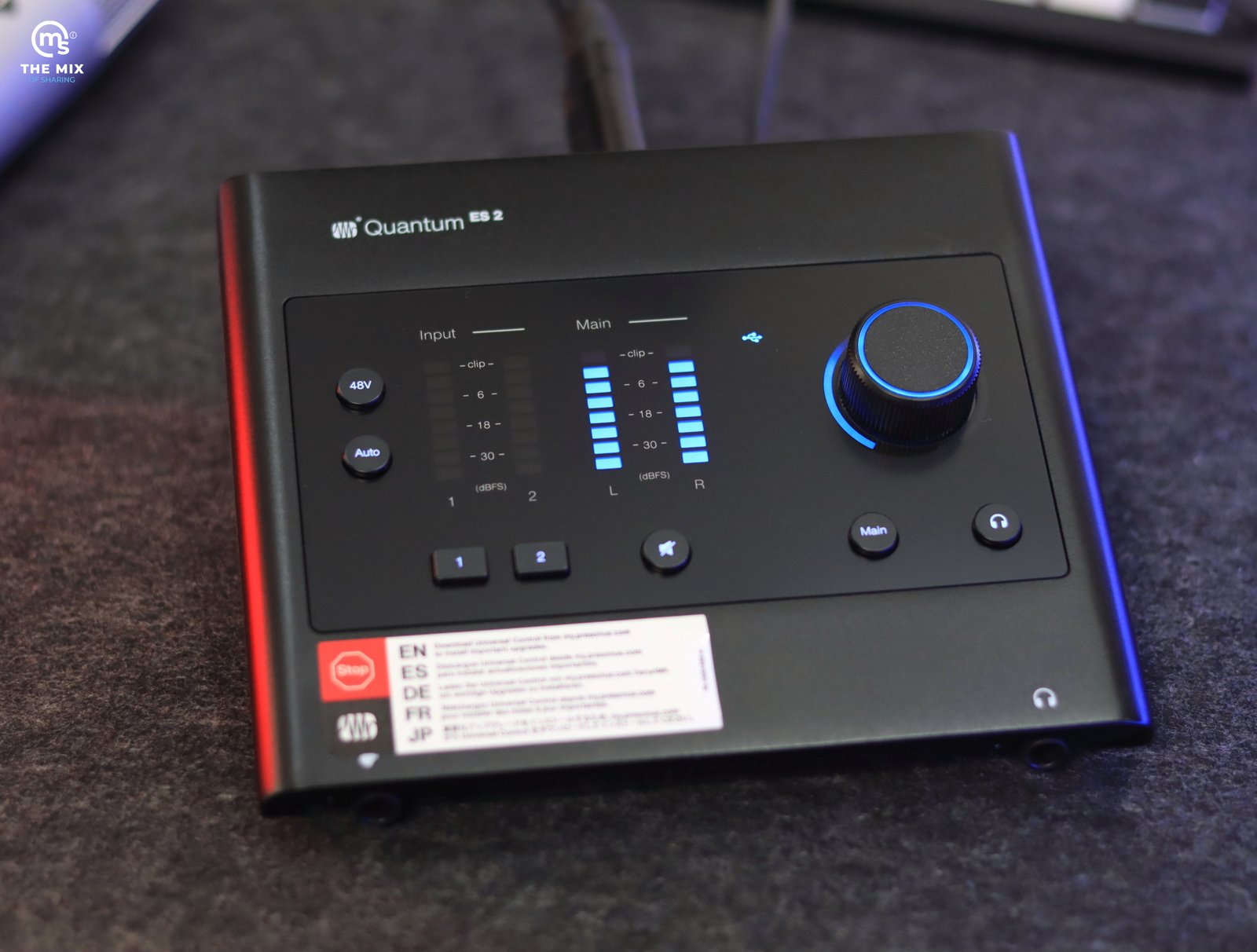

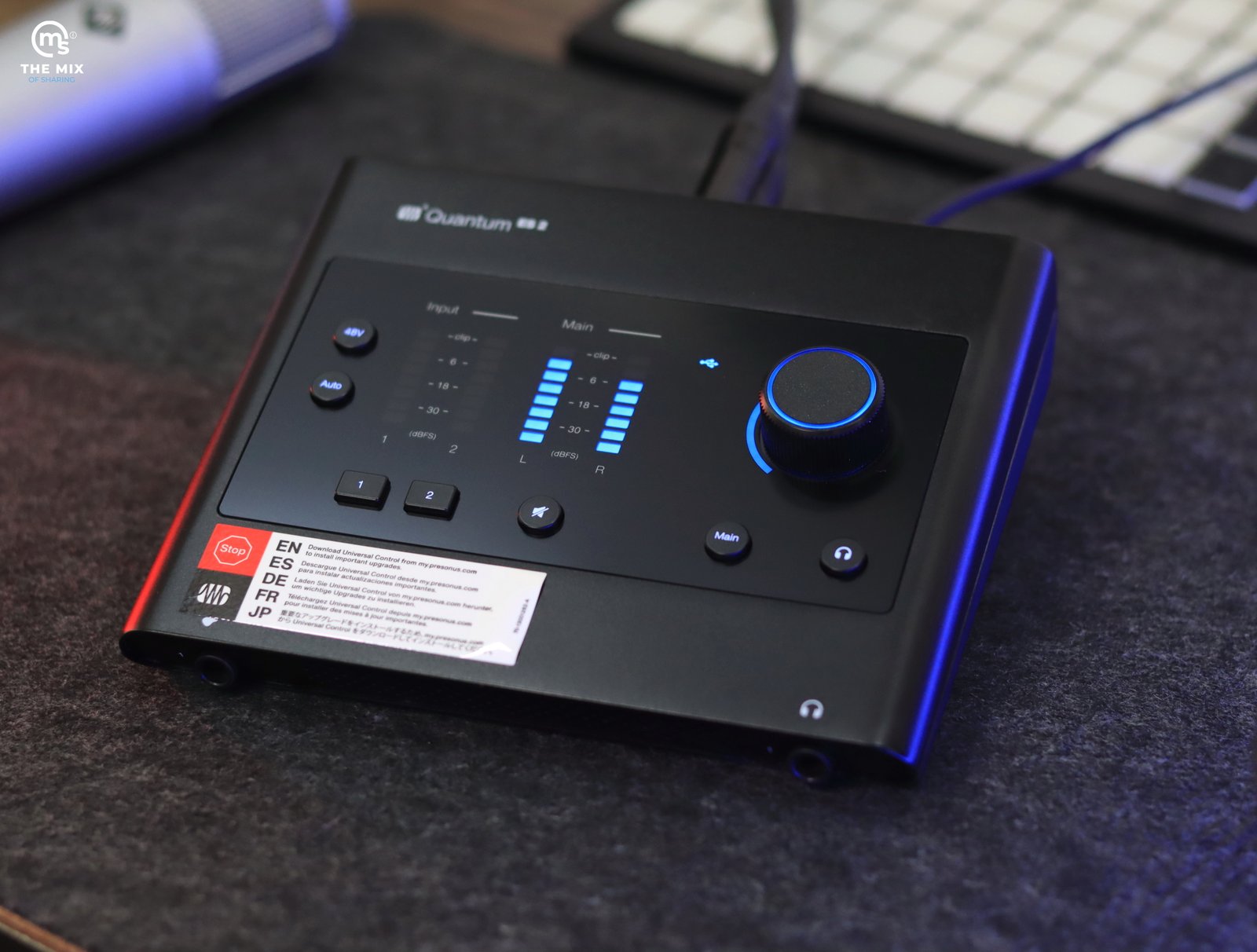

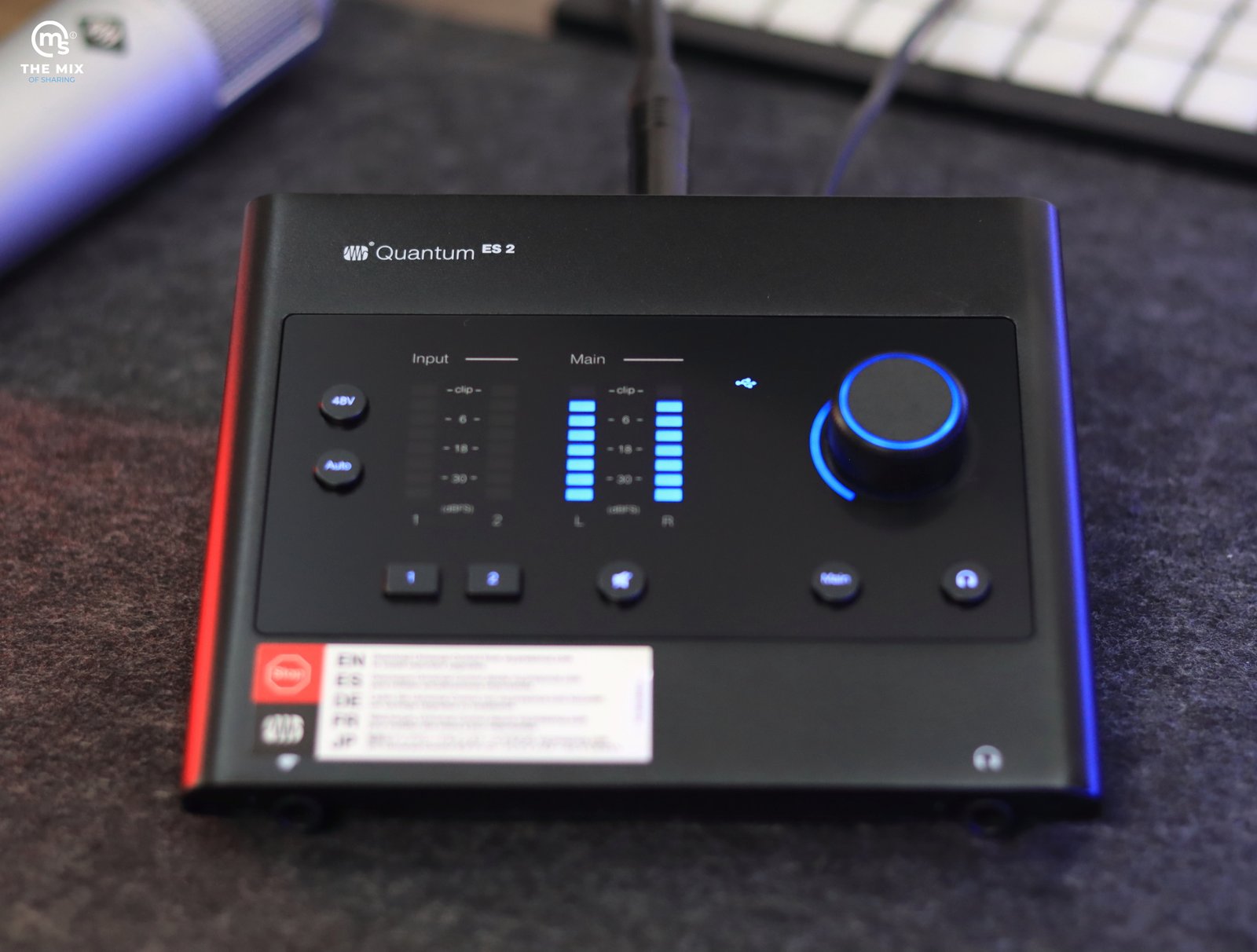

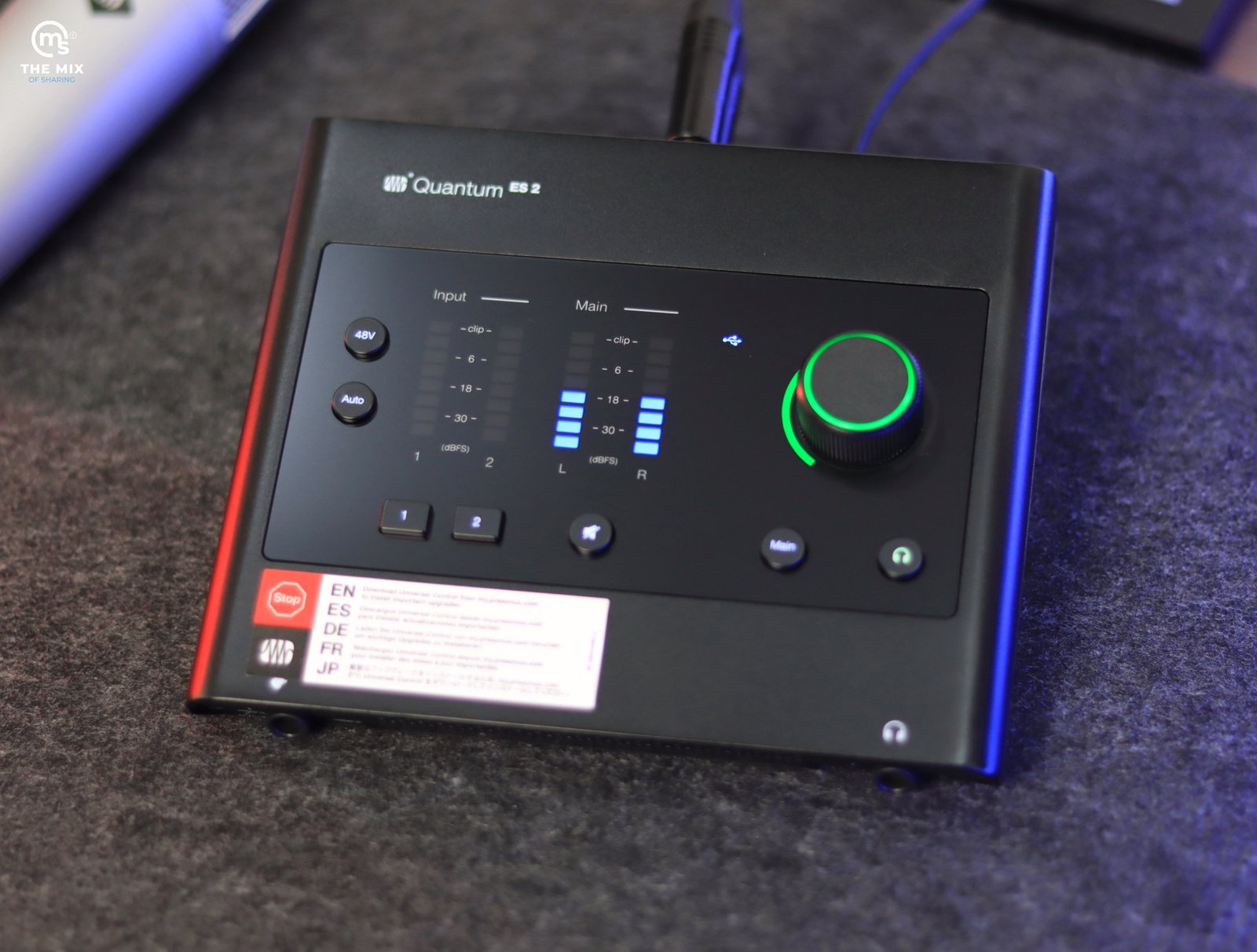

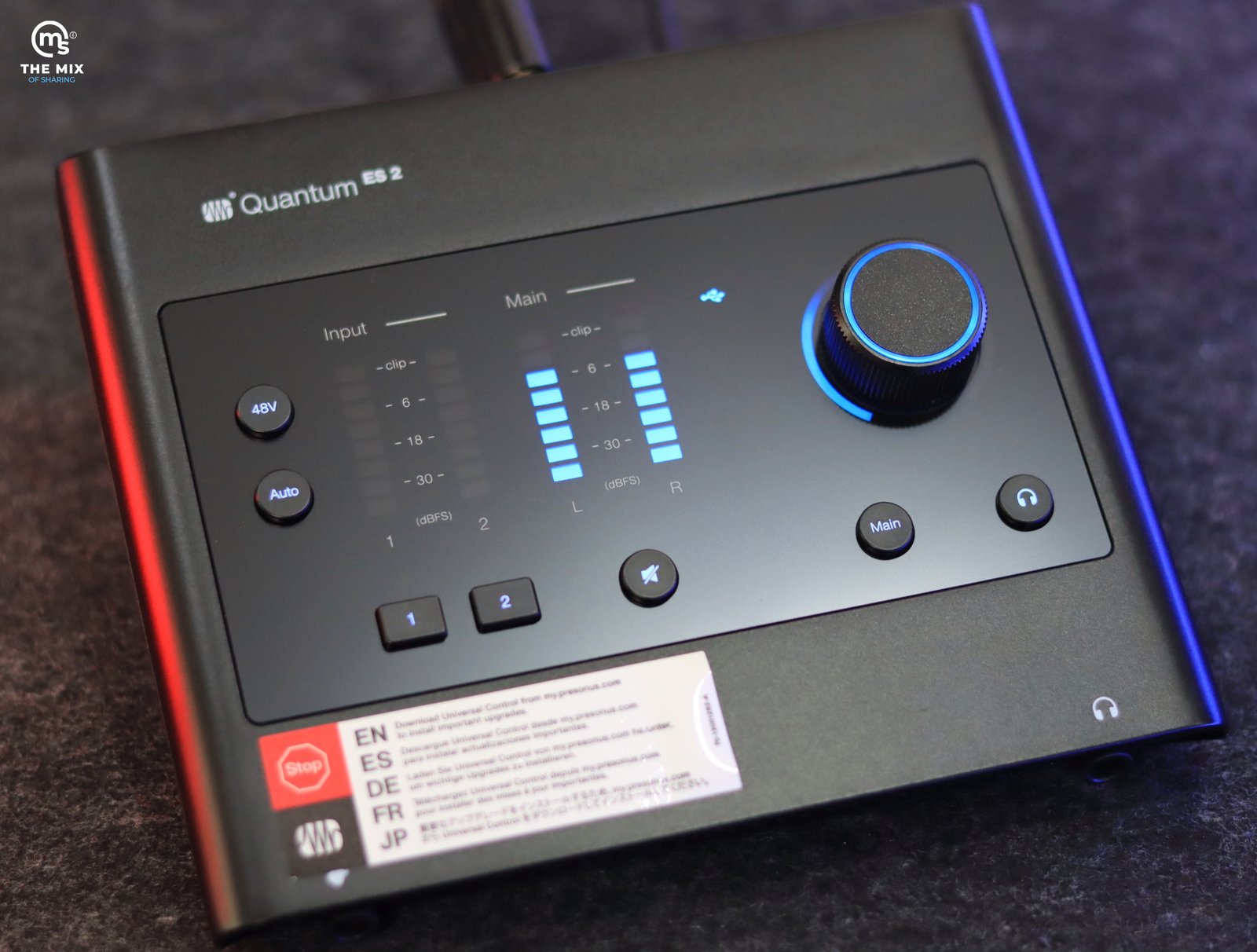

PreSonus Quantum ES 2 USB-C Audio Interface
2 x 2, 24-bit / 192 kHz Recording Interface with 6-Month Studio One+ Membership Included
Description
Capture your creativity with the Quantum ES 2. The next generation of PreSonus audio interfaces, the Quantum ES 2 is the culmination of nearly 30 years of PreSonus expertise, delivering pristine preamps and class-leading converters for self-made audio creators.
Features
- High Performance Signal Flow – Custom low-latency drivers and low-noise converters.
- All-New MAX-HD Mic Preamps – The culmination of 30 years of innovation, our rigorously redesigned preamps feature digitally-controlled analog with +75 dB of gain range.

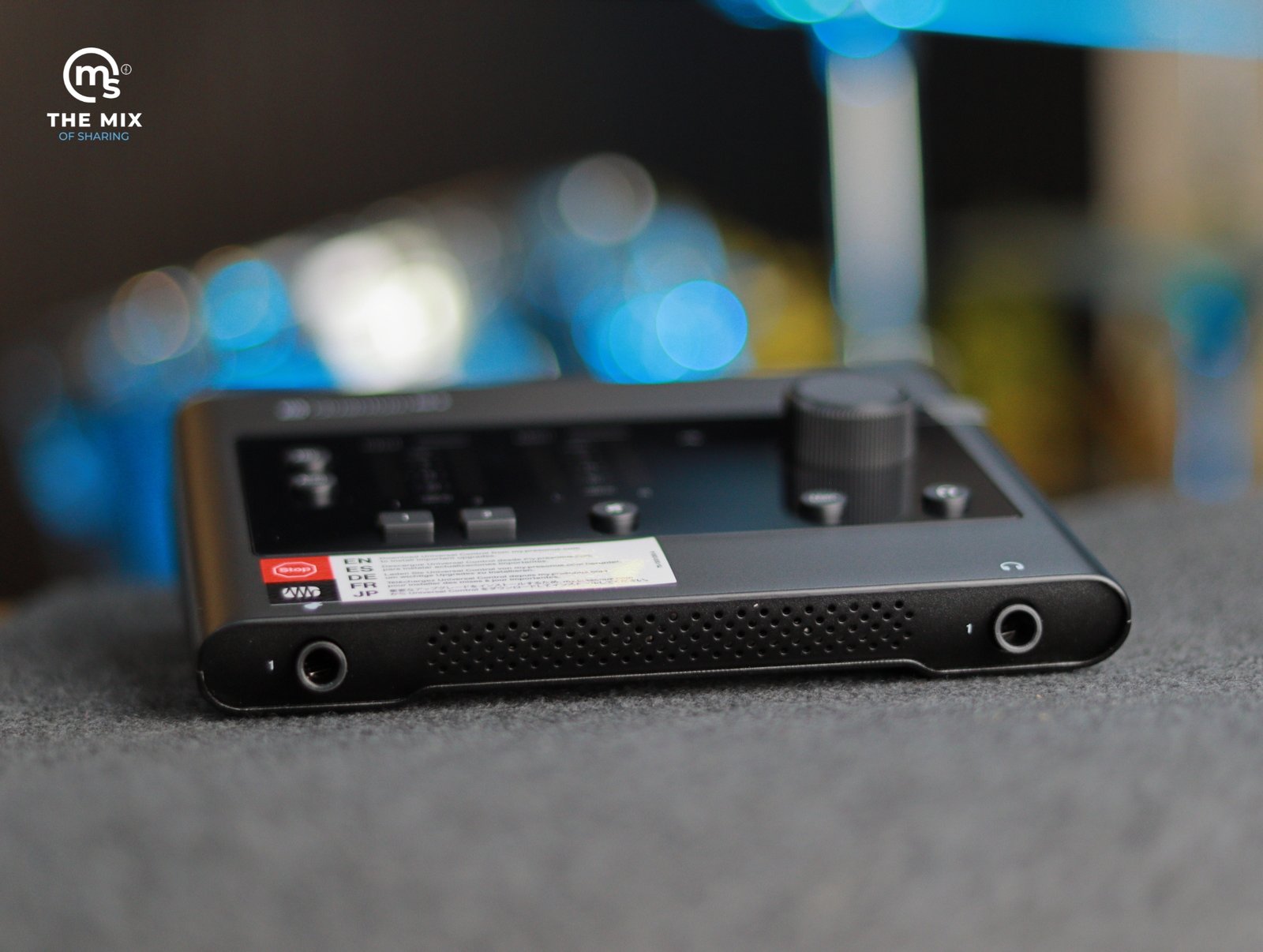

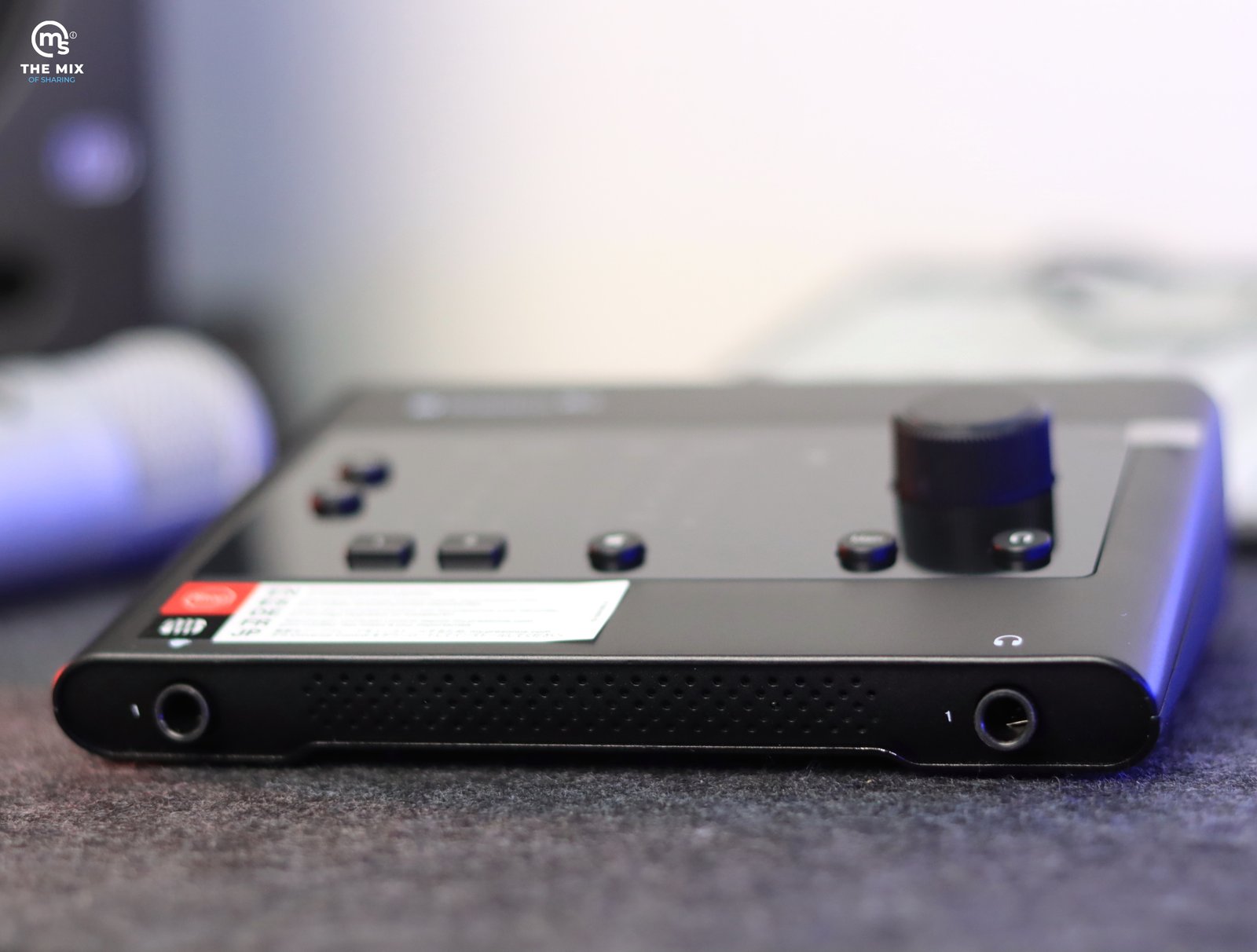

- Co-Developed with Fender® – Front-facing instrument input engineered for guitarists by industry-leading experts.
- Professional Recording Software Included – 6 months of Studio One+ with full access to Studio One, add-ons, and more.

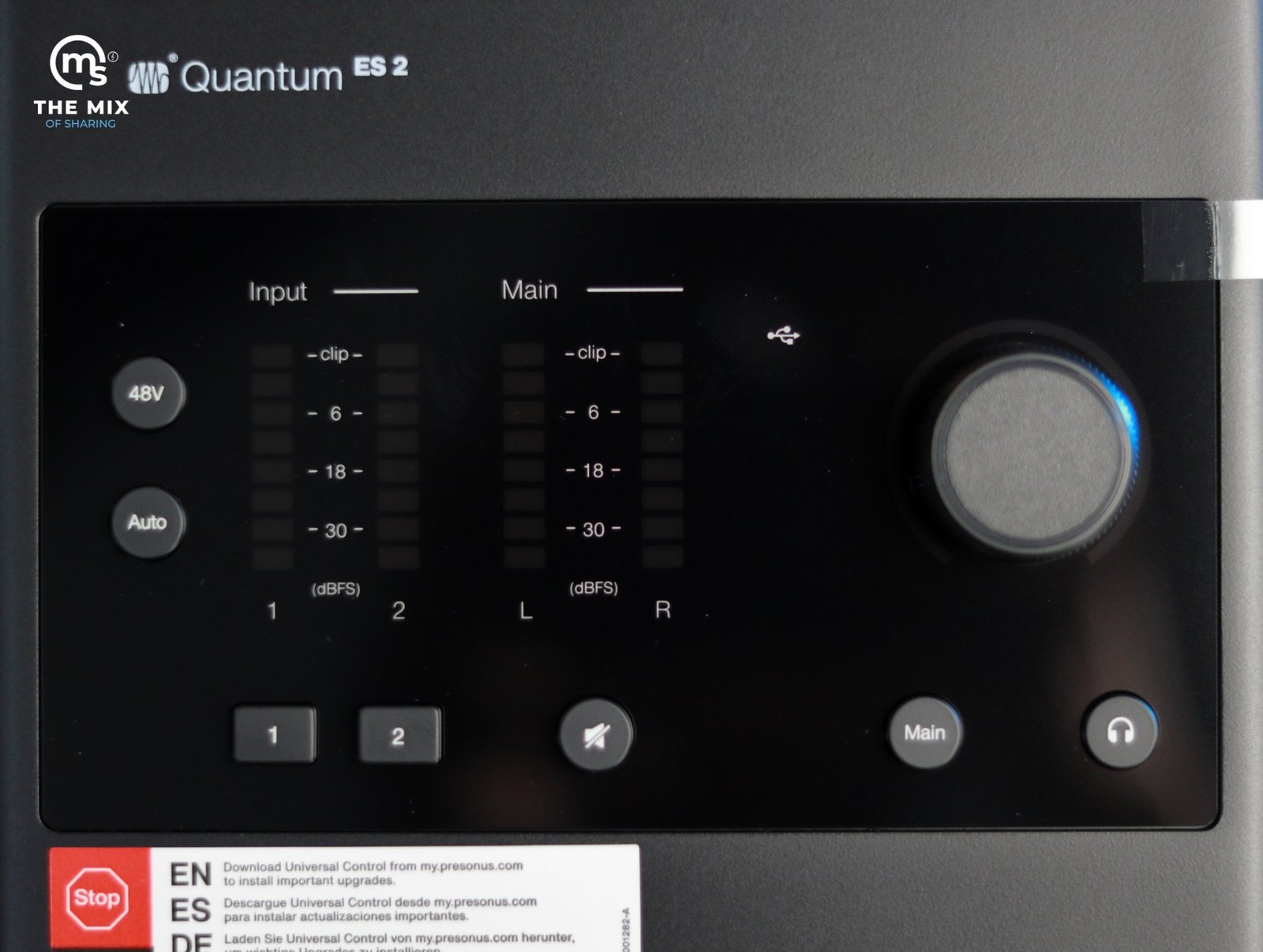

- Auto Gain – Dial in recording-ready levels, hassle-free.
- Universal Control App – Full control and metering from your mobile device, desktop, or tablet.
Specification
Controls and Connections |
Microphone Preamp |
| Headphone Jack : One – 1/4″ TRS Female Stereo

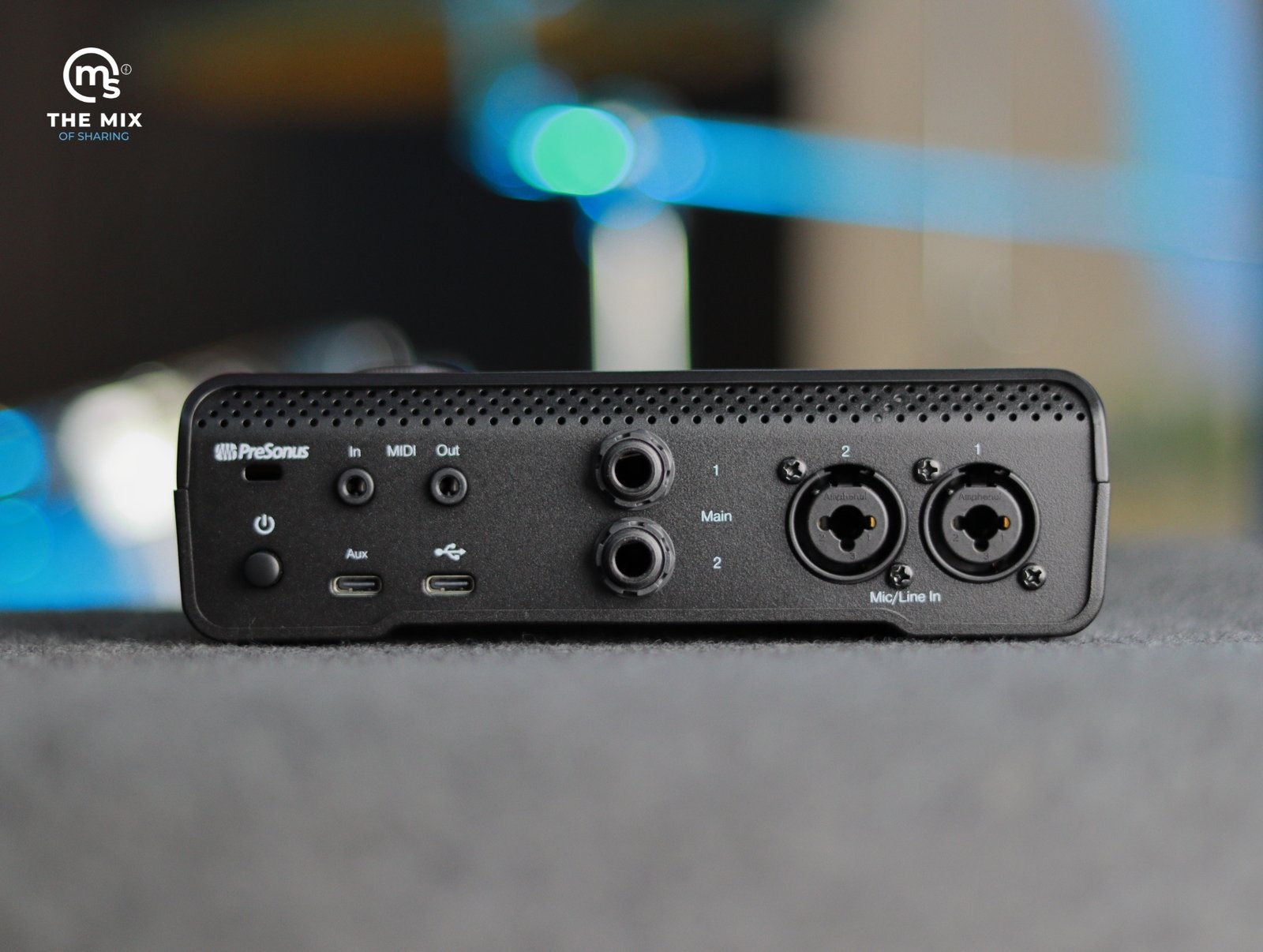

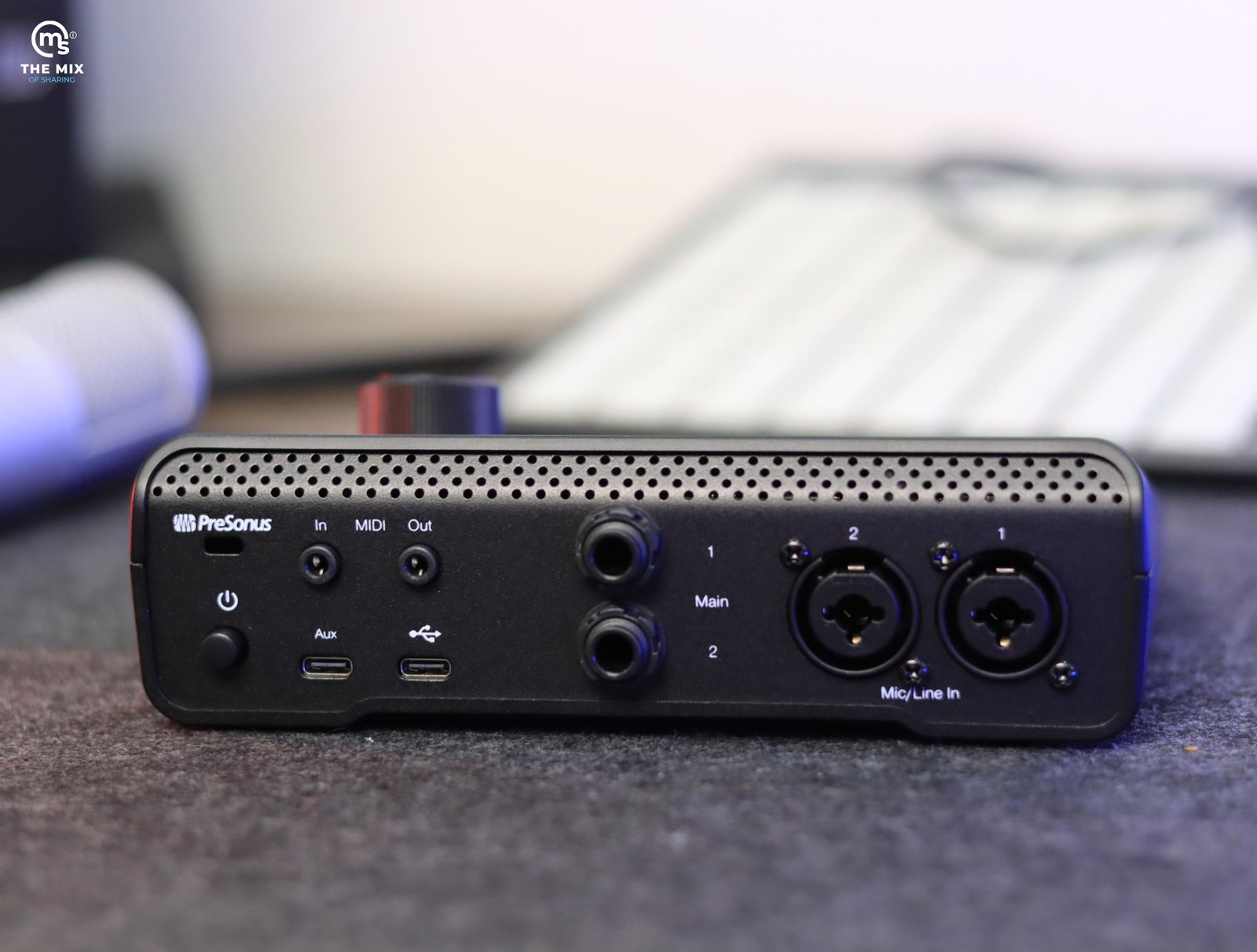

Connectivity : USB-C® MIDI I/O : 3.5 mm Type-B |
Microphone Input Connection Type : XLR Female (Combo), Balanced
Total Harmonic Distortion : 0.001% (1 kHz, Minimum Gain) Gain Control Range : 75 dB Microphone Preamp Maximum Input Level : +14 dBu (Balanced, Minimum Gain) Phantom Power : +48 VDC Frequency Response : 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) Microphone Preamp Input Impedance : 1600 Ohms Dynamic Range : 113 dB (A-Weighted, Minimum Gain) Equivalent Input Noise : -129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted) |
Instrument Inputs |
Line Inputs |
| Instrument Inputs Impedance : 1M Ohms
Instrument Inputs Maximum Level : +15 dBu (Unbalanced, Minimum Gain) Gain Range : 75 dB Frequency Response : 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) Dynamic Range : 111 dB (A-Weighted, Minimum Gain) Total Harmonic Distortion : 0.002% (1 kHz, Minimum Gain) |
Line Inputs Maximum Level : +15 dBu (Balanced, Minimum Gain)
Line Inputs Gain Range : +/- 10 dB Line Inputs Frequency Response : 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) Line Inputs Dynamic Range : 114 dB (A-Weighted, Minimum Gain) Line Inputs Total Harmonic Distortion : 0.001% (1 kHz, Minimum Gain) Line Inputs Impedance : 10K Ohms |
Main and Line Output |
Headphone Outputs |
| Main And Line Outputs Maximum Level : +15 dBu (Balanced)
Main And Line Outputs Frequency Response : 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) Main And Line Outputs Total Harmonic Distortion : 0.001% (1 kHz, +4 dBu) Main And Line Outputs Dynamic Range : 117 dB (A-Weighted) Main And Line Outputs Output Impedance : 51 Ohms |
Headphone Outputs Maximum Output : 7.5 dBu (50 Ohms)
Frequency Response : 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) Dynamic Range : 111 dB (A-Weighted) Total Harmonic Distortion : 0.02% (1 kHz) Headphone Outputs Impedance Working Range : 22 Ohms |
Digital Audio |
Weights and Dimensions |
| Digital Audio Dynamic Range : 120 dB
Digital Audio Bit Depth : 24-bit Supported Sample Rates : 44.1, 48, 88.2, 96, 176.4, 192 (kHz) |
Height : 1.9″ (48.3 mm)
Depth : 6.2″ (158 mm) Width : 6.9″ (175 mm) Weight : 1.5 lb. (0.68 kg) |
Accessories |
| Included Accessories : 1.5M USB-C to USB-C cable |
