PROEL DIRECT100P Passive Direct Injection Box

PROEL DIRECT100P Passive Direct Injection Box - Image 2

PROEL DIRECT100P Passive Direct Injection Box - Image 3

PROEL DIRECT100P Passive Direct Injection Box

Name: PROEL DIRECT100P Passive Direct Injection Box
SKU: DIRECT100P
Availability: BackOrder

$69.00

Passive Direct Inject Box for Recording Studio and Fixed Installation with 20dB & 40dB PAD and GND lift switch

Available on backorder

Description

The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shell or in a sturdy metal chassis, the 100 Series products are meant to deliver sound quality, versatility and stage-proof reliability in a very affordable package.

High quality isolation transformer for ultra-flat frequency response
High quality electronic components
¼” JACK input and link connectors

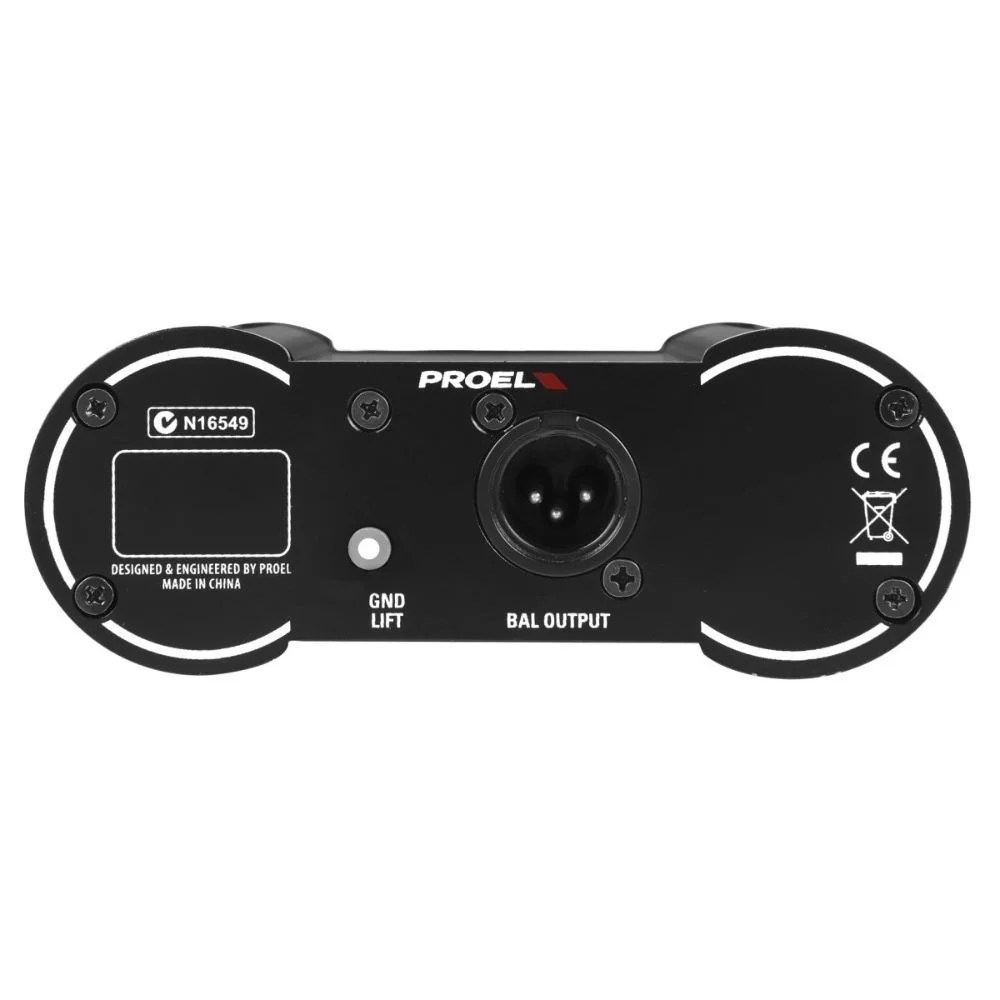

XLR-M balanced output
20dB & 40dB PAD and GND lift switch
Stackable aluminum shell

Specification

TECHNICAL SPECIFICATIONS

Input Section
Input Impedance	>250 Kohm
Max Input Level	+10 (PAD at 0) / +30 (PAD at 20) / +50 (PAD at 40) dBu
Connectors	1 x 1/4″ jack unbalanced
Link	1 x 1/4″ jack unbalanced
Output Section
Output	Transformer Balanced (isolated with shielding)
Insertion Loss	26 dB
Load Impedance	600 Ohms or greater
Connector	XLR male
System Performance
Distortion THD 50÷20k Hz 0dBu	< 0.007 %
Frequency Response	40 Hz to 20 kHz (-3 dB)
General
Controls	PAD 0 / -20 / -40, GND LIFT
Dimensions (W x H x D)	134 x 50 x 105 mm
Weight (excluding batteries)	0,55 Kg

Downloads

96MAN0069-DIRECT100P_ENG_ITA_TED_FRA_SPA_AR
