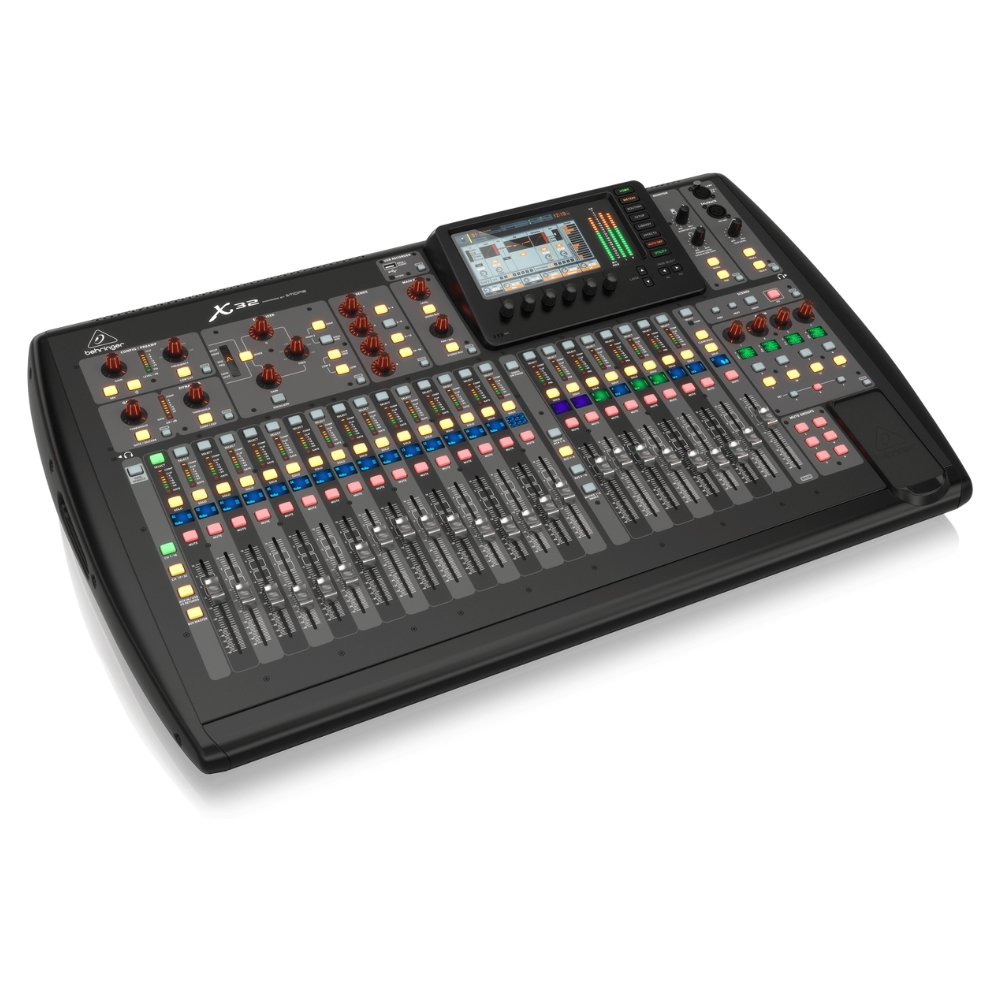

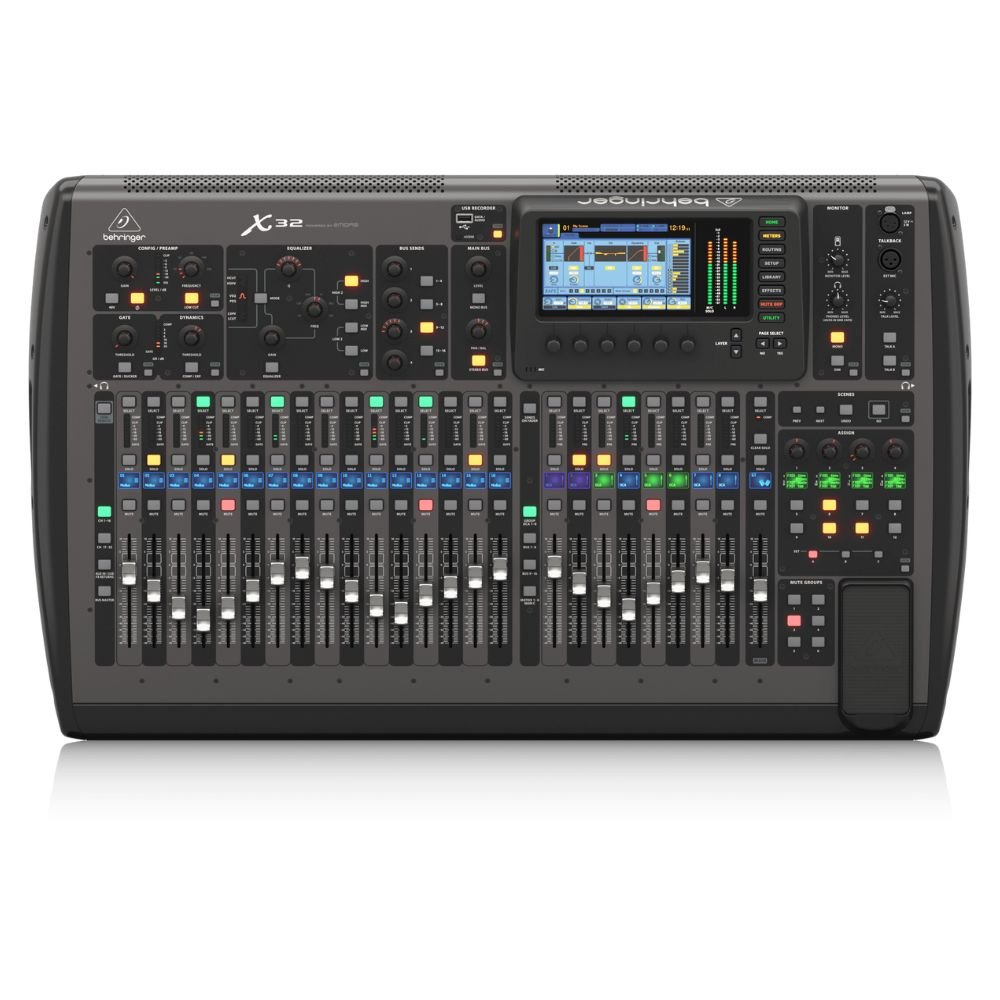

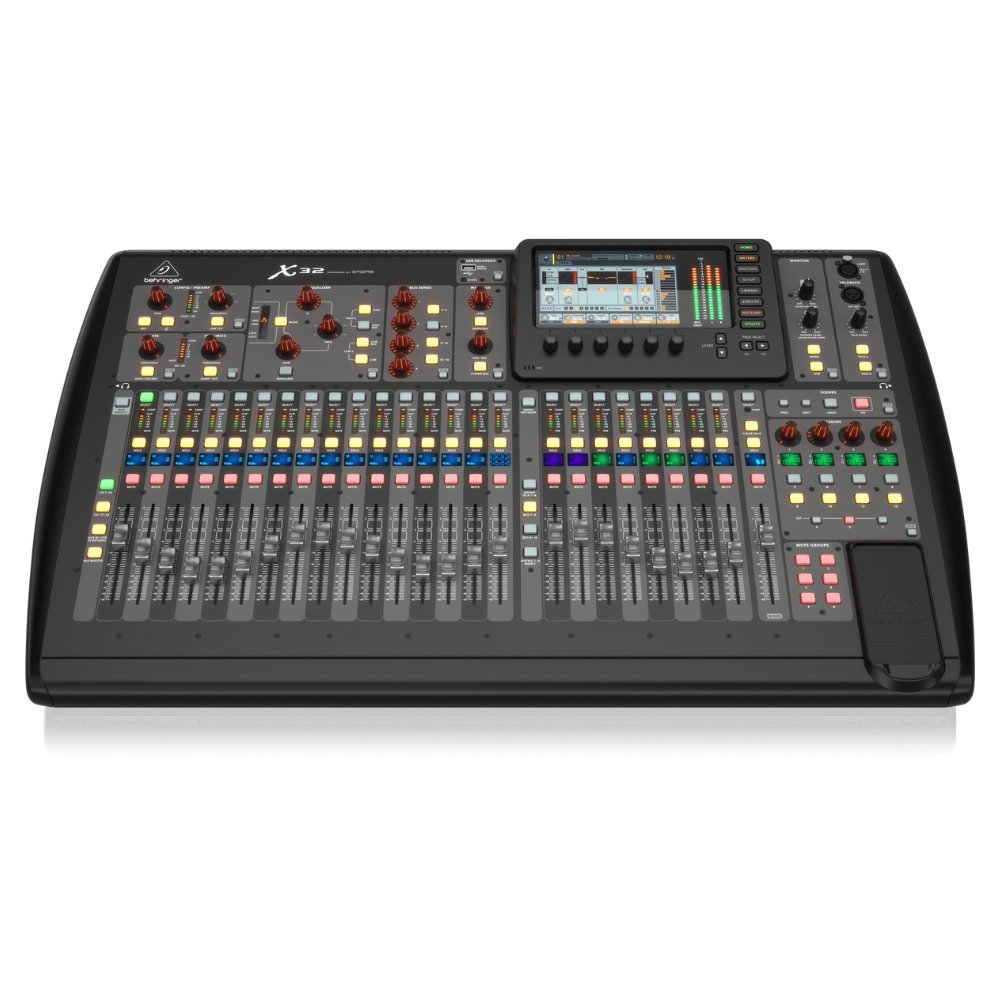

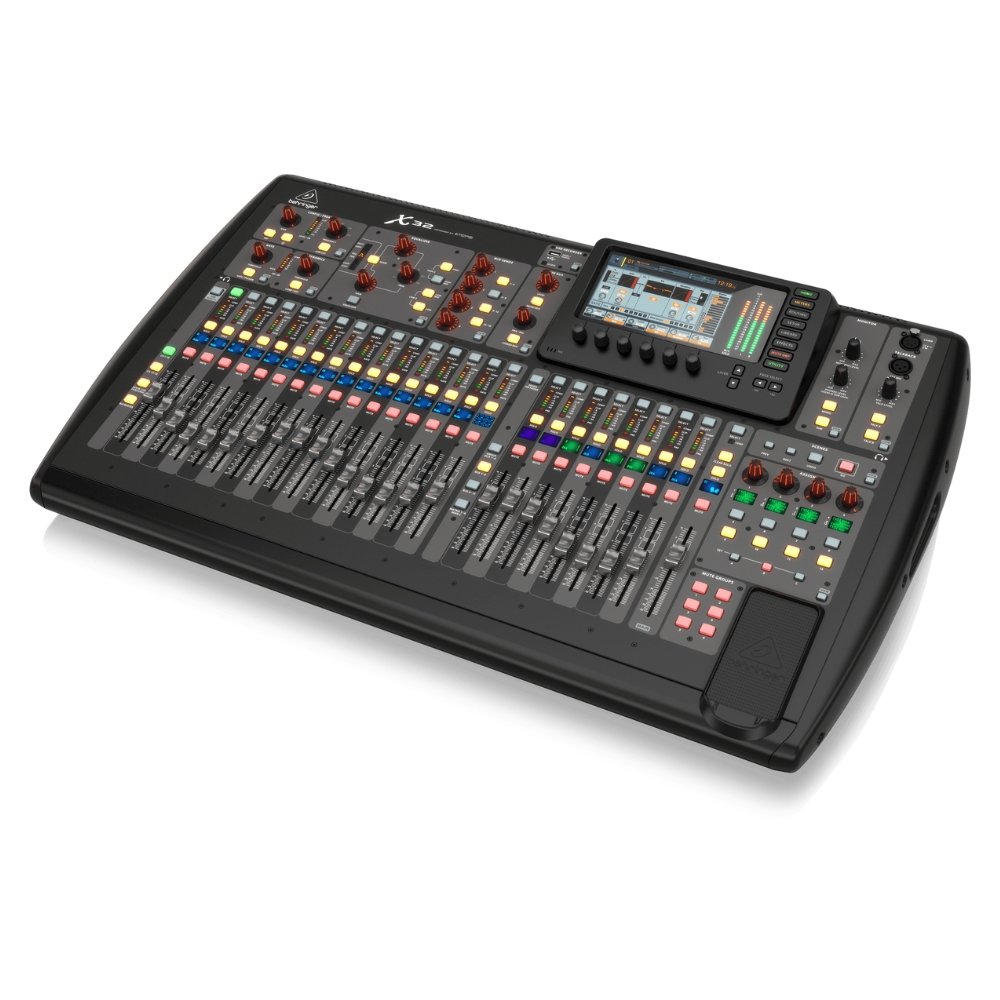

Behringer X32 40-Channel Digital Mixer (Display)

X32
The Behringer X32 has changed the game by completely rethinking what is possible from a digital mixer – and hundreds of thousands of users are enjoying the results. A fluid workflow coupled with a fully interactive user interface ensures immediate familiarity and instills confidence. Advanced engineering and meticulous design deliver stellar sonic performance at an extremely affordable price – changing the game entirely.

Three companies shared a common vision – to engineer and build the very best- sounding, technically-advanced audio products for discerning professionals. The X32 Digital Mixer family is the result of the engineering, manufacturing and application expertise of legendary console manufacturer Midas, the iconic signal processing genius of Klark Teknik and Behringer’s unique ability to deliver a superior value proposition.

The synergy between these three great companies runs deep in the X32. From the pristine, Midas -designed mic preamps to Klark Teknik’s rock-solid, ultra-low latency SuperMAC networking technology and Behringer’s completely re-engineered processing algorithms, X32 raises the bar on what a digital mixer can be. A singular passion for delivering advanced technology, unrivalled usability and true road-worthiness has enabled us to engineer a digital console that is the ideal vehicle for your creative expression. But we’re just getting started!

Processing
Number of input processing channels 32 input channels, 8 aux channels, 8 fx return channels
Internal effects engines, true-stereo / mono 8/16
Internal total recall scenes (incl. preamp and fader) 100
Signal processing 40-bit floating point
A/D-D/A conversion 24-bit @ 44.1 / 48 kHz, 114 dB dynamic range
I/O latency (console input to output) 0.8 ms
Network latency (stagebox in > console > stagebox out) 1.1 ms

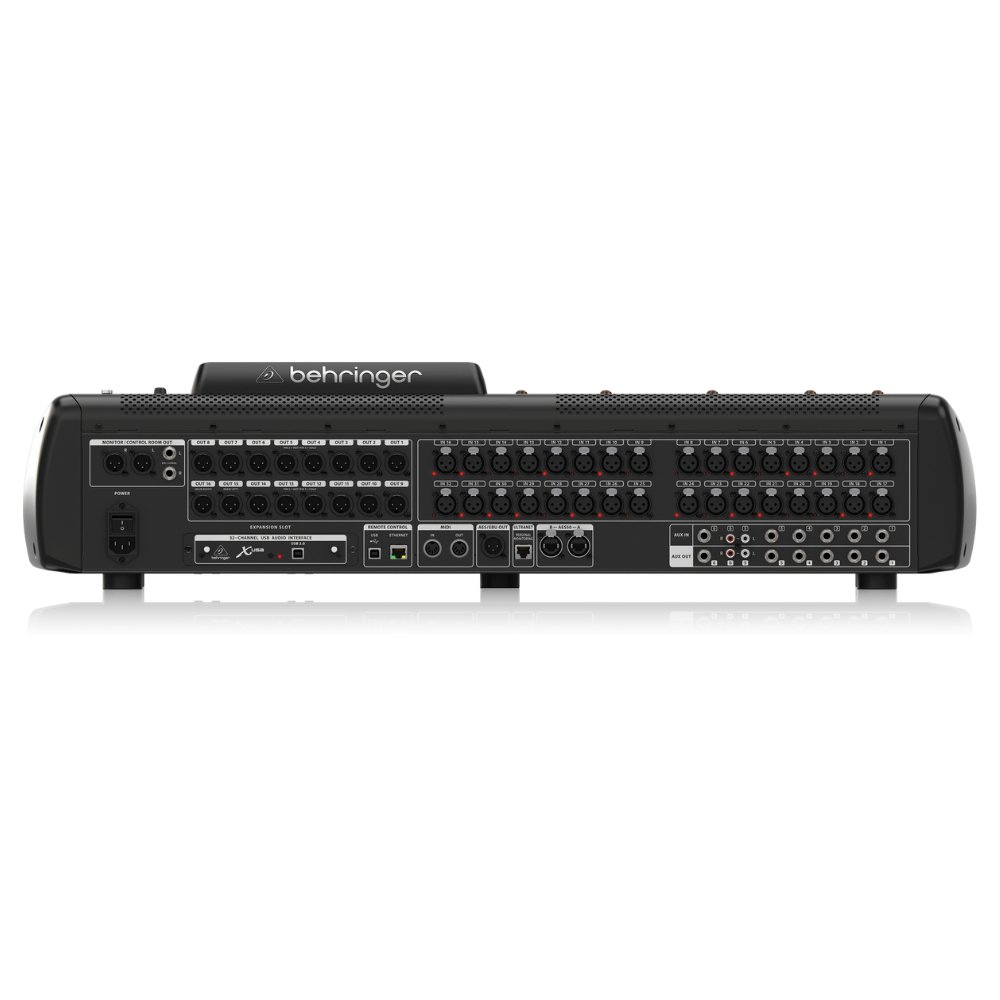

Connectors
XLR inputs, programmable mic preamp, designed by MIDAS 32
Talkback mic input, XLR 1
RCA inputs/outputs 2/2
XLR outputs 16
Monitoring outputs XLR / 1/4″ TRS balanced 2/2
Aux inputs/outputs, 1/4″ TRS balanced 6/6
Phones outputs, 1/4″ TRS 2 (stereo)
Digital AES/EBU output, XLR 1
AES50 ports, SuperMac, Neutrik ethercon 2
Expansion card 32 channel audio input/output, various standards
P-16 connector, Ultranet (no power supplied) 1
MIDI inputs / outputs 1/1
USB Type A, top panel, for audio and data export/import 1
USB Type B, rear panel, for remote control 1
Ethernet, RJ45, rear panel, for remote control 1
Mic Input Characteristics
Design MIDAS
THD + noise, 20 dB gain, 0 dBu out < 0.006% A-weighted Input impedance XLR, unbal. / bal. 5 kΩ / 10 kΩ Non clip maximum input level, XLR +23 dBu Phantom Power, switchable per input 48 V Equivalent input noise level, XLR (input shorted) -128 dBu CMRR, XLR, @ 20 dB gain (typical) > 70 dB
CMRR, XLR, @ 40 dB gain > 80 dB
