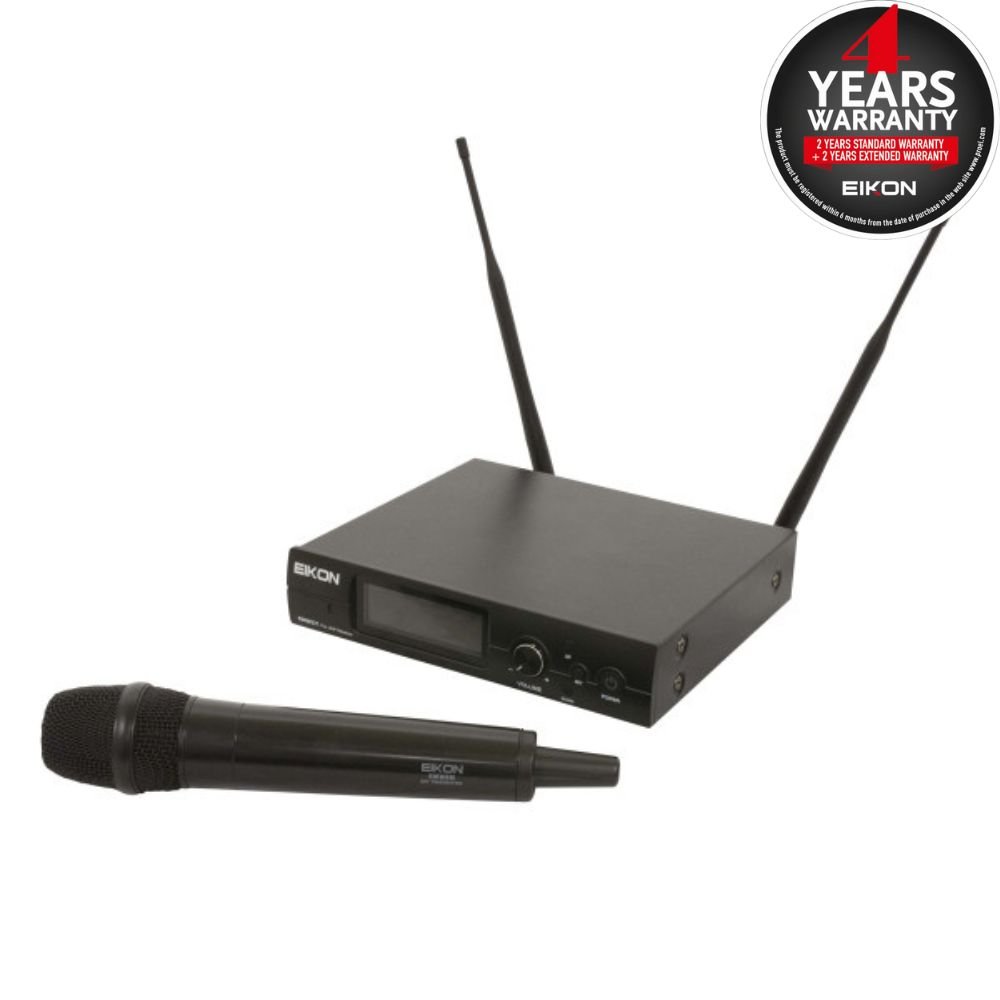

Eikon Audio RMW921M PLL UHF wirless handheld microphone system

PLL UHF wirless handheld microphone system for simultaneous use of 6 devices

The RMW921 Wireless Microphone is a professional UHF, PLL controlled, true diversity system providing reliable and high quality signal transmission.

The system is equipped with automatic channel scan and IR sync.

99 channel frequencies are available for simultaneous use of 6 devices.

The system is available in two different configurations with Handheld or belt-pack transmitter.

TECHNICAL SPECIFICATIONS

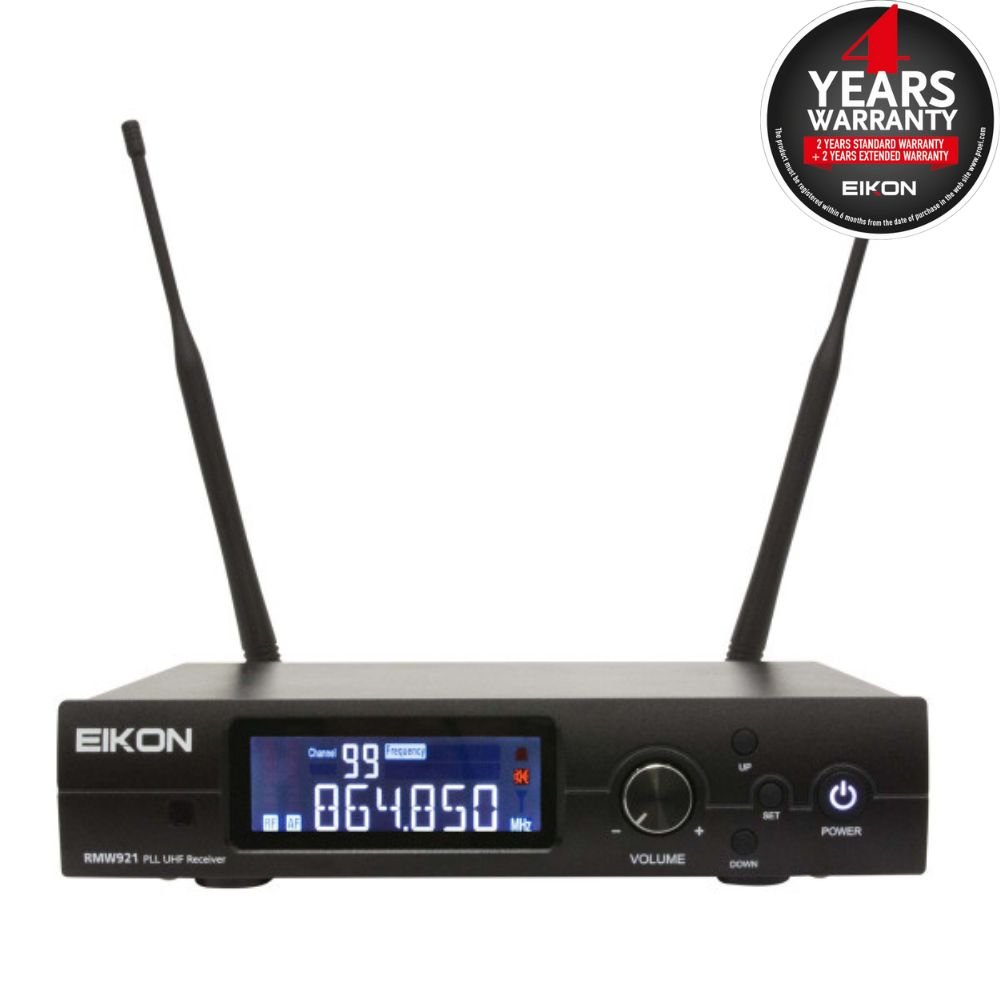

RECEIVER
Receiver Type	UHF Band
Frequency Range	821 – 832 MHz and 863 – 865 MHzor 551 -581 Mhz (RMW921MA)
RF Frequency Stability	0,00%
Modulation Method	FM (F3E)
RF Image / Spurious Rej	> 70 dBm
RF Interference Rej	> 70 dBm
Sensitivity	-105 dB
Audio Frequency Response	60 – 18000 Hz
THD	< 1 %
S/N Ratio	> 100 dB
Power Requirement	+12 – 15 vdc 500 mA

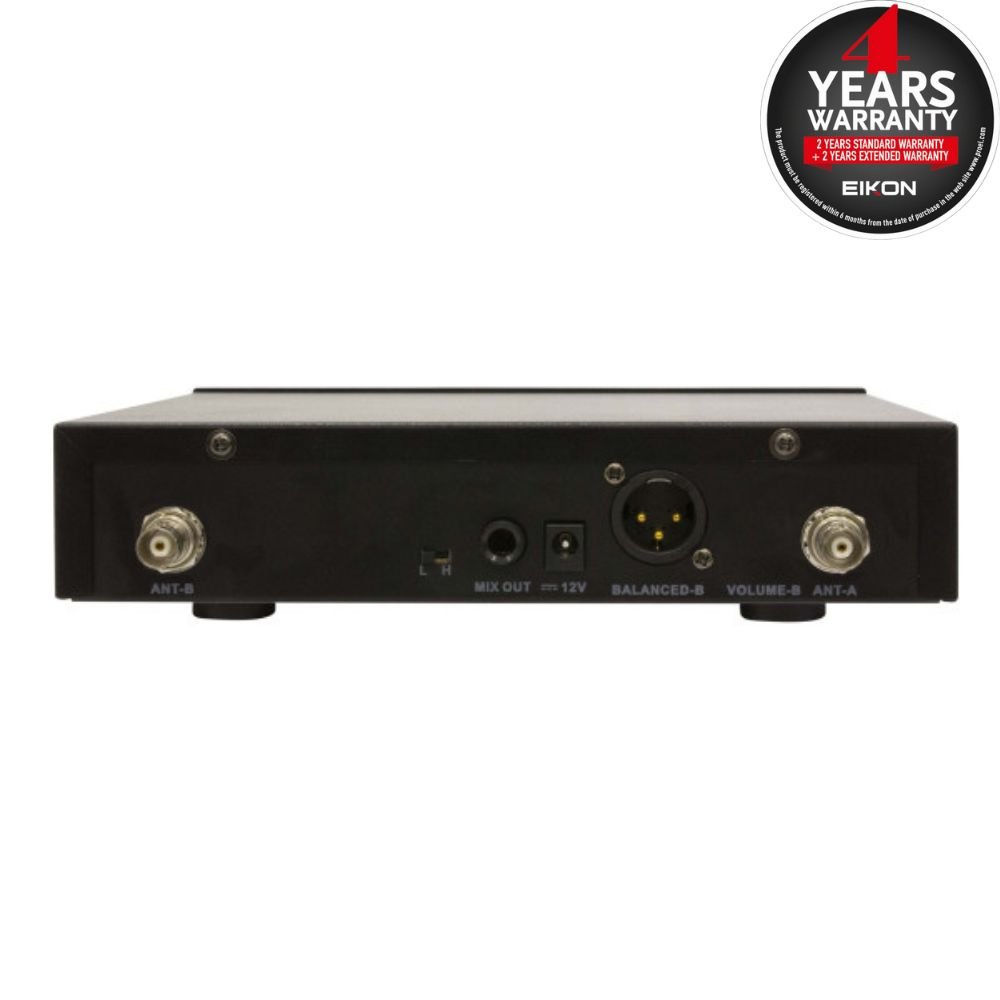

Output Connector	Unbalanced ¼ “ jack – XLR 3 balanced

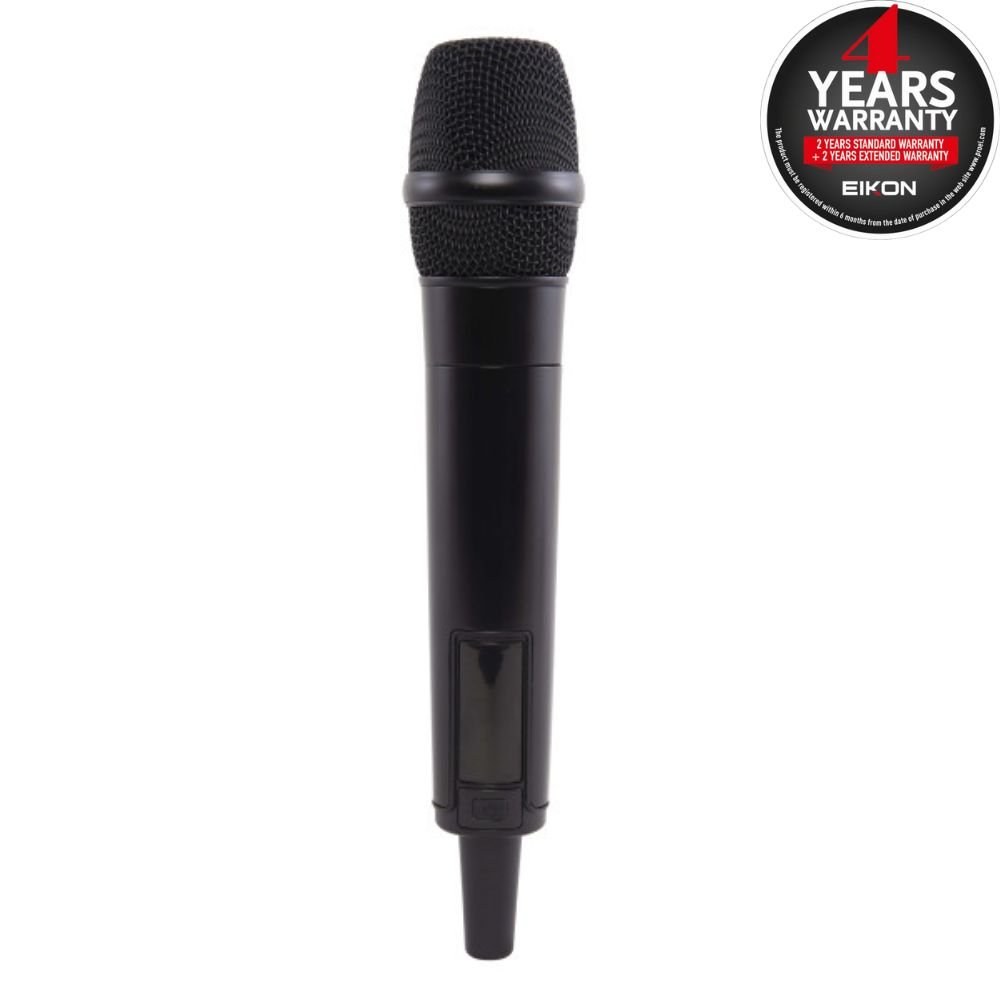

HANDHELD TRANSMITTER
Carrier Frequency Range	821- 832 MHz and 863 – 865 MHzor 551 -581 Mhz (RMW921MA)
Modulation Method	FM (F3E)
Transmission Distance	Up to 50m (open space)
RF Frequency Stability	0,00%
Audio Frequency Response	50 -15000 Hz
RF Max Deviation	±50 kHz
Spurious Emission	Under limits EN300422
RF Output Power	< 10 dBm Max Erp (Effective Radiated Power )
Polar Pattern	Cardioid
Power Requirement	2 x 1,5 Volt AA type
Battery Life	Up to 8 hours
