PMC 6-2 Dual 6.5-inch Powered 3-way Near Midfield Studio Monitor

The PMC6-2 provides main-monitor scale, depth, and dynamics, and allows mix decisions to be made quickly, with absolute certainty and without fatigue.

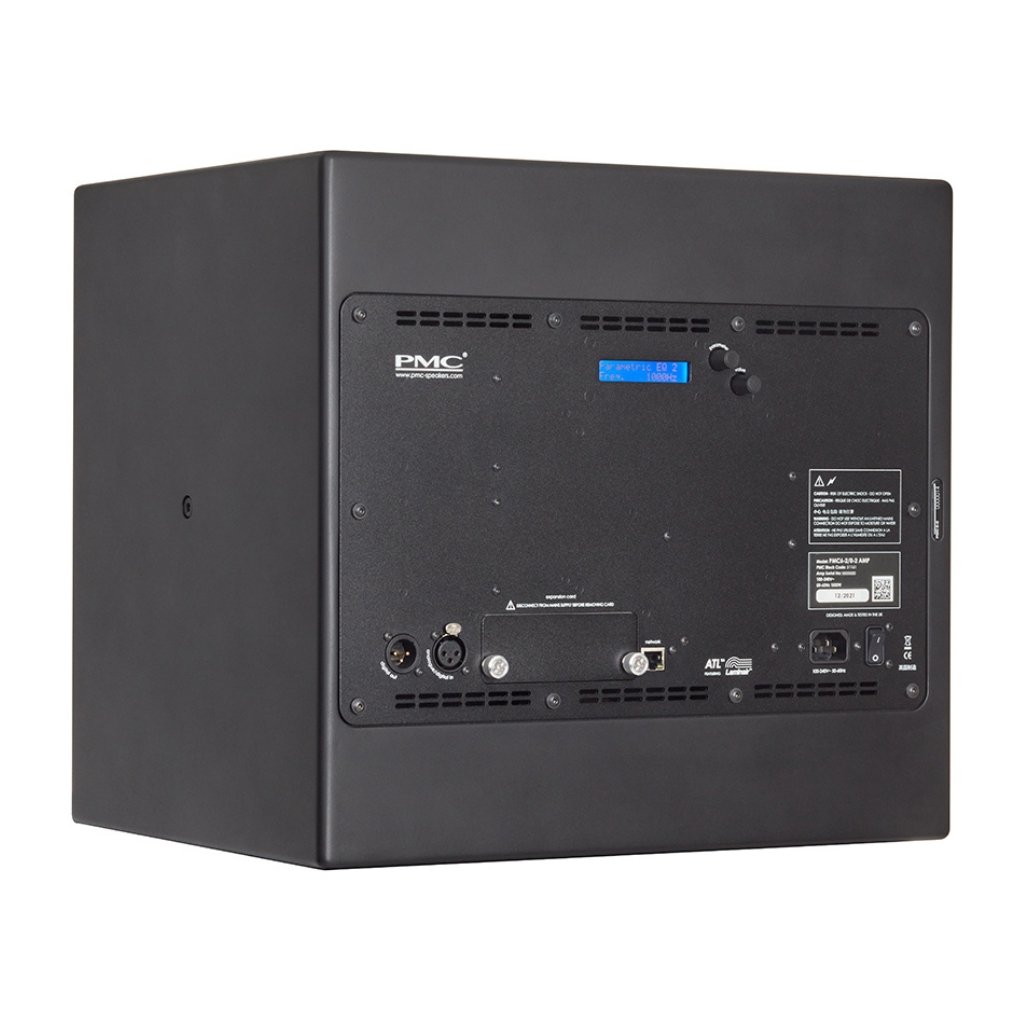

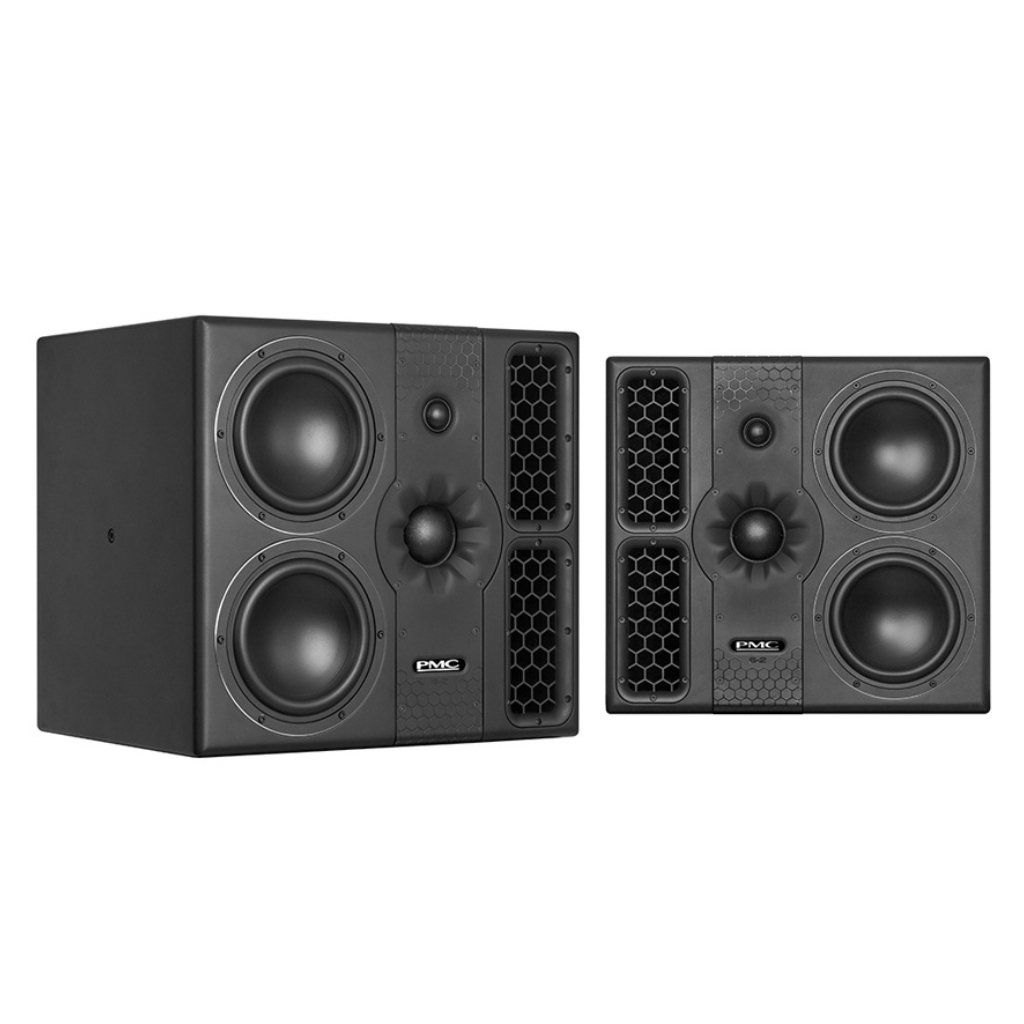

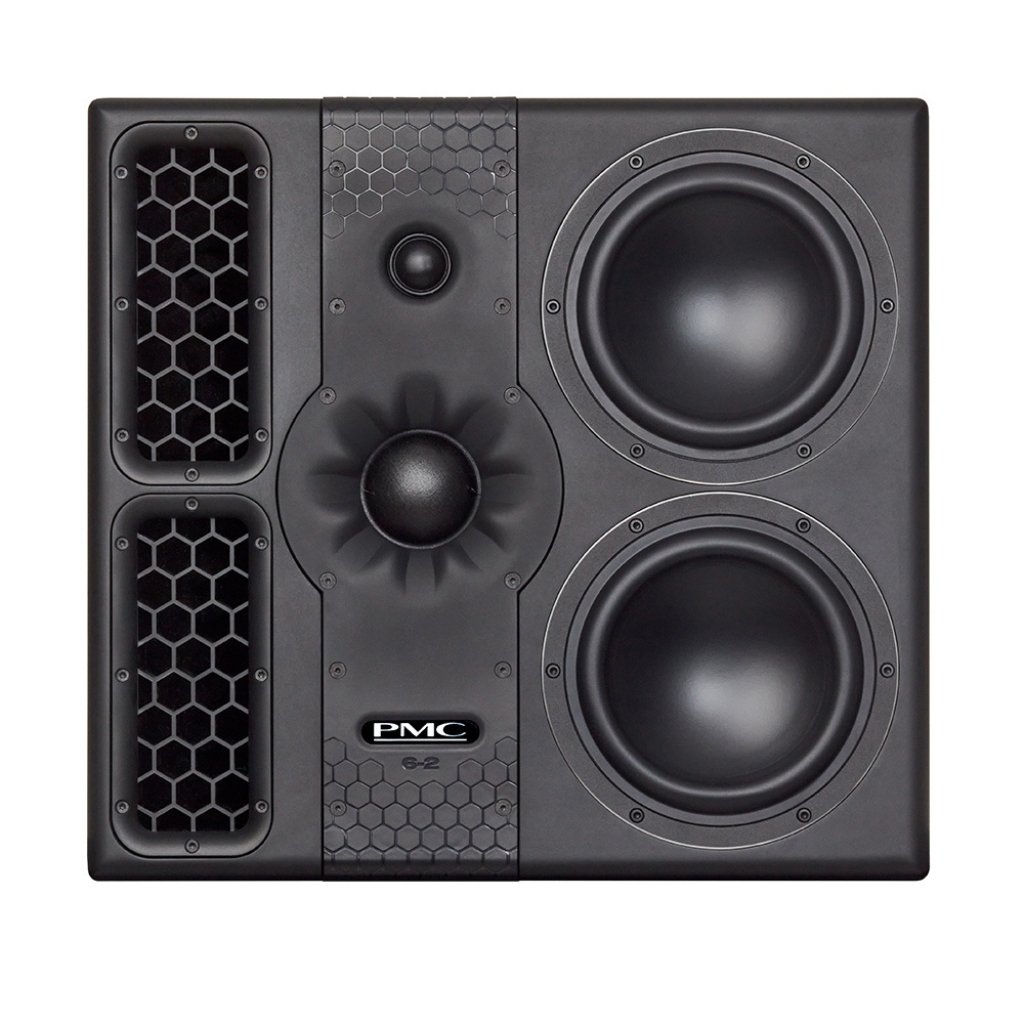

This 3-way active monitor speaker combines two custom 6-inch ultra-long-throw bass-drivers with our radically engineered PMC55 2-inch soft-dome mid-range unit and a precision-built one-inch soft-dome tweeter. The PMC55’s distinctive ‘N-compass’ waveguide enhances the wide dispersion and remarkable mid-range projection of the driver; in combination with the high performance of the tweeter, the result is an ultra-wide and stable image, with a smooth and natural in-room response. Each bass driver is individually powered by a cutting-edge 400W Class-D amplifier and seamlessly integrated by our sophisticated, highly accurate DSP-based crossovers. As with the PMC6, the monitor is configured using rear-panel controls or the browser-based SoundAlign™ software, with comprehensive boundary and EQ options.

The PMC6-2 offers astonishing size-to-performance ratio thanks to its ATL™ bass-loading technology, which results in exceptional LF extension and consistent tonal balance at all listening levels. Our Laminair™ airflow technology, visible in the monitor’s hexagonal vent ducts, further reduces colouration and enhances dynamics and efficiency.

A simple upgrade path converts the PMC6-2 to a full-range XBD system; just add a PMC8.2 SUB and select XBD mode to perfectly dovetail the two units, extending the response down to 25Hz with additional headroom.

• Active 3-way nearfield reference monitor with ATL™ bass loading
• Frequency response: 33Hz – 25kHz (- 3dB @1m full space, on-axis)
• Max. cont. SPL: 109dB @1m (Half space value calculated as +3dB from full space measurement.
  Un-weighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
• State-of-the-art Class-D amplifiers: HF 400W, MF 400W, LF 2x 400W
• Analogue / AES3 digital input (16/24-bit, 18 -192kHz sample rate)
• Digital ‘through’ output (AES3 24-bit 96kHz)
• SoundAlign™ network control interface for single or group EQ & settings
• Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
• PMC6-2 + PMC8-2 SUB = PMC6-2 XBD, with LF down to 25Hz & increased headroom
• Ceiling-mount yoke allows suspension in multi-channel or immersive systems

Type: Active 3-way nearfield reference monitor with ATL™ bass loading

Drive Unit Complement:

Effective ATL™ Length:2m (6.6ft)

Frequency Response:33Hz – 25kHz (- 3dB) (@1m full space, on-axis)

Sensitivity:+4dBu input signal = 98dB SPL @ 1mMax continuous SPL :109dB @1m

(Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

Max Peak SPL :121dB @1m

(Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

Directivity:

Input :XLR switchable between analogue & digital AES3

Analogue input

– +20/+24dBu max. input level (selectable)
– 22K ohm input impedance

Digital input

– 16/24-bit AES3 signal, left, right or left + right
– 18 – 192kHz Sample Rate
– 110 ohm input impedance

Expansion card slot

– For future connectivity upgrades

Ouput :XLR digital AES3 (fixed 24-bit @ 96kHz)

Network :RJ45 for use with PMC SoundAlign web interface

Features :Level Trim (+/-10dB)
High-pass filter (20 – 200Hz, 12dB/Oct)
Delay (0 – 30mS) Phase (normal or inverted
LF & HF shelving filters (20Hz – 20kHz, +/- 10dB, Q 0.707)
Parametric EQ (5 bands, 20Hz – 20kHz, +/- 10dB)
User presets (3 + factory defaults)

Latency :2.4mS

Amplifier Power per Channel:

Mains :100 – 240VAC auto-switching, 50-60Hz (IEC C14)

Power consumption (idle) :50W

Power consumption (max) :1500W

Dimensions:

H 400mm (15.7”)

W 430mm (16.9”)

D 372mm (14.6”)

Weight:21.3kg (47lbs) each
