PROEL LT12A LITE Series Active 2-Way 12″ Loudspeaker System

The LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinet offering the renowned PROEL sound and a high-level performance in a reliable and affordable package.
For the construction of the cabinets we have used plywood, a very lightweight and durable material that makes moving and installing these speakers very quick and easy. Strong, anti-scratch paint and steel grilles with an internal foam layer provide proper protection for years of service. The dual-angle pole holder featured in 8”, 10”, 12” and 15” models offers the possibility to obtain a more uniform coverage of the audience.
For the high frequency reproduction of LITE Series we have designed wide-dispersion horns, able to provide constant coverage for large audiences and detailed response with low distortion. The high-excursion woofers, together with carefully tuned vented cabinets, offers an extended response with deep and tight basses.
The LITE Series includes 6 active models ranging from 6.5” to dual 15” woofers, plus 1 satellites + subwoofer system. The extremely lightweight power modules used in the active models feature the latest technologies for amplifi cation, such as Switch Mode Power Supply and CLASS D output stages, which provides a massive amount of power with a reduced weight. The power modules are hosted in fully-sealed die-cast aluminum boxes that provides protection, perfect insulation of the cabinet from the outside and extremely efficient cooling. Each module includes a sophisticated pre-amp section with up to 24 dB/ oct. phase aligned crossover fi lters and active EQ fi lters for the system’s fi ne tuning. The DUAL LIMITER circuit ensures an undistorted sound even at the loudest level and a total loudspeaker protection.
The LT loudspeaker systems can be combined with the SW subwoofers, available in 5 models and capable of providing the perfect low frequency extension for each model of the series.

• 1” compression driver with 1.35” VC on a constant coverage 90° x 60° horn
• 12” woofer with 2.5” VC
• 600 W peak power
• 50 W continuous class AB amplifier for the high frequencies
• 250 W continuous class D amplifier for the low frequencies
• Switch Mode Power Supply (SMPS)
• LINE/MIC input
• SPL MAX 124 dB
• Frequency response 50 Hz – 20 kHz
• Lightweight plywood cabinet

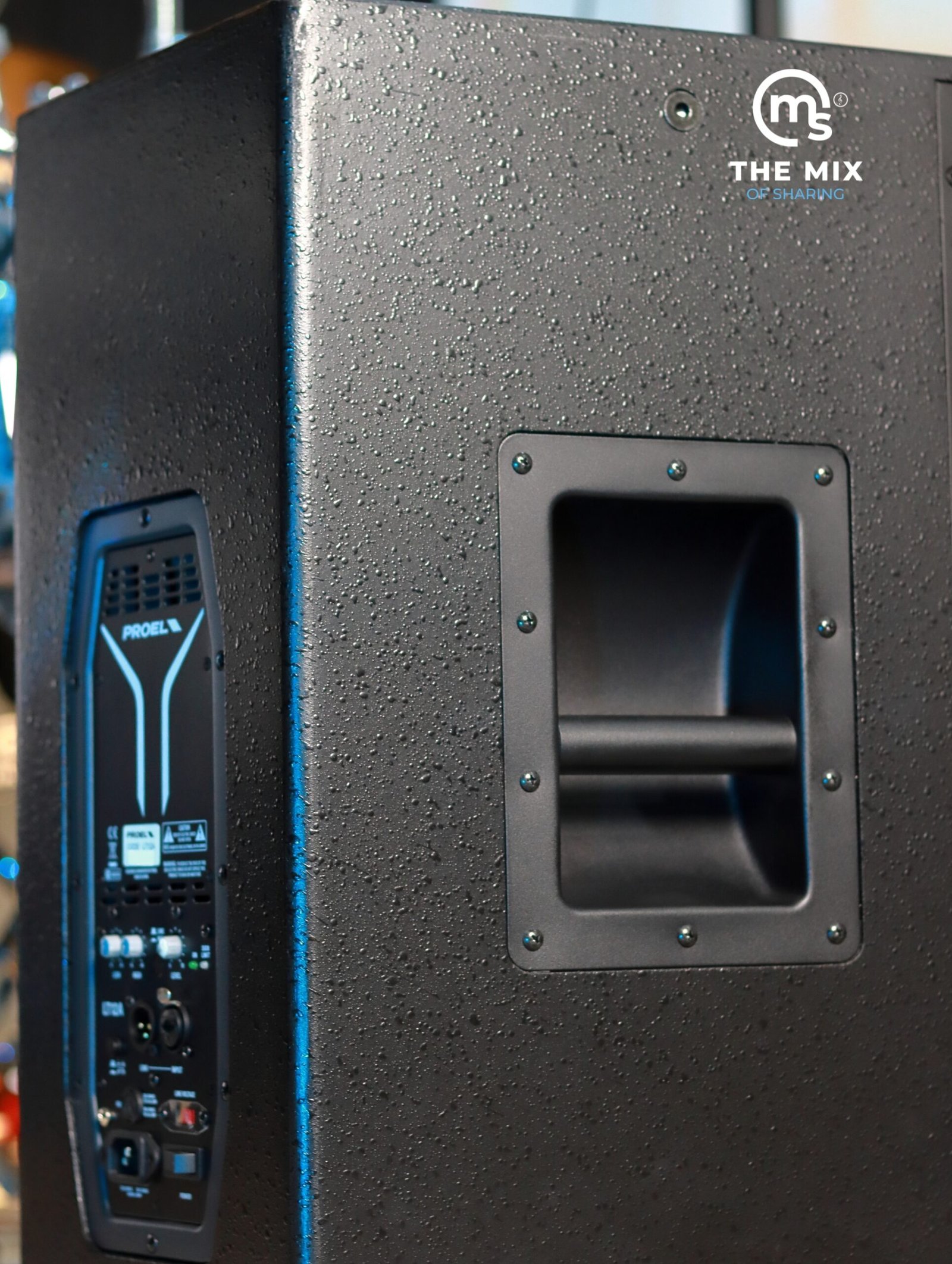

• 2 metal handles
• 4 x M10 flying points

System type: 2-way vented enclosure
High Frequency Device: 1” compression driver with 1.35″ VC
Low Frequency Device: 12” woofer with 2.5” voice coil
Angular Coverage: 90° H x 60° V
Total peak power: 600 W
HF Amplifier Continuous Power: 50 W Class AB
LF Amplifier Continuous Power: 250 W Class D
Power Supply: SMPS
Processing: Analog
Frequency Response: 50 Hz – 20 kHz
Max SPL: 124
Connectors: IN: COMBO, LINK: XLR M
Controls: “LEVEL, LINE/MIC selector, LOW EQ, HIGH EQ, GND LIFT, FRONT LED selector”
Flying System: 4 x M10 top/bottom
Construction: Plywood
Cabinet Colour: Black
Handles: 2 x sides
Mounting Pole: 1 x bottom, dual angle
Power Supply: “230 or 120 VAC 50/60 Hz with LINE VOLTAGE selector”
Dimensions (W x H x D): 380 x 595 x 360 mm
Weight: 16.5 kg / 36.4 lbs.
