Warm Audio WA-CX24 Large-Diaphragm Stereo Tube Condenser Microphone

1. Bringing Back the Most Unattainable Vintage Stereo Mic

   The WA-CX24 is a faithful recreation of the most iconic stereo tube condenser mic ever made. Designed to capture the rich, three-dimensional sound behind countless classic recordings, it delivers the same wide stereo image and natural warmth that made the original a studio staple. With dual large-diaphragm capsules and true tube circuitry, the WA-CX24 reproduces the smooth detail that made it a favorite on orchestras, pianos, and drum overheads. Famous for sessions with artists and engineers like Elvis Costello and Steve Albini, the original’s sound profile & iconic multi-pattern stereo functionality is accurately preserved with the WA-CX24.

2. True Stereo Sound, No-Compromise Components

   In addition to the original sound profile, WA-CX24 recreates the critical dual 180-degree rotating capsules for exceptional flexibility to achieve precise stereo imaging in audio recordings. Independently adjusting the position of each capsule allows for error-proof stereo pickup patterns for various recording techniques, such as XY, Blumlein, mid-side, or a custom angle tailored to the sound source and recording environment. Built around dual all-brass CK12-style capsules & two TAB Funkenwerk (AMI) US-made output transformers, the WA-CX24 delivers professional stereo recordings with phase-coherent vocals, intricate piano performances, and epic stereo room sounds.

Like the original C24-style mic, the WA-CX24 includes all the features & functionally that deliver a complete and professional recording experience.

• Large-Diaphragm Stereo Tube Condenser Microphone
• Polar Patterns: 9 Patterns – Cardioid, Omnidirectional, Figure-8, + 6 Additional Mixed Patterns (Accessible On Two Switches, One Per-Capsule)

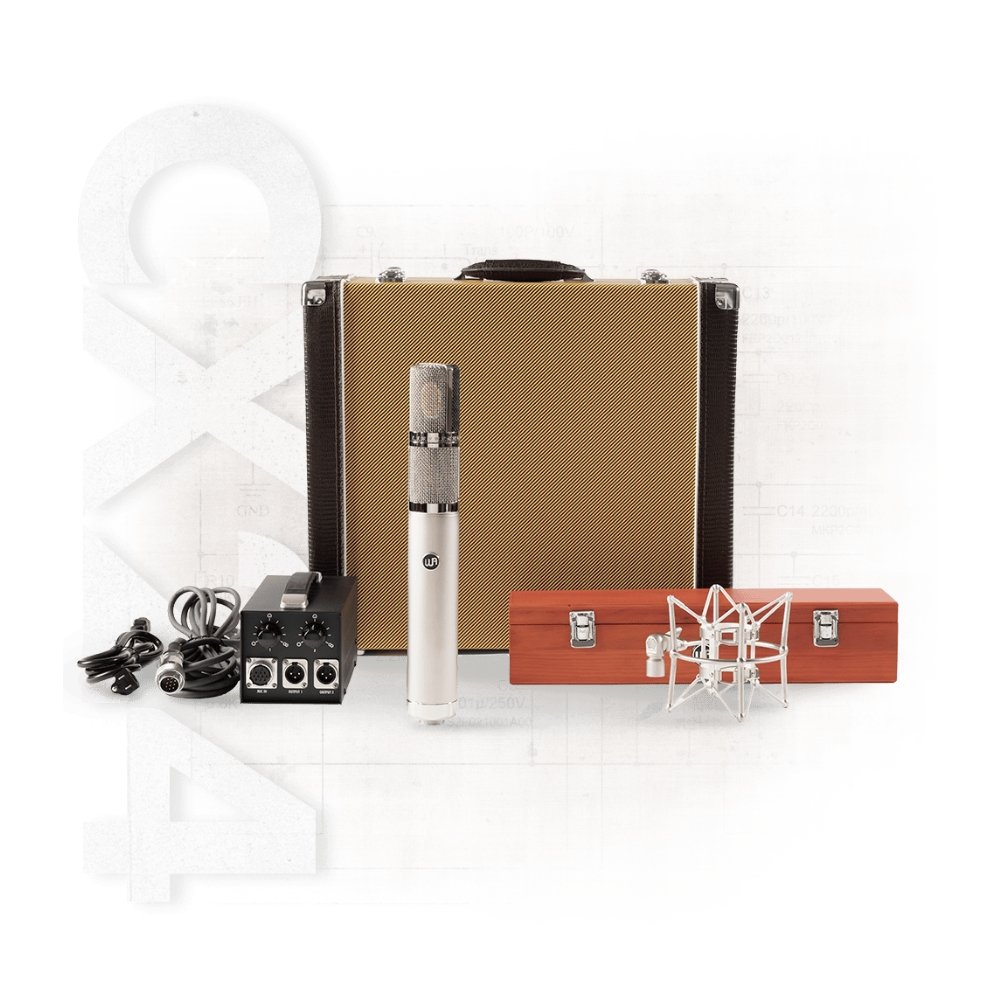

• Included Accessories: Custom Tweed Carrying Case, External IEC Grounded PSU, IEC Power Cable, Premium Gotham 5 Meter 9-Pin Tube Microphone Cable, Wood Microphone Box, 2X Shockmount
• Weight: 20.5 lbs, Mic Only: 3 lbs | Dimensions: 14” x 2”
• 2X Custom Edge Terminated, Dual-Backplate, All-Brass Vintage CK12-Style Capsules
• 2X Custom T14 TAB-Funkenwerk (AMI) USA Output Transformers
• Premium 12AY7 Vacuum Tube
• Premium Polystyrene and Wima Film Capacitors
• Max SPL: 149 dB
• Frequency Response: 30Hz-20 kHz
• Output Impedance: 200 Ohms
• Signal-to-Noise Ratio: 73 dB
• EIN / Self-Noise: 22 dBA
