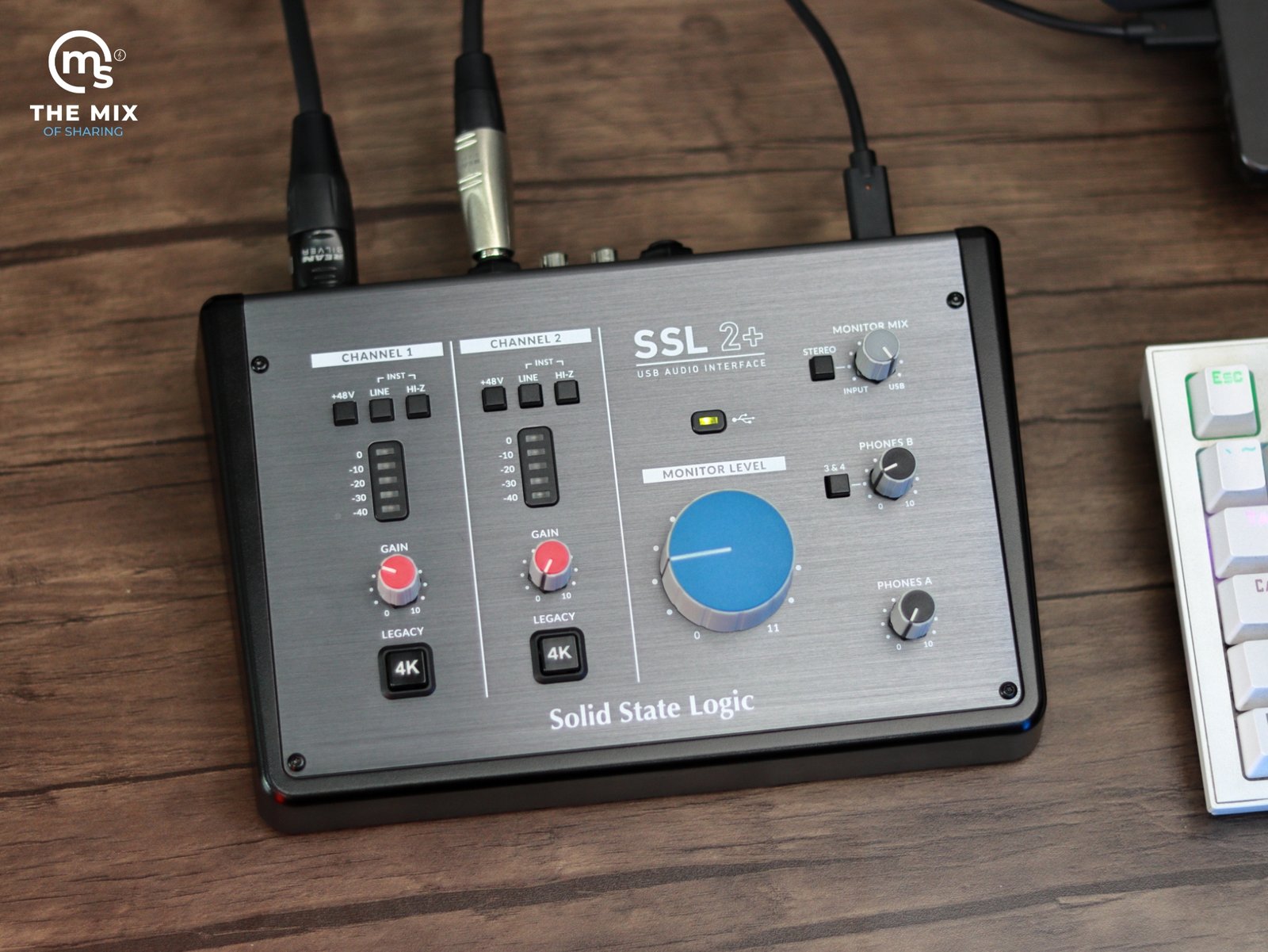

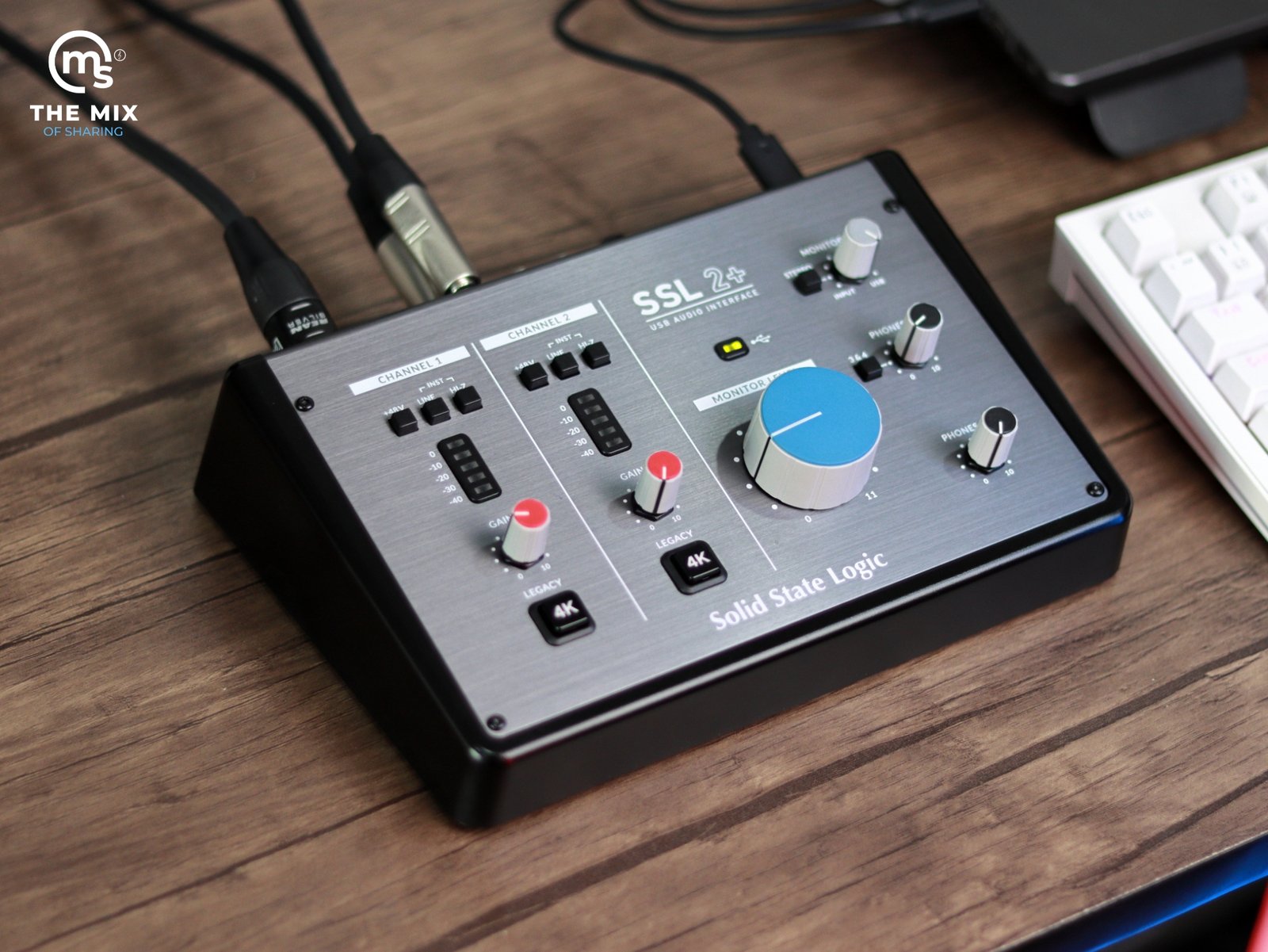

Compact and competitively priced, the Solid State Logic SSL 2+ desktop 2×4 USB audio/MIDI interface puts legendary SSL analog character, pristine conversion, and intuitive console-style workflow within reach for producers, home recordists, musicians, and songwriters on a tight budget.
Its two SSL-designed mic preamps—accessible via XLR-1/4″ combo inputs—feature class-leading gain, headroom, and noise specs for tracking mics, electric instruments, or line-level signals with ultraclean definition. When you want some character added on an input, simply press that channel’s Legacy 4K button to add a high-frequency boost and sweet harmonic distortion, both inspired by the classic and heralded 4000-Series consoles used on countless hit records.
Both input channels, which are arranged vertically like a large-format mixing board, also provide 5-segment LED metering and selectable 48V phantom power per channel. The SSL 2+ is equipped with a pair of monitor outputs and two independent high-current headphone outs with high dynamic range, independent level control via Alps pots, and a selectable mono/stereo monitor mix.
Additionally, it features four unbalanced RCA outputs—two mirror the 1/4″ monitor outs and two serve outputs 3-4—for routing to external cue amps or effects units. Utilize the rear-panel MIDI I/O ports for hooking up external synths and keyboard controllers without having to integrate a separate MIDI interface.

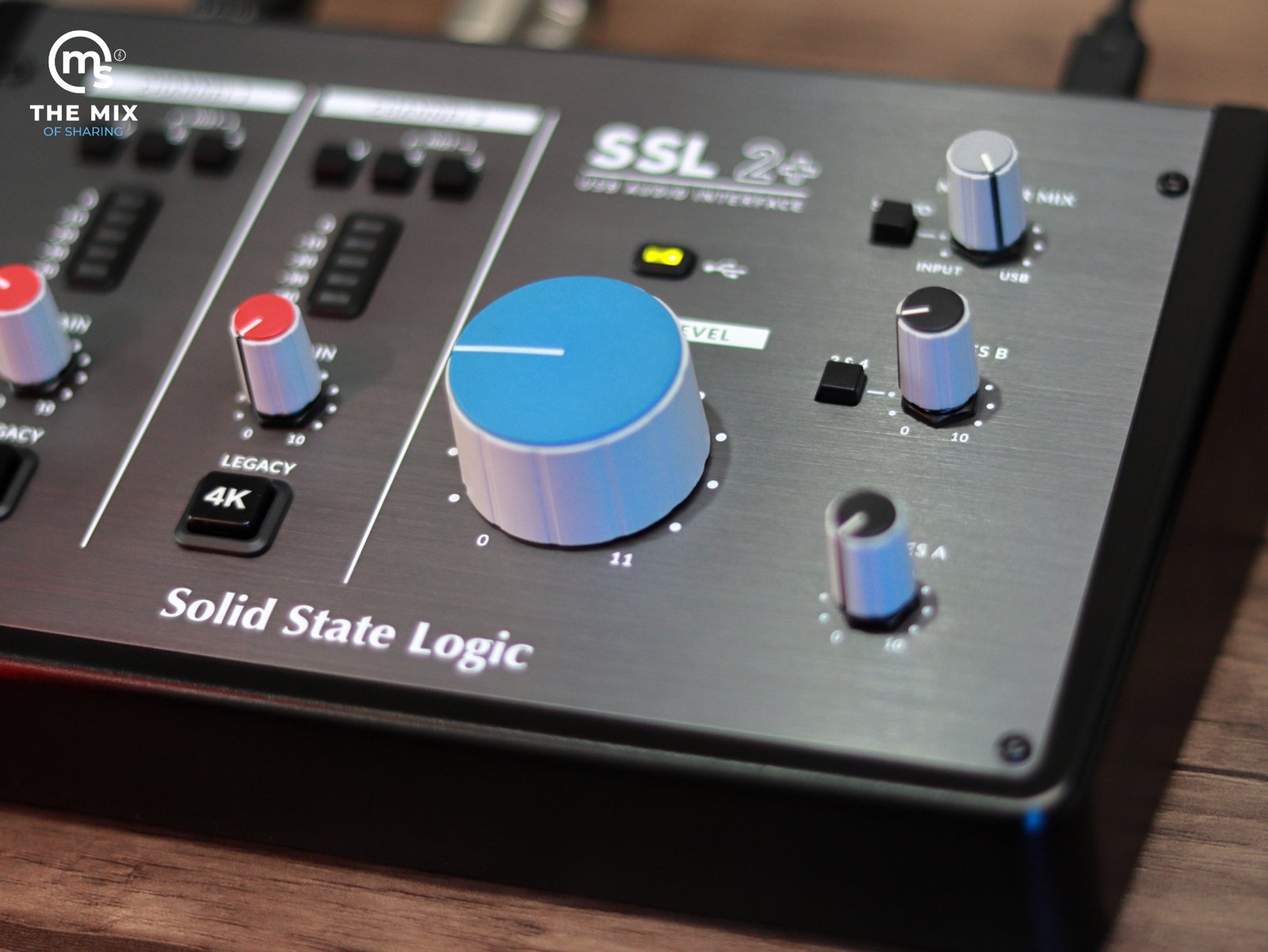

The layout of the interface harkens back to SSL’s classic large-format analog consoles, featuring a prominent monitor level knob and smaller controls for your headphone out and monitor mix. The monitor mix knob can be used to counter any latency while recording at high buffer rates in your DAW by sourcing the monitor signal directly from the input path. Or rotate the knob to the right to introduce more of the USB return from your computer for easy overdubs.
Bundled with the SSL 2+ is the SSL Production Pack, an inspiring collection of software, sounds, and plug-ins that’ll not only help you get started, but also keep your work fresh track after track. Included are 1.5GB of loops and samples from Loopcloud, over 2000 sounds from Native Instruments, two DAWs (Pro Tools | First and Ableton Live Lite), and SSL’s own Vocalstrip 2 and Drumstrip plug-ins.
High-Gain Microphone Preamps
Both mic preamps on the SSL 2+ provide up to 62 dB of gain to ensure optimal recording levels for your favorite condenser mic, industry-standard dynamic mics such as the Shure SM7B, and electric instruments such as guitar and bass. They incorporate a two-stage design with low-noise transistors and IC circuits to deliver top-of-the-line noise performance and ample gain.

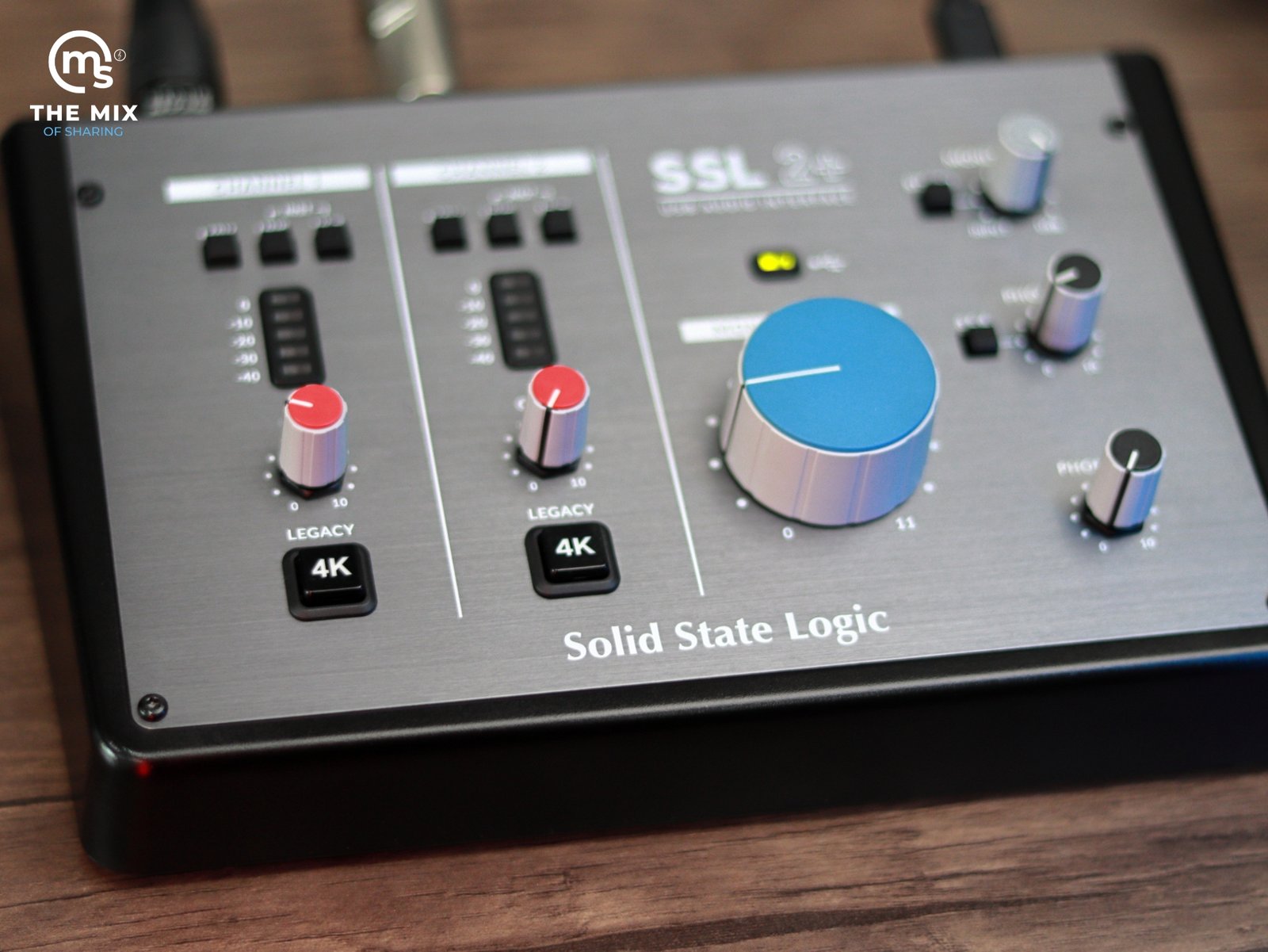

Console-Style Channels Strips
Each input section offers switches for +48V phantom power and selection of line-level or Hi-Z input signal. Plus, you’ll find 5-segment LED metering and gain knobs on both channels.
Analog Tone Enhancement
Underneath the gain knobs on both input channels, you’ll note the Legacy 4K button. This feature helps you bring dull, uninspiring audio to life as you record it, doing so by adding subtle harmonic distortion and a high-frequency boost. Both are analog processes that take their cue from the sound of the legendary and classic SSL 4000 Series consoles, hence the name 4K.
Dual Headphone Outs and Monitor Outputs
Presented on the rear panel of the SSL 2+ are 1/4″ jacks for the stereo monitor outs and the dual high-current NJM headphone amp outputs. Separate high-quality pots are provided for independent volume control of your speakers and two sets of cans. The second headphone output can be sourced from the main mix or from outputs 3-4, making it ideal for creating different cue mixes for multiple artists.
Also, there are four unbalanced RCA outputs—two mirror the 1/4″ monitor outs and two serve outputs 3-4—for routing to external cue amps or effects units.
Pristine Converters
Packed with the same AKM AD/DA converters as SSL’s acclaimed Alpha-Link I/O products, the SSL 2+ offers pristine conversion at up to 24-bit / 192 kHz. Record and mix confidently knowing that the interface captures and reproduces your tracks without compromise
MIDI I/O
The SSL 2+ integrates smoothly with gear for beatmakers. Utilize the rear-panel MIDI I/O ports for hooking up an external synth and a keyboard controller without having to integrate a separate MIDI interface.
High-Quality Components
The SSL 2+ is laden with high-grade Neutrik connectors and Alps pots, and all knobs and switches are reminiscent of iconic SSL consoles.
USB Type-C or Type-A Host Connection
Since the SSL 2+ is powered via USB, there’s no need to be concerned with power cables, AC adapters, or batteries. It sports a USB Type-C connector and includes USB Type-C and USB Type-C to Type-A cables for interfacing to your Mac/Windows computer.
SSL Production Pack
DAWs: Pro Tools | First (plus an exclusive collection of 23 plug-ins) and Ableton Live Lite
Virtual Instruments: Native Instruments Hybrid Keys and Komplete Start
Plug-Ins: Vocalstrip 2 and Drumstrip, plus a 6-month trial of all SSL Native plug-ins
Samples and Loops: 1.5GB of curated content from Loopcloud
Solid State Logic SSL2+ Specs
Form Factor Desktop
Display 2 x Multi-Segment LED Meter
Channels of I/O Analog:
2 Inputs / 4 Outputs at 192 kHz
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Preamps 2 Preamps
Input Level Adjustment 2 x Knob
Expansion Slots None
Signal Processing
Pad None
Gain/Trim Range Mic/Line/Hi-Z Inputs:
Up to 62 dB
High-Pass Filter None
Solo/Mute None
Connectivity
Analog Audio I/O 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2 x 1/4″ TRS Balanced Monitor Output
4 x RCA TS Unbalanced Line Output
2 x 1/4″ TRS Unbalanced Headphone Output
Phantom Power 48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O None
Host Connection / USB 1 x USB-C
Host Connection Protocol USB 2.0
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O 1 x DIN 5-Pin Input
1 x DIN 5-Pin Output
Wireless Connectivity None
Performance
Frequency Response Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.05 dB
Mic Inputs:
20 Hz to 20 kHz ±0.1 dB
Line, Headphone, Monitor Outputs:
20 Hz to 20 kHz ±0.05 dB
Maximum Input Level Mic Inputs:
+5.5 dBu
Line Inputs:
+24 dBu
Hi-Z Inputs:
+15 dBu
Maximum Output Level 1/4″ Monitor Outputs:
+12.5 dBu
RCA Line Outputs:
+6.5 dBu
Headphone Outputs:
+10 dBu
Impedance Mic Inputs:
1.2 Kilohms
Line Inputs:
10 Kilohms
Hi-Z Inputs:
1 Megohm
Monitor Outputs:
1 Ohm
RCA Line Outputs:
< 1 Ohm
Headphone Outputs:
10 Ohms
Dynamic Range Mic/Line/Hi-Z Inputs:
110.5 dB (A-Weighted)
Monitor Outputs:
112 dB (A-Weighted)
RCA Line Outputs:
110 dB
Headphone Outputs:
111 dB (A-Weighted)
THD+N Mic/Line/Hi-Z Inputs:
< 0.005% (at -1 dBFS)
Monitor Outputs:
< 0.002% (at -1 dBFS)
RCA Line Outputs:
< 0.0025% (at -1 dBFS)
Headphone Outputs:
< 0.002% (at -1 dBFS)
EIN Mic Inputs:
-130.5 dBu A-Weighted (150-Ohm Source)
Digital Audio
Sample Rates Up to 192 kHz
Sample Rate Conversion None
Bit Depths Up to 24-Bit
Latency < 1 ms at 48 kHz (Input to Output)
Sync Sources Internal
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility macOS 10.11
macOS 10.12
macOS 10.13
macOS 10.14
macOS 10.15
Windows 8.1
Windows 10
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Included Software Ableton Live Lite
Pro Tools First
Compatible Software (Not Included) Any Core Audio (Mac) Compliant Software
Supported Drivers/API & Plug-Ins macOS Class-Compliant (No Driver Needed)
ASIO
Mobile Device Compatibility None
Required Hardware Available USB 2.0 Port
USB Cable (Included)
Internet Connection Required for Registration, Software/Driver Download
Power
Power Requirements USB Bus Power
Physical
Anti-Theft Features Kensington Security Slot
Operating Temperature 33 to 104°F / 1 to 40°C
Storage Temperature -4 to 122°F / -20 to 50°C
Dimensions 9.2 x 6.2 x 2.7″ / 23.4 x 15.7 x 6.9 cm
Weight 2.0 lb / 0.9 kg
Packaging Info
Package Weight 2.61 lb
Box Dimensions (LxWxH) 10.9 x 7.9 x 4.1″
