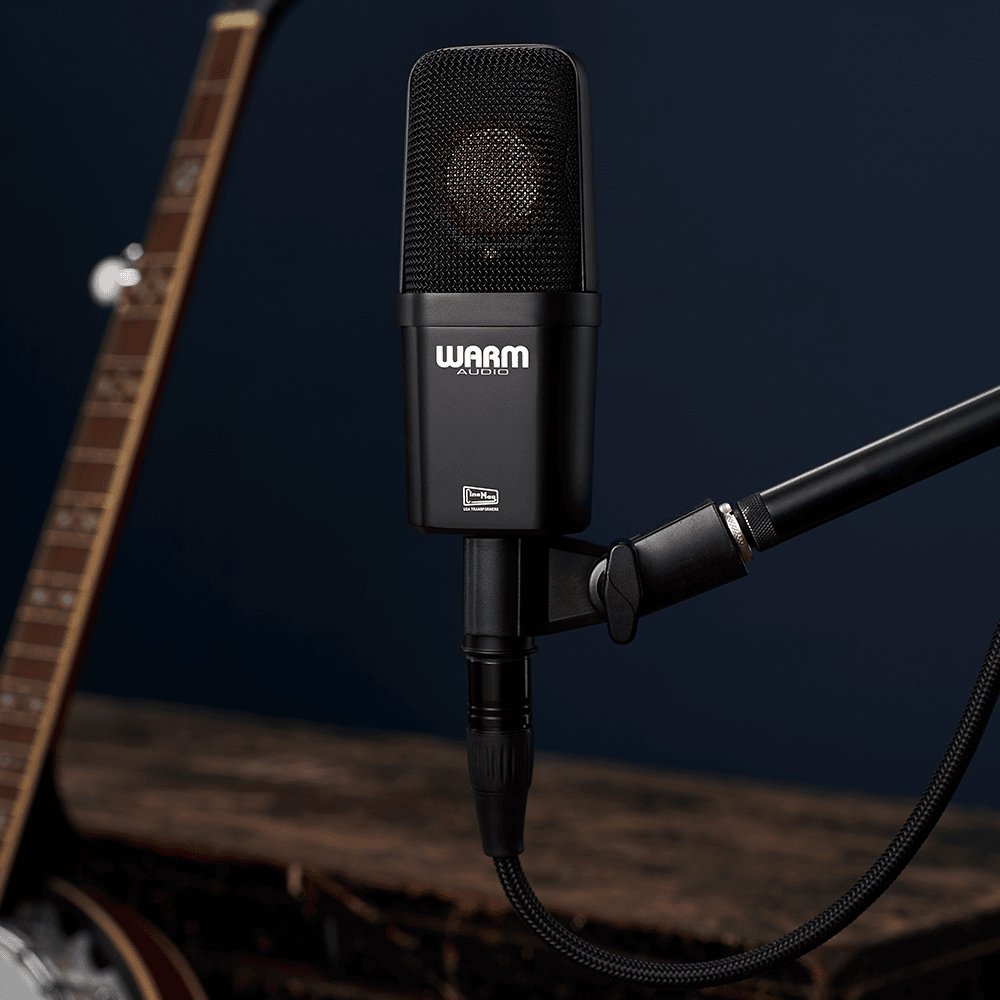

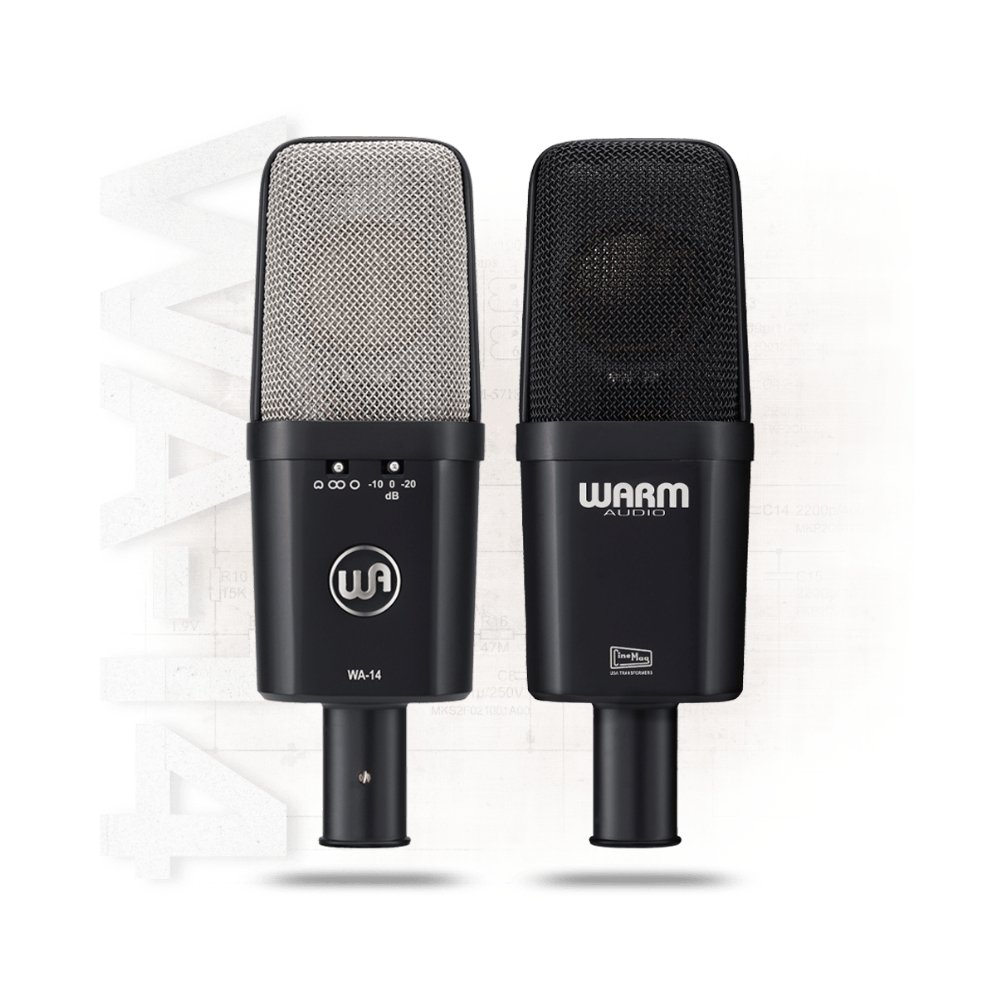

Warm Audio WA-14 Condenser Microphone

1. The Reference Condenser

   The WA-14 is an authentic recreation of the ultra-rare “EB-circuit” 414-style microphone, the most truthful studio mic of all time. Ideal for capturing the natural sound of performances, the WA-14 delivers the same sonic performance of the original – a favorite of artists like The Police, Common, Freddie Mercury, and Billy Corgan.

2. True Character & Clarity

   The WA-14 achieves the same sonic performance of its original “EB” inspiration, delivering clear mids, controlled bass, and accurate high-end emphasis for recordings that stay true to the original performance. For this reason, the WA-14 and the vintage original are celebrated as the ultimate “jack of all trades” mic.

• Microphone type: studio condenser microphone

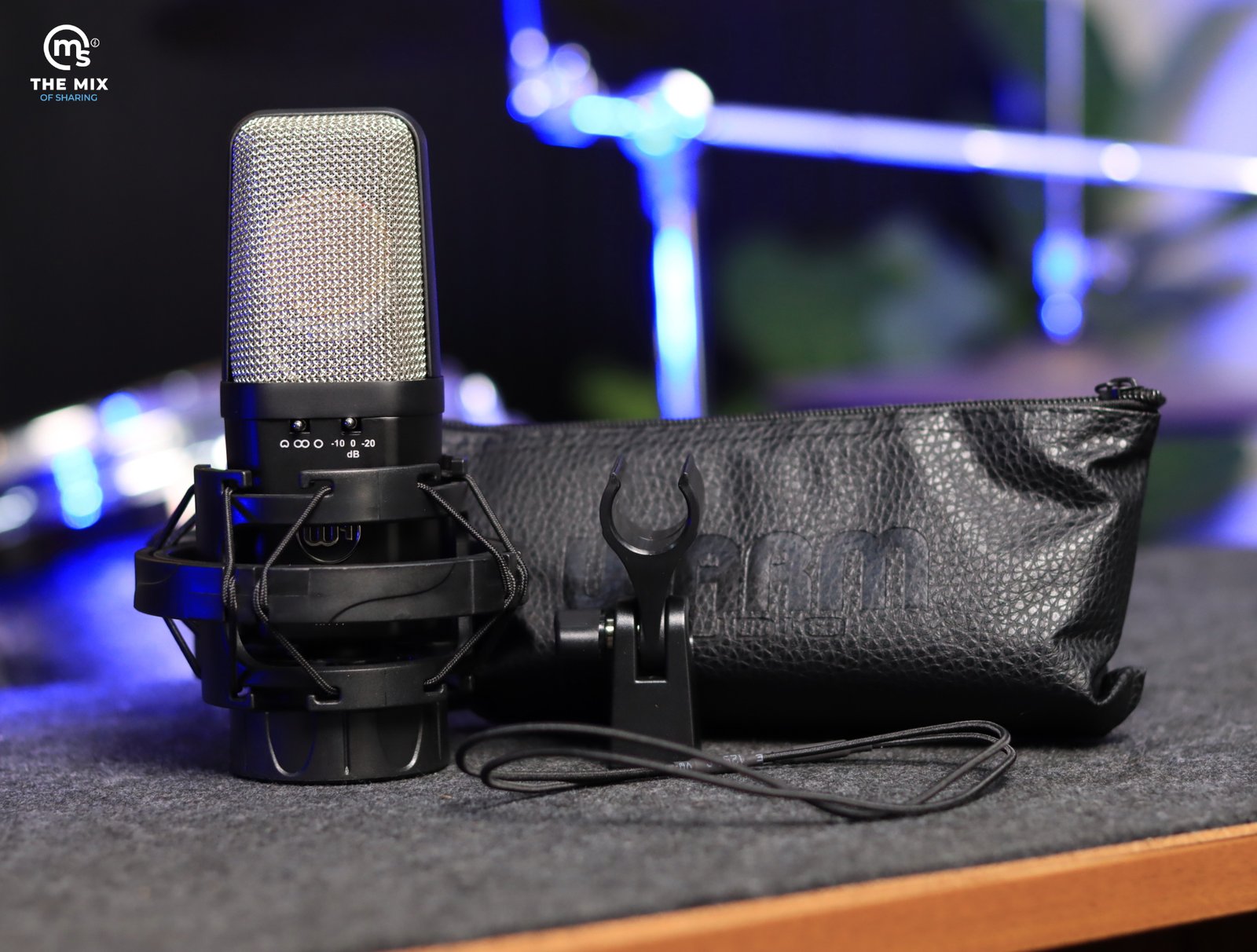

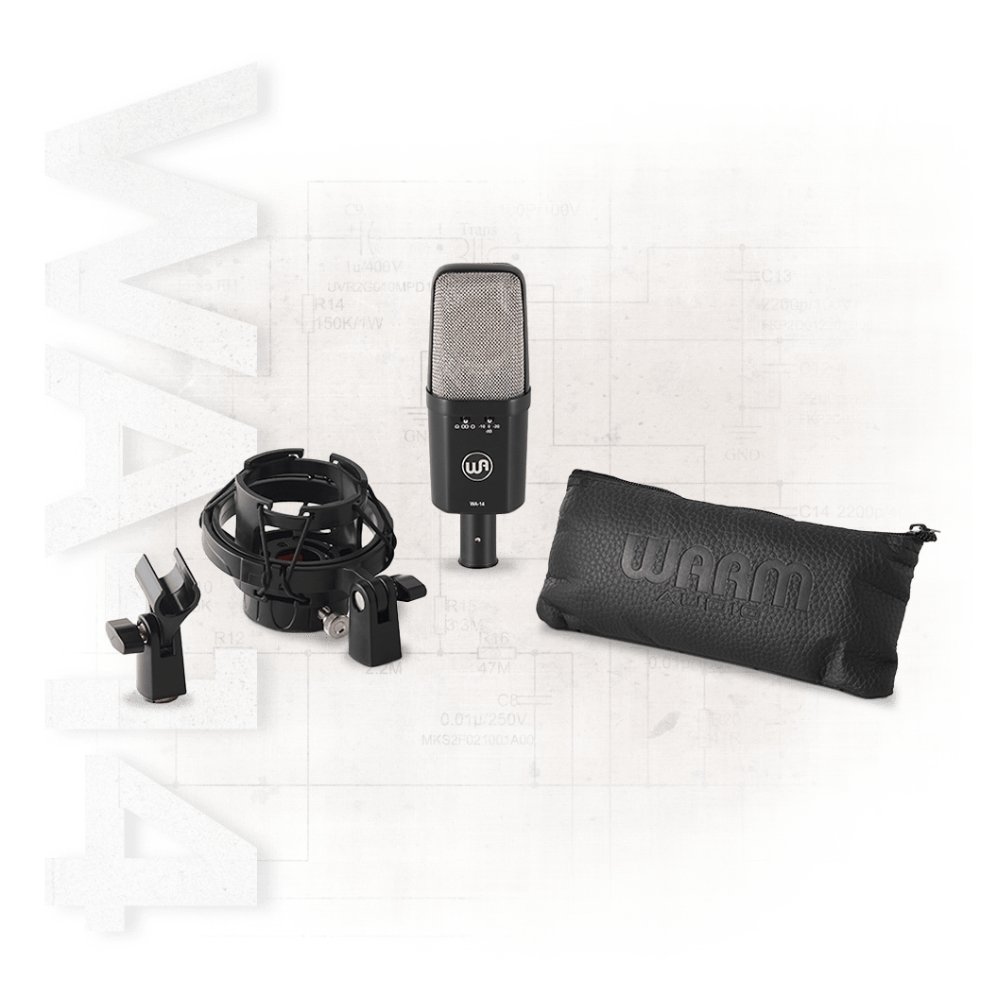

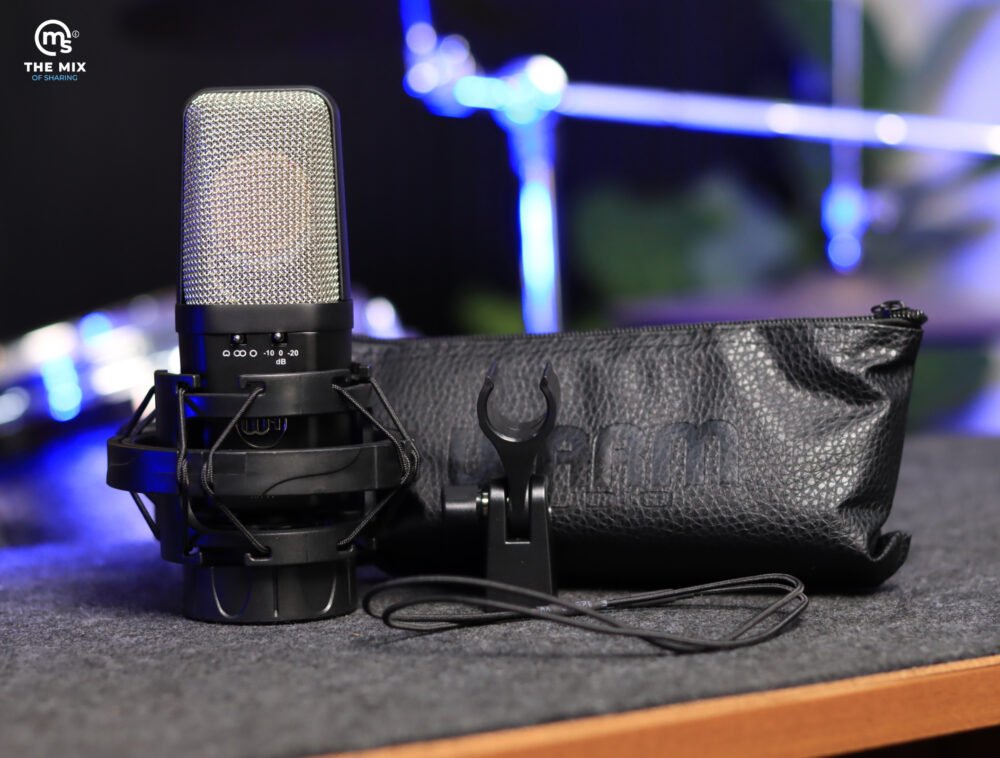

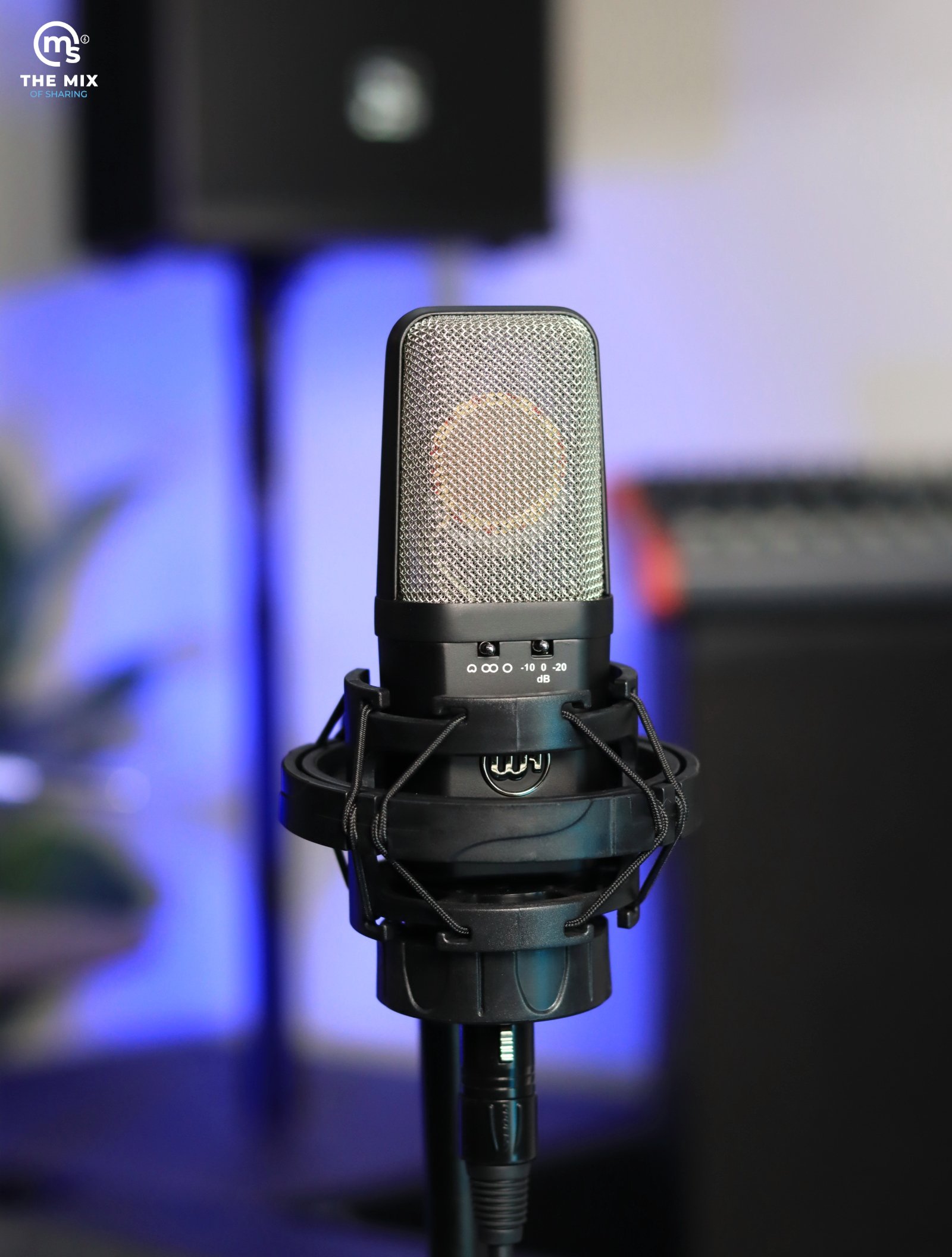

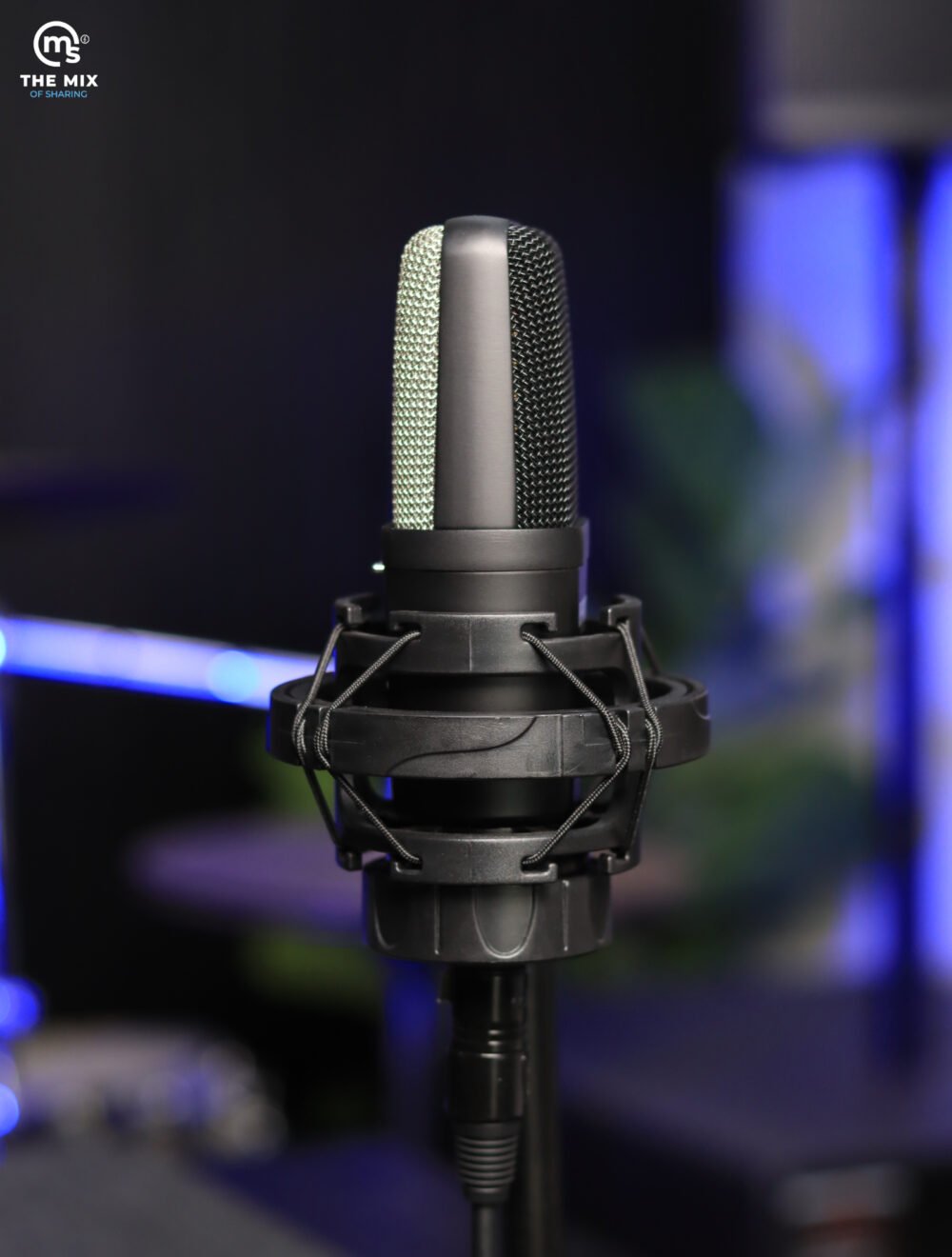

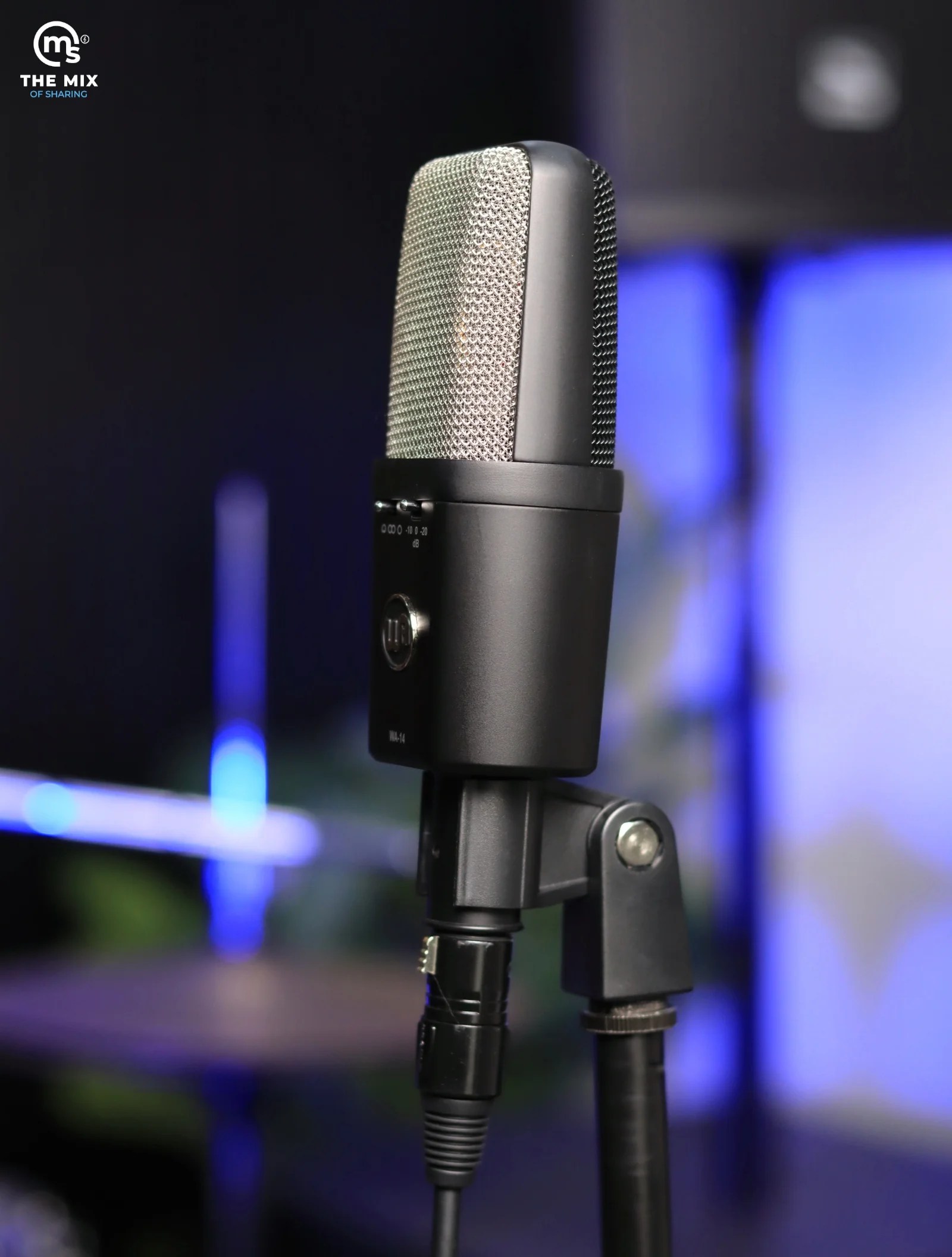

• Package includes: shock mount, mic clip, protective pouch, and silica absorbent packet

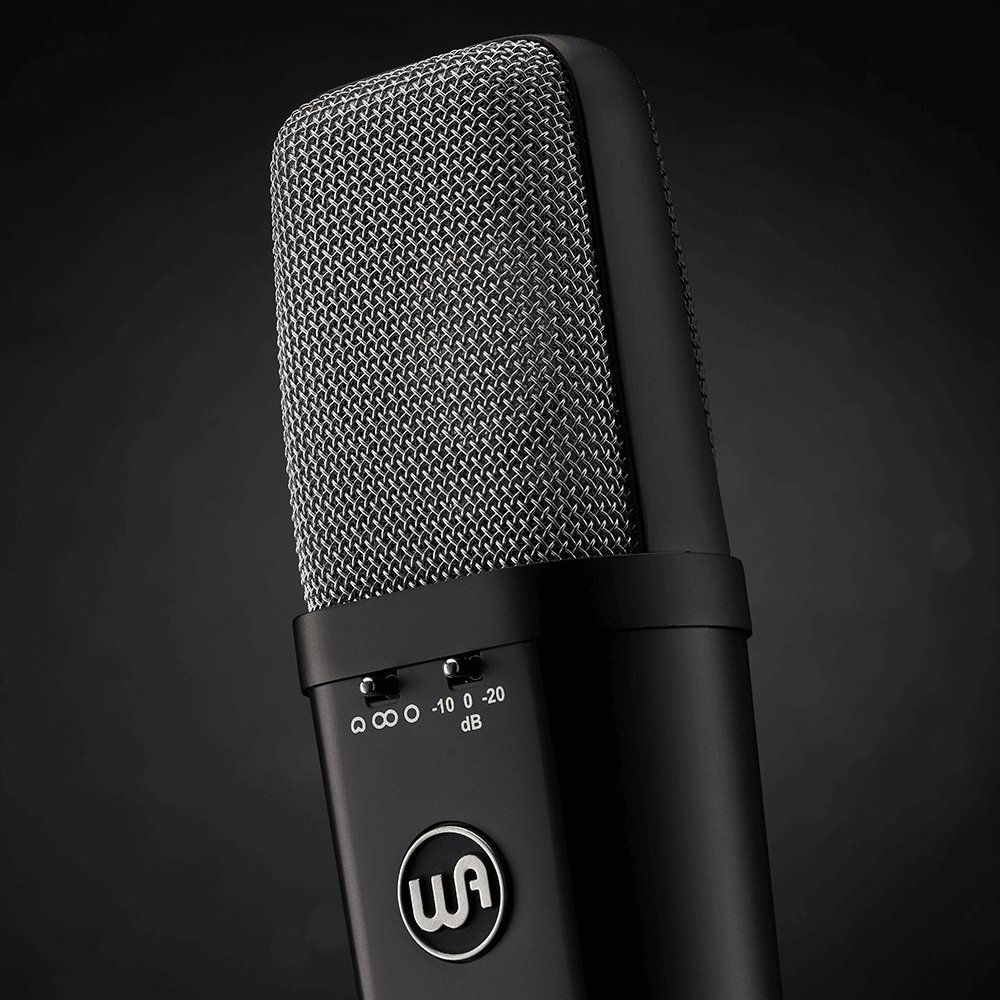

• Polar Patterns: cardioid, figure of eight, and omnidirectional
• Capsule: Lens Kondensator LK-12-B-60V (classic all-brass CK12 reproduction) dual backplate/ dual
diaphragm, 4 wire termination capsule
• Diaphragm: 1 inch diameter, 6 micron thickness, 24k gold sputtered diaphragm, NOS
Japanese mylar (PET film)
• Frequency Response: 20hz to 20khz
• SPL: .5% THD at 1kHz at 138dB (no pad), 144dB (-10dB pad), 150dB (-20dB pad)
• Variable Pad: 0dB, -10dB, and -20dB

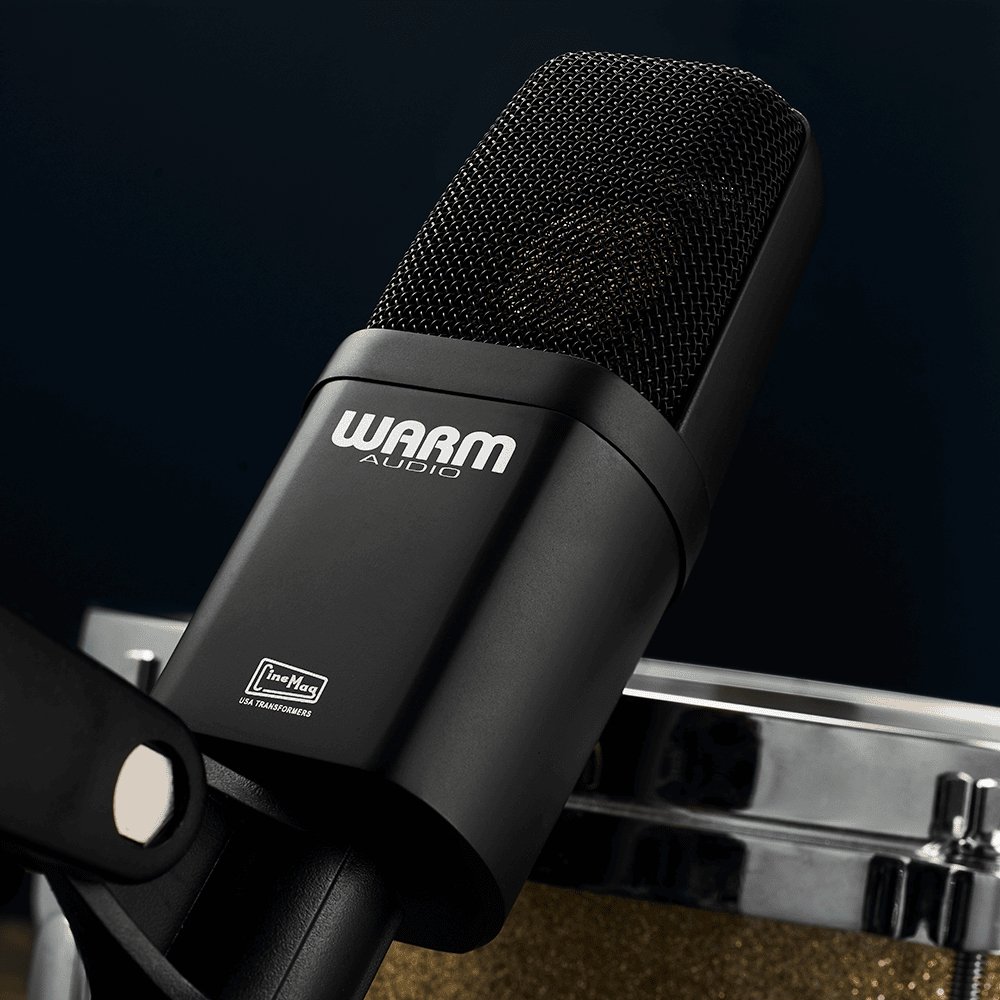

• Output: 50 ohms, 24k gold plated, 3 pin XLR (pin 1 = gnd, pin 2 = +, pin 3 = -) transformer coupled
via a custom CineMag USA microphone output transformer
• Self Noise: -115dB
• 1 year warranty
