Eikon Audio WM300DH Dual channel UHF wirless belt-pack microphone system

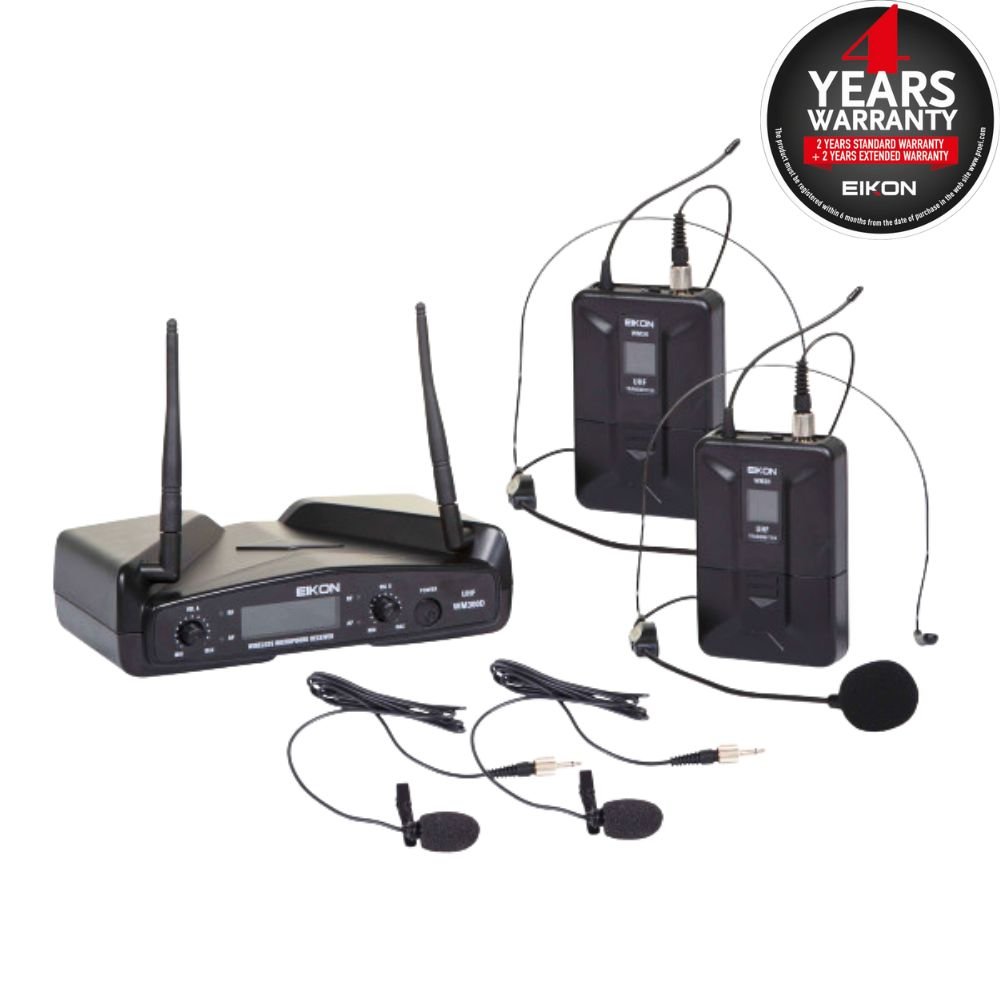

Dual channel UHF wirless belt-pack microphone system 5 different combinations with single channel receiver, dual channel receiver, handheld transmitter and bodypack transmitter with headset microphone
The WM300 wireless microphone system is a UHF fixed frequency device, which provides reliable and high quality signal transmission, also thanks to the Digital Tone Pilot.
The WM300 wireless microphone system offers 5 different combinations with single channel receiver, dual channel receiver, handheld transmitter and bodypack transmitter with headset microphone.
The system is available in 3 different frequencies to be used also simultaneously.
Each configuration includes an ABS case.
- Fixed frequency Dual Channel wireless microphone system
- 32 Khz Digital Tone Pilot
- New durable Painting Finishing
- Universal USB Power Adapter
- 823 – 832 Mhz frequency range
- 30 meter/ 100 feet range
- 50 Hz -15 KHz frequency response
- 105 dB signal/ noise ratio

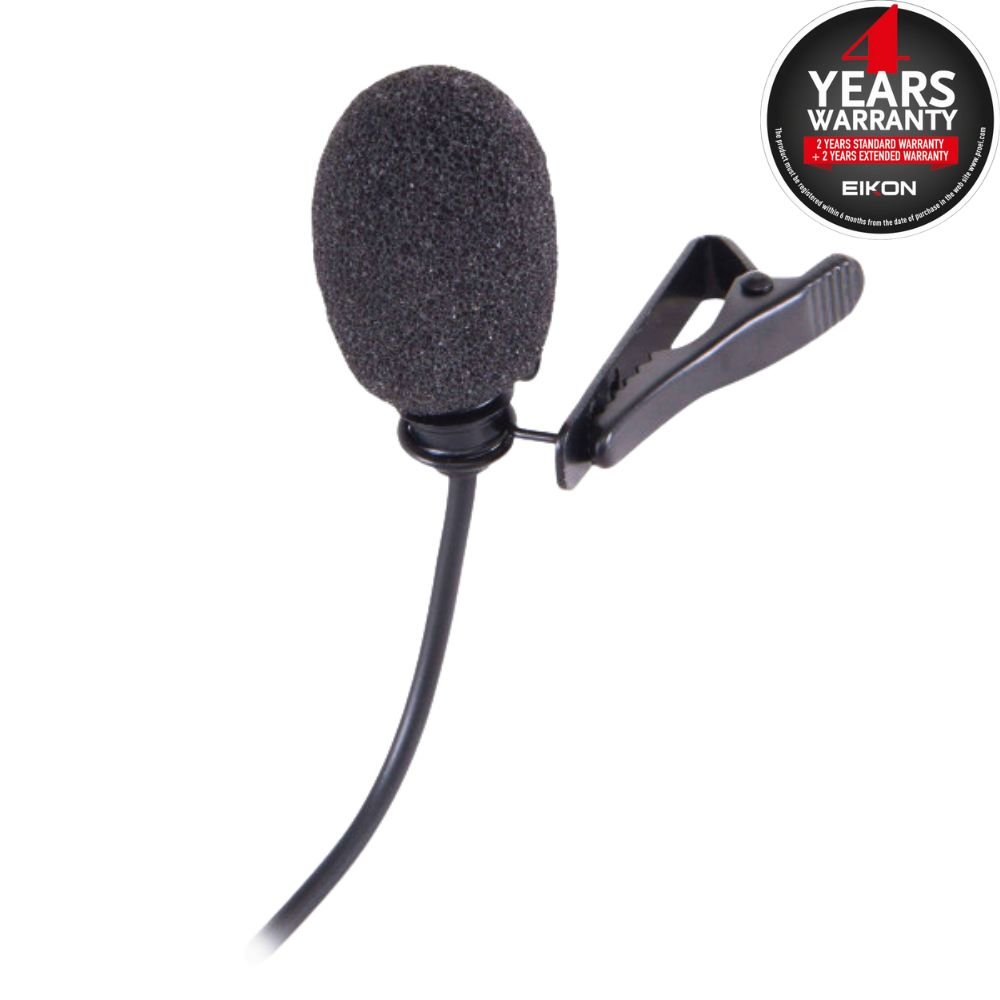

- 2 x Condenser headset with cardioid capsule + 2 x Lavalier
- Up to 3 frequency usable in the same location
- ABS carrying and storage case

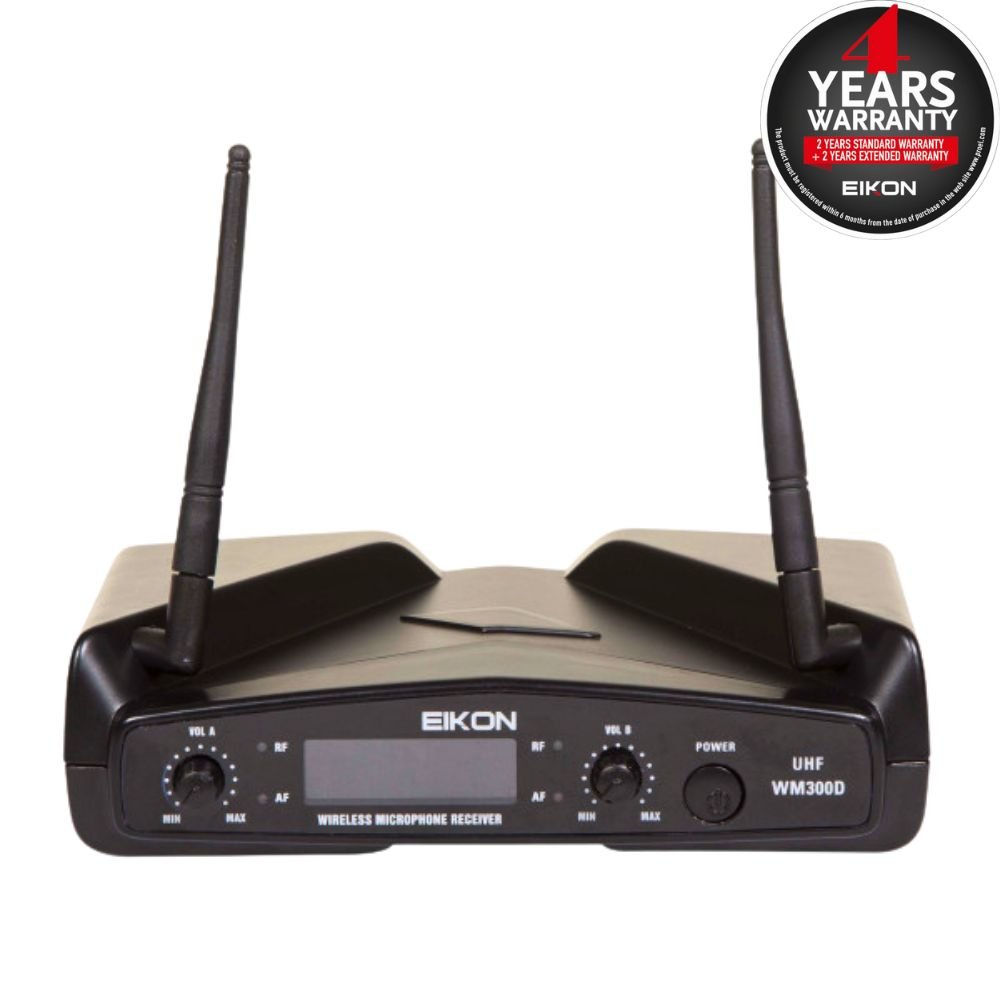

| RECEIVER | |
| RF Frequency Band | UHF: 823-832 MHz |
| RF Sensibility | -105 dBm |
| RF Image/Spurious Rej. | >70 dB |
| RF Interference Reject. | >70 dB |
| RF Frequency Stability | ±0.002% |
| THD Distortion | <1% |
| S/N Ratio | >105 dB |
| Frequency Response | 50 Hz – 15 KHz (±3 dB) |
| Power Supply | 5 V DC 300 mA |
| Dimensions (mm) | H 175 x L 135 x W 45 |
| BELT-PACK TRANSMITTER | |
| RF Frequency Band | UHF: 823-832 MHz |
| RF Power | <10 dBm |
| Modulation method | FM (F3E) |
| RF Max deviation | ±40 KHz |
| RF Frequency Stability | ±0.002% |
| Spurious Emission | under limits EN 300422 |
| Frequency Response | 50 Hz – 15 KHz (±3 dB) |
| Included Microphones | 2 |
| HCM25 Headset Mic. | Cond. Hypercardioid |
| LCH100 Lavalier Mic. | Cond. Hypercardioid |
| Power Supply | 2×1.5V AA alkaline bat |
| Dimensions (mm) | 100 x 65 x 30 |
