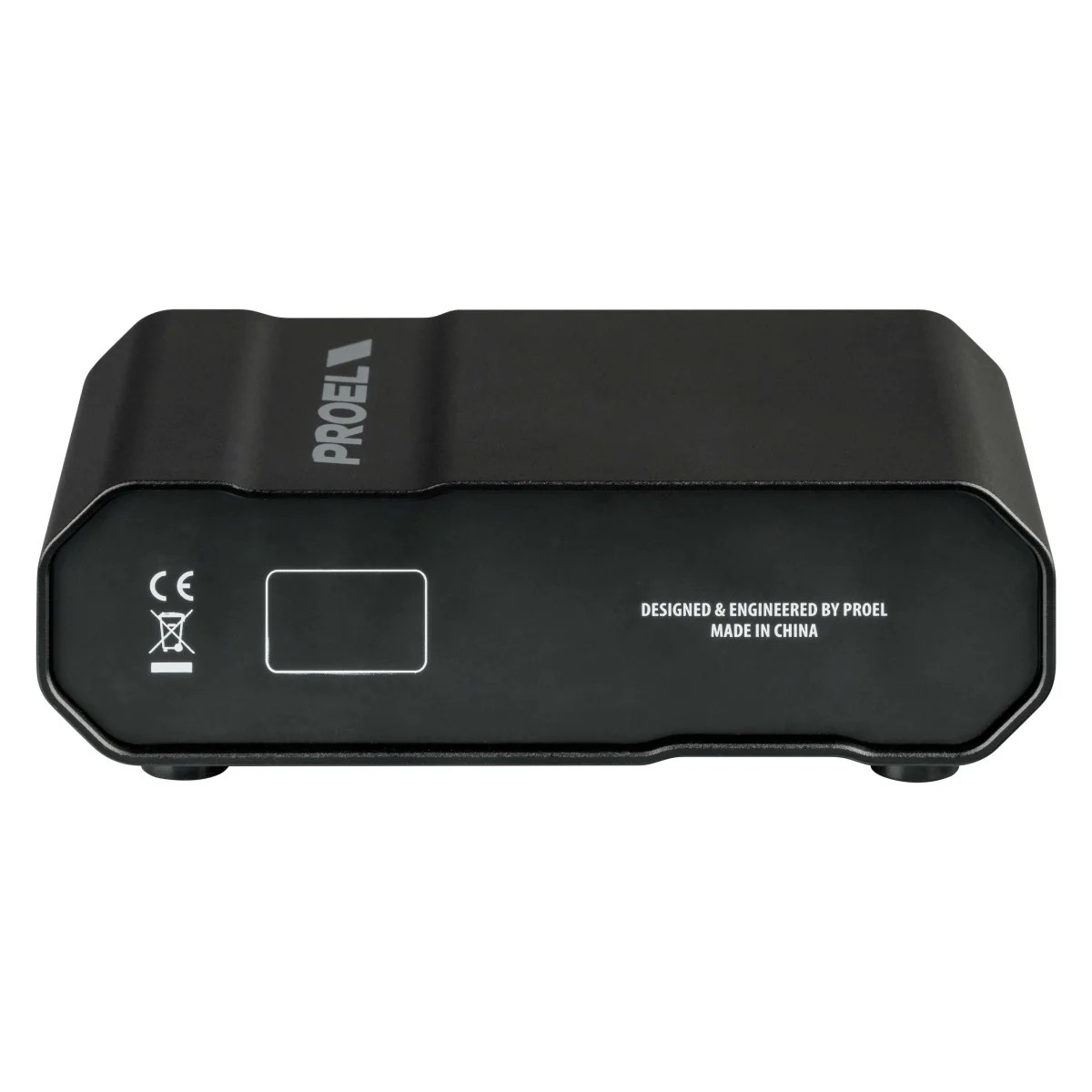

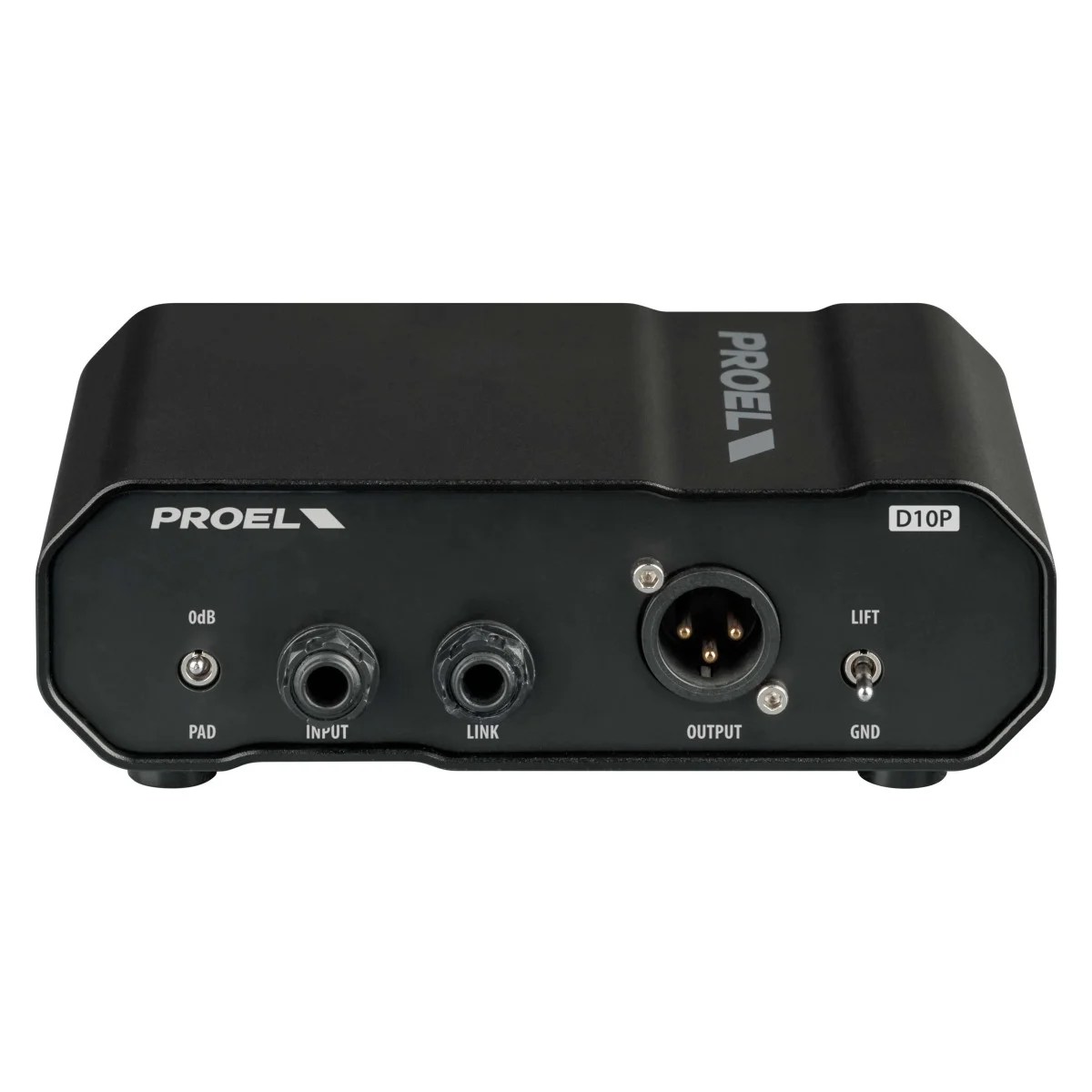

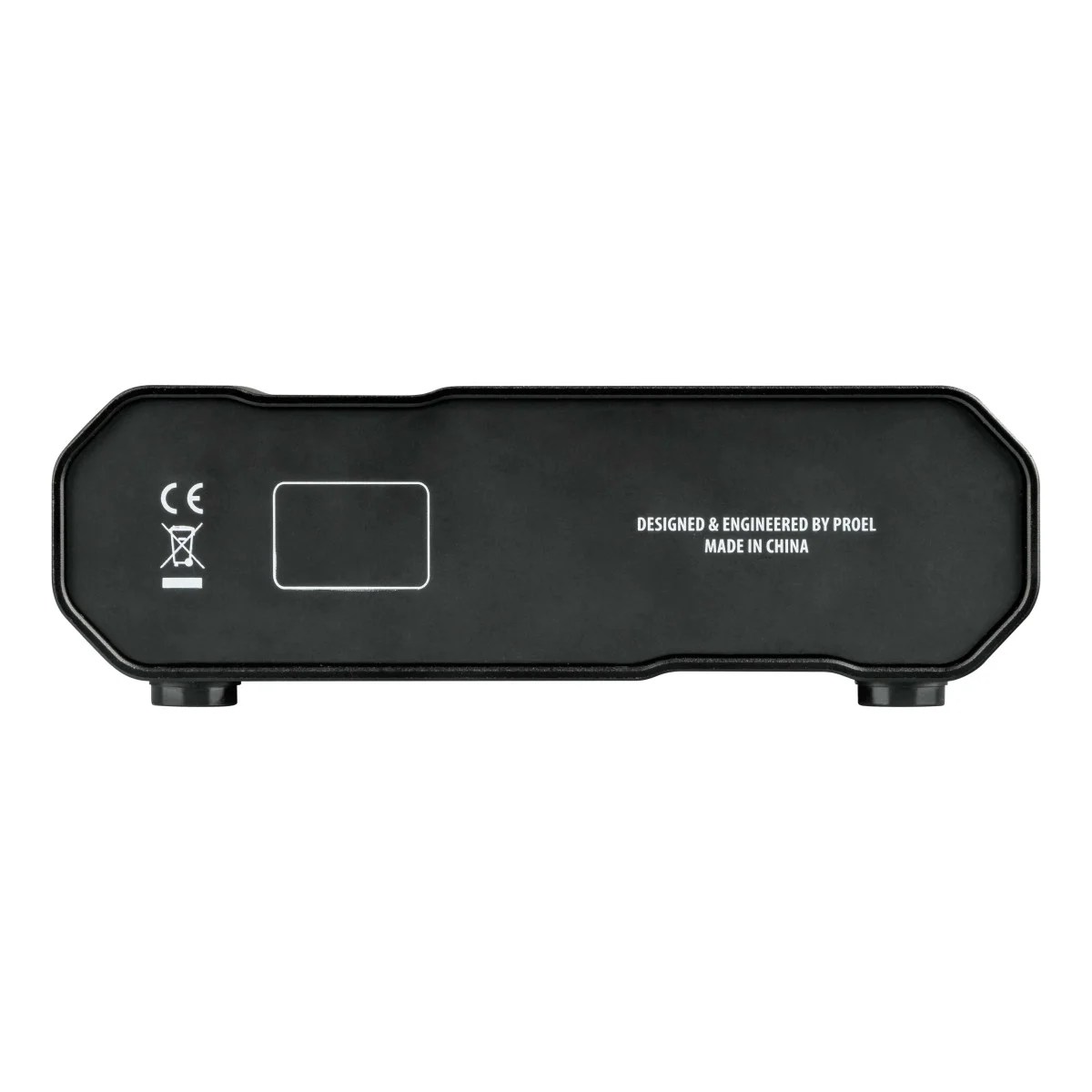

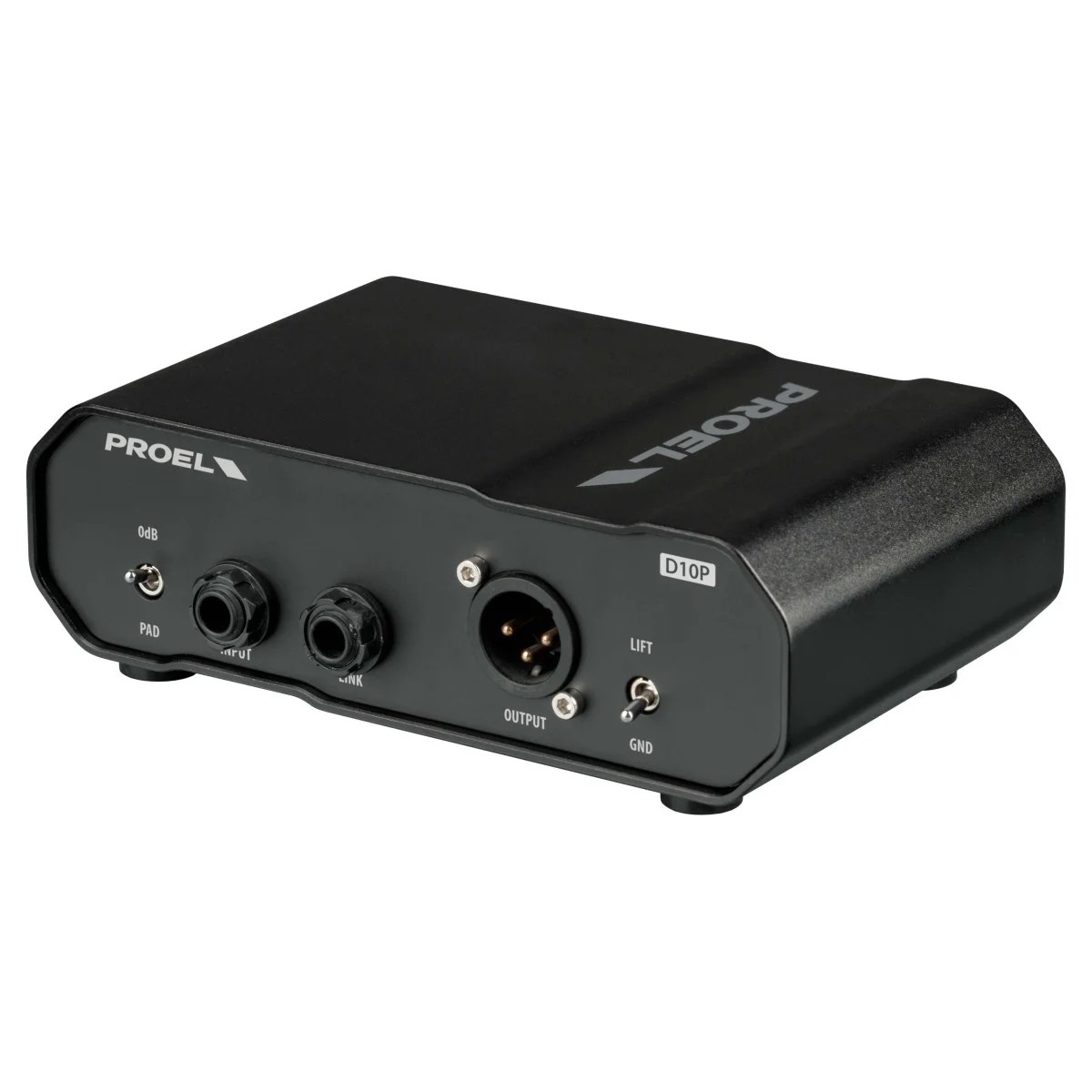

PROEL D10P Passive Direct Injection Box
Passive 1-channel Direct Box with PAD, LINK, LIFT/GROUND
Description
DI Boxes perform several important functions: they are designed for impedance matching and balancing the signal of a guitar, a keyboard or any line-level output source, and for injecting directly the signal with very long connections to the XLR microphone inputs of a mixing console.
D10P is a passive direct box with transformer and does not require any external power such as phantom power or batteries to work. The advantage of a transformer is the possibility to avoid any electrical connection between the sound source and the mixer. This provides two huge benefits: with no electrical path, ground loops are eliminated and the cancellation of common-mode noise, like hum, is possible.
Specification
TECHNICAL SPECIFICATIONS
| Input Section | |
| Connectors | 1 x 1/4″ JACK unbalanced |
| Link | 1 x 1/4″ JACK unbalanced |
| Input Impedance | >250 Kohm (no PAD) / 10 Kohm (with PAD) |
| Max Input Level | +20 dBu (no PAD) / +40 dBu (with PAD) |
| Output Section | |
| Connector | XLR-M balanced |
| Min Load Impedance | 600 Ohms or greater |
| Output | Transformer Balanced (fully isolated) |
| Max Output Level | 0 dBu |
| System Performance | |
| Distortion THD+N 0dBu | < 0.007 % |
| Frequency Response | 10 Hz to 100 kHz (-3 dB) |
| Insertion Loss | -20 dB |
| General | |
| Controls | PAD -20 dB, GND LIFT |
| Dimensions (W x H x D) | 160 x 52 x 106 mm (6.30 x 2.05 x 4.17 “) |
| Weight | 0,51 Kg |
