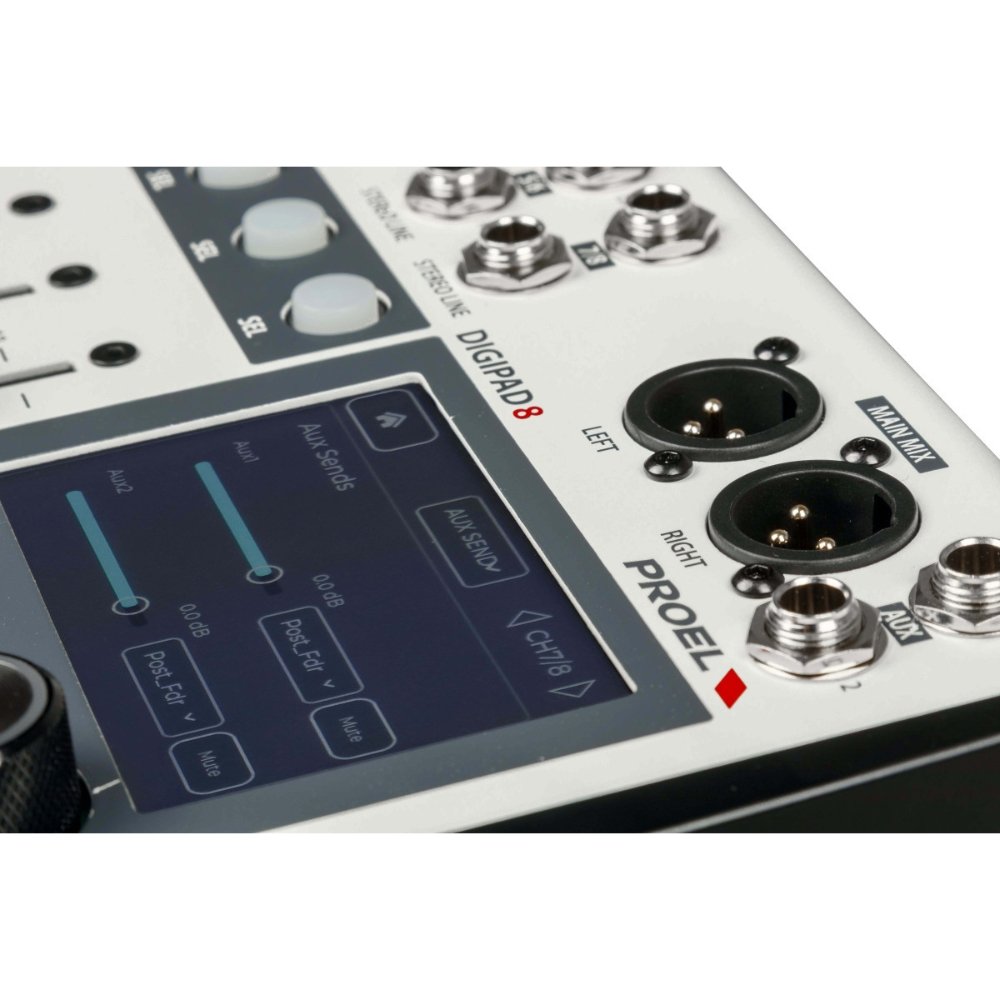

PROEL DIGIPAD8 USB-Bluetooth 8-channel Digital Mixer
Portable 8-channel Digital Mixer with 4 Combo/TRS Input wtih Bluetooth USB Audio Interface with Rev Send
Description
DIGIPAD8 – Power Meets Portability
Step into the future of mixing with DIGIPAD8, the compact digital console that redefines what’s possible in its class. Designed by Proel to deliver professional performance in a portable format, DIGIPAD8 combines cutting-edge digital technology with effortless usability — the ideal companion for musicians, sound engineers, and creators who demand both power and flexibility.
Mixing, Made Effortless
Take full control of your sound with 7 motorized faders that respond with speed and precision, giving you instant access to saved scenes and allowing seamless transitions even in the most challenging live situations. The large touchscreen display puts every parameter at your fingertips, offering an intuitive workflow that adapts to your style.
Connected to Your World
From microphones and instruments to playback devices, DIGIPAD 8 is ready for anything thanks to its combo MIC/LINE and stereo inputs. With two independent AUX sends and a dedicated FX send, it adapts easily to any setup, whether on stage, in the studio, or in fixed installations.
For today’s hybrid world of performance and streaming, the 48 kHz USB audio interface ensures pristine recording and playback, while the dedicated Bluetooth channel lets you stream music wirelessly with a single touch.
Total Freedom, Anywhere
Use DIGIPAD8 as a powerful stand-alone console or take full control from your smartphone, tablet or PC with the dedicated iOS, Android, MacOS and Windows app. Save and recall your favorite configurations in seconds, and enjoy a workflow that’s as flexible as your creativity.
Your Sound, Your Way
Compact yet powerful, DIGIPAD8 brings together professional-grade features, intuitive control, and complete portability in one sleek design. Whether you’re performing live, recording in the studio, or running an installation, DIGIPAD8 gives you the freedom to mix with confidence — anytime, anywhere.
DIGIPAD8 – The smart way to mix.
Specification
| INPUT CHANNELS | |||
| Mic/Line Input 1-2 | sensitivity | from 0 to -45 dB | Balanced XLR-F / Balanced JACK |
| impedance | 10 kΩ | ||
| Mic/Line Input 3-4 | sensitivity | from 0 to -45 dB | Balanced XLR-F |
| impedance | 10 kΩ | ||
| Hi-Z input 3-4 | sensitivity | from 0 to -35 dB | Unbalanced JACK |
| impedance | 1 MΩ | ||
| Stereo Line Input 5-8 | sensitivity | from 0 to -35 dB | Balanced JACK |
| impedance | 10 kΩ | ||
| EQ | 4-band full parametric EQ with LOW-CUT and HI-CUT | ||
| Compressor | Threshold/Ratio/Gain/Attack/Release | ||
| Gate | Threshold/Attenuation/Hold/Attack/Release | ||
| MASTER SECTION | |||
| MAIN MIX | nom. out level | 0 dBu | Balanced XLR-M |
| MAIN MIX EQ | 4-band full parametric EQ with LOW-CUT and Hi-CUT | ||
| MAIN MIX Limiter | Threshold/Attack/Release | ||
| AUX 1-2 output | nom. out level | 0 dBu | Balanced JACK |
| AUX 1-2 EQ | 4-band full parametric EQ with LOW-CUT and Hi-CUT | ||
| AUX 1-2 Limiter | Threshold/Attack/Release | ||
| HEADPHONES | min. impedance | 32 Ω | 2 x Stereo MINIJACK |
| max. out level | 135 mW | ||
| REVERB | Reverb Size | ||
| USB / BLUETOOTH INTERFACE | |||
| Bluetooth | Version 5.2, Audio Streaming | ||
| PC USB interface | USB 2.0 / 3.0 | Type C | |
| A/D and D/A converters | 24 bit – 48 KHz | ||
| USER INTERFACE | |||
| Onboard controls | Seven 60mm motor-faders 3″ Capacitive Touch Display Seven DIRECT SELECTION keys Eight direct access keys Rotary dial |
||
| Remote control | Integrated WI-FI Interface Windows App MacOS Android App iOS App |
||
| GENERAL SPECIFICATIONS | |||
| Maximum level | all outputs | +18 dBu | |
| Crosstalk | meas. at 1 KHz | -105 dB | |
| HUM & Noise | unweighted | -85 dBu | A weighted -89 dBu |
| THD + Noise | at +4dB, 1kHz | > 0.002% | |
| Dimensions (WxHxD) | 280 x 187 x 53.5 mm | ||
| Weight | 2.10 kg | ||
| POWER REQUIREMENTS | |||
| Supply | 5V / 3A | USB Type C | |
| Mains Supply Voltage | 100-240 VAC (±10%) 50 / 60 Hz USB power adapter available with EU / US / UK plug |
||
| Consumption | 60 W | ||
