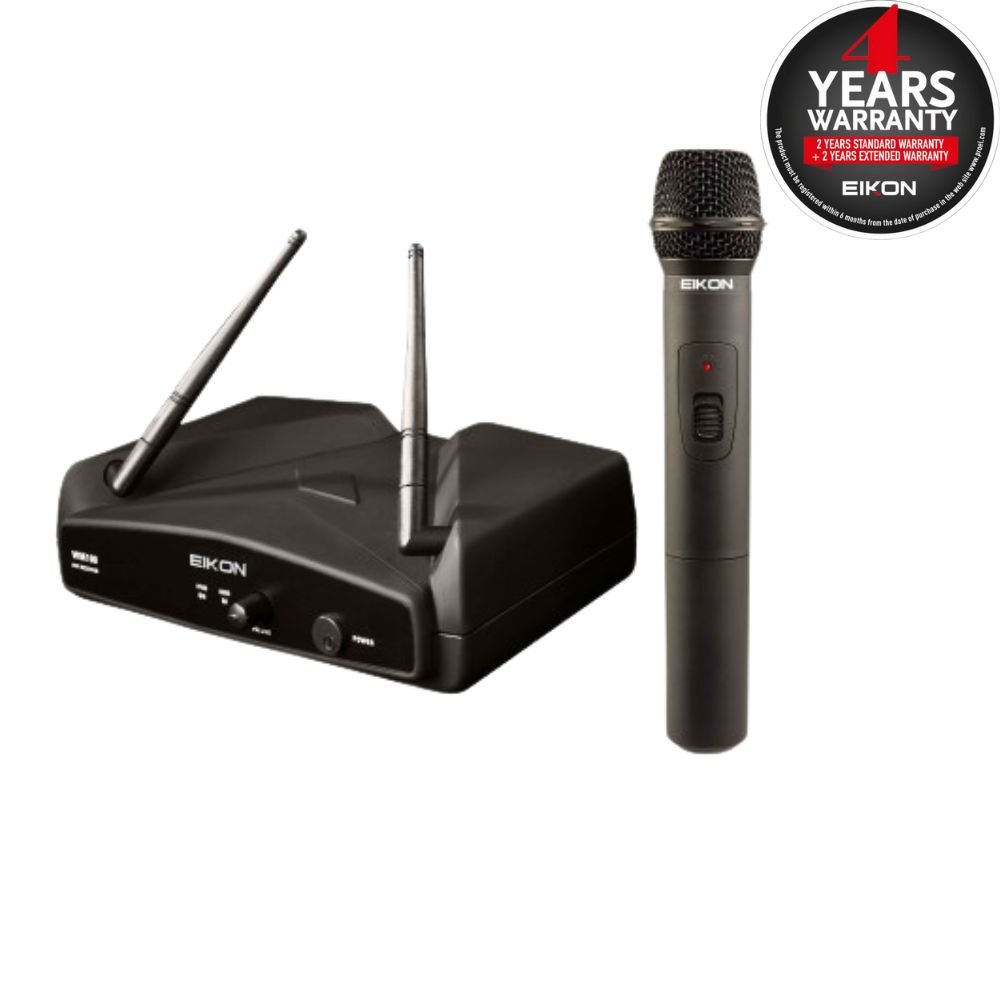

EIKON WM100M VHF wireless handheld microphone system
VHF wireless handheld microphone system for the vocal range, even in professional stage applications.
The EIKON WM100M is a rugged and extremely reliable handheld wireless microphone in the VHF band.
It is available in 5 different frequencies, which can be used simultaneously. The cardioid capsule ensures optimal performance over the vocal range, even in professional stage applications.
It comes with a sturdy ABS carrying case.
- 175 – 216 Mhz frequency range
- 30 meter / 100 feet range
- 50 Hz – 15 KHz frequency response
- 95 dB audio dynamic range
- Two foldable antennas
- Up to 5 systems usable in the same location

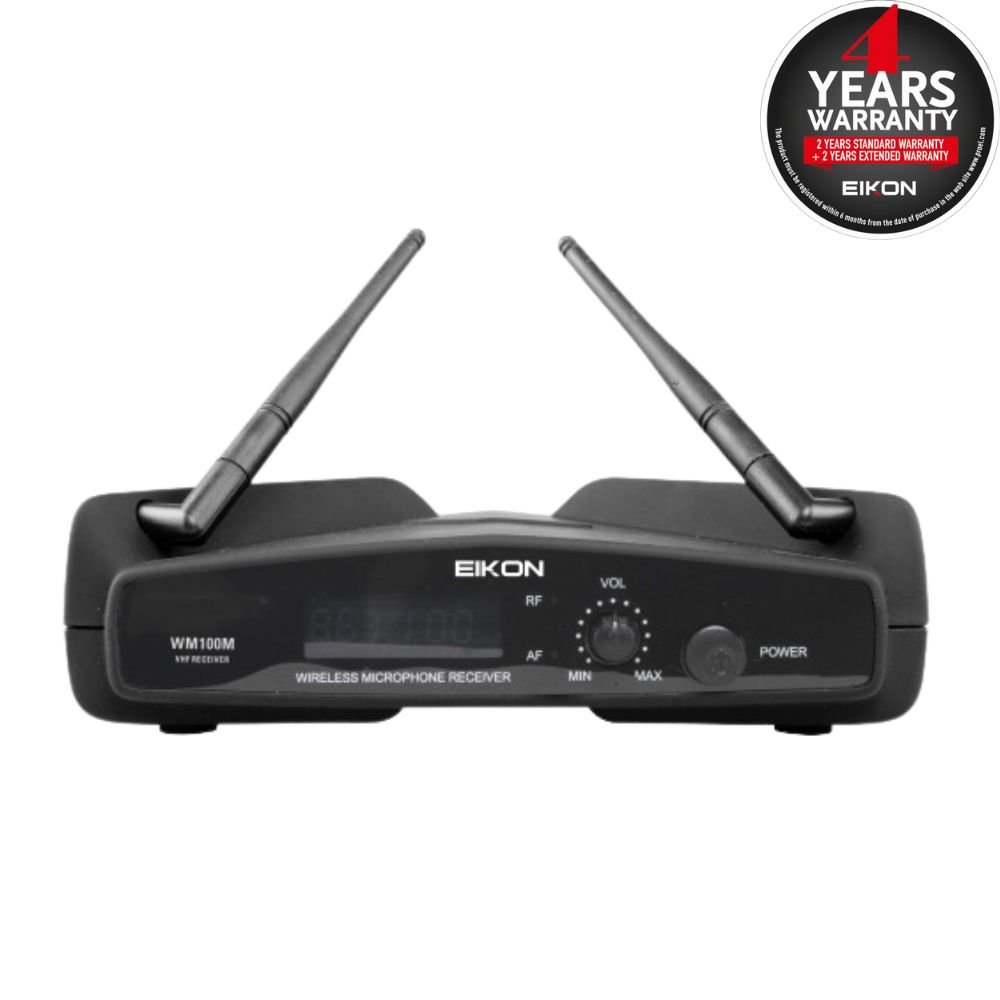

| RECEIVER | |
| Receiver Type | VHF BAND |
| Frequency Range | VHF 174~216 MHz |
| RF Frequency Stability | 0,00002 |
| Modulation Method | FM (F3E) |
| RF Image Rection | -75 dB |
| RF Interference Reject | > 70 dB |
| Sensitivity | -105 dB |
| Audio Frequency Response | 50 – 15000 Hz |
| THD | < 1 % |
| Dynamic Range | >100 dB |
| S/N Ratio | > 70 dB |
| Output Connector | Balanced XLR Unbalanced ¼ “ jack |
| Power Requirement | DC 13-15 V DC / 200mA |
| Dimensions (mm) | H 45 x L175 x W 135 |

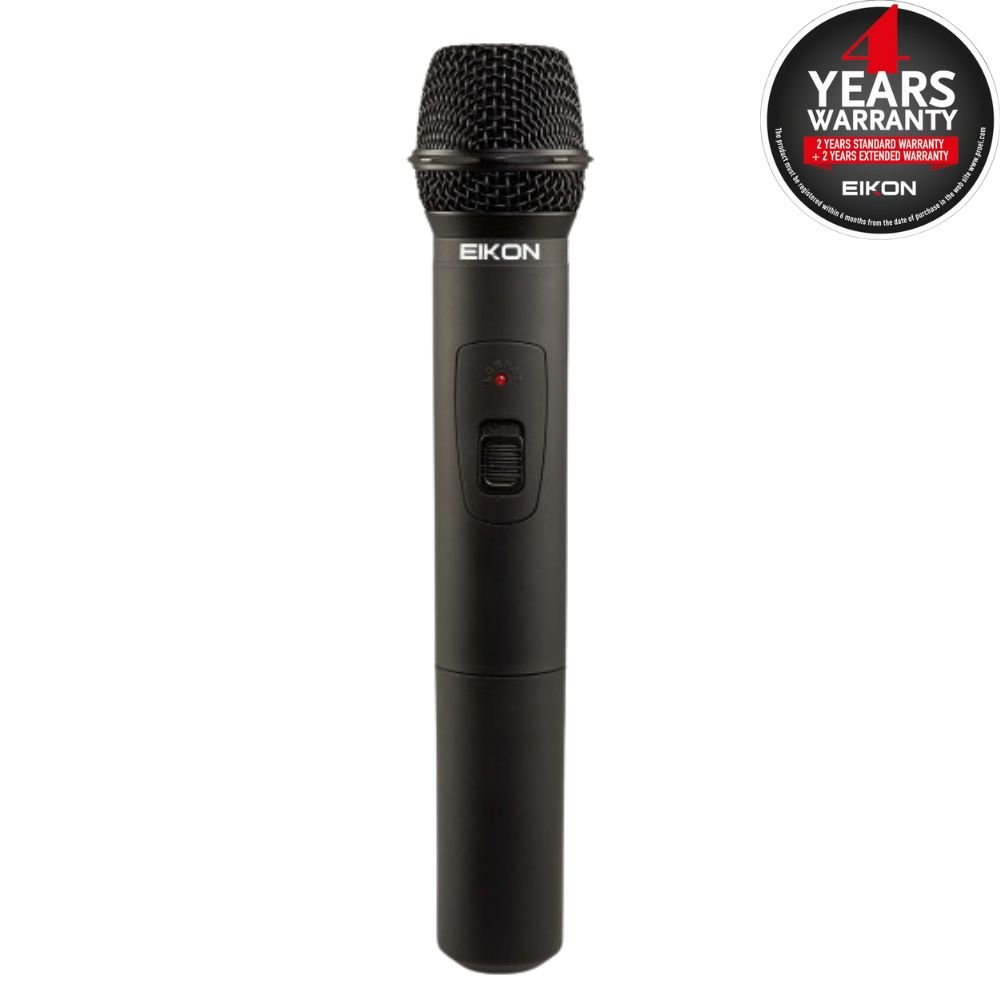

| HANDHELD TRANSMITTER | |
| RF Frequency Band | 174~216 MHz |
| Frequency Stability | 0,00002 |
| Modulation Method | FM (F3E) |
| RF Modulation | > 30 kHz |
| Audio Frequency Response | 50 – 15000 Hz |
| Spurious Emission | Under limits EN 300422 |
| RF Output Power | < 10 dBm |
| Power Requirement | 2 x 1,5 Volt AA type |
| Dimensions (mm) | H 283 x Ø 50 |
